Complete unit designed to produce 300-400 kg/h PVC and based on 140 mm BAUSANO double extruder.
Line is composed of:

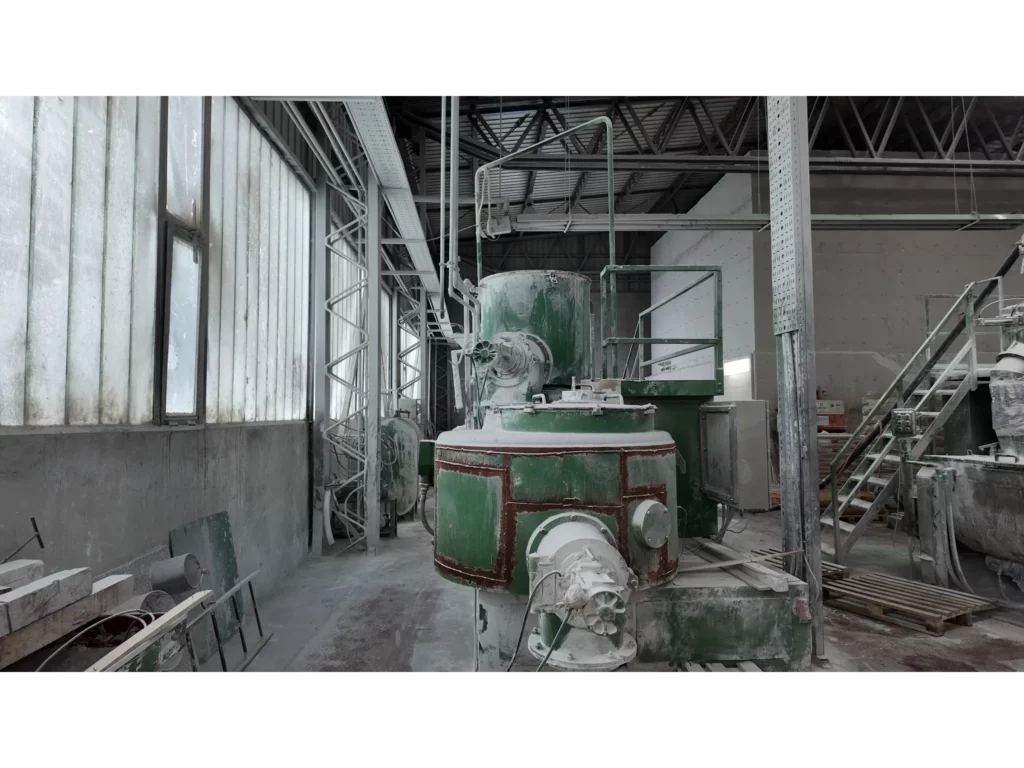

Diosna kan – 600 Hot-Cold mixer
140 mm/28 BAUSANO double screw extruder
Cold granulating unit
Warm mixer
Capacity: 150 kg PVC (Hard) – 200 kg PVC (Soft)
Number of blades: 3
Motor 110/160 kW
Cold Mixer
Capacity: 400 kg PVC
Number of blades: 1
Motor 35 kW

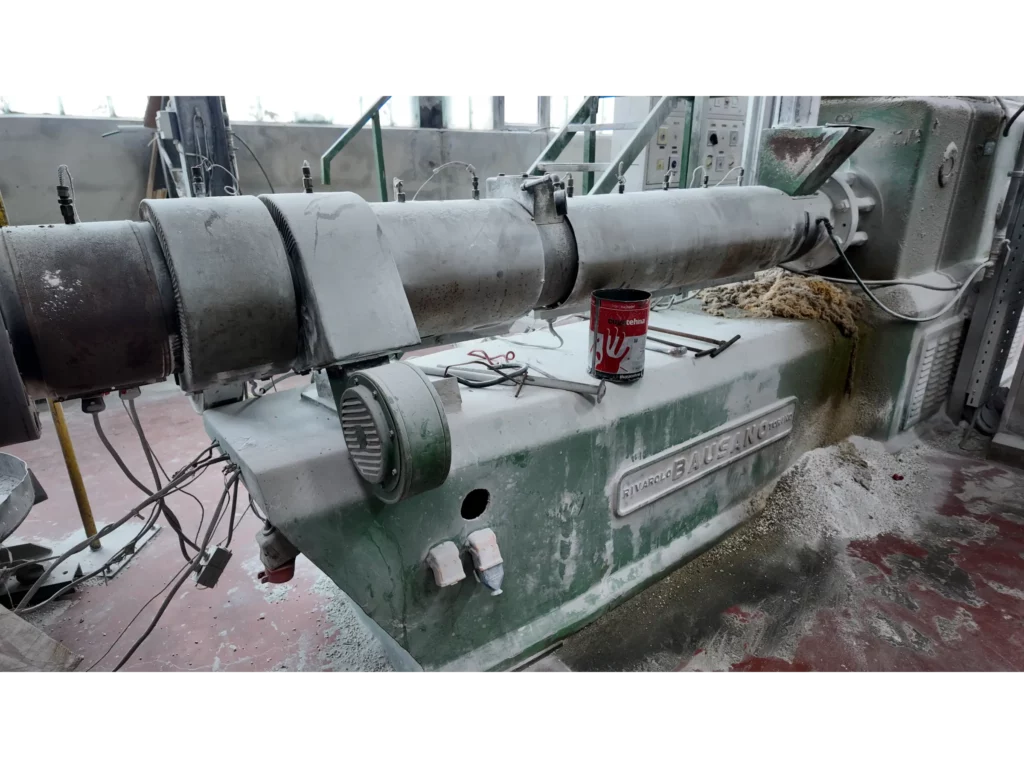

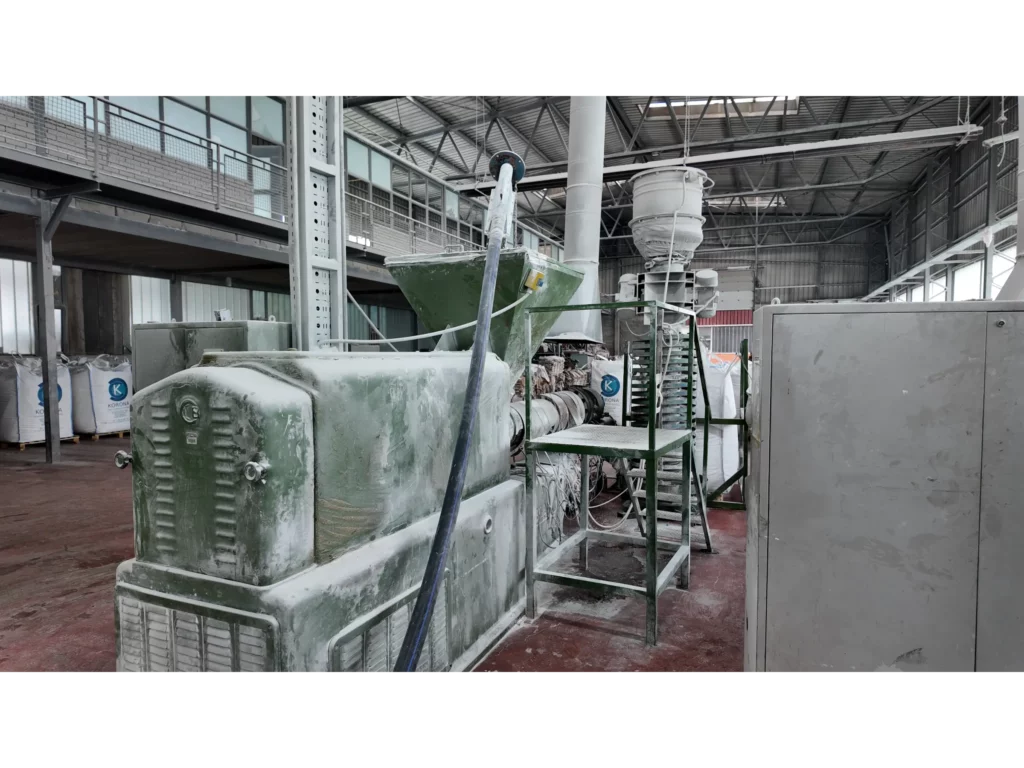

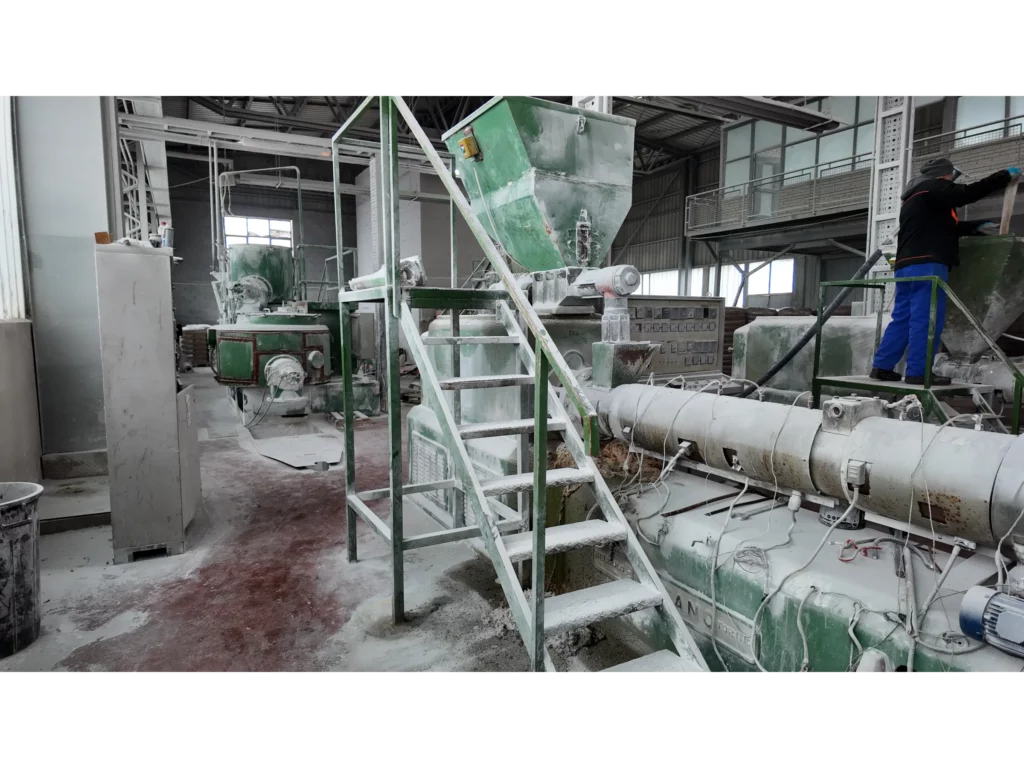

Double Screw extruder
Number of screw: 2
Screw size: 140 mm/28 D
Output: 300-400 kg/h
Motor: 55 kW
Heating power: 56 kW
Cooling power: 2,5 kW for fans
Number of heating zone: 5
Total installed power: 130 kW
