WINDAK AR24-D Fully automated Spooling Line

Automatic spooling line designed for round cables with a diameter from 3 mm to 15 mm and for flat cables up to 18mm.

Spools

• diameter: 300 to 600mm
• width: 150 to 600mm
• weight : 150 kg maximum

Winding speed: up to 600 m/min

Spool change time: 30 sec.

Included Features:

• Length counter
• Precision cable laying system
• Automatic loading and unloading of reels
• Automatic cable feeding and winding start
• Automatic cable cutting
• Automatic wrapping of wound cable with stretch film
• Automatic product labeling
• Automatic palletizing with single-pallet accumulation
• HMI with recipes menu

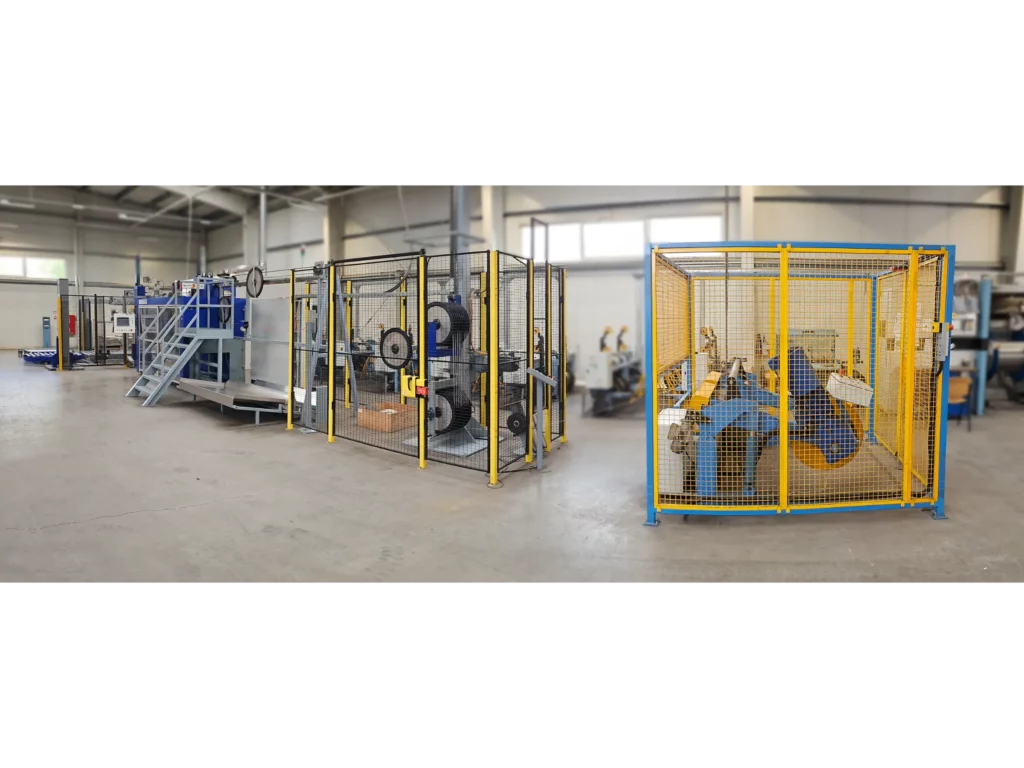

Line composition:

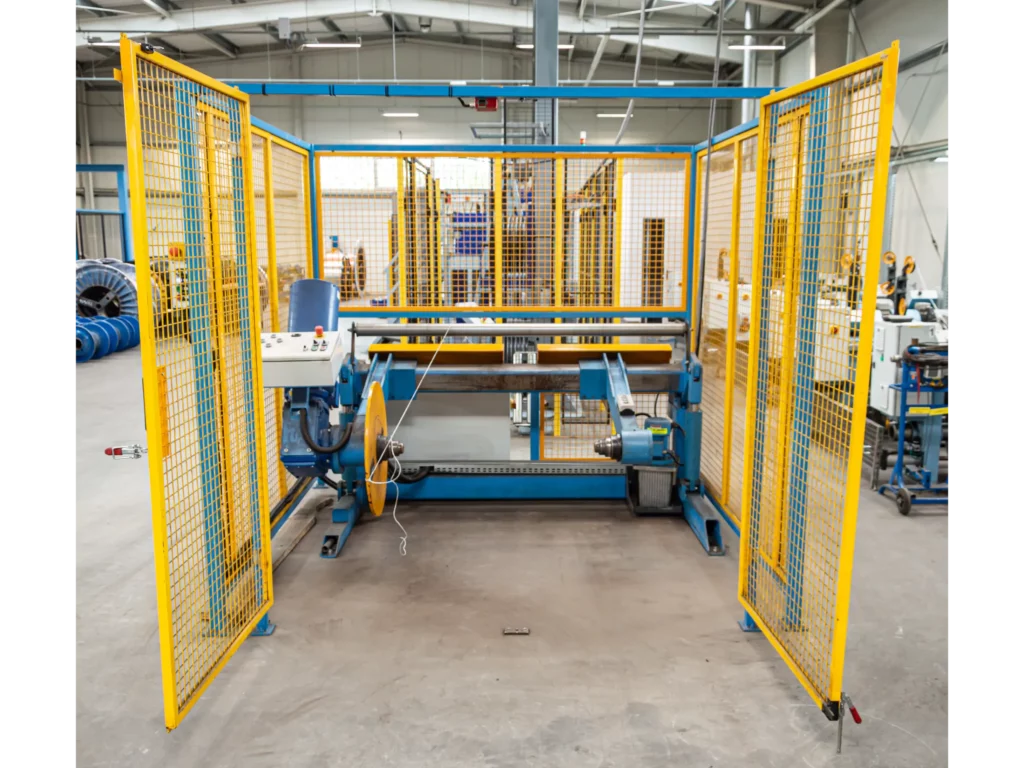

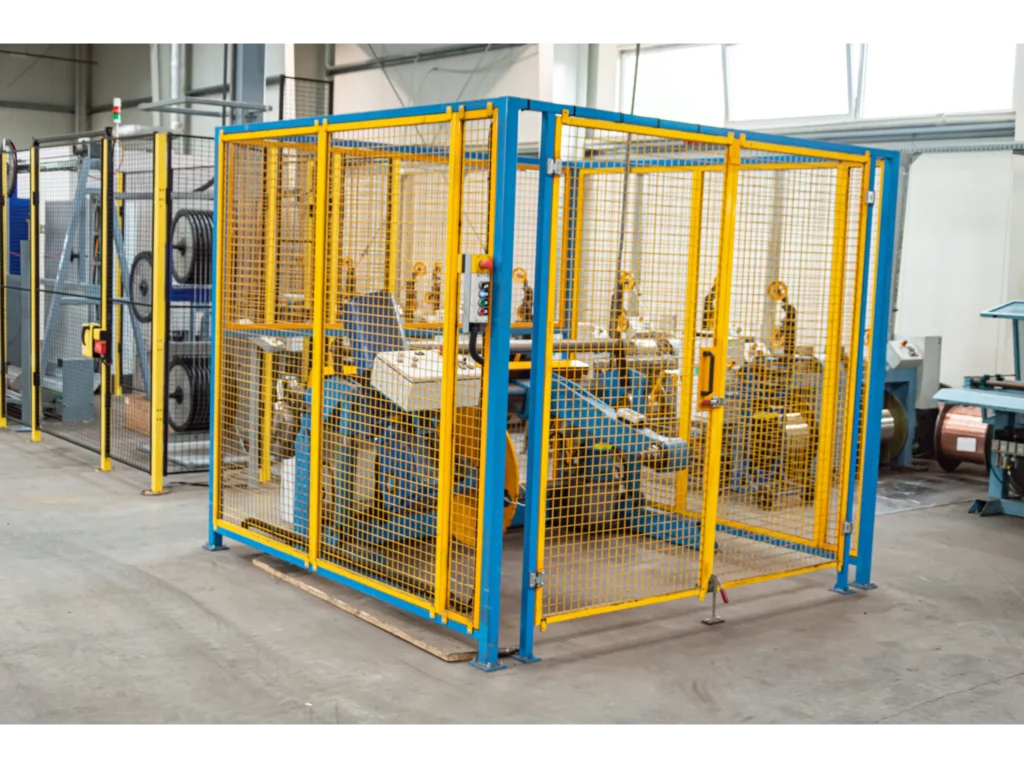

1.    Motorized cantilever pay-off for drums from 800mm up to 1600mm (3000 kg maximum)

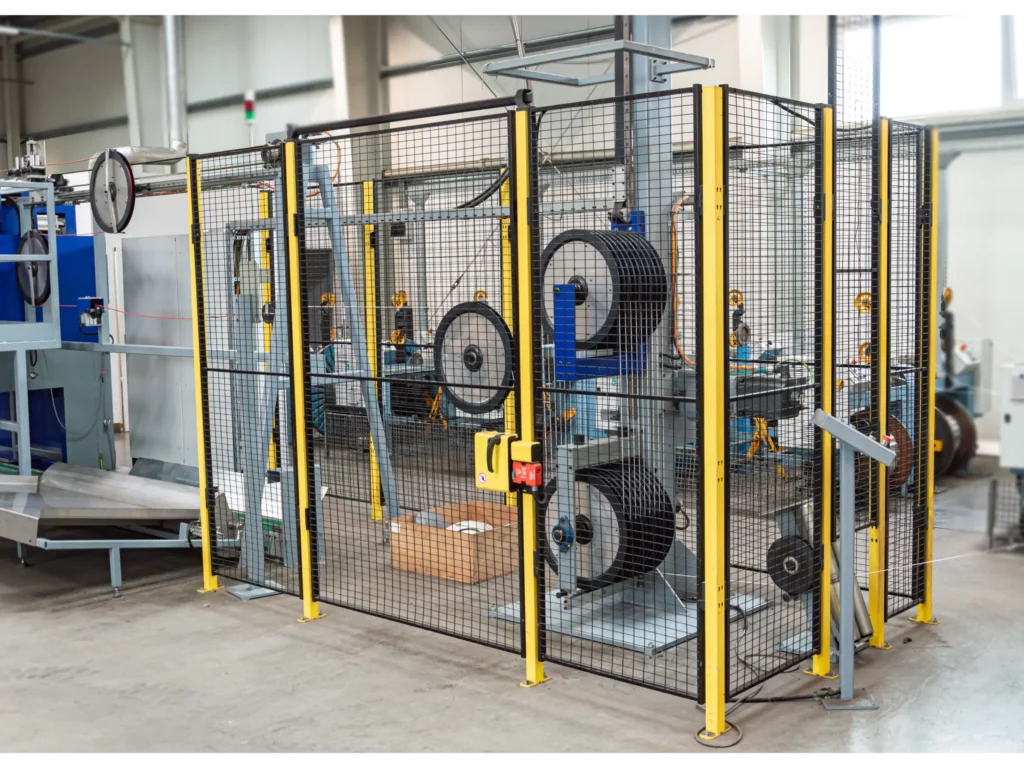

2.   Vertical accumulator

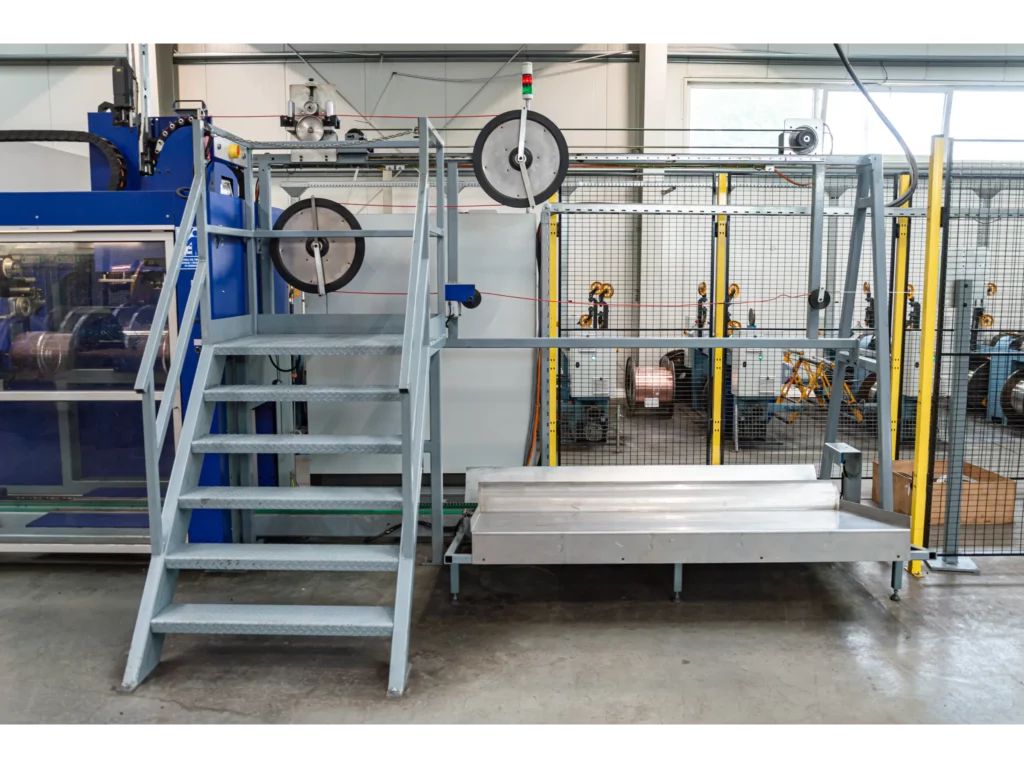

3.   AR24-D Automatic dual spooler

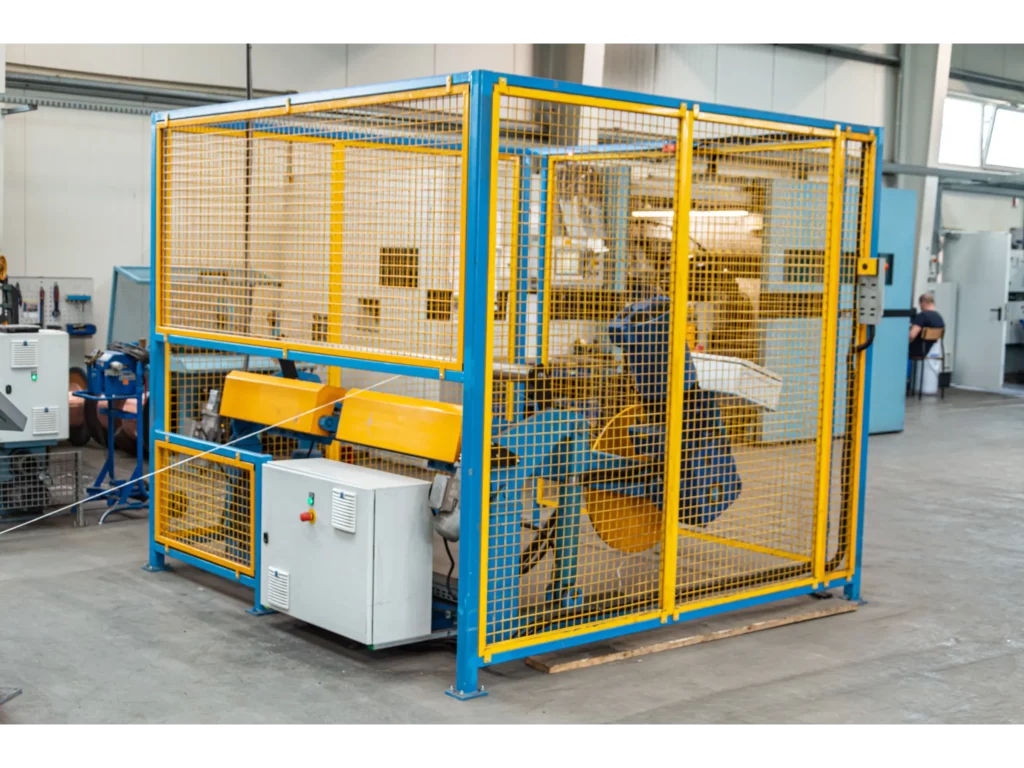

4.   Automatic palletizer

5. Electrical panel
