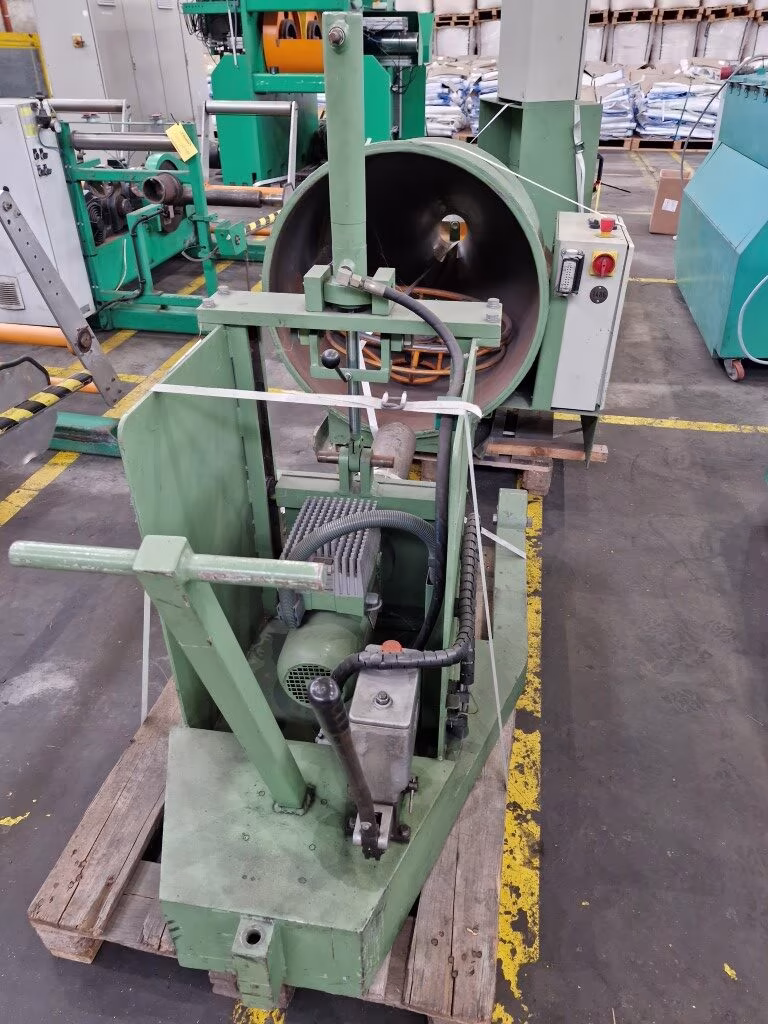

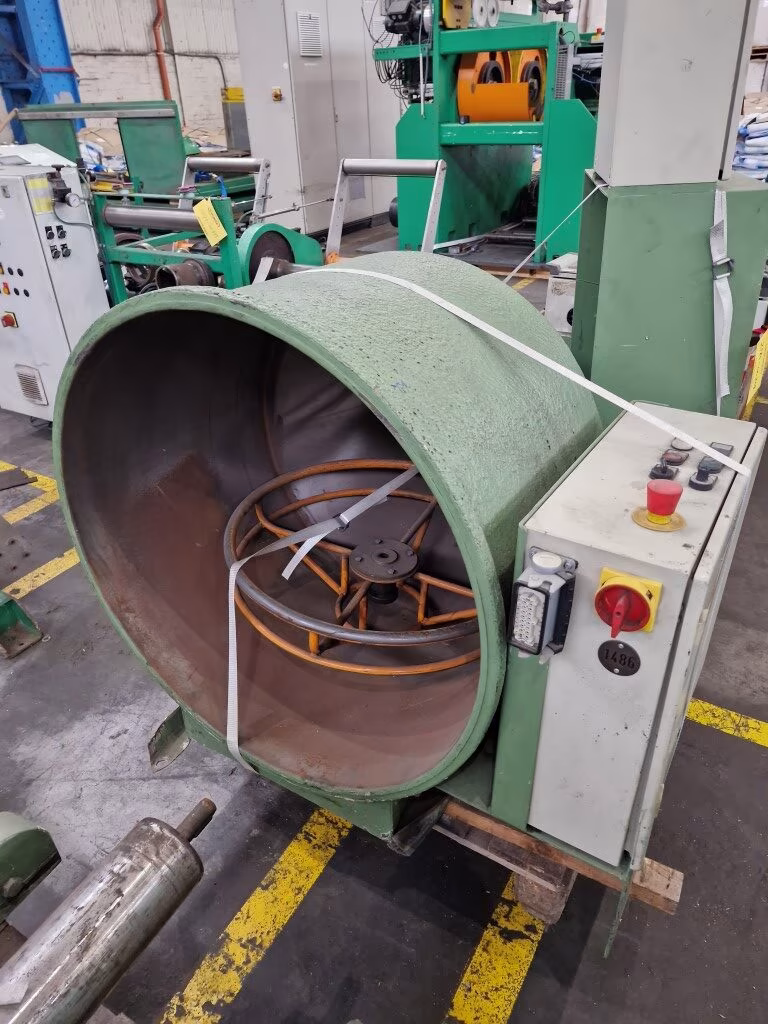

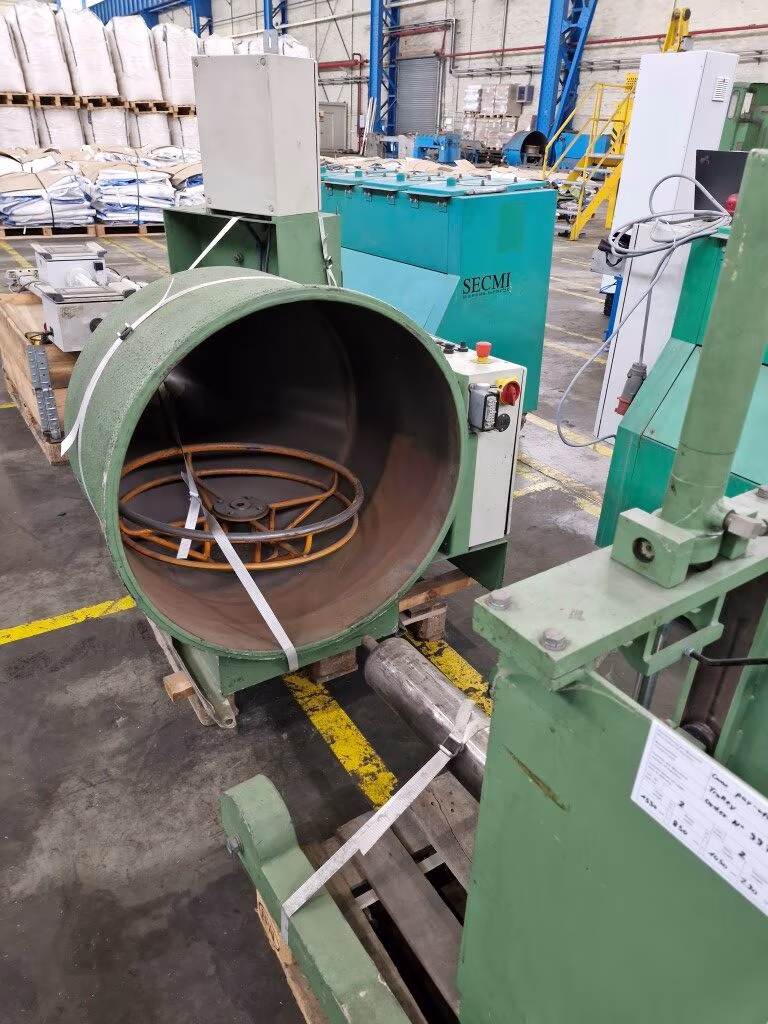

VHF EÜKA 630 Single Cone Pay off with EBU3 Braking System

0423-00213 Pay-offs, Single/Dual Cone type EÜKA 630

Single Cone pay off made in 2003

Designed for unwinding copper wires from 0,50 up to 1,13mm diameter

Bobbin data:
* External diameter 630mm
* Barrel diameter 355mm
* Overall width 475mm
* Bore diameter 127mm
* Weight 650kg maximum

Speed : 1500m/min maximum

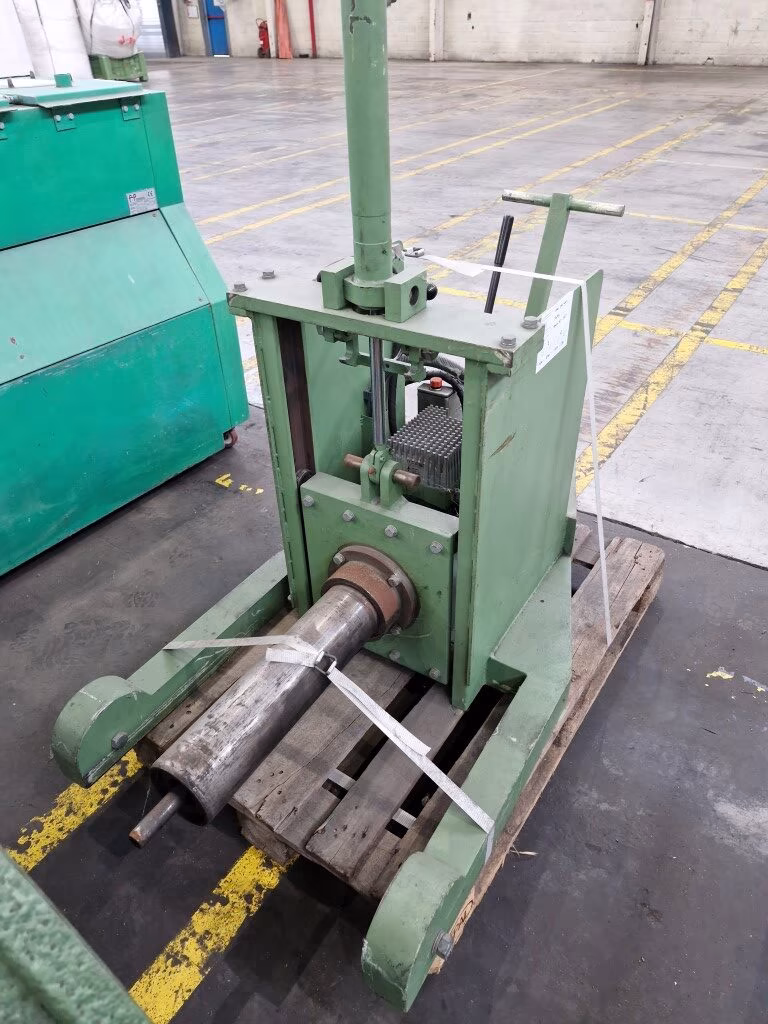

Trolley:
* Manual hydraulic pump to lift the bobbin
* Motor : AC 0,75kW

Braking Force regulated by a band braked wheel

This information is reserved for members

Some additional details are only available for registered members. Log in or request access to view more.
