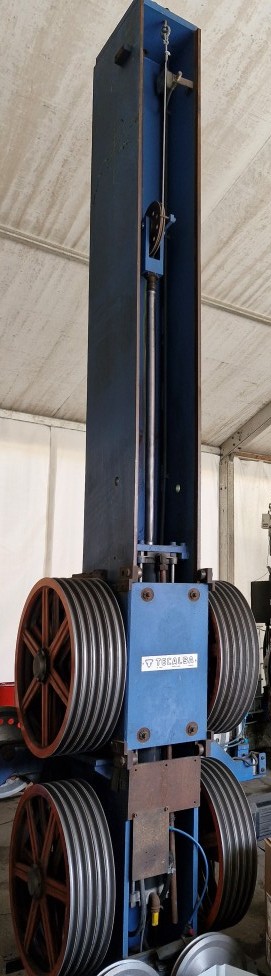

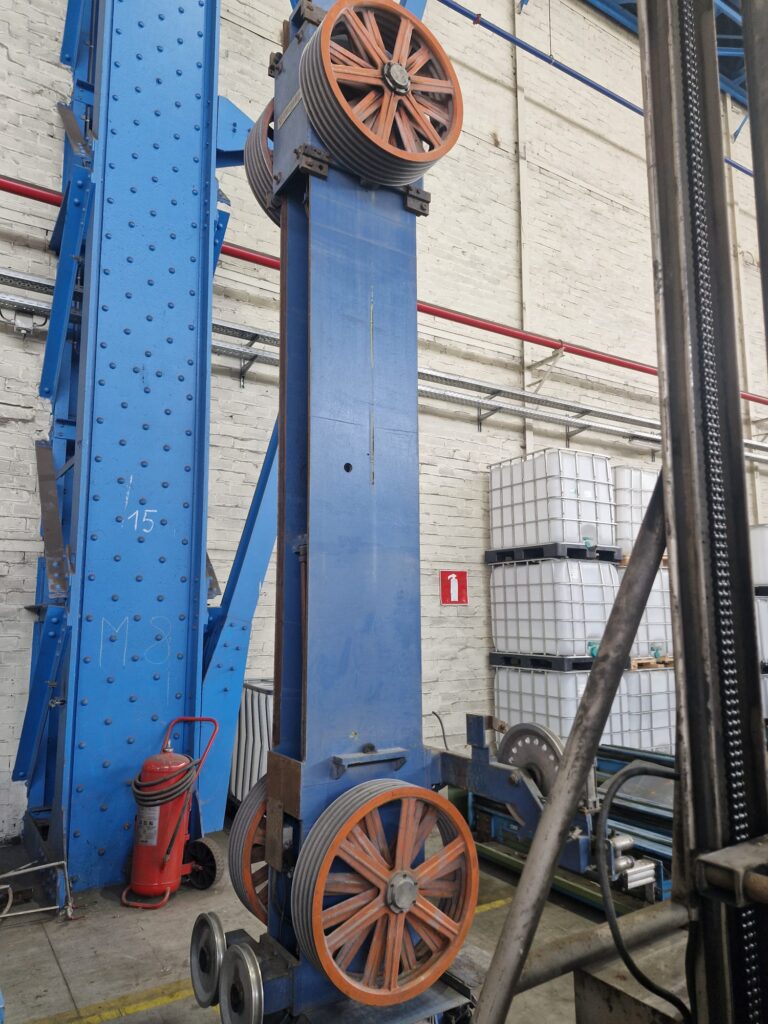

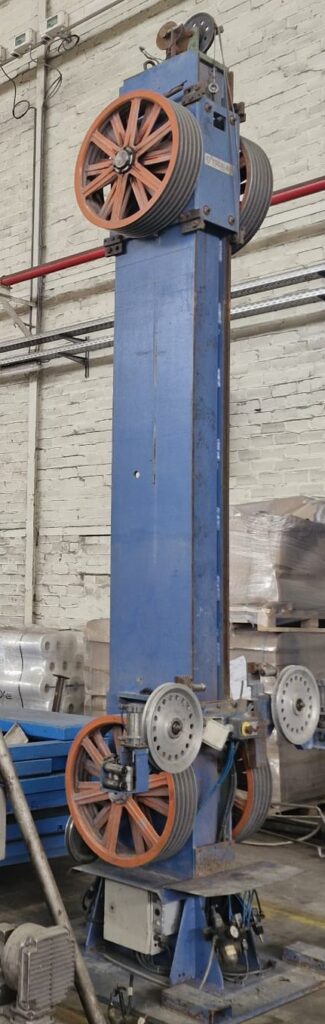

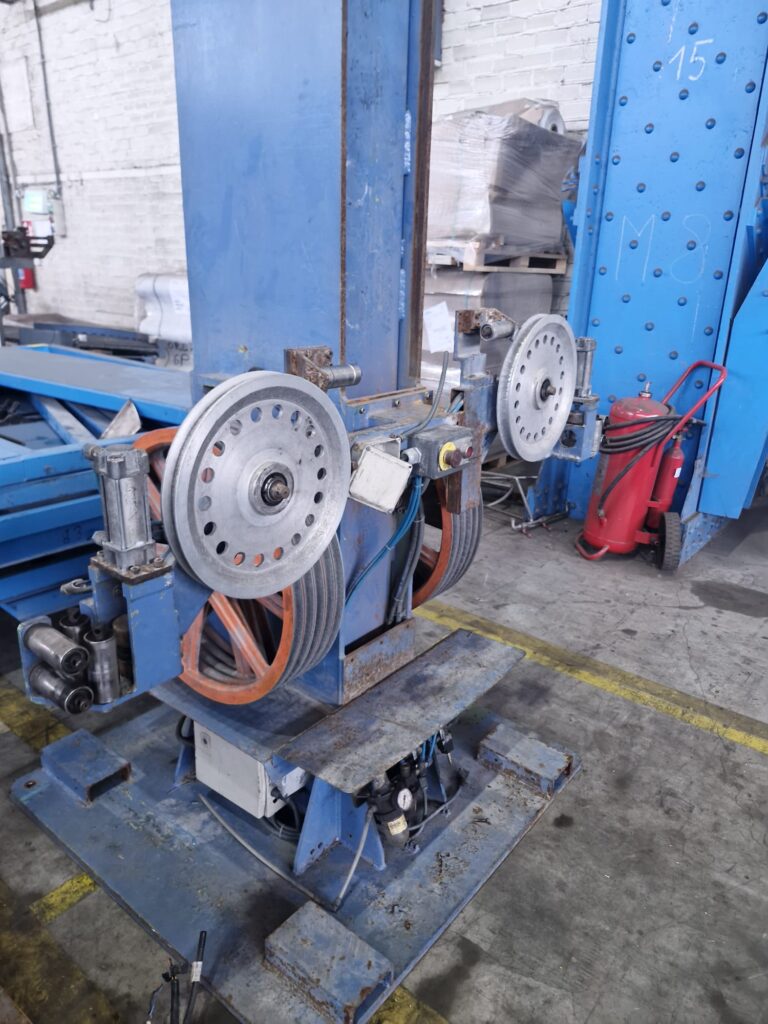

TECALSA 60 meter Pneumatic Vertical Accumulator

0330-00342 Accumulators
Made in 1998

Vertical accumulator with an accumulation capacity of 60 meter

Pneumatically actuated

Specifications:

  • Product diameter: 20mm maximum
  • Pulleys diameter: 600mm
  • Number of fixed pulleys: 5 on each side
  • Number of movable pulleys: 6 on each side
  • Pulleys material: Aluminium
  • Stroke of movable pulleys: 3.000mm
