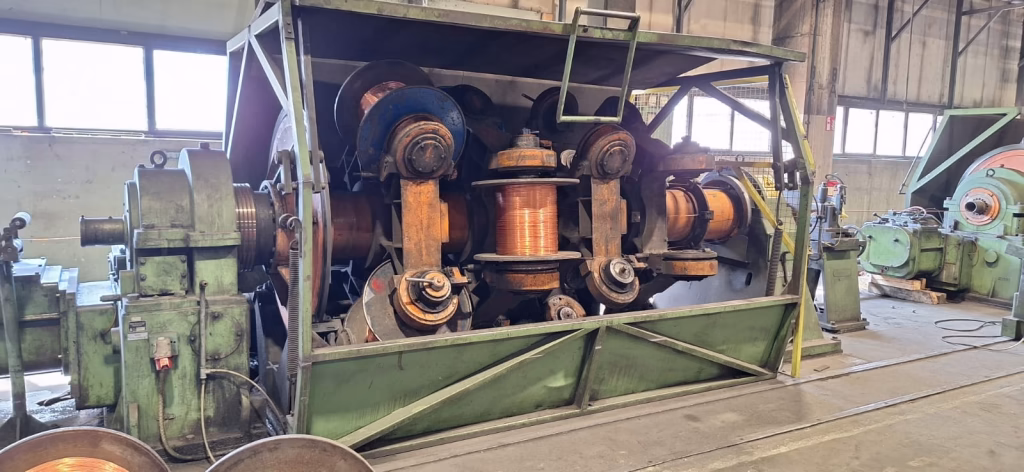

STOLBERGER 12+18 630mm Rigid Stranding line, Model KJA

Complete 630mm Rigid Stranding line in working condition (in use until end of June 2025)

Product range:
- conductors up to 150mm2 Al and Cu conductors
- sector shaped conductors
- compacted conductors
- screening (with up to 30 wires)
- stranded multi-core cables

Driven by line shaft
Main drive: 110kW DC motor

Delivery includes:
* 630mm central Pay off
* 630 to 1200mm column type pay off

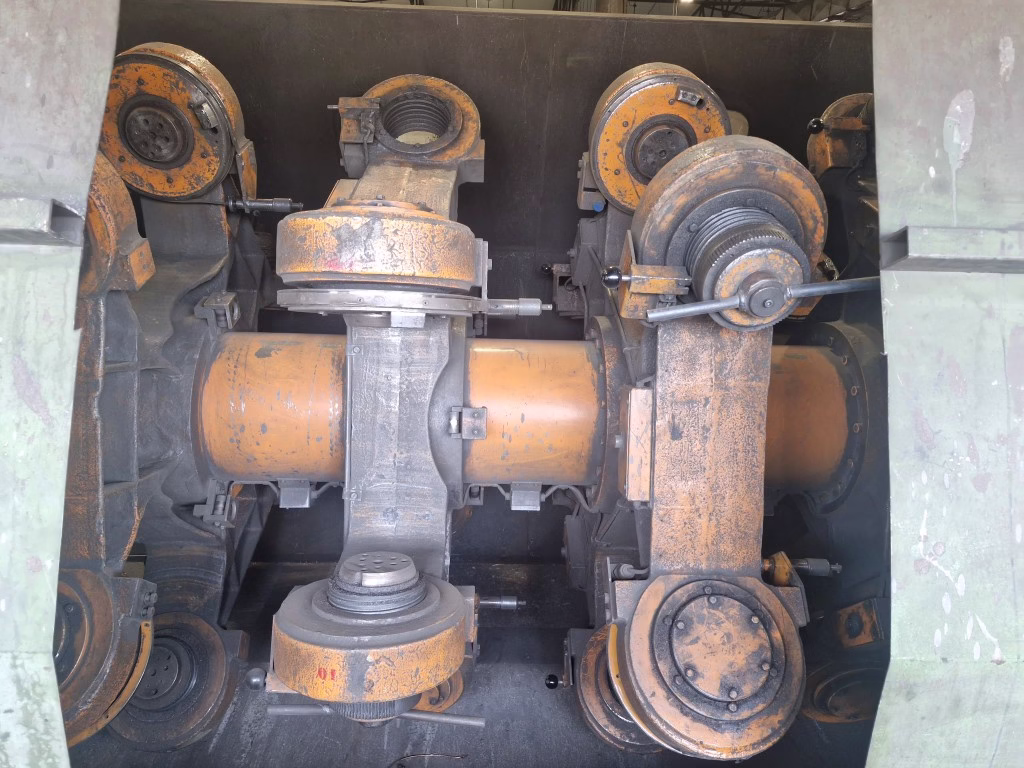

* 12 bobbins rigid stranding cage
* Compacting head
* 18 bobbins rigid stranding cage
* Compacting head
* Side loading trolley for 1 bobbins
* 1500mm Single wheel pulling capstan with gearbox
* 110kW DC Motor
* 1200 to 2000mm Column type take up
* Electrical panel
