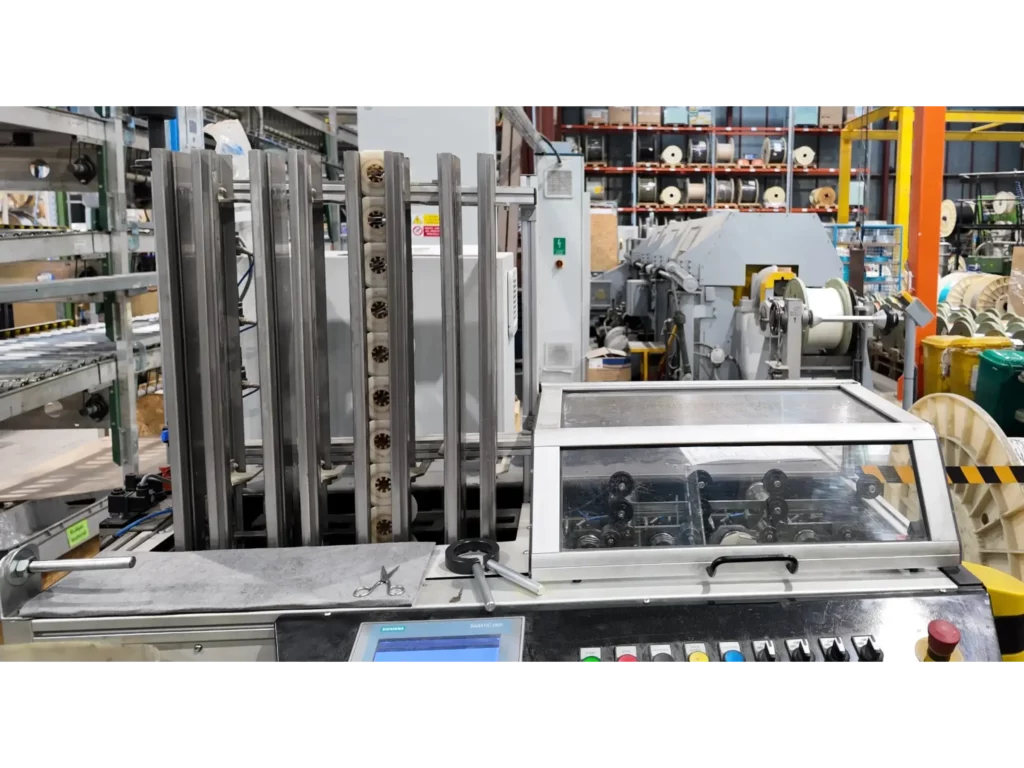

SPIRKA Four Spindle Winder Winder, Type ANS

Full automatic winder, four individually driven spindles

Capable to process all snap style bobbins, and all soft wires.

Suitable for processing Wardwell, Schnellflechter or Spirka bobbins, switching from one size to the other by the control panel.

Technical specifications:

• Maximum Bobbin Diameter 125 mm
• Line speed: 500 up to 8000 rpm (850m/min maximum)
• Wire Types: Copper, Aluminum, Textile and soft steel (max 45 kg:mm²)
• Wire Size and Number of Ends: 0,4 to 0,05 mm – 1 to 12 ends
• Maximum Traverse Length: 330 mm
• Traverse Control Infinitely adjustable through control panel (Dimension in mm, Resolution 0,1 mm)
• Length Measurement by Strokes Predetermined counter through control panel
