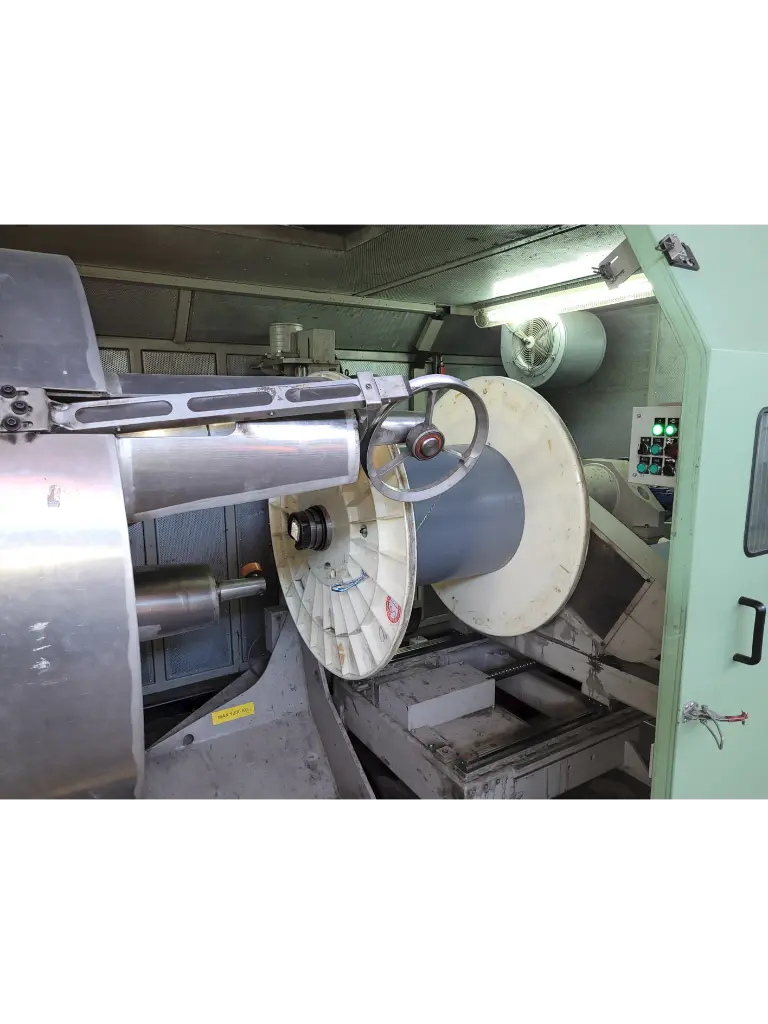

SETIC AST 1000R Single Twist Strander

SETIC AST 1000R is a premium single twist machine for stranding a whole range of cables:

• Cat. 5/6/7 (LAN) cables
• Telephone cables
• Building cables
• special cables

5300 working hours only

Range of products:

Max. finished cable dia.: 20mm

Max. cable size: 35mm²

Take up bobbin:

• Diameter: from 630mm up to 1000mm
• Overall width: 750mm maximum
• Bore diameter : 127mm or 80mm
• Max. weight: 1000kg

Speed: up to 900 twists/min.

Linear Speed: up to 200m/min

Stranding Lay Length: 12,5 to 300mm

Traversing Lay: 2,5 to 25mm

Scope of supply:

1 x CRT350RN-1M Rotating Capstan

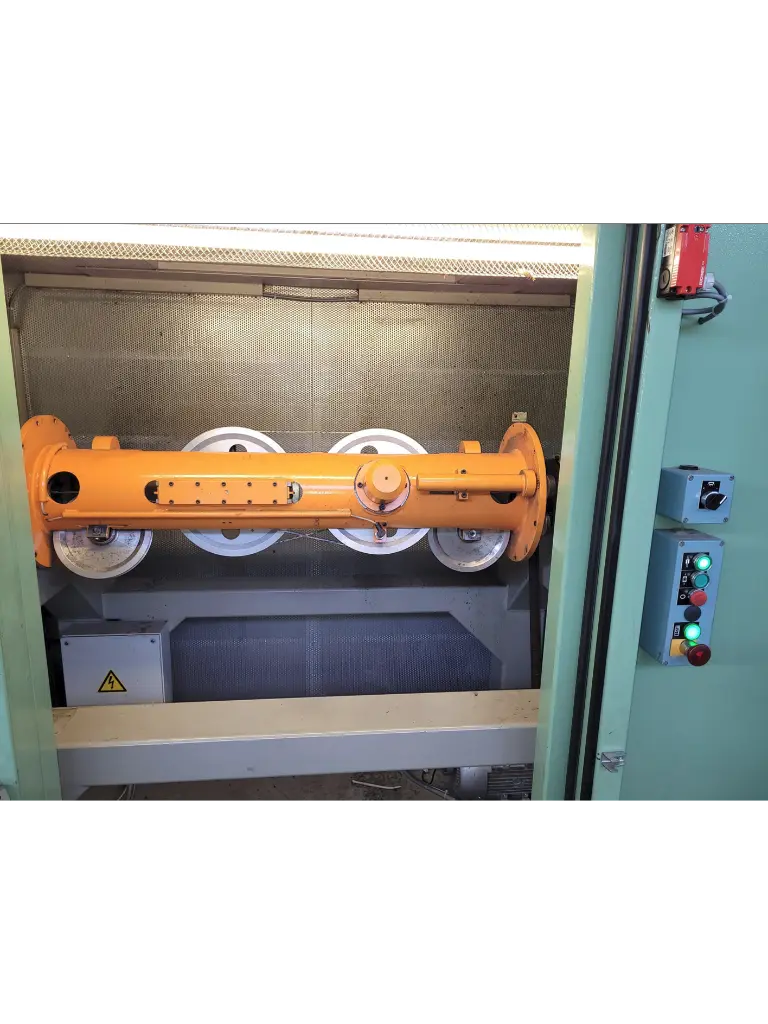

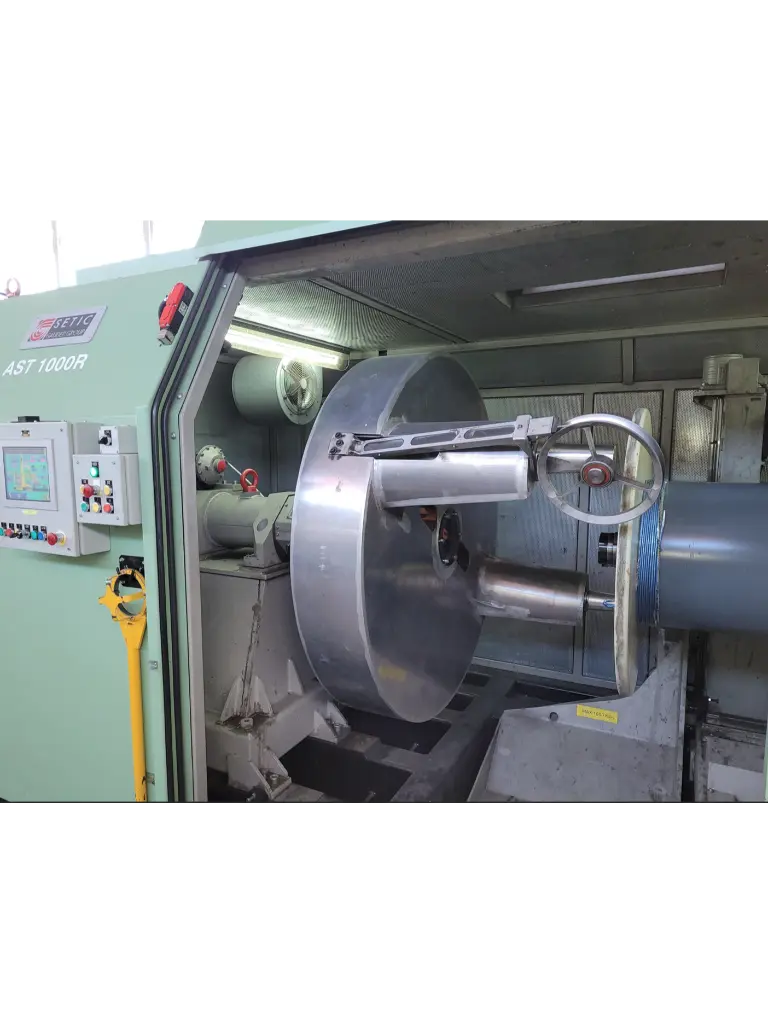

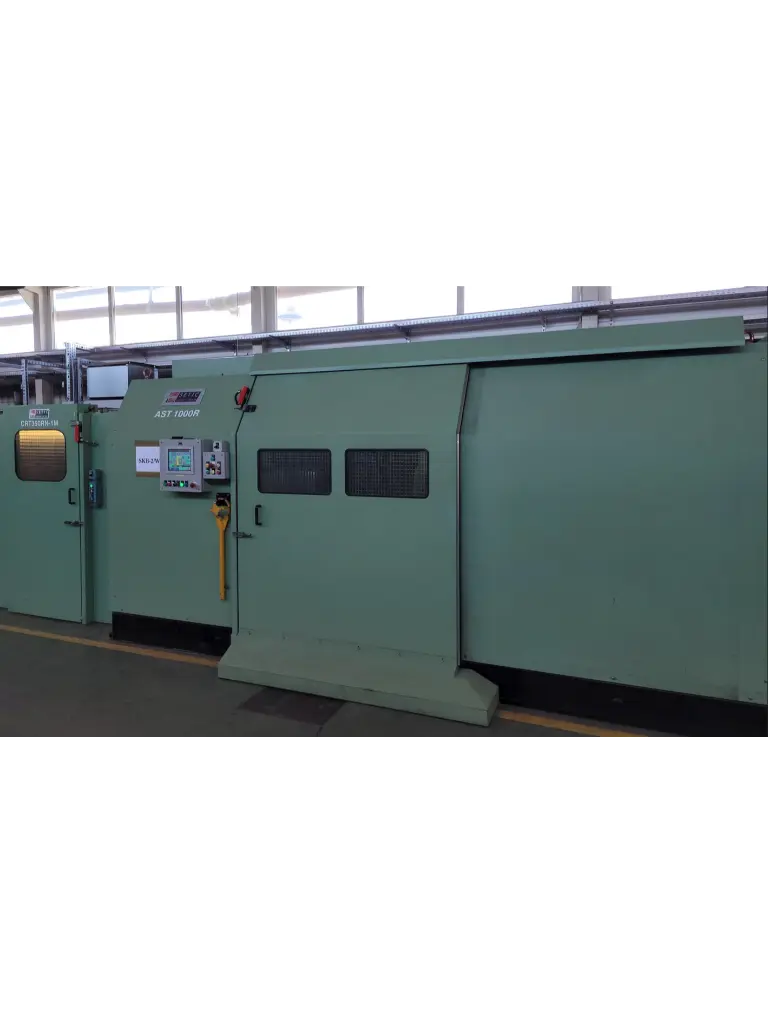

1 x AST 1000R Single Twist Strander

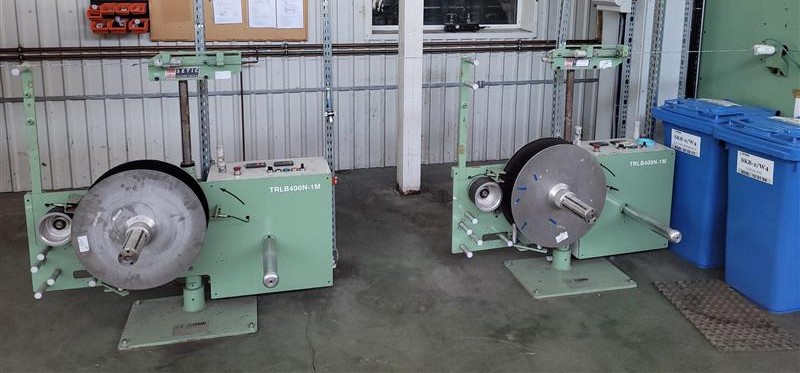

2 x TRLB400N-1M Longitudinal Tape Applicator

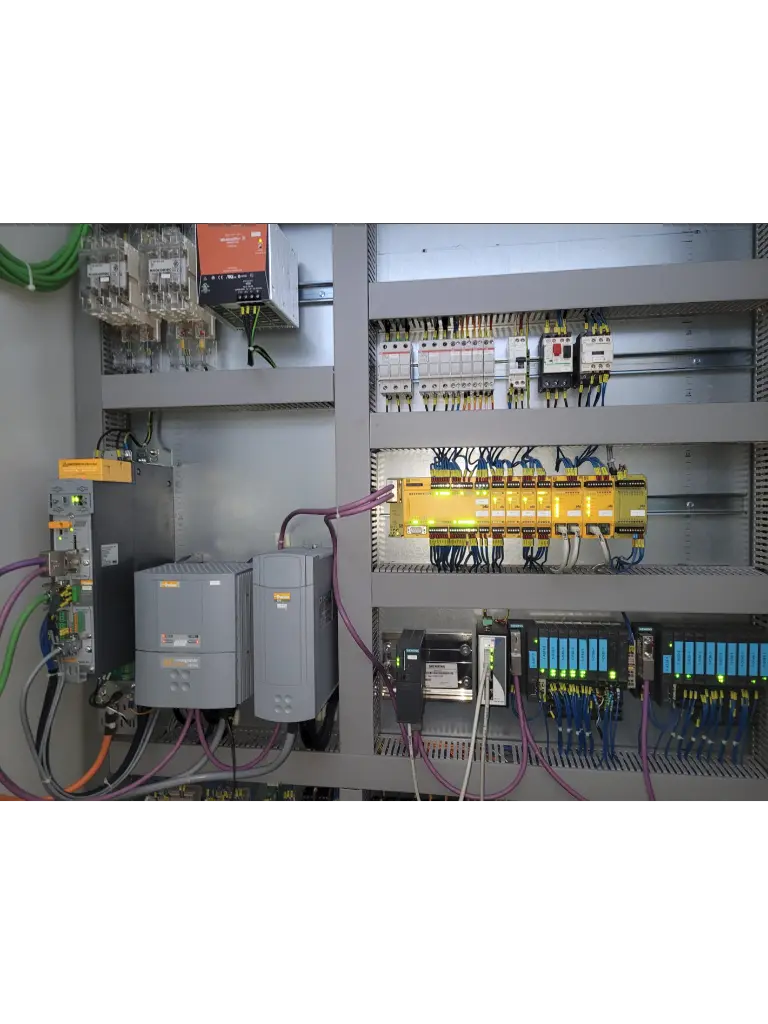

1 x Electrical panel
