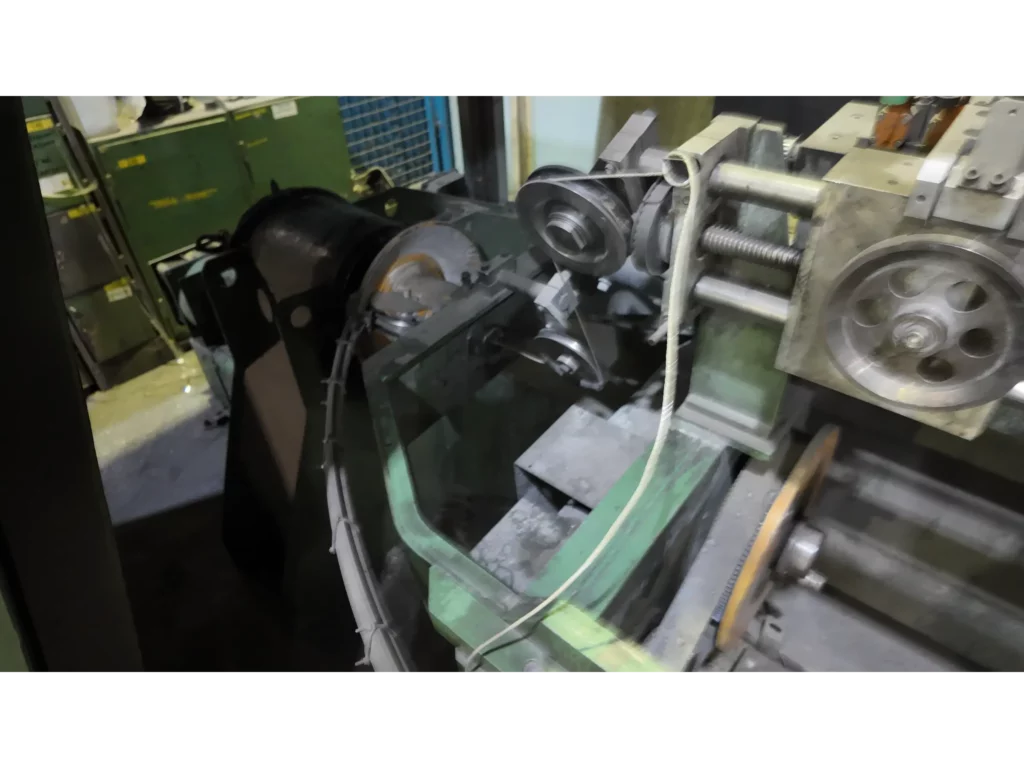

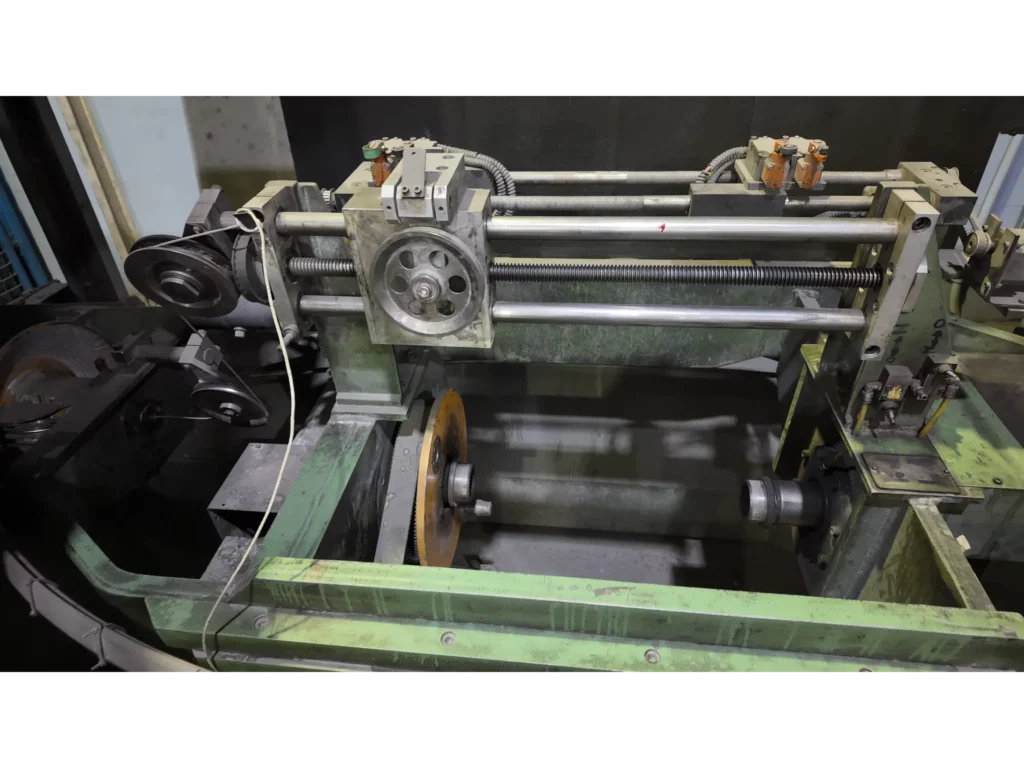

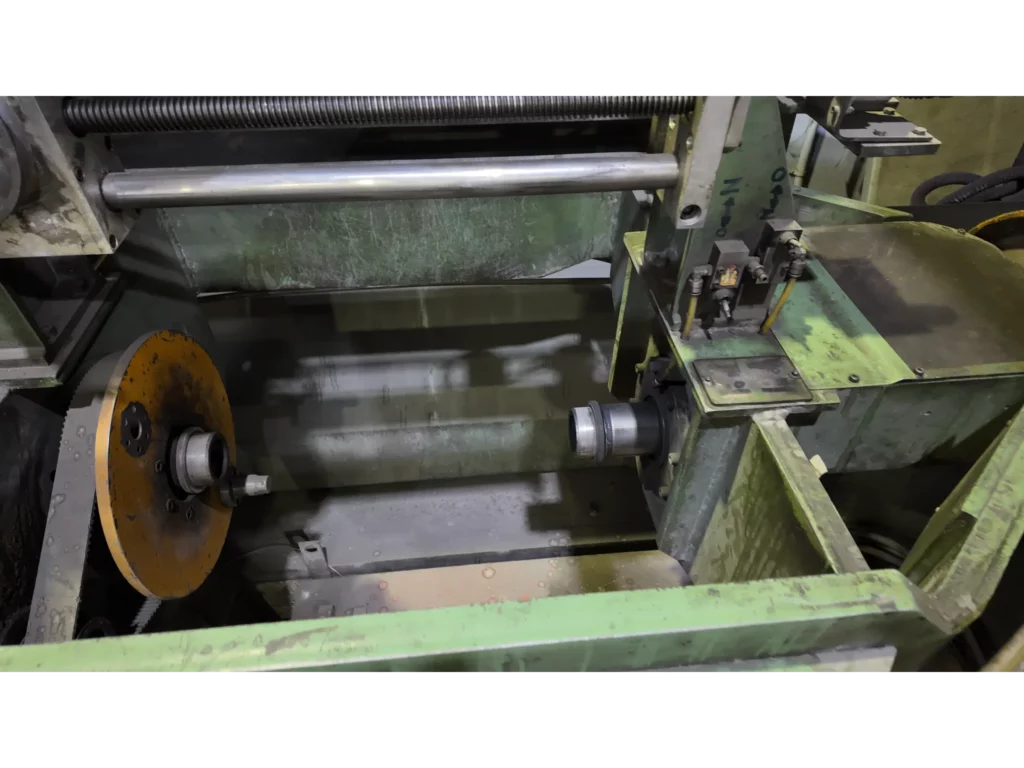

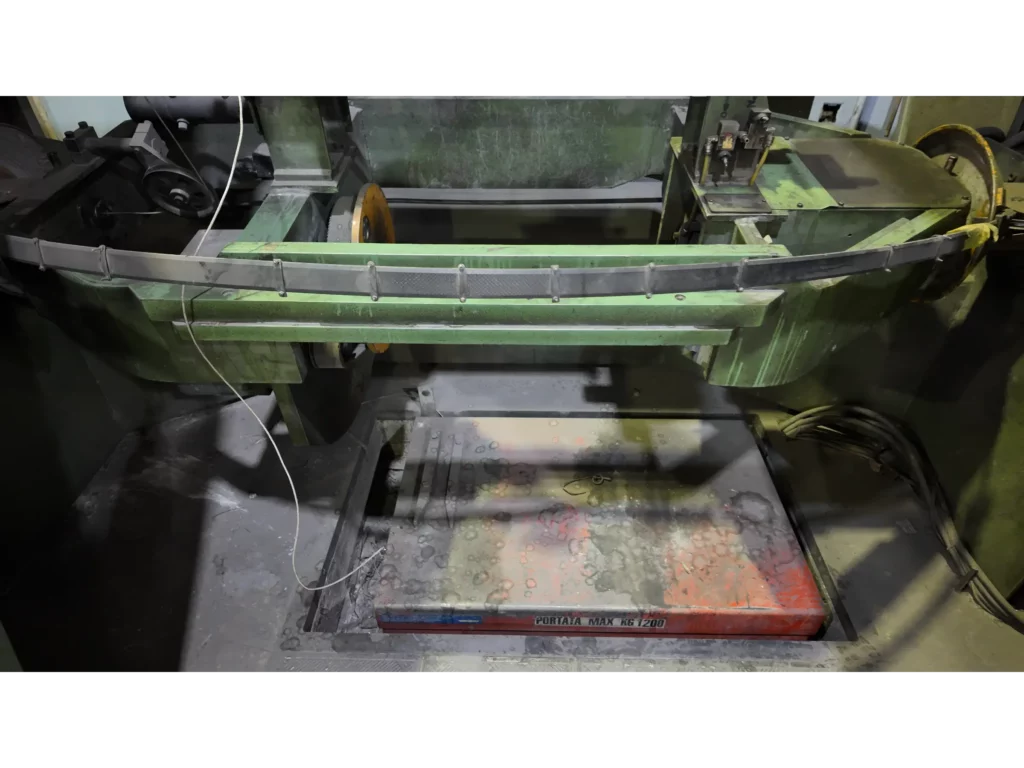

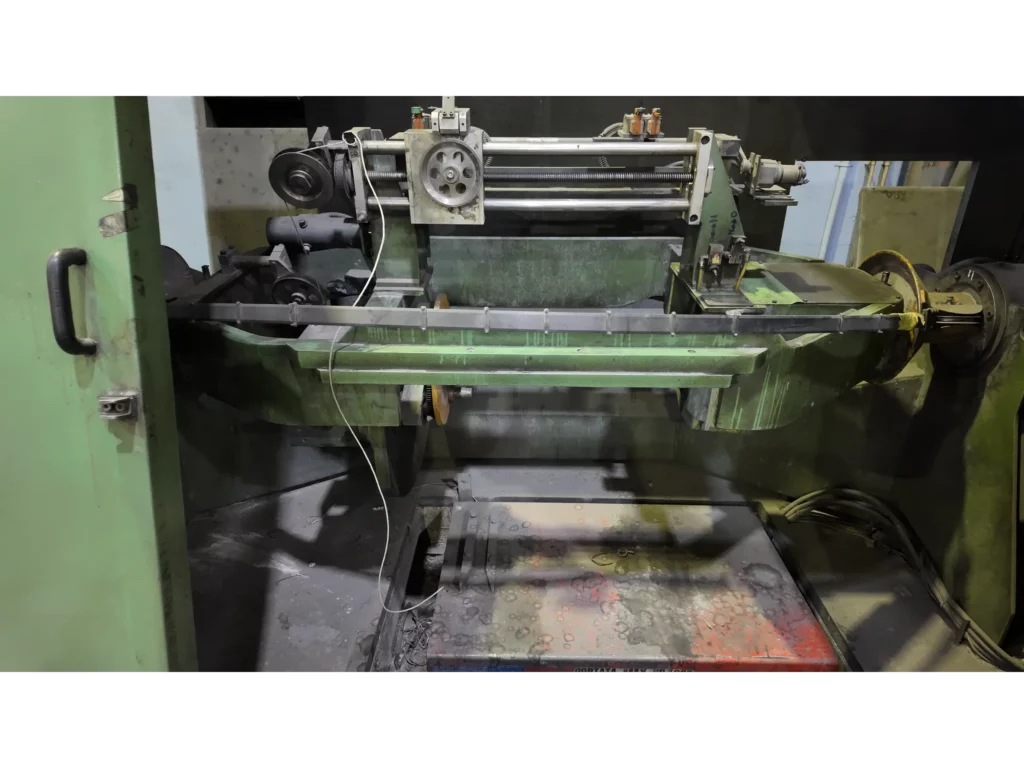

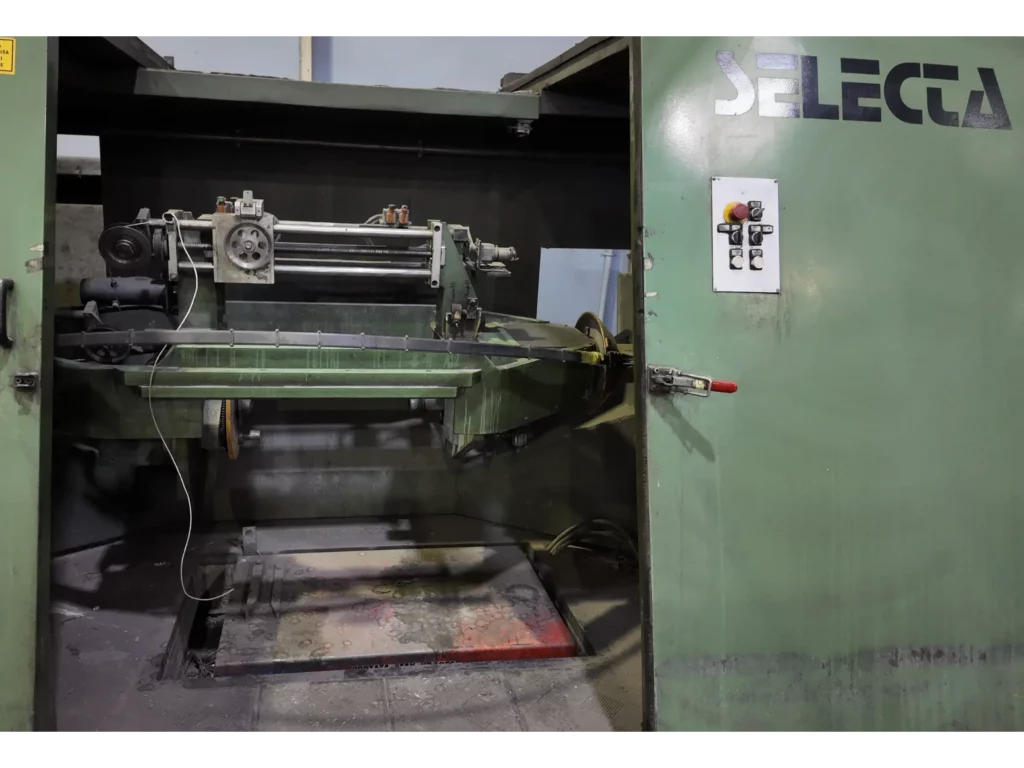

SELECTA DT800 Double Twist Machine

Double twist machine for Stranding/Bunching plain or tinned copper:

• Bunch section from 0,75 to 10,00mm² made of wires with a diameter from 0,20 to 0,40mm
• Strand section from 1,5 to 4,00mm² made of wires with a diameter from 1,50 to 2,55mm

Maximum speed: 2000rpm

Maximum linear speed: 300m/min

Lay length: 10 to 150mm

Tension: up to 70kg

Tension control: trough DC Motor

Main drive: 24kW DC Motor

Lifting table for the bobbin

Electrical and operator panels available
