SAMP MT80 8 Wires Drawing line

22 dies 8 wires drawing line made in 2006

Material to draw :
- Plain copper
- Electrotinned copper

Inlet wire Ø : 1,80 mm (450 N/mm2)
Outlet wire Ø range : 0,16 mm to 0,40mm
Wire elongation : 17 x 26 % + 5 x 19 %

Max. line speed : 25 m/s
Dies casing : Ø 25 mm x thickness 8÷12,7 mm

Wire is annealed under controlled atmosphere to avoid oxydation.
Wire is dried by compressed air
Max. annealing current 700 A
Max. annealing voltage 52 V

Dynamic spooler:
- Bobbin diameter range: 400 up to 630mm
- Traverse width: up to 400mm
- Overall width: up to 475mm
- Bore size: 130 mm maximum
- Reel weight: up to 750 Kg

Line composition:

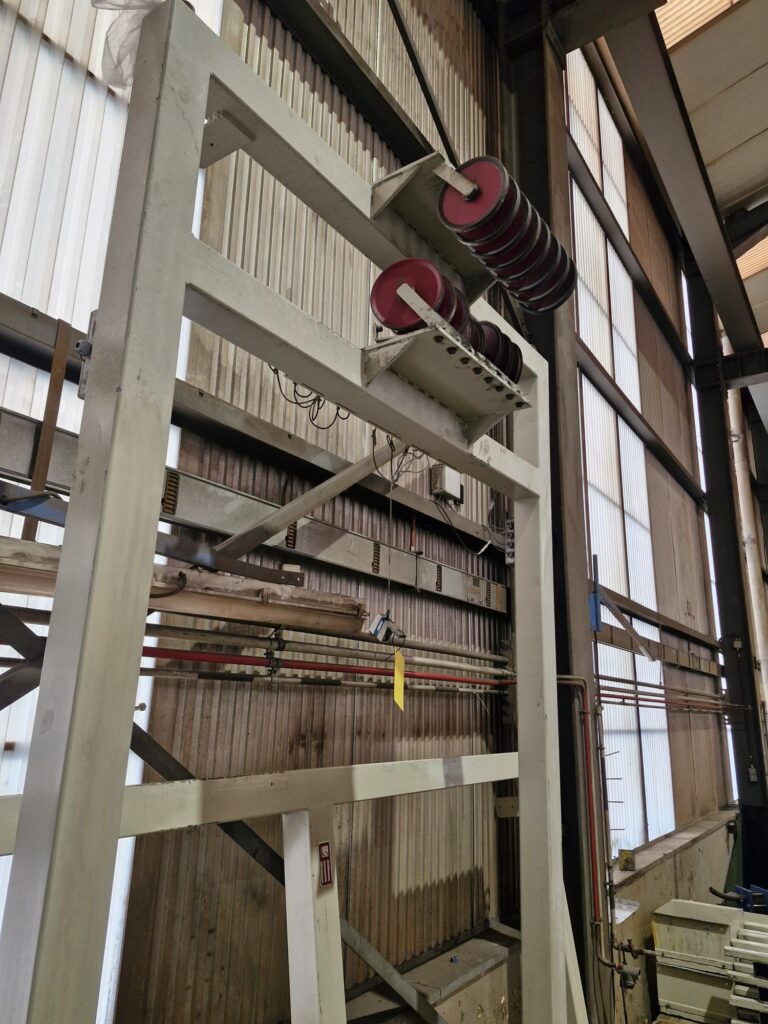

* 8 position Pay off

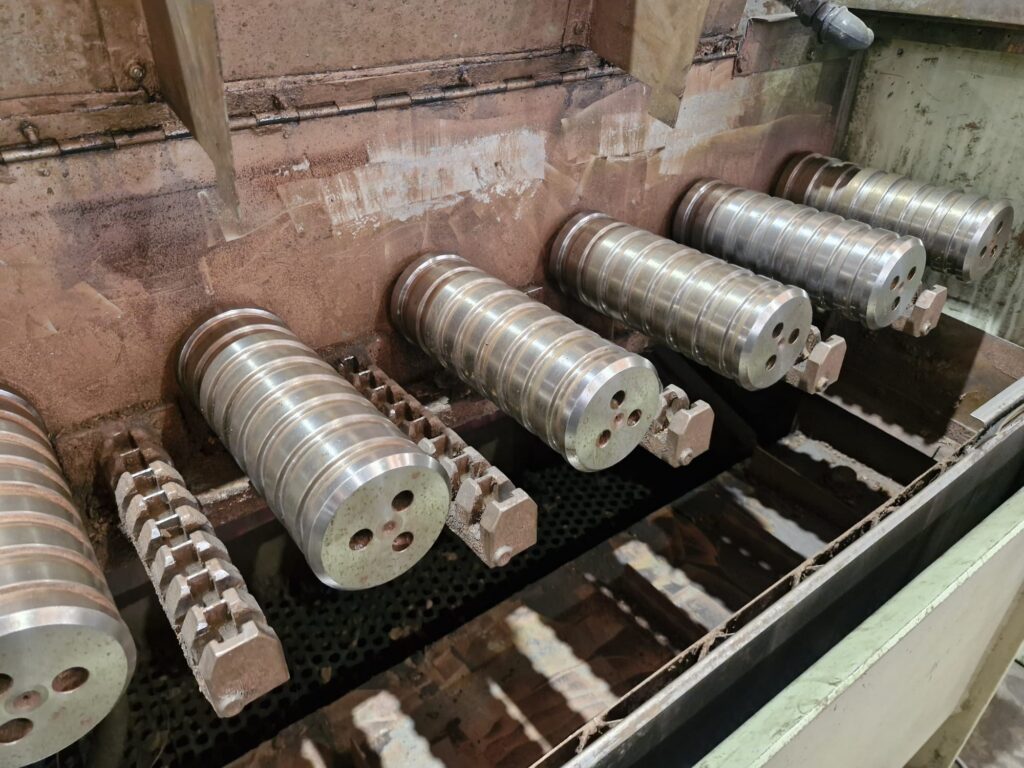

* Drawing bench MT80SV.1x8.22

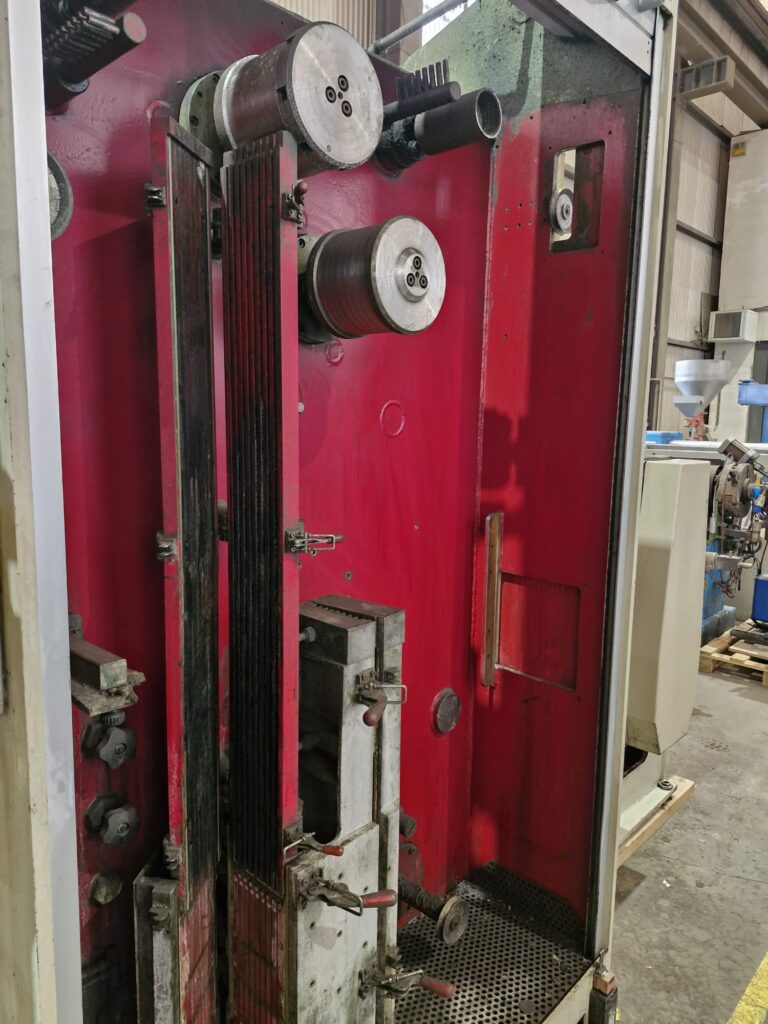

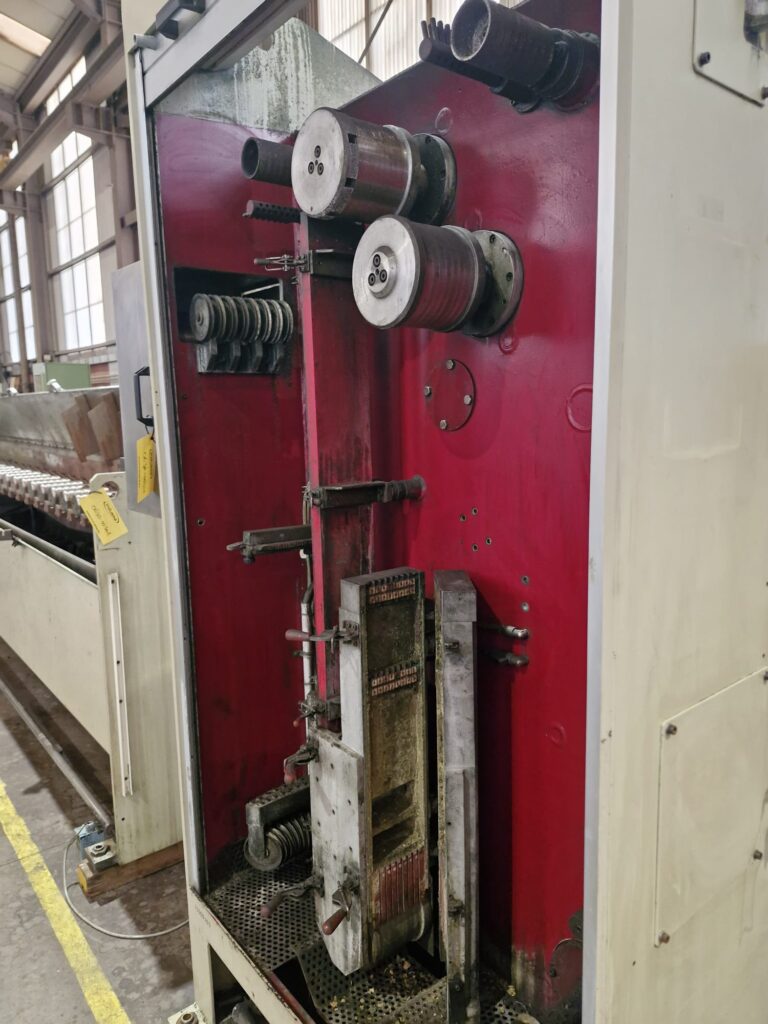

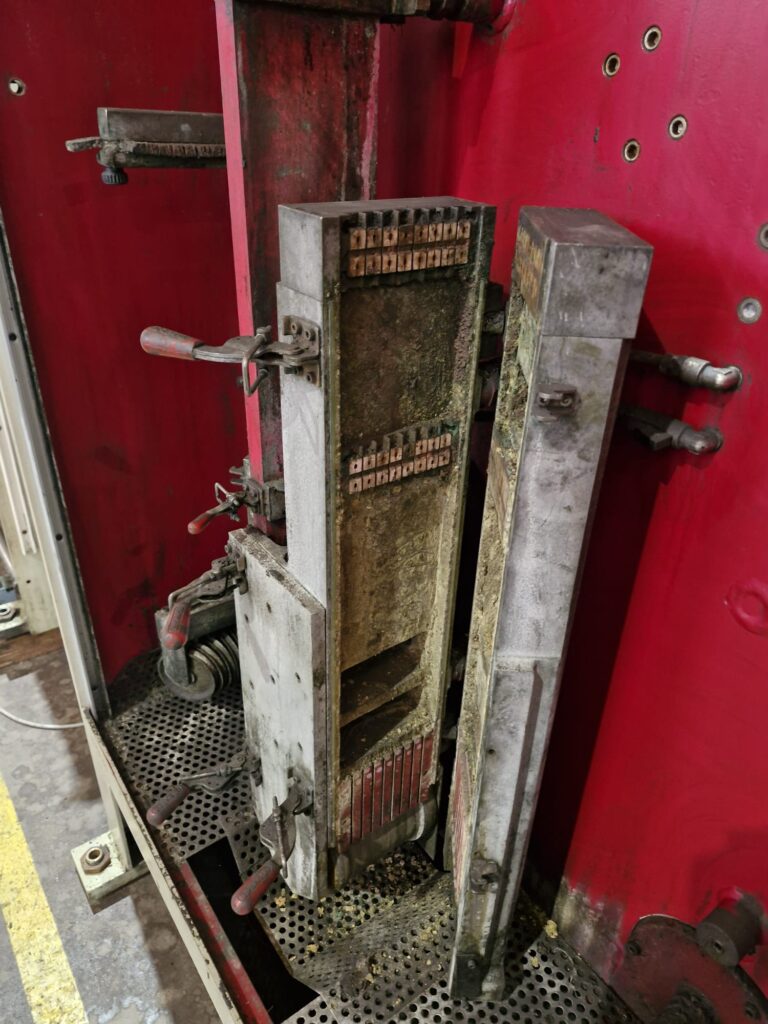

* Annealer R160.8.8.700

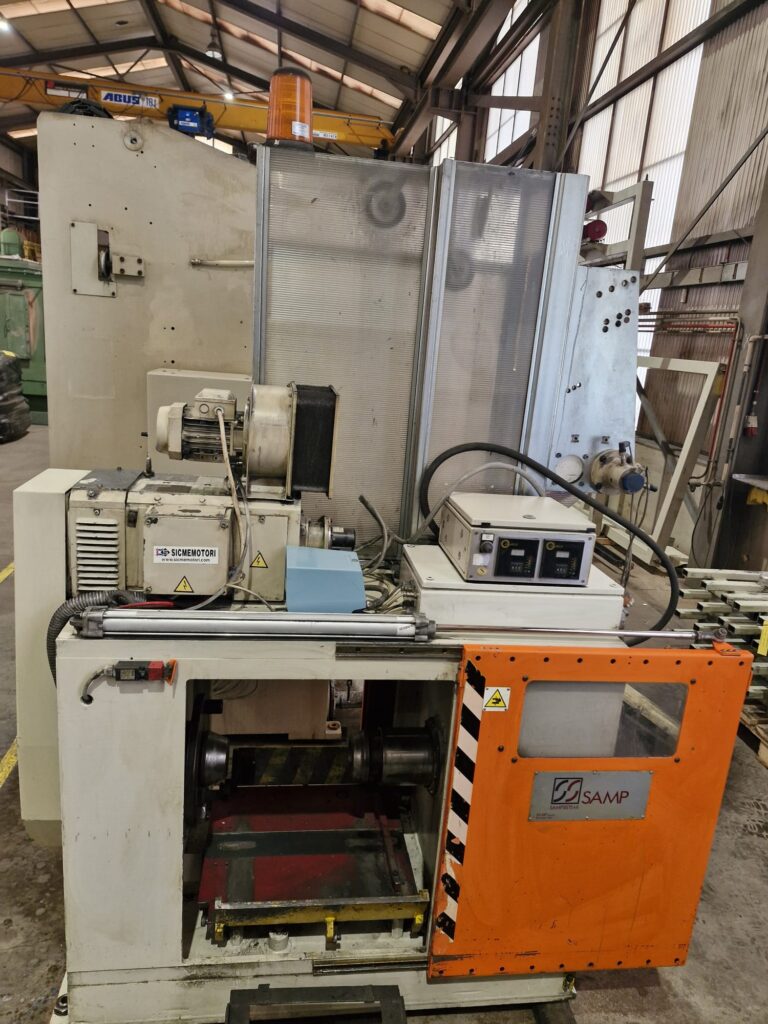

* 630mm Dynamic Spooler TE/63-N
