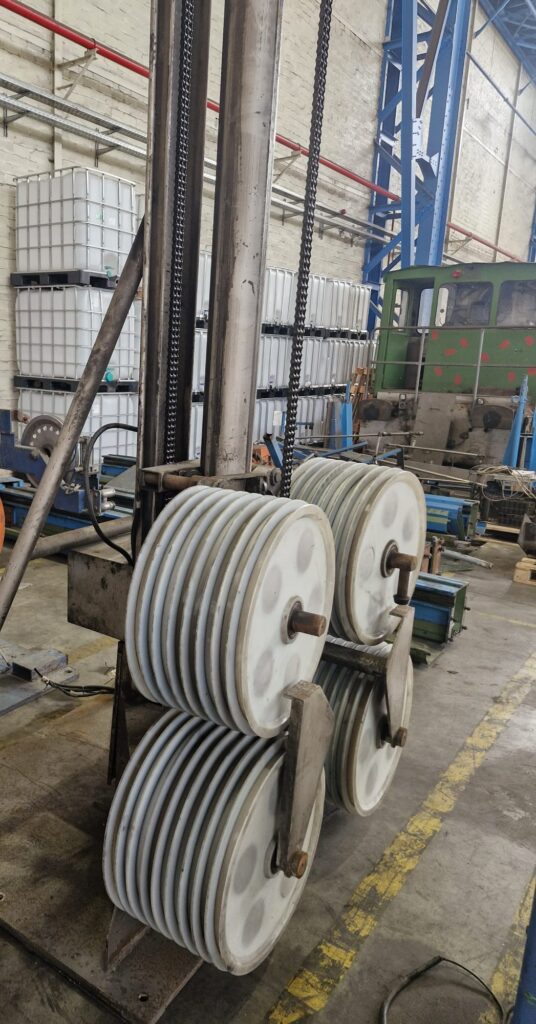

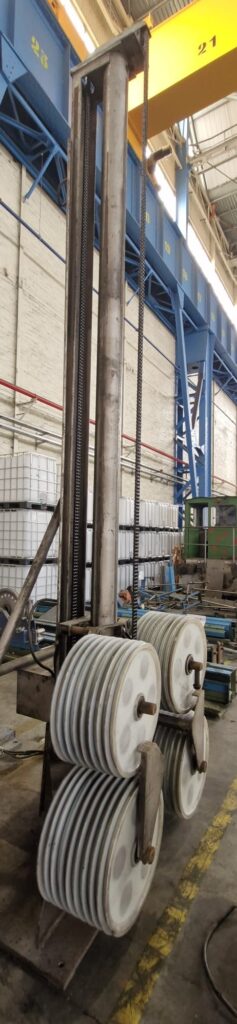

ROSENDAHL MTS 500 Vertical Accumulator

0330-00327 Accumulators MTS 500
Made in 1991

Vertical accumulator with an accumulation capacity of 100mm

Specifications:

  • Product diameter: 20mm maximum
  • Pulleys diameter: 500mm
  • Number of fixed pulleys: 18
  • Number of movable pulleys: 16
  • Stroke of movable pulleys: 2.500mm

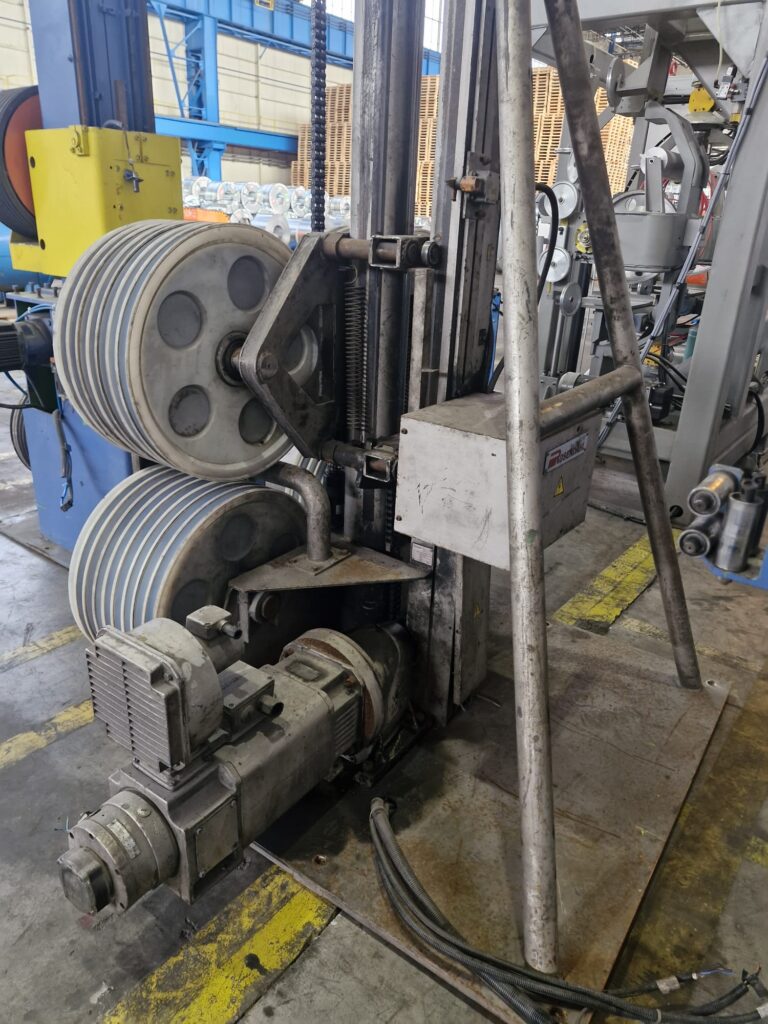

  • Drive: 3,7 kW DC motor

Maximum line speed: 400m/min by using all pulleys at maximum tractive force

Contact us Download the pdf
