PS PARMA Rewinding Line PS RL 1650-1000

0413-00419 Rewinding lines
Made in 2021

Made in 2021, less than 4.000 working hours

Designed for winding sensitive cables (i.e. signal cables, phone cables, LAN cables,...)

Cable diameter: 2,5 to 12mm

Winding speed: up to 300m/min

Line composition :

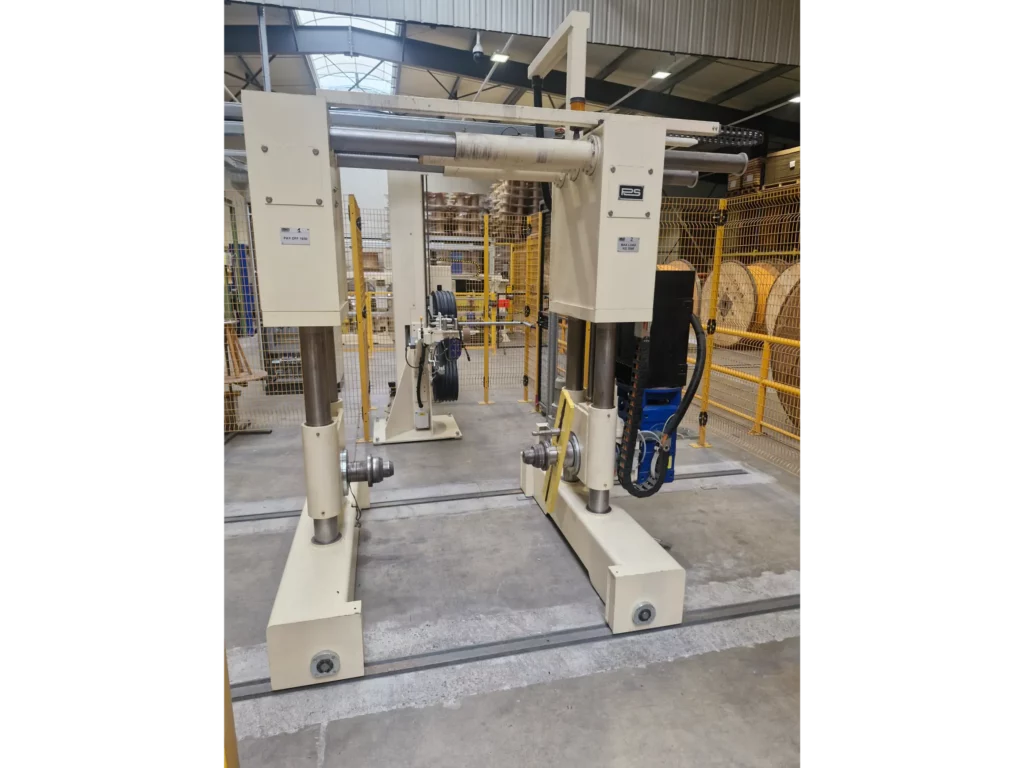

  • Pay off for DIN bobbins from 800 up to 1650mm, 3000kg

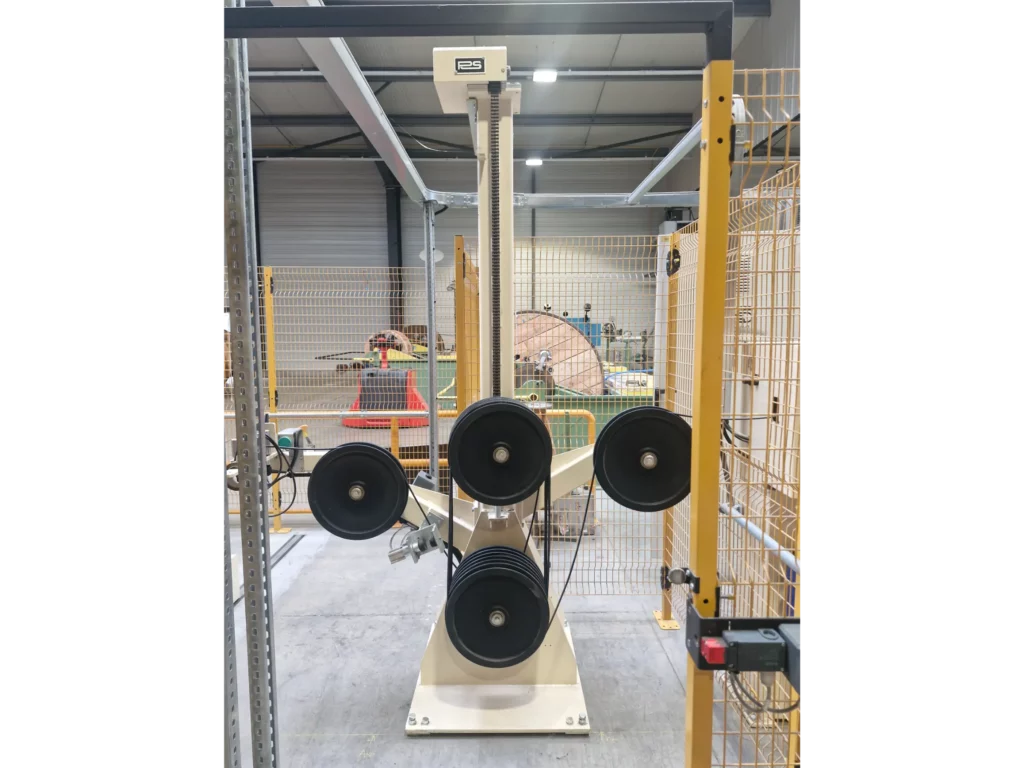

  • 10 meter Vertical accumulator: 5+6 pulleys, 400mm diameter
  • Meter counter (0,1% resolution)

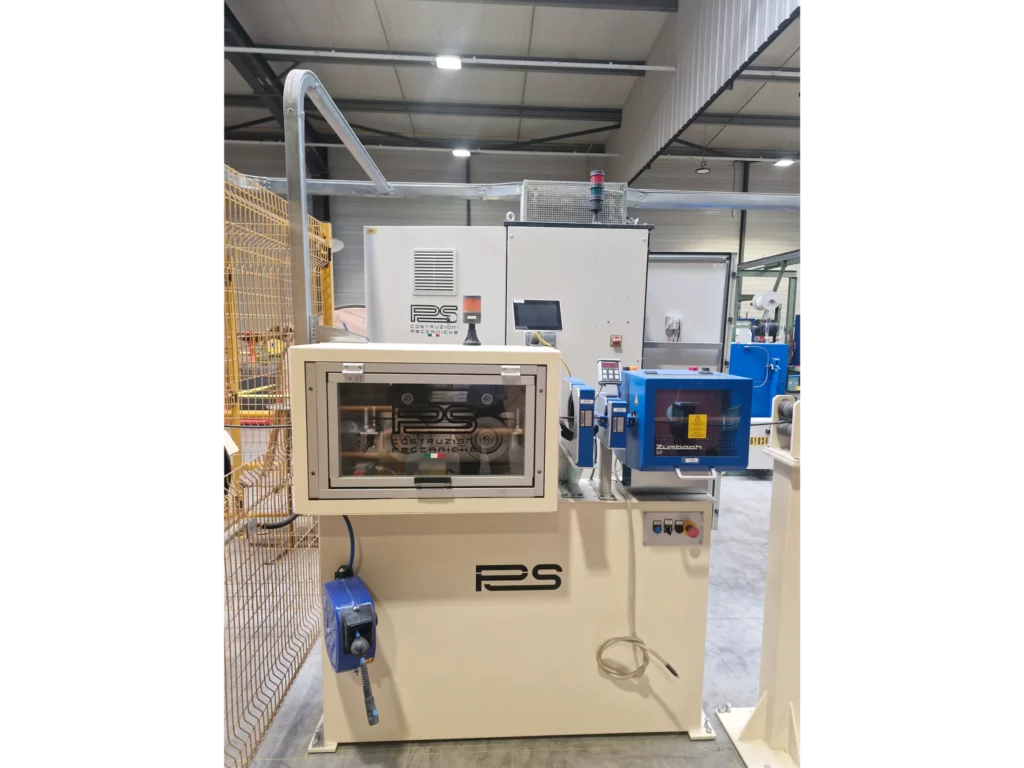

  • ZUMBACH Diameter gauge ODAC 14XY
  • ZUMBACH Lump and Neckdown KW 33TRIO
  • ZUMBACH Spark Tester SP

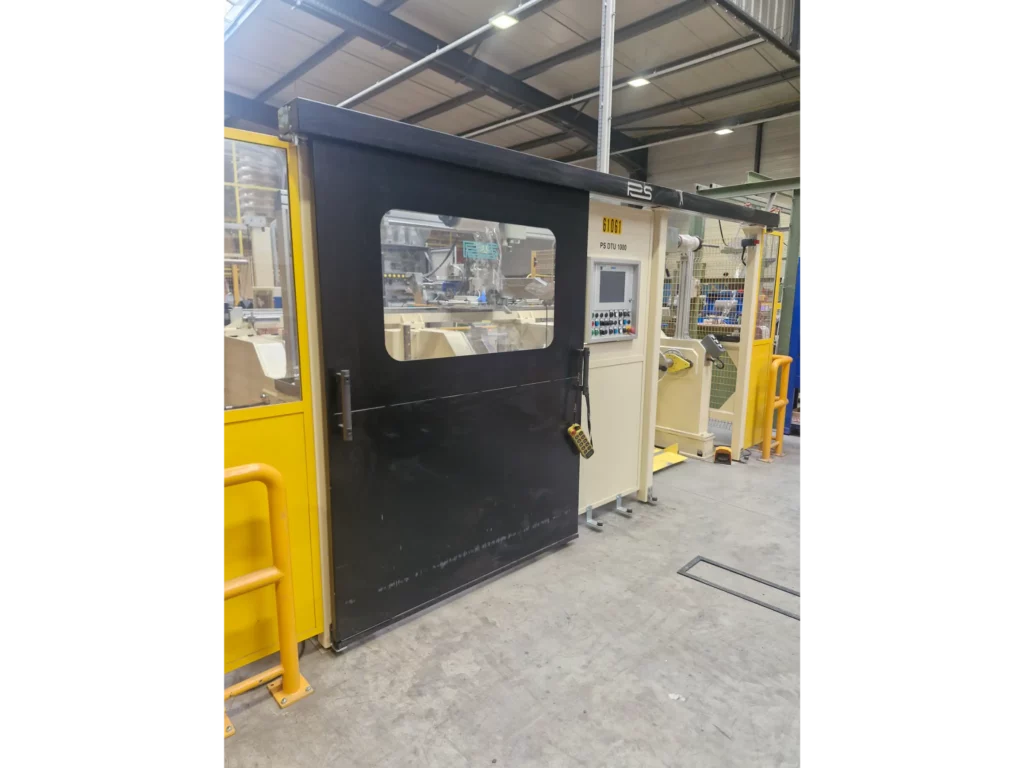

  • DTU 1000 Automatic Dual Take up for bobbins up to 1000mm diameter
  • Electrical panels (Siemens PLC and Parker drives)
