POURTIER 2500mm Drum Twisting line

Complete drum twisting line for energy cables up to 300mm²

Support flat, round and pre-spiralled conductors

Products diameter: 12 to 100mm

Line layout:

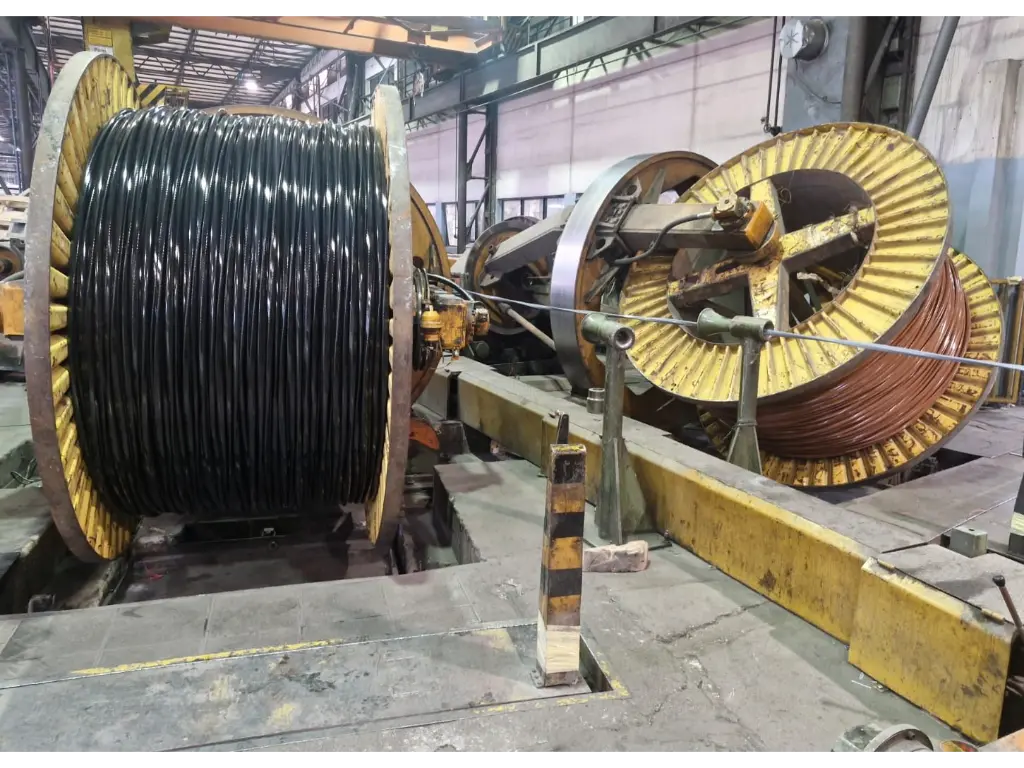

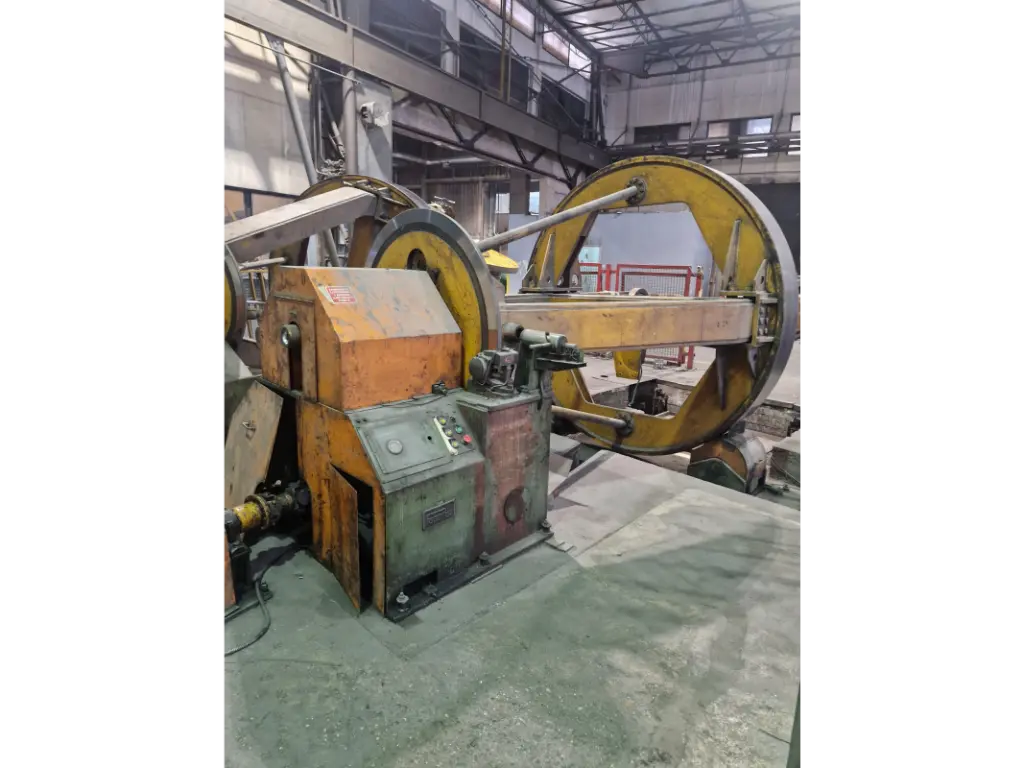

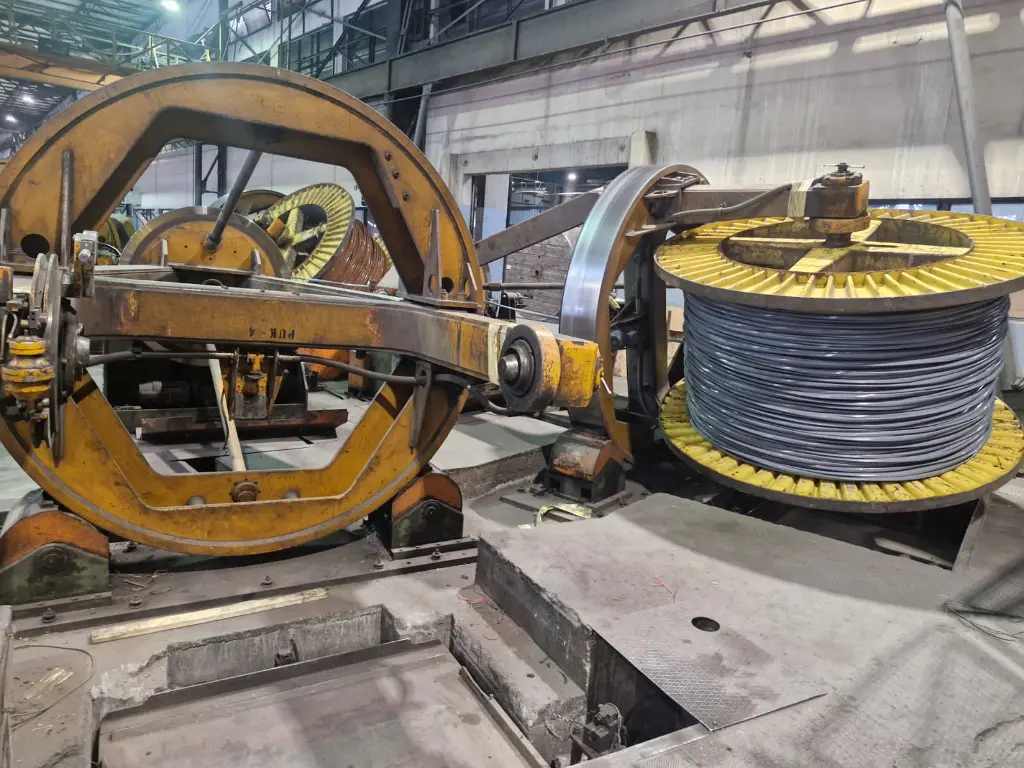

• 4 x Rotating pay off "fork type"
  • Bobbin diameters: 1600 and 2500mm
  • Bore diameter: 80 and 120mm
  • Hydraulic lifting platform
  • Speed: 80 rpm
• 6 x Backtwist pay off "closed cradles type"
  • Bobbin diameters: 800,1250 and 1600mm
  • Bore diameter: 80 mm
  • Speed: 80 rpm
  • Loading by crane (not included)
• Wire break detector
• Stranding die holder
• Eccentric binder head
  • Pad diameter: 180mm
  • Ribbon width: 90 to 110mm
• Tangential taping head
  • Number of pads: 4
  • Pads diameter: 500mm
  • Tape width: 75mm
• Tangential taping head
  • Number of pads: 4
  • Pads diameter: 500mm
  • Tape width: 75mm
• Rotating caterpillar
  • Distance between belts: up to 100mm
  • Lay length adjustable through gearbox
  • Lay length range: from 167mm up to 2429mm
• Rotating take up:
  • Bobbin diameters: 1600 and 2500mm
  • Bobbin width : 1450mm
  • Bore diameter: 80 and 120mm
  • Speed: 80rpm
  • Bobbin weight: 12 tons
• Main motor: DC 100kW
• Line shaft
• Electrical panel
