OTOMEC Tinning line

Tinning line for copper wire from 1,40mm up to 2,80mm diameter, model 1W STND HS Sn 3000

made in 2018, less than 8000 working hours.

Thickness of tin layer: 8 micron

Maximum line speed: 600m/min

Scope of supply

• Dancer (3 fixed pulleys + 2 on movable arm Ø250)

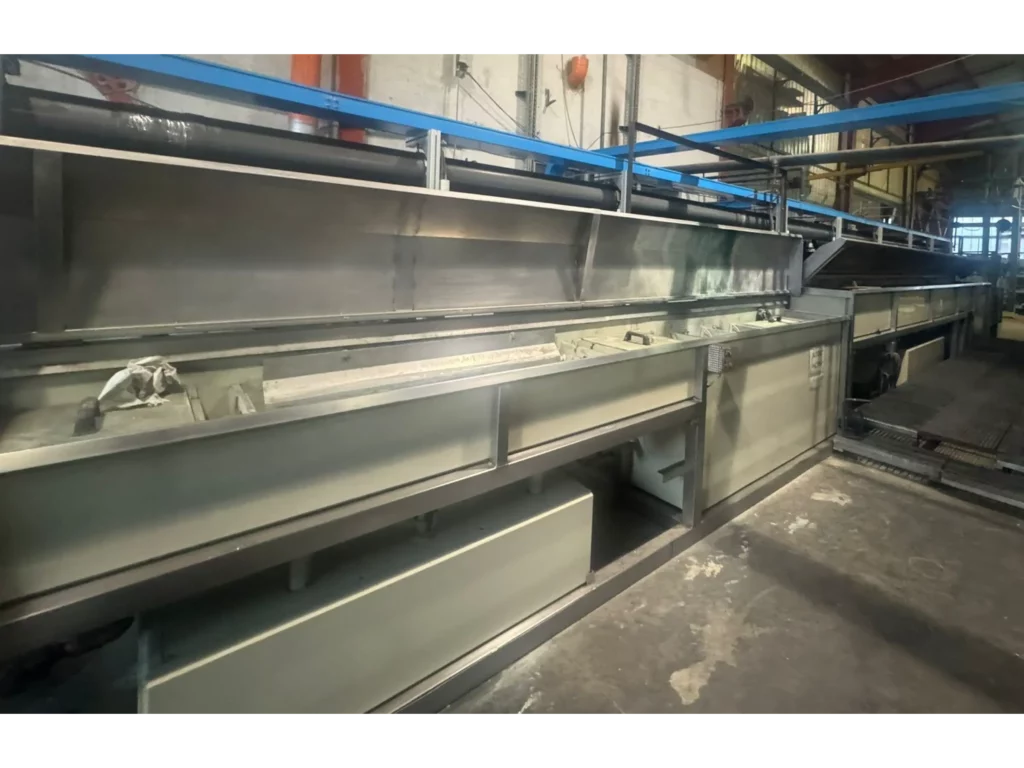

• Degreasing section + 3 rinses + straight etching
• 800l degreasing tank

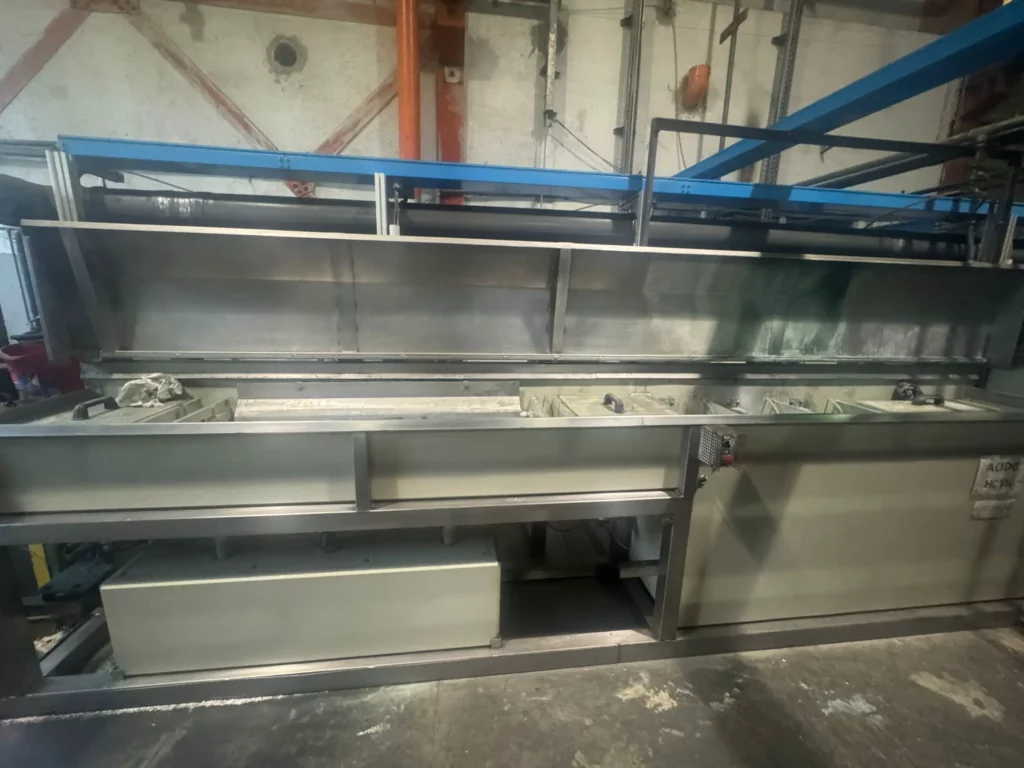

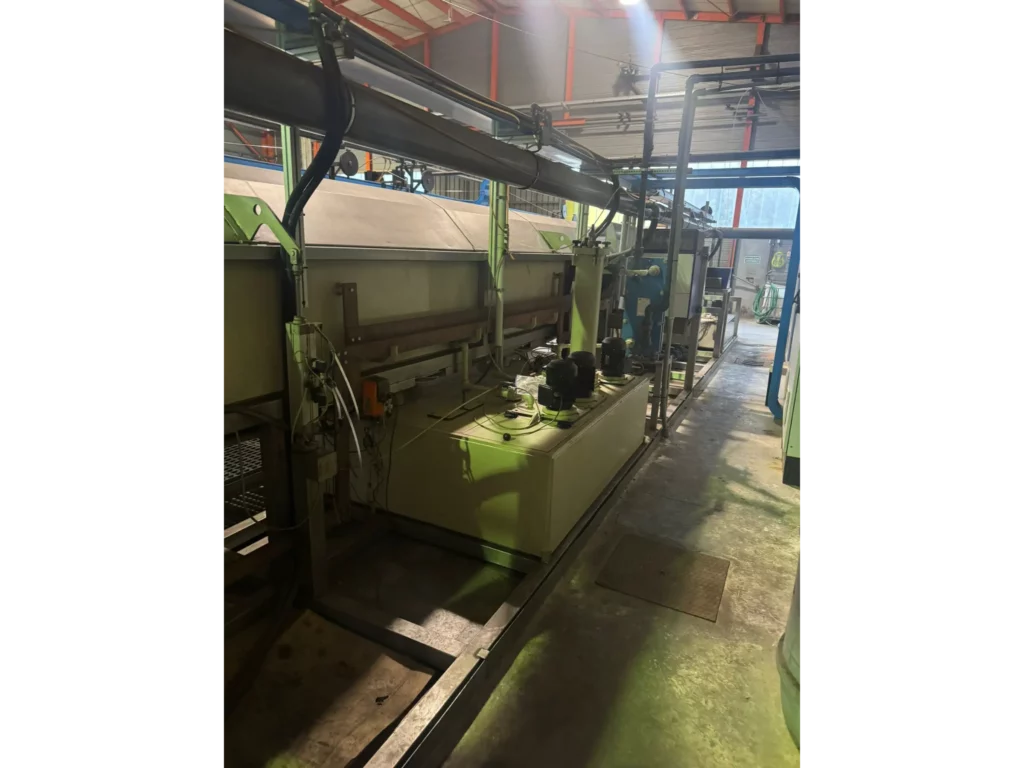

• Tin plating + 4 rinses
• Plating Storage tank: 1200l

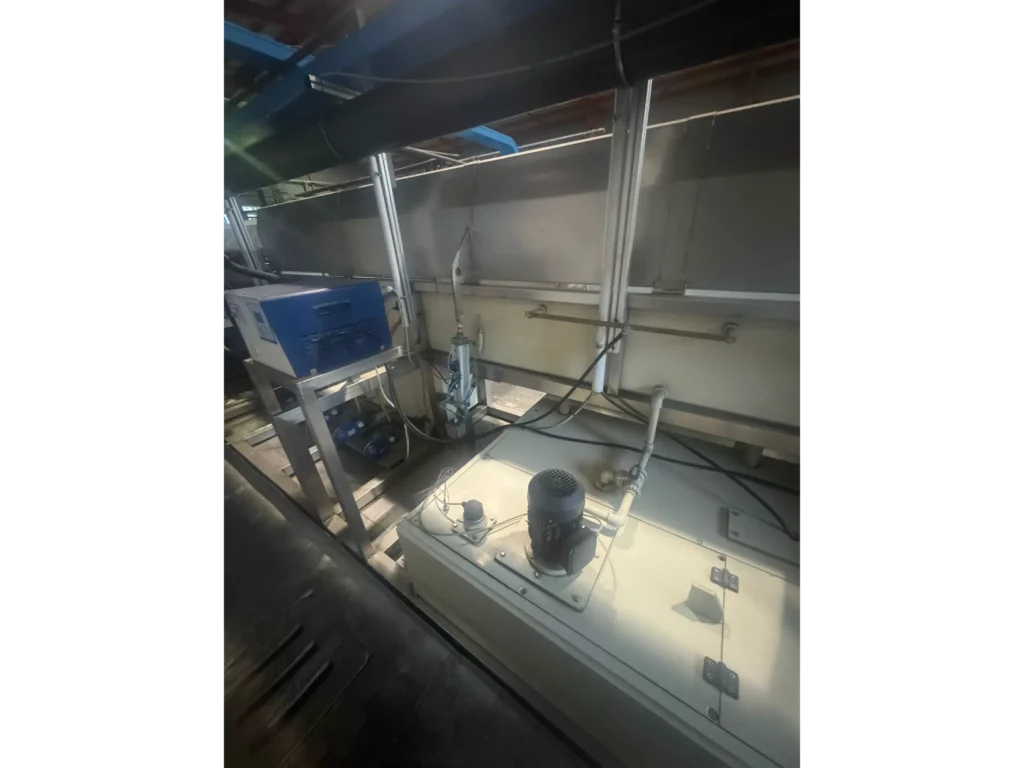

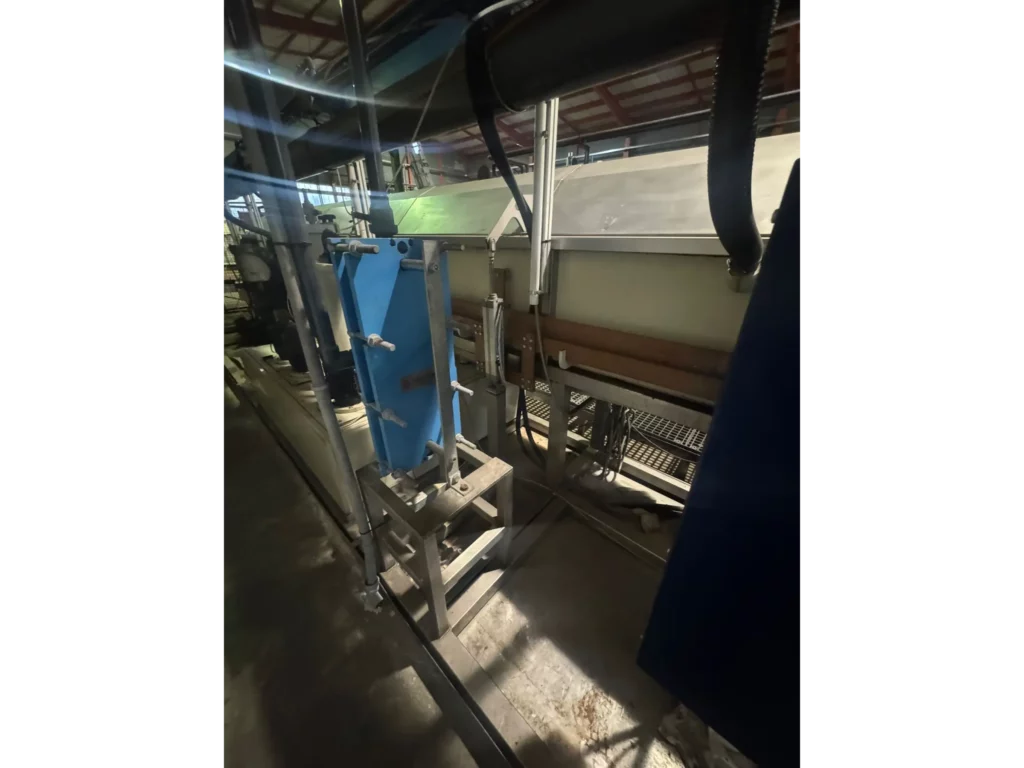

• Accessories: pumps, heat exchanger, Giussani rectifiers,...

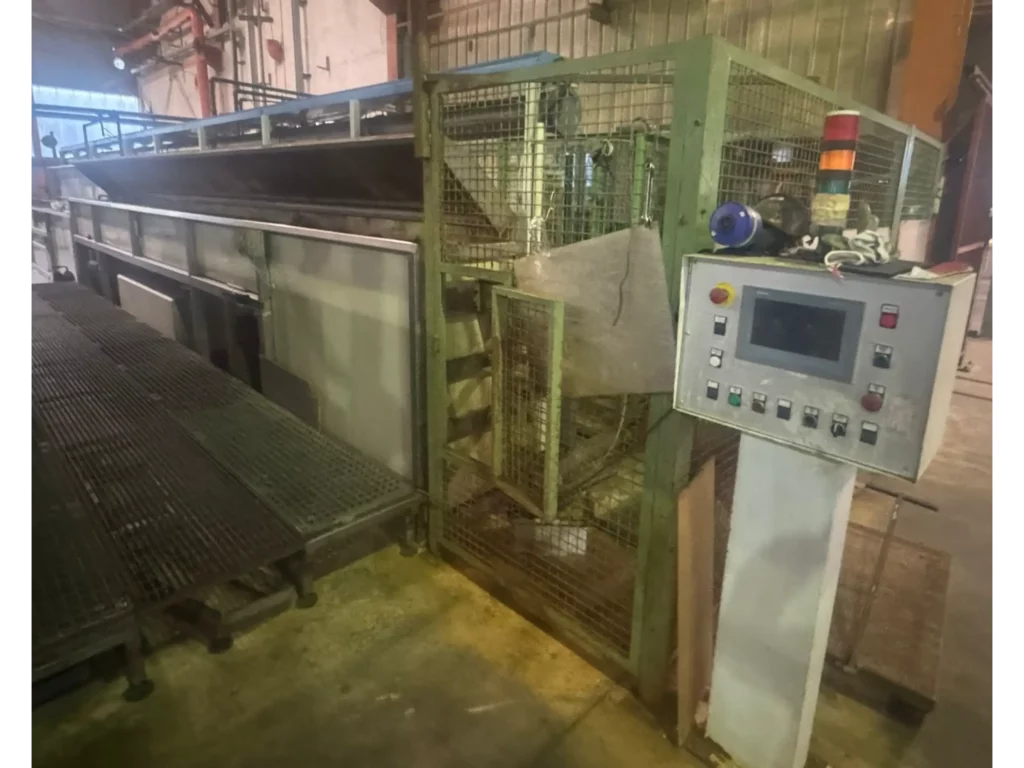

• Complete electrical panel (ABB drives and Siemens S7-1500)

This unit was used in line with a Samp MS400 rodbreakdown bench and a Down coiler which can be quoted separately
