OMA 24 Bobbins Braiding line, Model TR24

24 bobbins Braiding line made of:

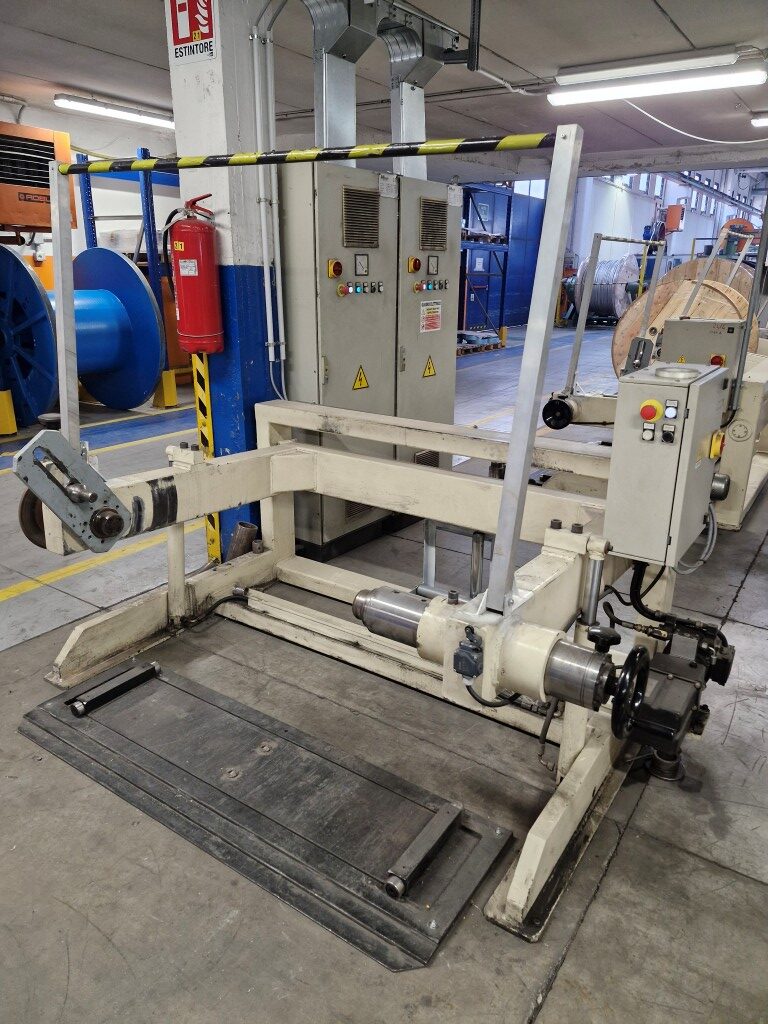

• 1 x NOVA 1600mm Cantilever Pay off, Model CVS-1600/TR (made in 2003)

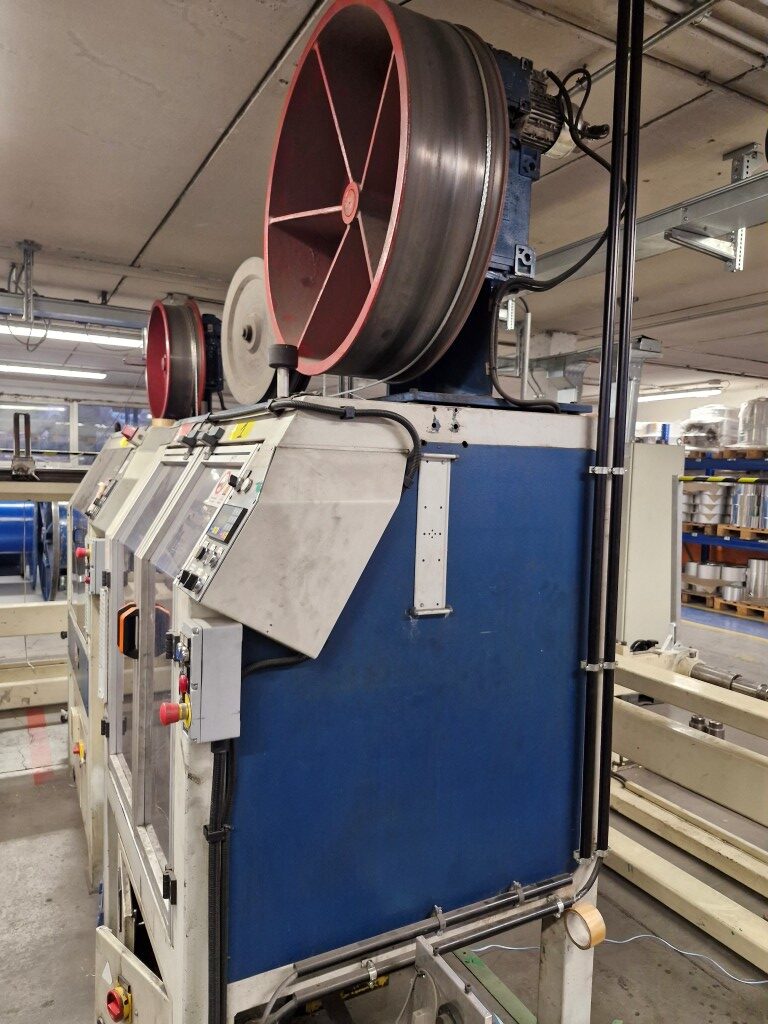

• 1 x OMA TR 24/1-140 ME Braider (made in 1998)

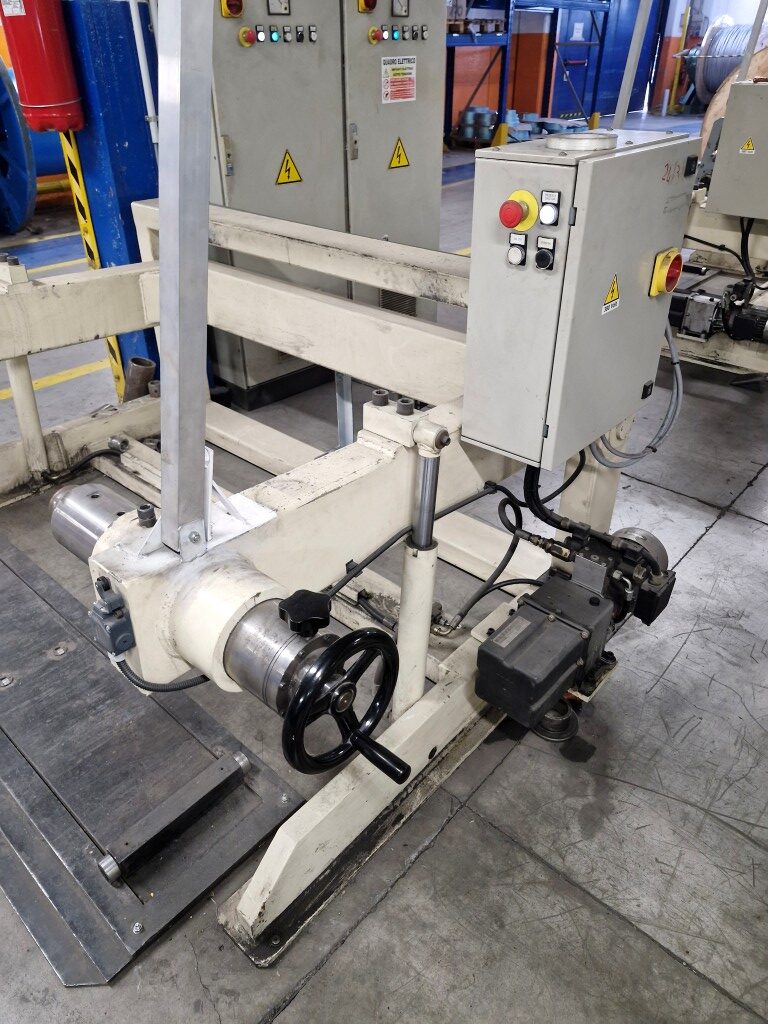

• 1 x NOVA 1600mm Cantilever Take up, Model CVA-1600/TR (made in 2003)
• Electrical panel
• 24 x spools 140 M

OMA TR 24/1-140 ME Braider specifications:

• Number of spools: 24
• Spools dimensions: 66 x 175mm
• Spools capacity: 540cm³
• Rotation speed: 0 to 180rpm

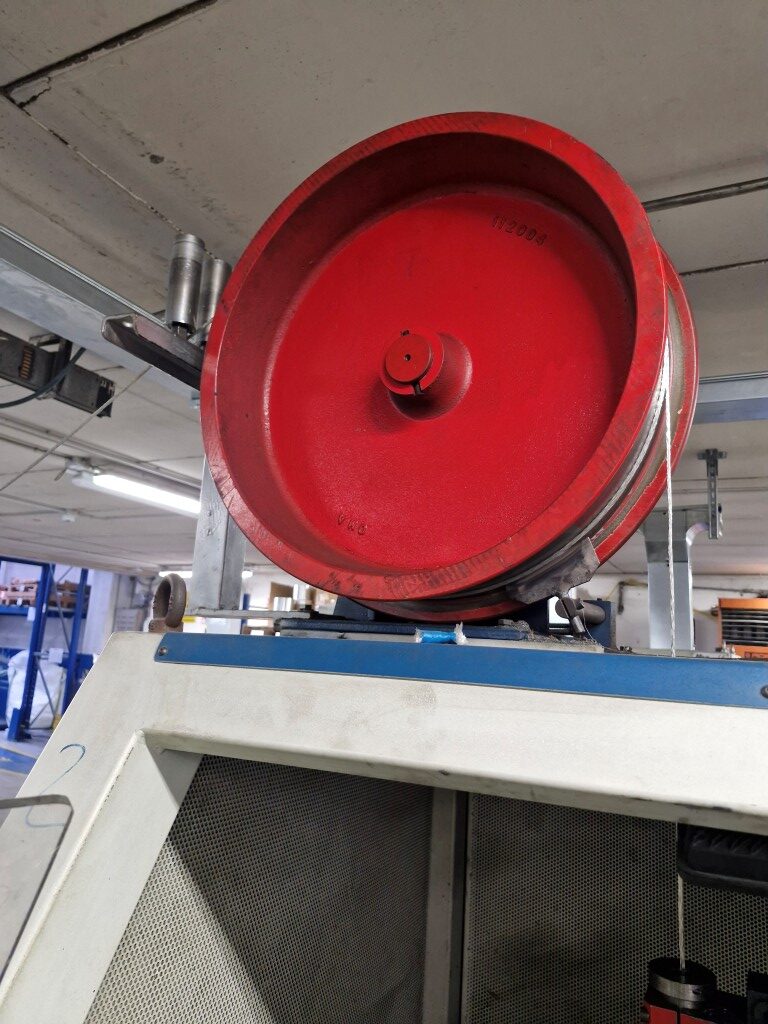

• Capstan diameter: 600mm
• Cable passage diameter: 90mm
