NIEHOFF MM85 2 Wires 11 dies Rodbreakdown line

Niehoff MM85 11 Dies 2 Wires copper Rodbreakdown line
Made in 1994

Inlet wire diameter: 8,00mm
Outlet wire diameter: 1,35mm up to 3,56mm
Maximum Speed: 31,5 m/sec

Technical specifications:

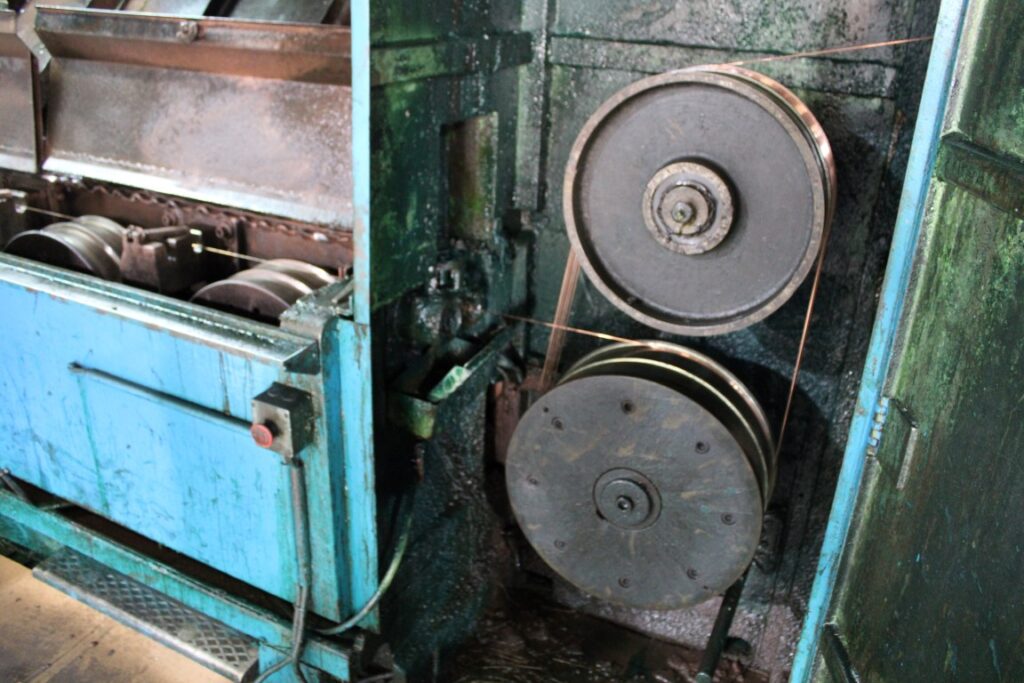

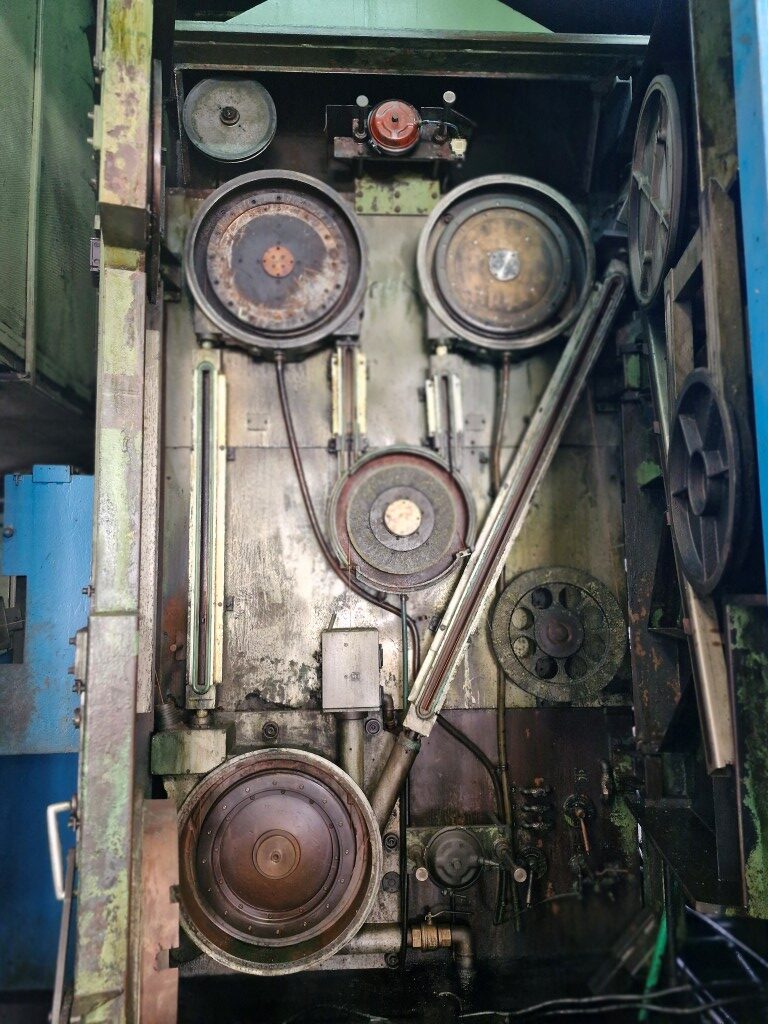

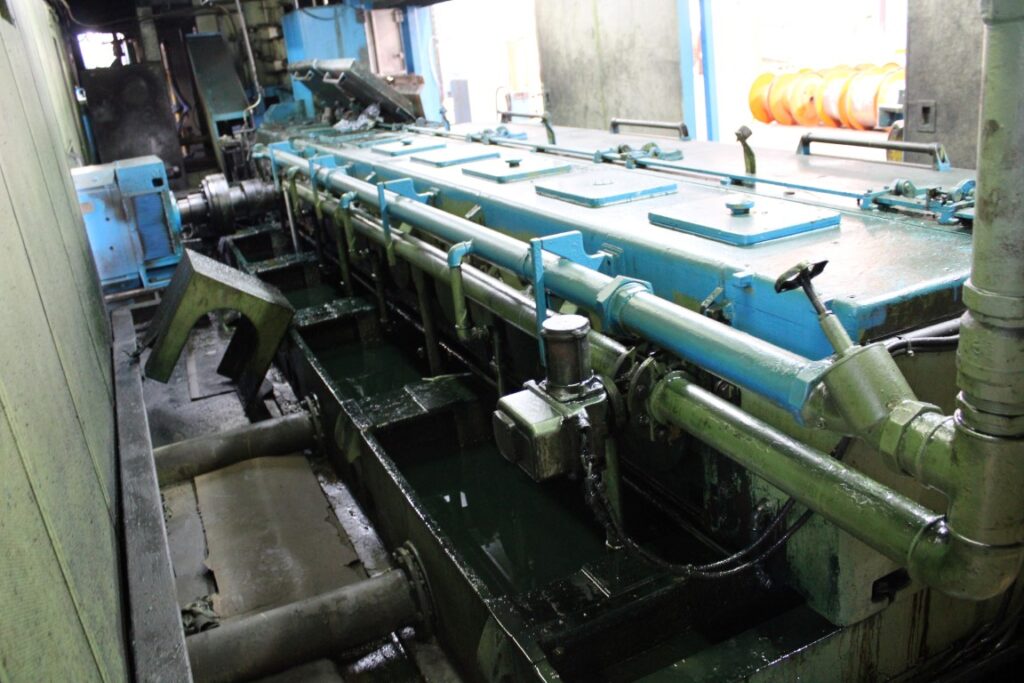

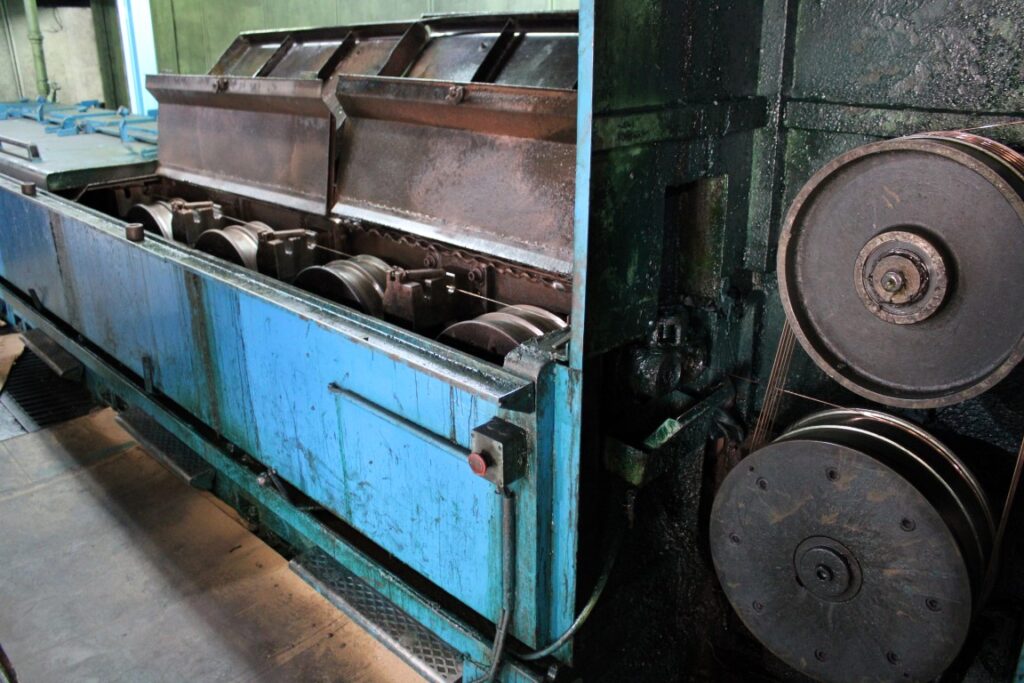

MM85: 11 dies , 2 wires
capstan diameter: 450mm
R500 annealer: 5000 Amp

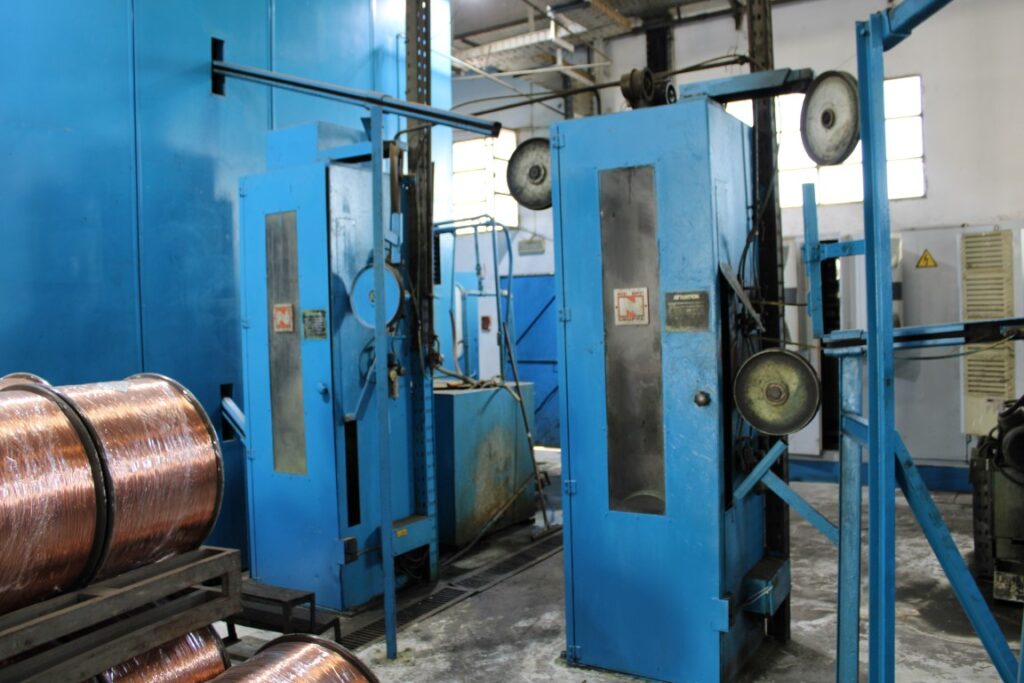

SPH800 dynamic single spooler: bobbin diameter from 560mm up to 800mm

Line composition:

• 2 x Coil pay off structure, Model AUD2000
• 2 wires rodbreakdown machine, model MM85, MC 10.48266
• Continuous annealer 5000A, model RM500.4, MC 10.48267
• 2 x Dancer, Model VM300
• Dynamic spooler 800mm, model SPH800, MC 10.48270
• Down coiler, model WF650, MC 10. 48271
• Rezy filtration unit for the drawing section, including pumps, coolers and connecting pipes
• Rezy filtration unit for the annealer
• Electrical panels with Siemens S5 PLC
• Soundproof Cabinet
