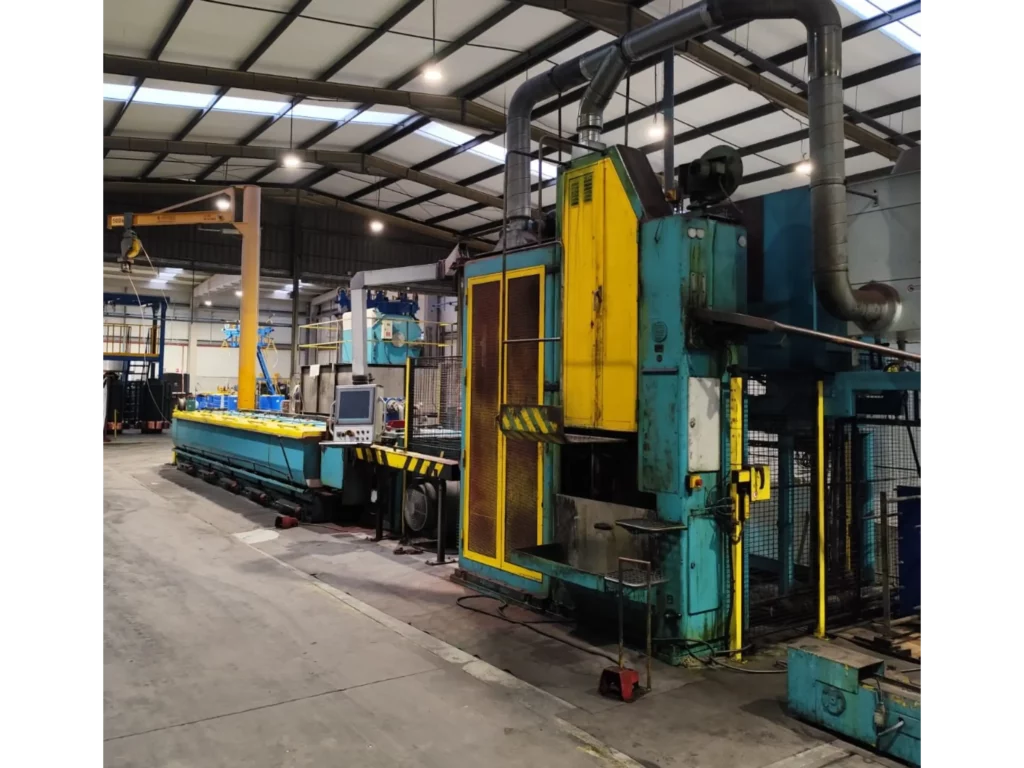

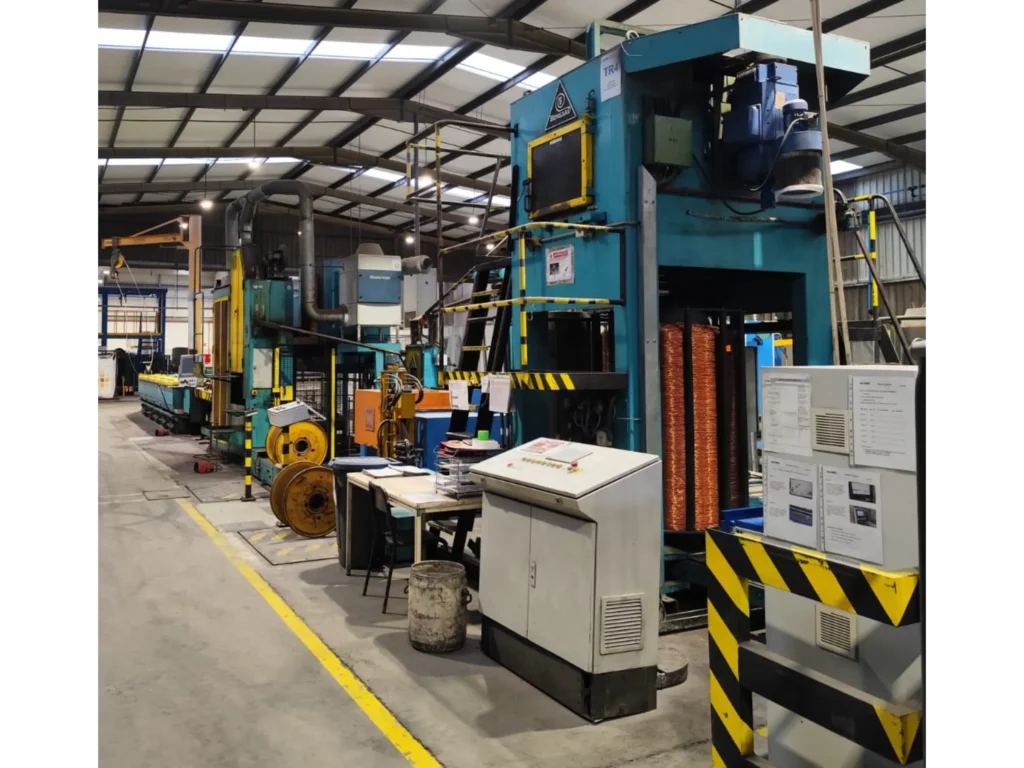

NIEHOFF M85 11 dies Copper Rodbreakdown line

Complete line to draw Copper wires from 8mm rod

Thanks to a strong maintenance program, it is in perfect working condition

Line composition

• Pay off structure for rod coil

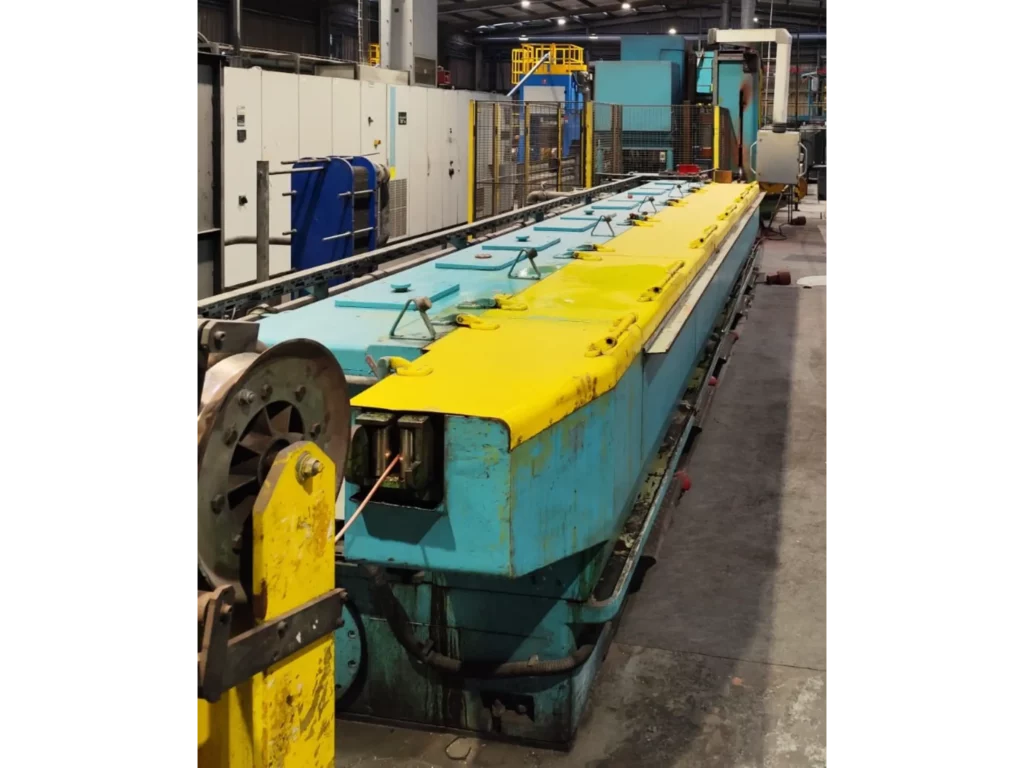

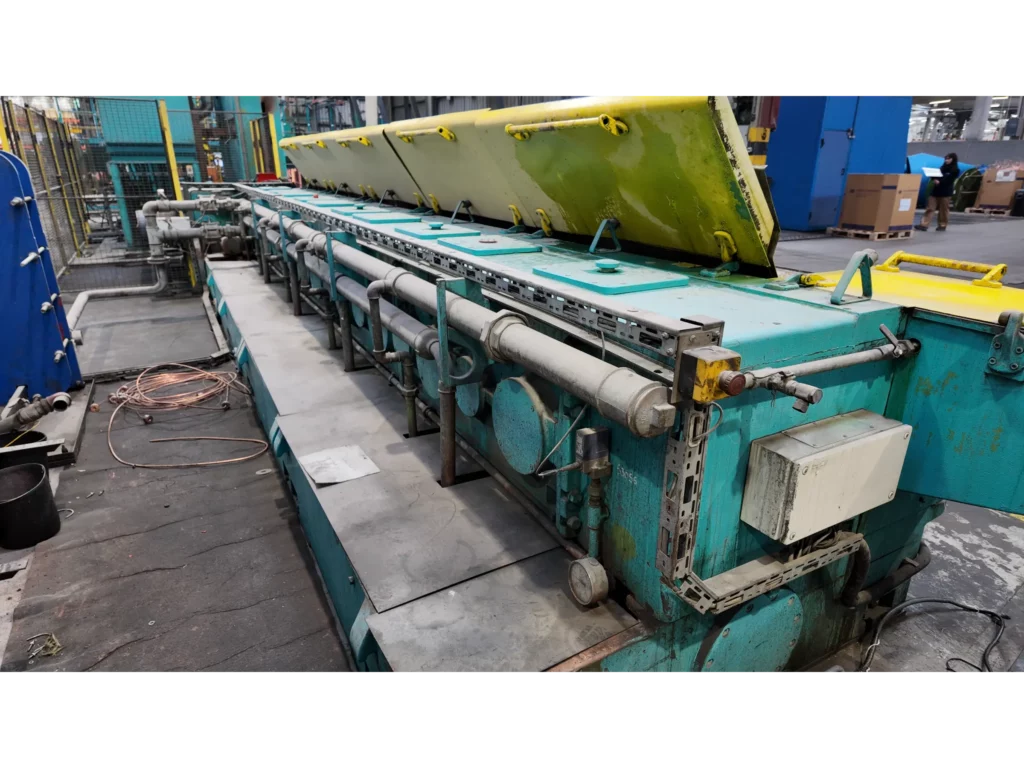

• M85 drawing bench 11 dies, AC motor 355kW
• Annealer VG85.320.3000
• Single Spooler SL800 / 2GEA
• BONGARD Down Coiler ZW 800

• Electrical panel (made new in 2017, in Switzerland)
• Emulsion pumps and coolers
• REZY filtration unit for emulsion

Specifications

• Inlet diameter: 8mm
• Output diameter: 1,34mm up to 2,95mm
• Elongation: 30%

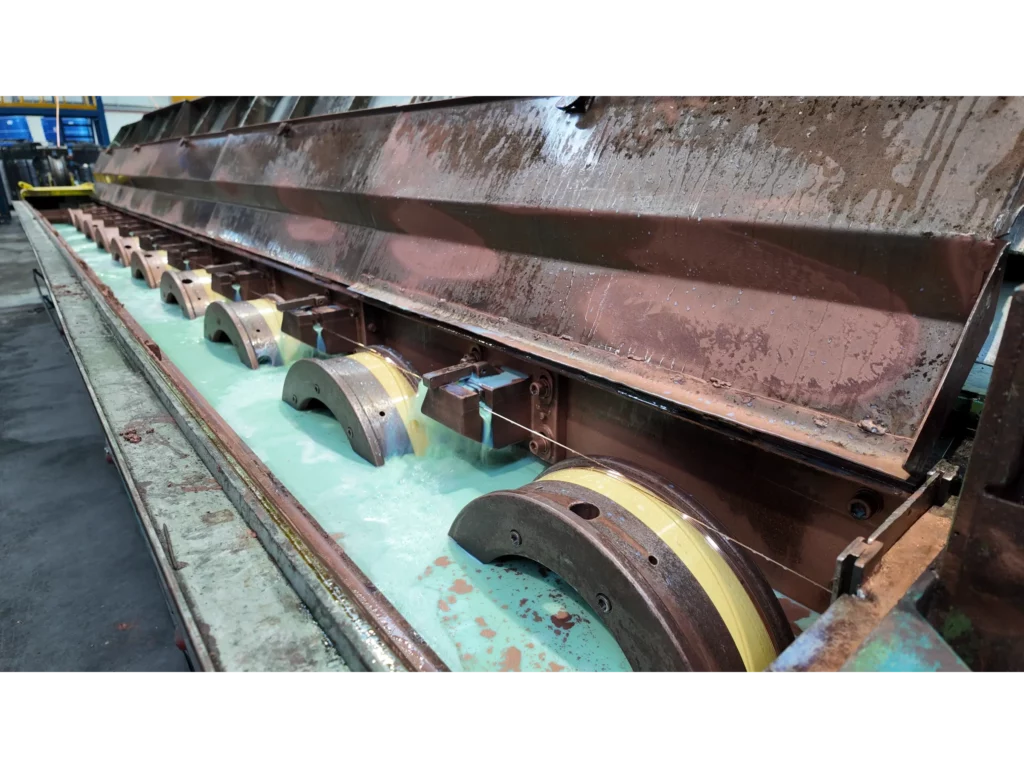

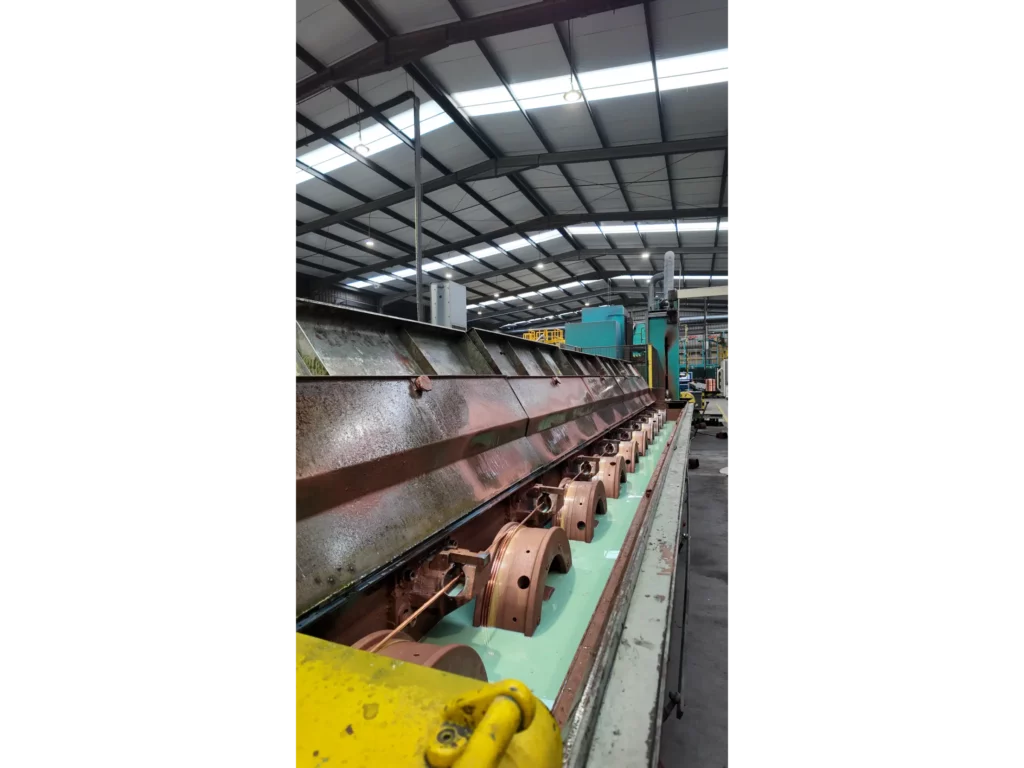

• Capstans diameter : 450mm
• M85 motor: Siemens AC 355kW (made in 2017)

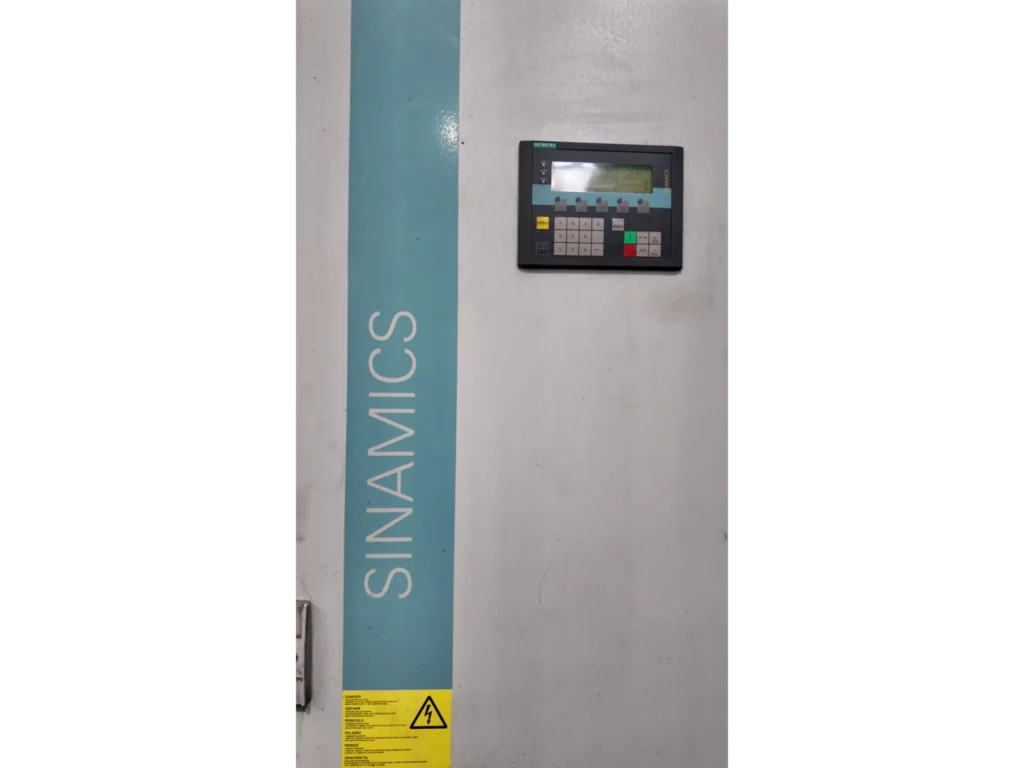

• M85 motor drive: Siemens Sinamics G150, 745 A, 400 kW (made in 2017)
