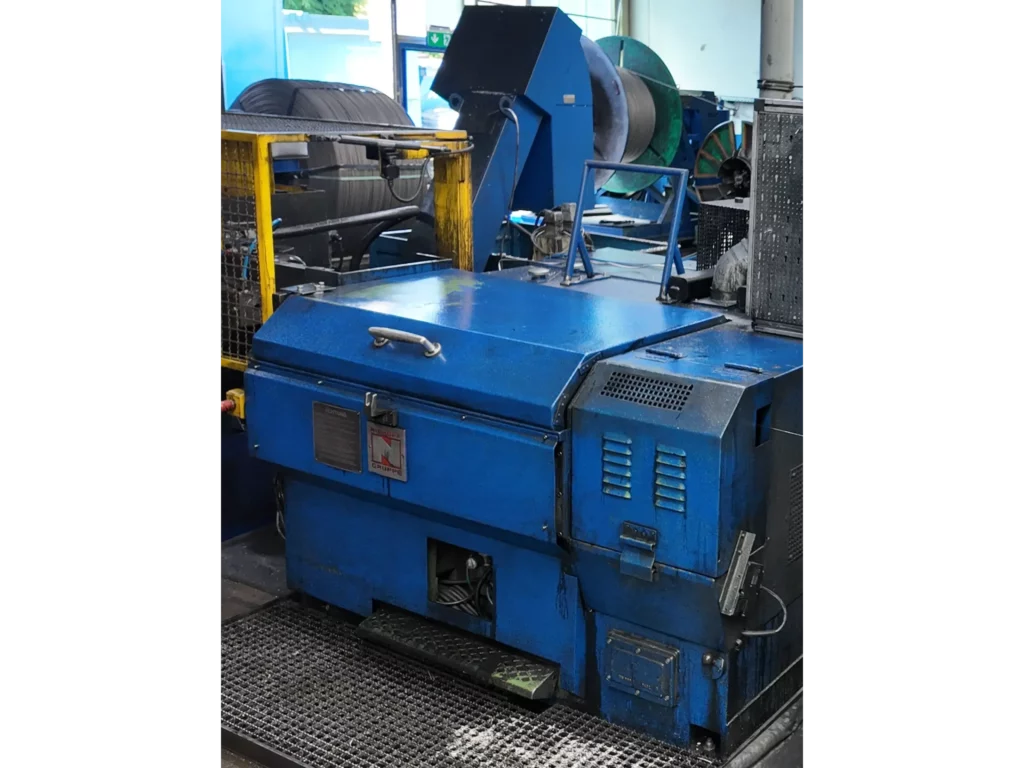

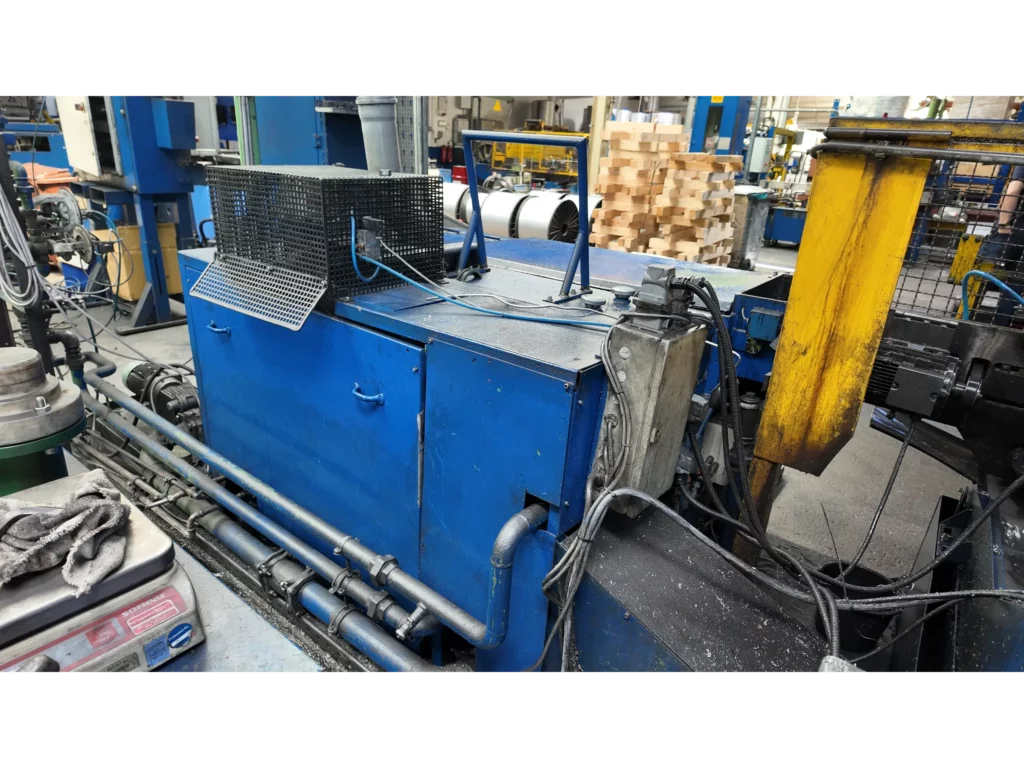

NIEHOFF M315 15 Dies Drawing Bench for Al wire 0,80 – 2,0 mm

0630-00415 Medium wire drawing machines, slip-type M315
Made in 1998

15 dies Single wire Aluminium Drawing bench made in 1998

Inlet diameter:

  • 1,80mm - 300N/mm²
  • 4,00mm - 250N/mm²
  • 6,00mm - 150N/mm²

Outlet diameter: 0,80 up to 2,00mm

Drafting : 21%

Speed: up to 20m/s

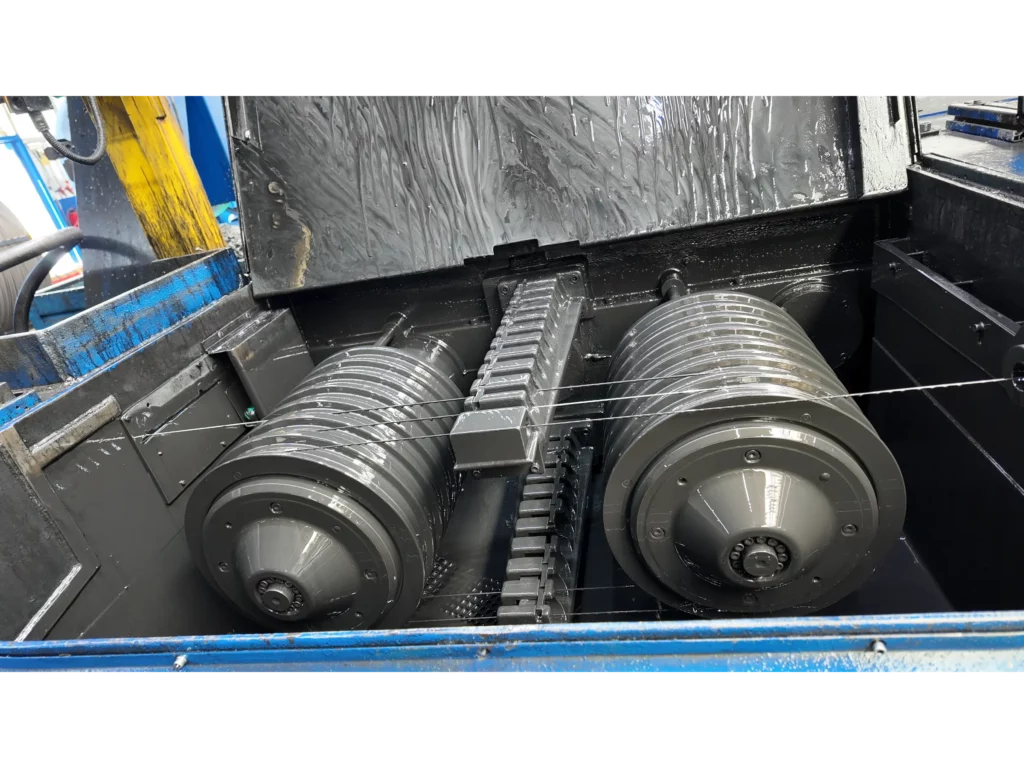

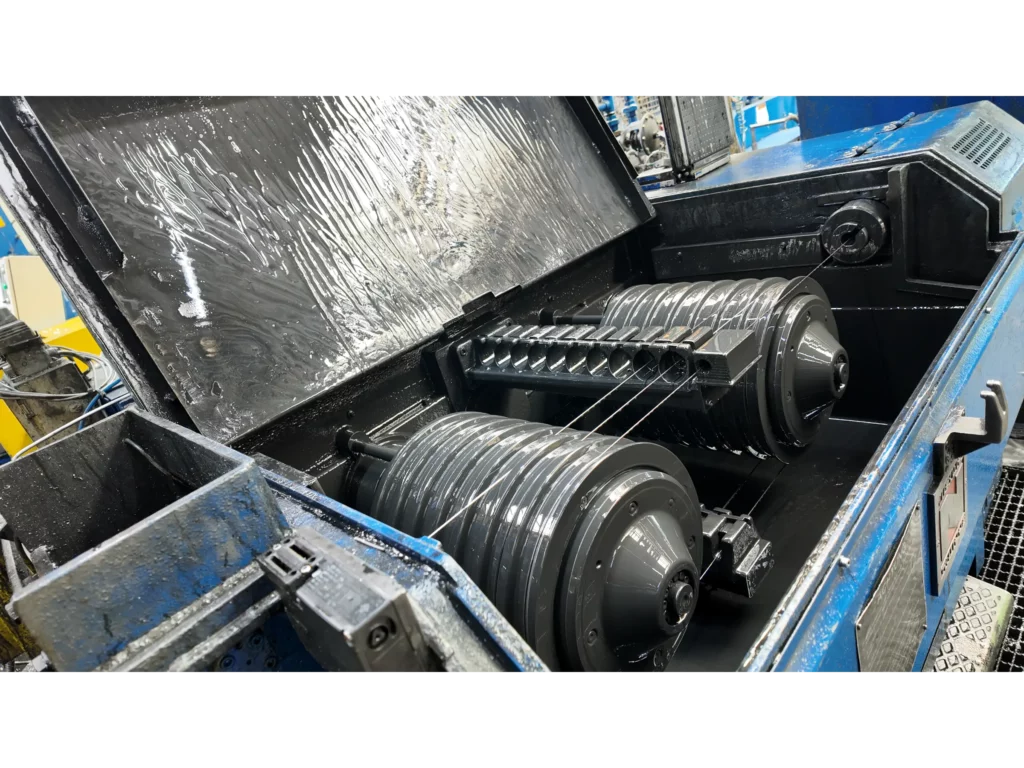

Capstan diameter: 305mm

Motor: 63,5kW

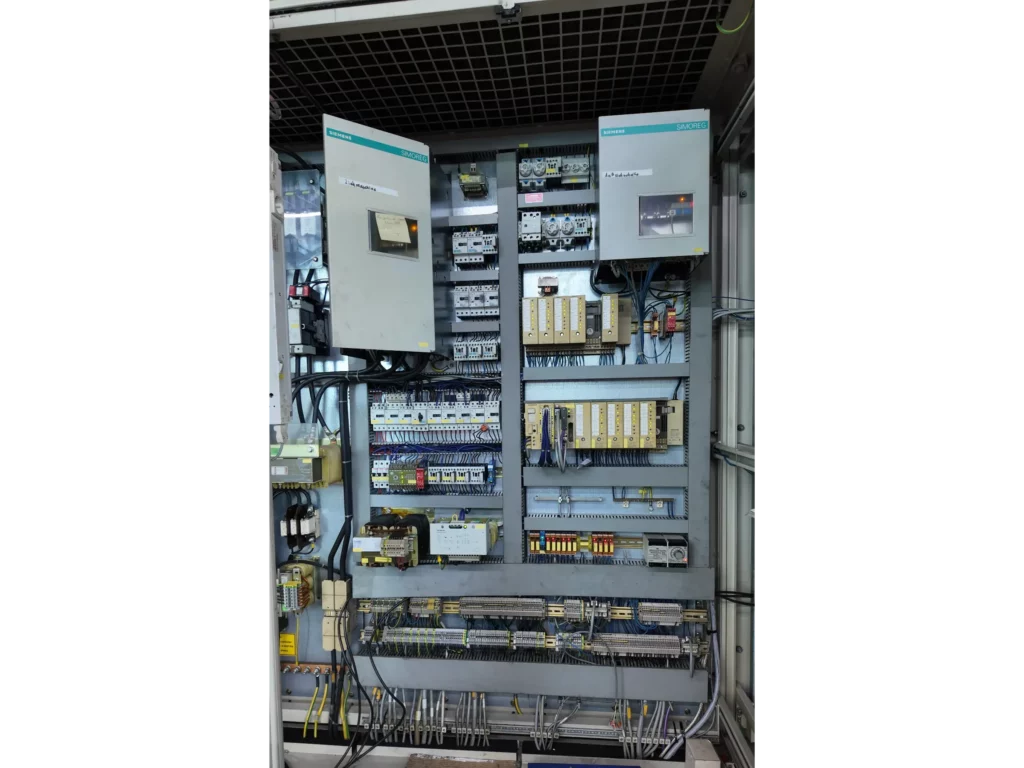

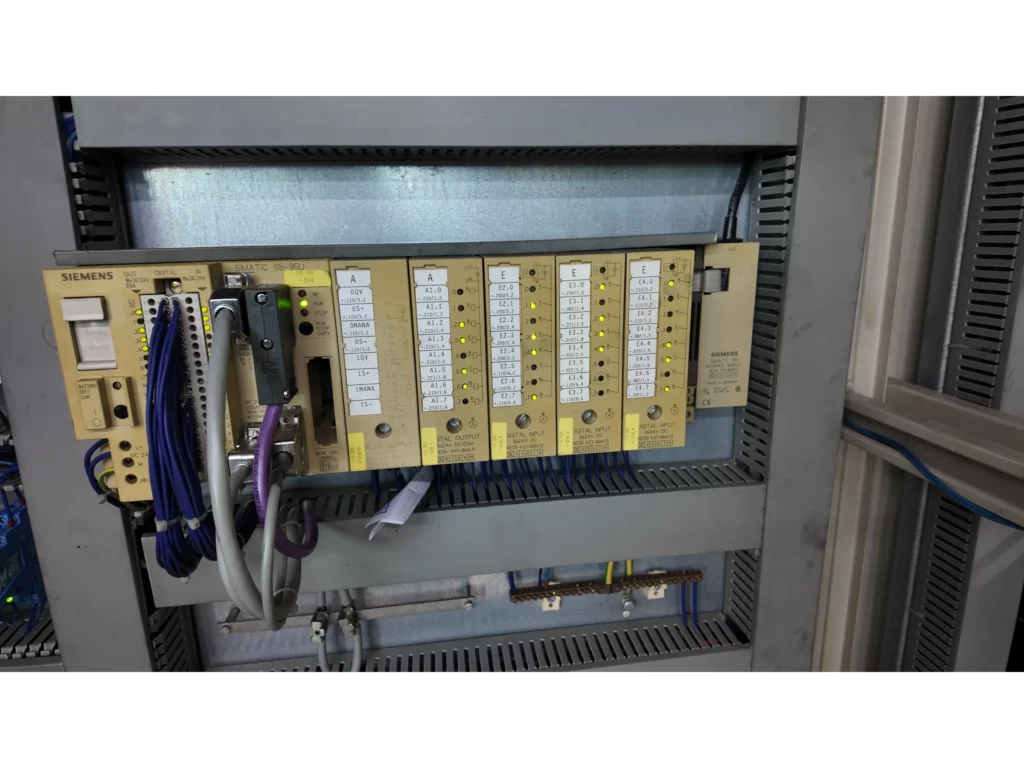

Electrical panel:

Available accessories: pumps and heat exchanger for emulsion
