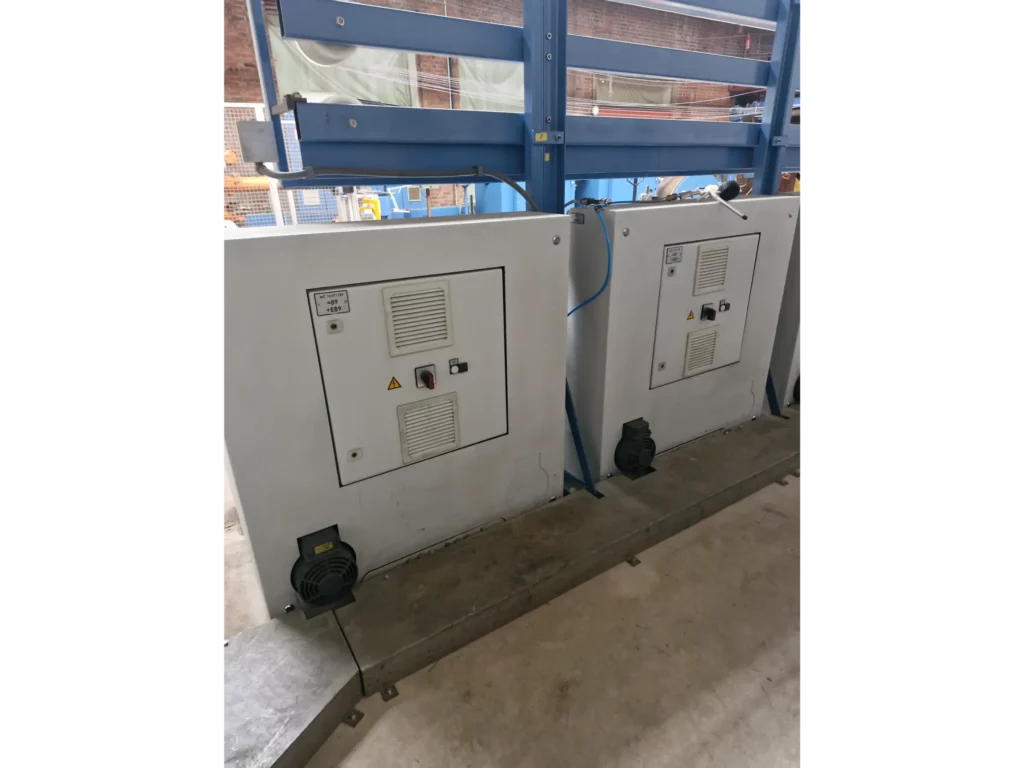

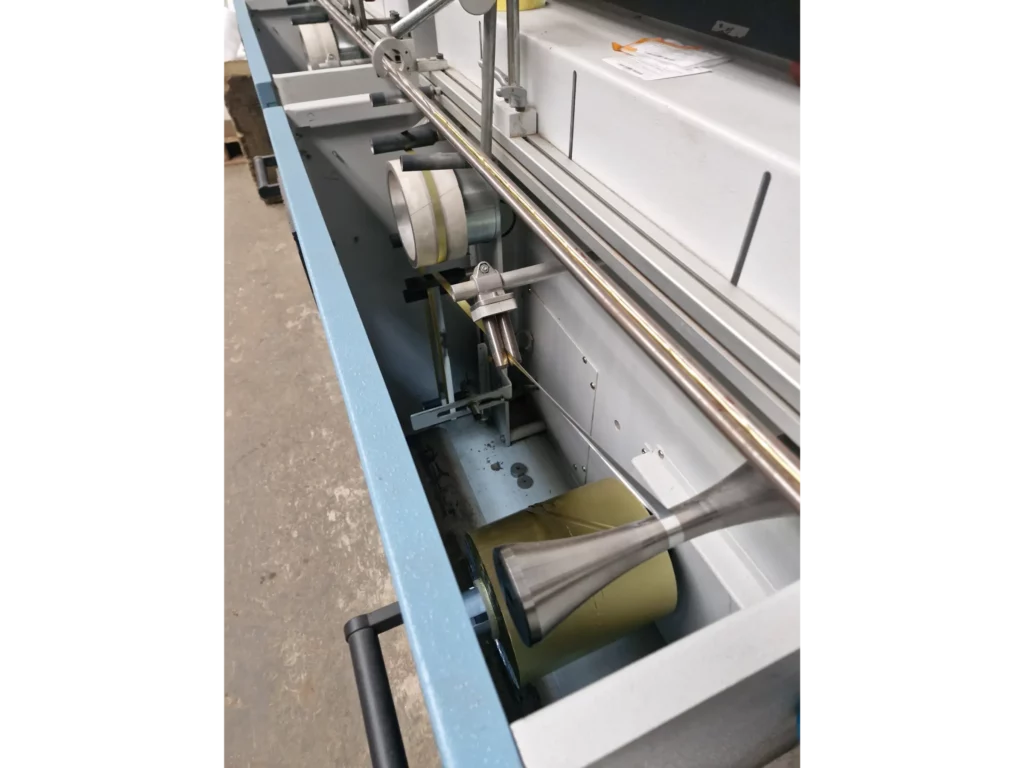

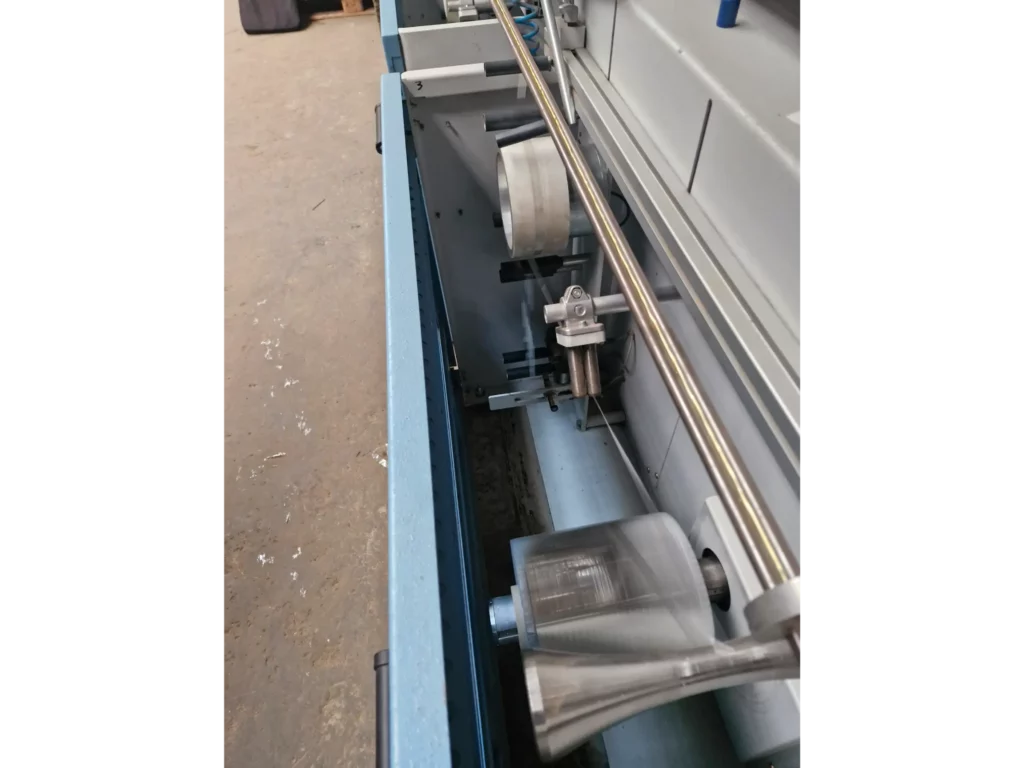

NIEHOFF ALB 600 Longitudinal Pay off for Tape

2 units available

designed for unwinding and forming of all standard tapes used in the cable industry (aluminium laminated film, polyester film etc.)

• Foundation-free installation
• For use in stranding lines and extrusion lines
• AC drive technology, dancer-controlled

Specifications:

- Max. haul-off speed 300: m/min
- Pay-off spools
max. spool flange dia 500mm
max. total length 400mm
max. film width 40mm
max. film thickness 65μm
- Film disks
max. diameter 600mm
max. film width 40mm
max. film thickness 65μm
- Drive AC motor

Machine dimensions (W x D x H) 950 x 900 x 1280mm
