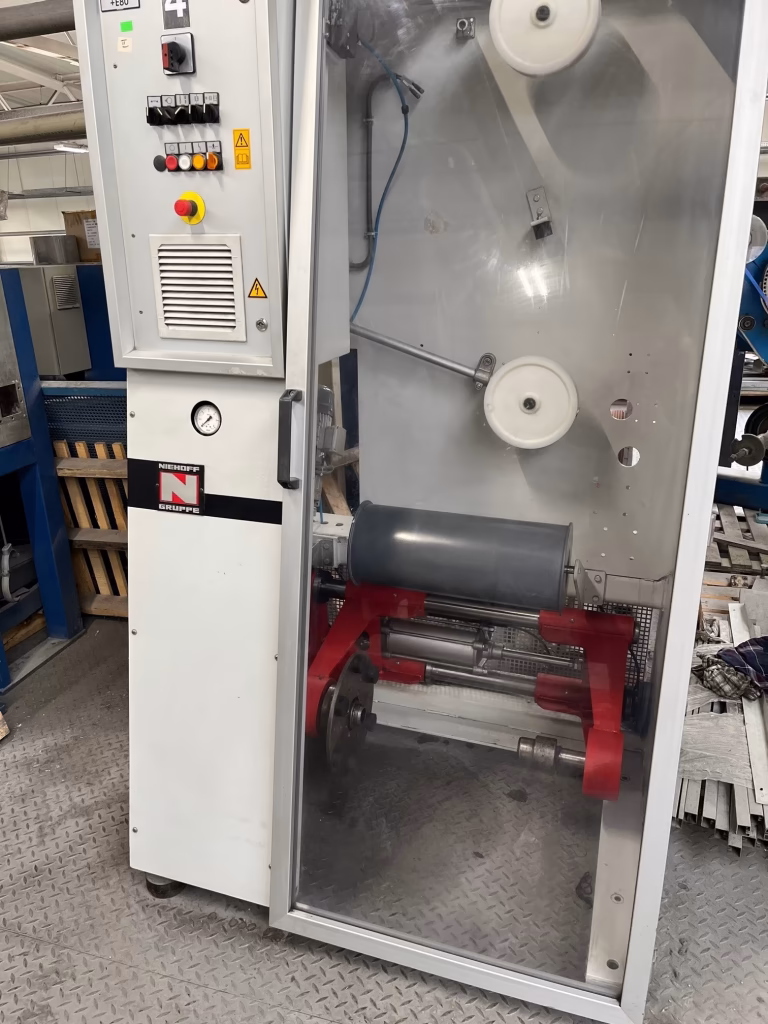

NIEHOFF 630mm Pay off with Dancer, Model ATP 630.1

0421-00187 Pay-offs, Unrolling type (single/dual position) ATP 630.1

630mm Pay off designed for uncoiling of cables, insulated single conductors, pairs and quads.

Dancer controlled spool drive with adjustable wire tension.

Maximum product diameter: 3,00mm

Maximum speed: 300m/min

Tension force: 5 to 30N

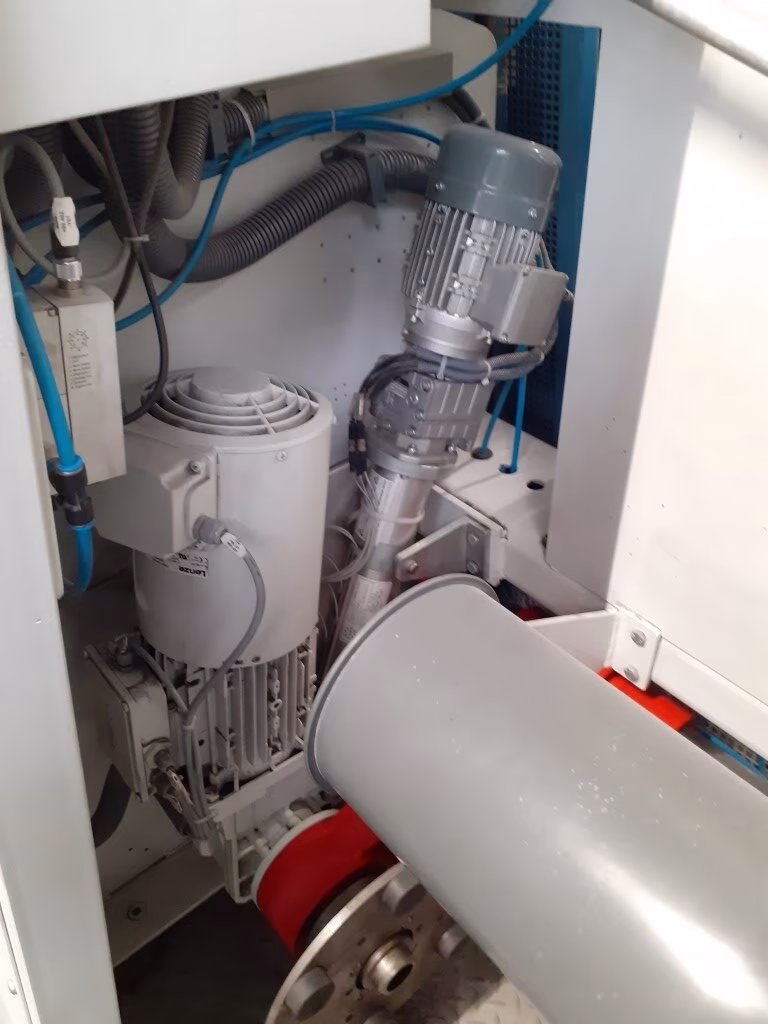

Drive: AC motor

Spool clamping via a spring loaded pintle with pneumatic release

Dimensions (W x D x H): 1,20 x 1,05 x 2,00 m
