NIEHOFF 16 wires 0,10 to 0,40mm Drawing line, model MMH101

Complete line made in 2016

Inlet diameter: 1,80mm

Outlet diameter: 0,10 to 0,40mm

Number of dies: 31

Wire elongation: 10 x 26% / 10 x 21% / 11 x 15%

Capstan diameter: 80mm

Dies casing: D 28mm x W 12mm

Delivery includes:

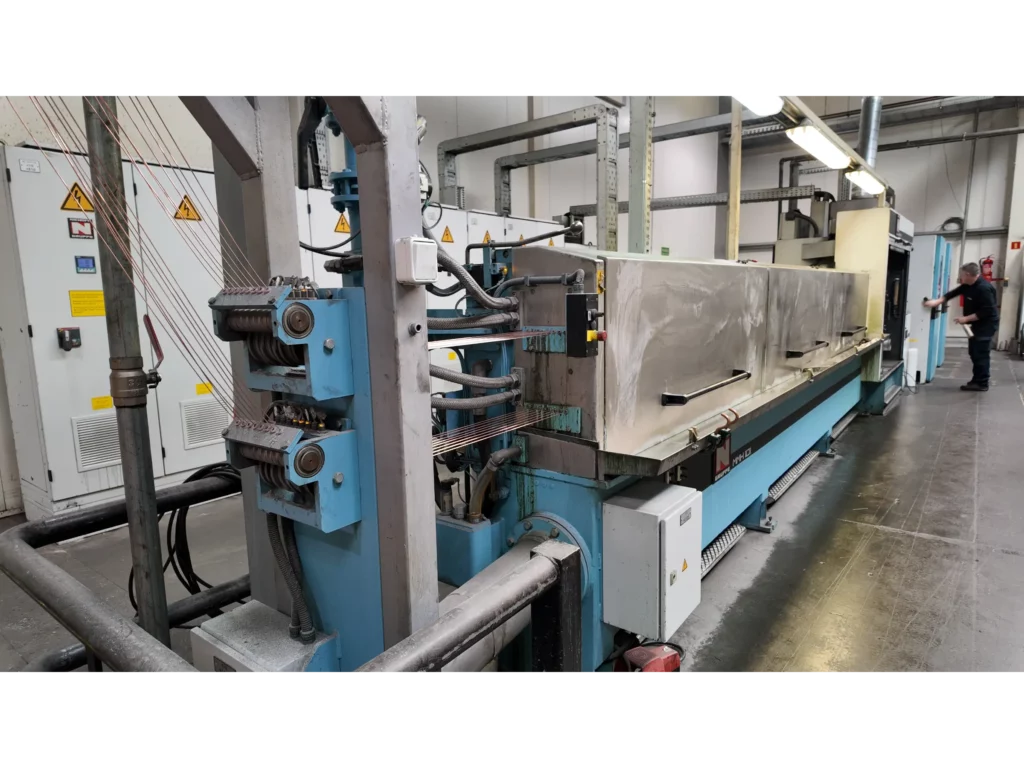

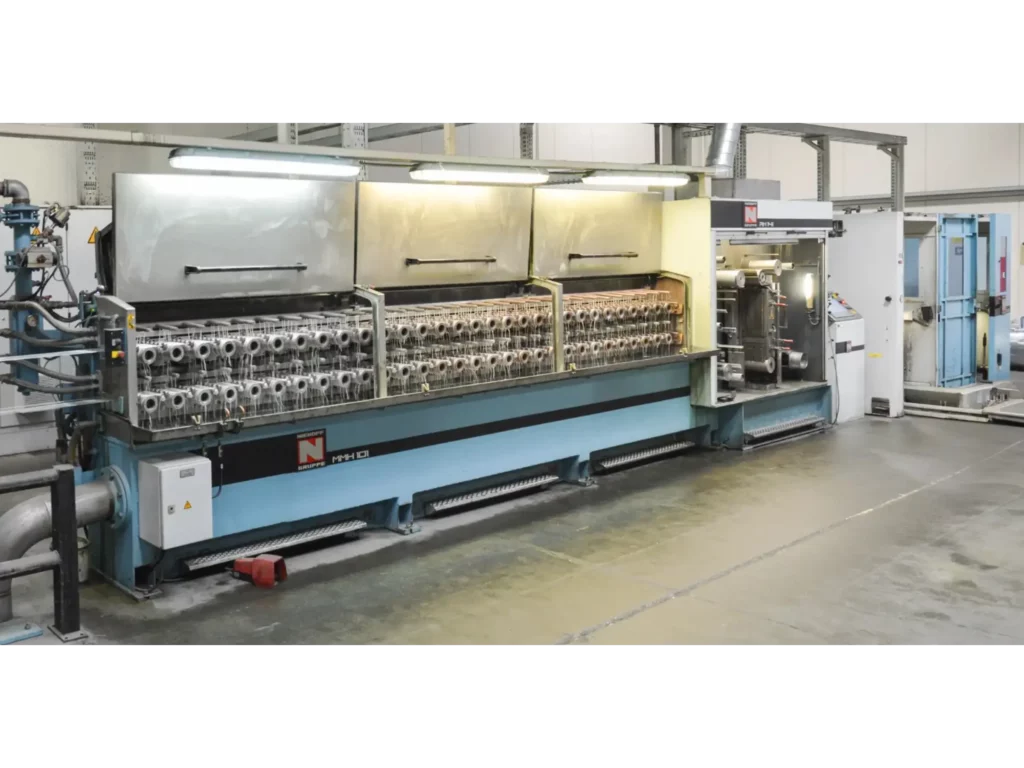

 16 wires 31 dies drawing bench, model MMH101
 Main drive: 185kW + 29kW, AC motor
 REZY filtration unit for drawing emulsion

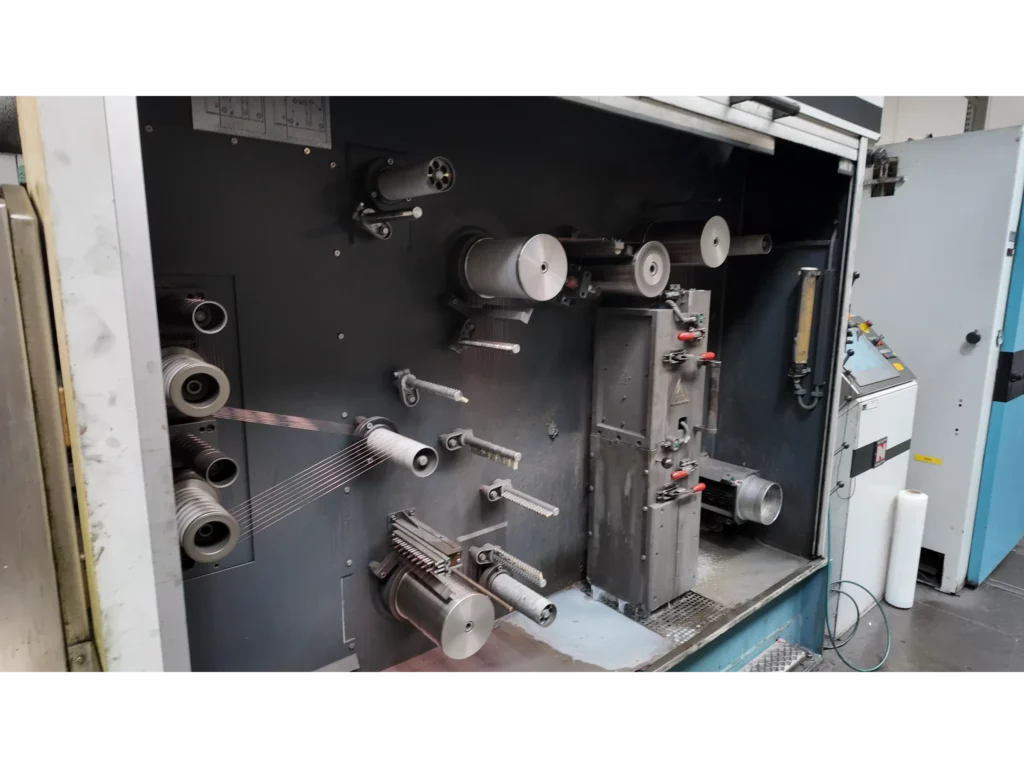

 2000A 16 wires annealer, model RM141
 REZY filtration unit for annealer emulsion
 Pumps and coolers for emulsion

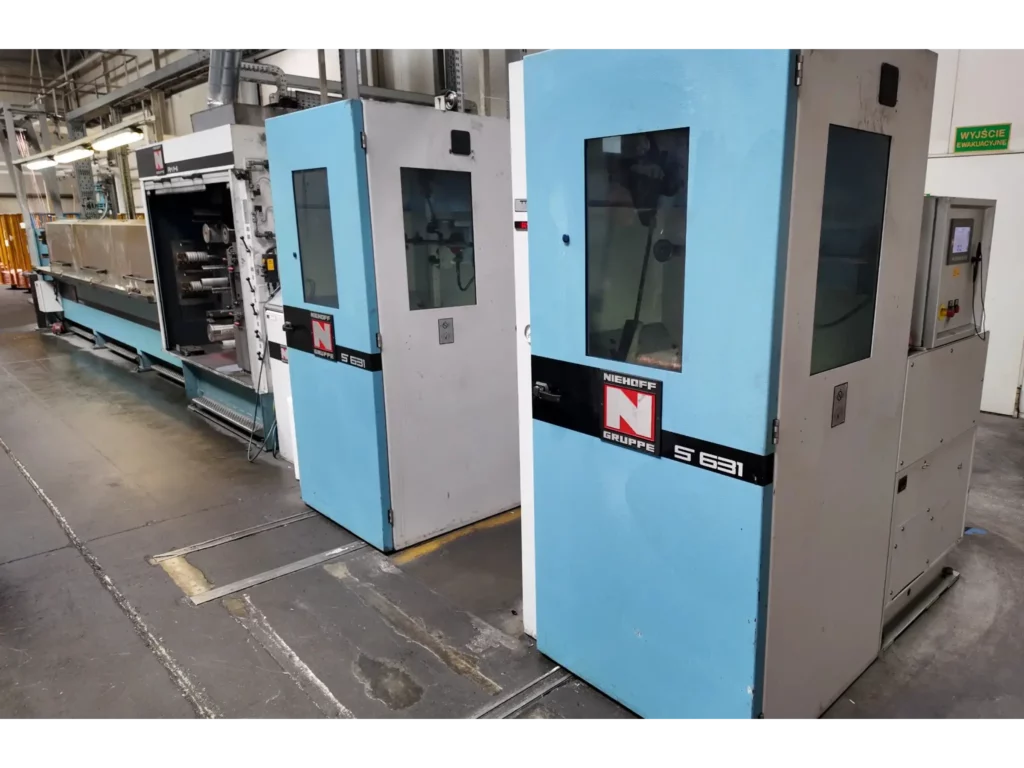

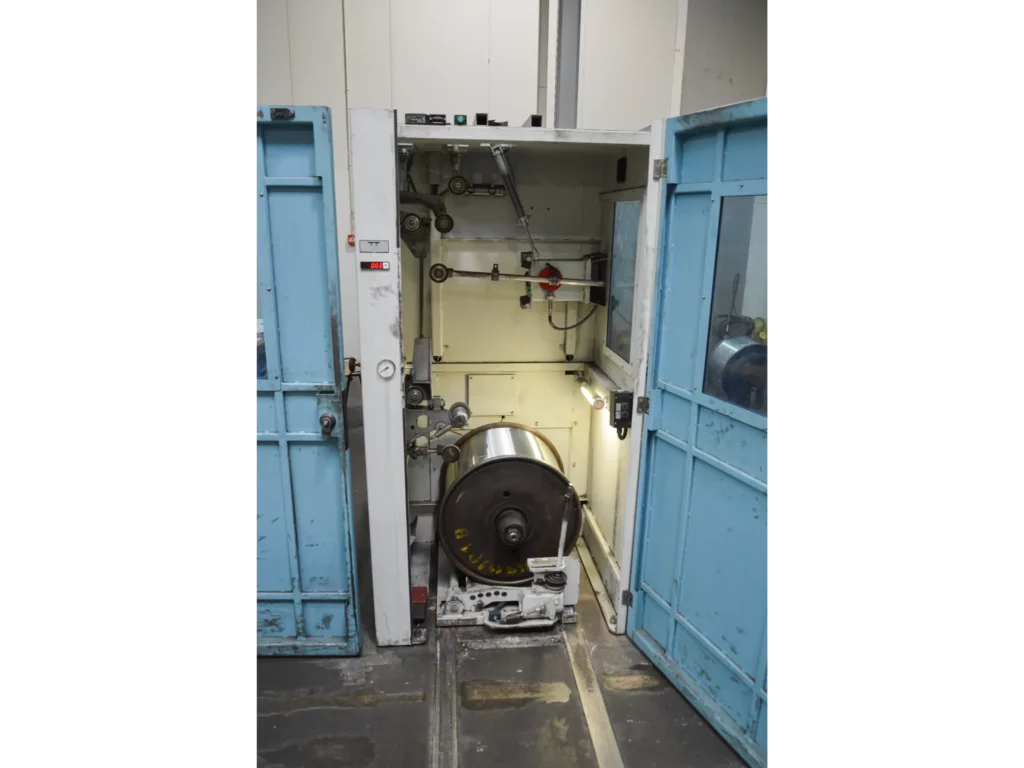

 2 x 630mm Spooler, model S631

 Electrical panel (Siemens drives and S7-300 PLC)
