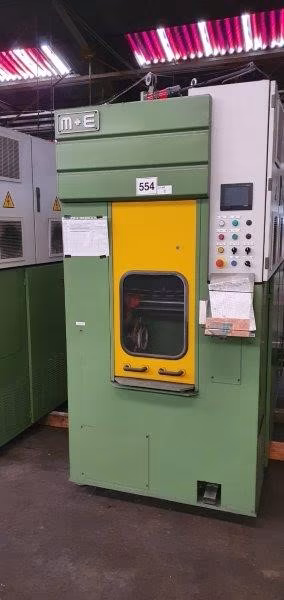

M+E Steel wire Wet Drawing machine NMG 25 with SP350 Spooler

All in one frame 25 dies drawing machine for high carbon steel wires + Spooler

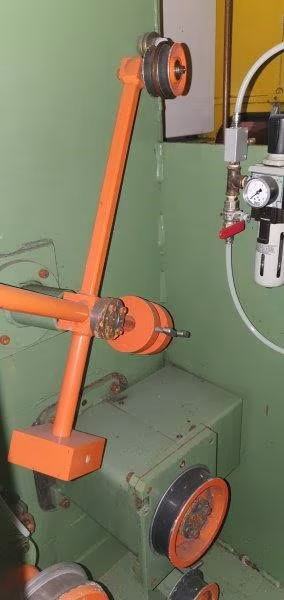

Flyer pay off

Inlet diameter: from 0,58 up to 1,26mm
Inlet maximum resistance: 1400MPa
Outlet diameter: from 0,080 up to 0,220mm

25 dies
Working direction: from left to right

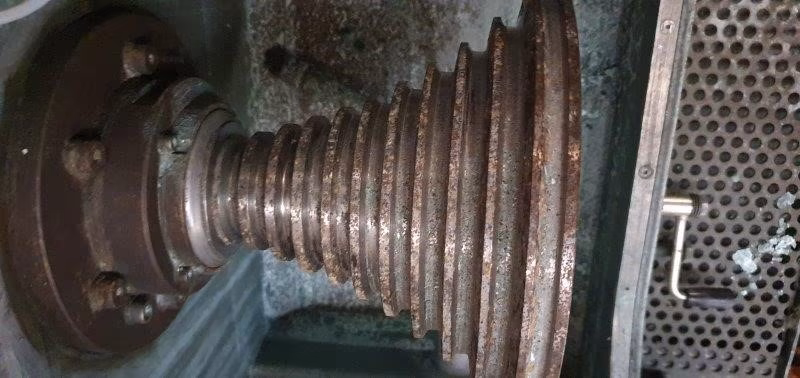

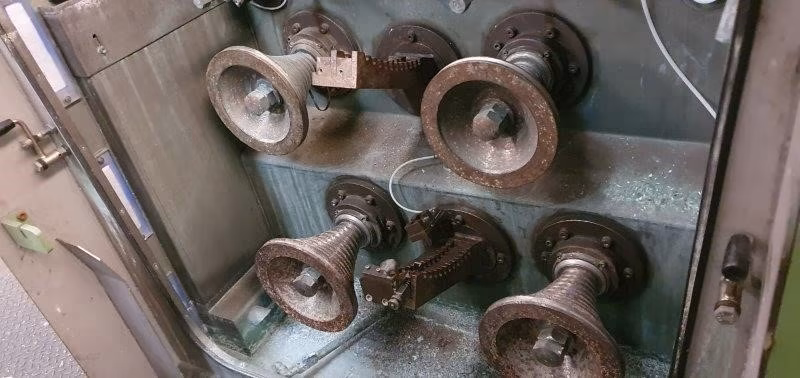

2 drawing cones : Rings diameter: 49 to 210mm
2 deviation cones

Elongation:
* from die 1 to 24 13,51%
* die 25 13,06%

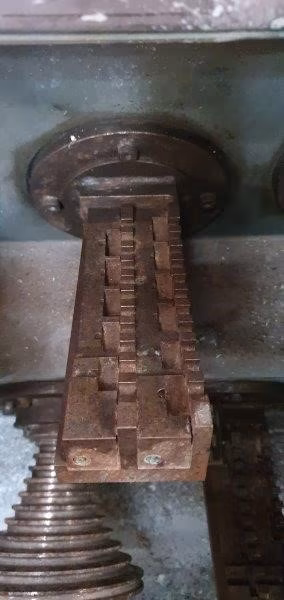

Dies casing:
* from 1 to 13 24 x 12mm
* from 14 to 25 24 x 7mm

Main drive: 22 kW AC motor

Drawing speed: 6,5 up to 25 m/sec

Spooler:
- Bobbin diameter: 315mm
- Barrel diameter: 156mm
- Bore diameter: 150mm
- Bobbin width: 350mm
- Useful width: 315mm
- Drive : 11kW AC motor
- Traversing lay length: 0,28 to 3,30mm

Electrical cabinet:
- Mitsubishi AC drives
- Mitsubishi PLC
