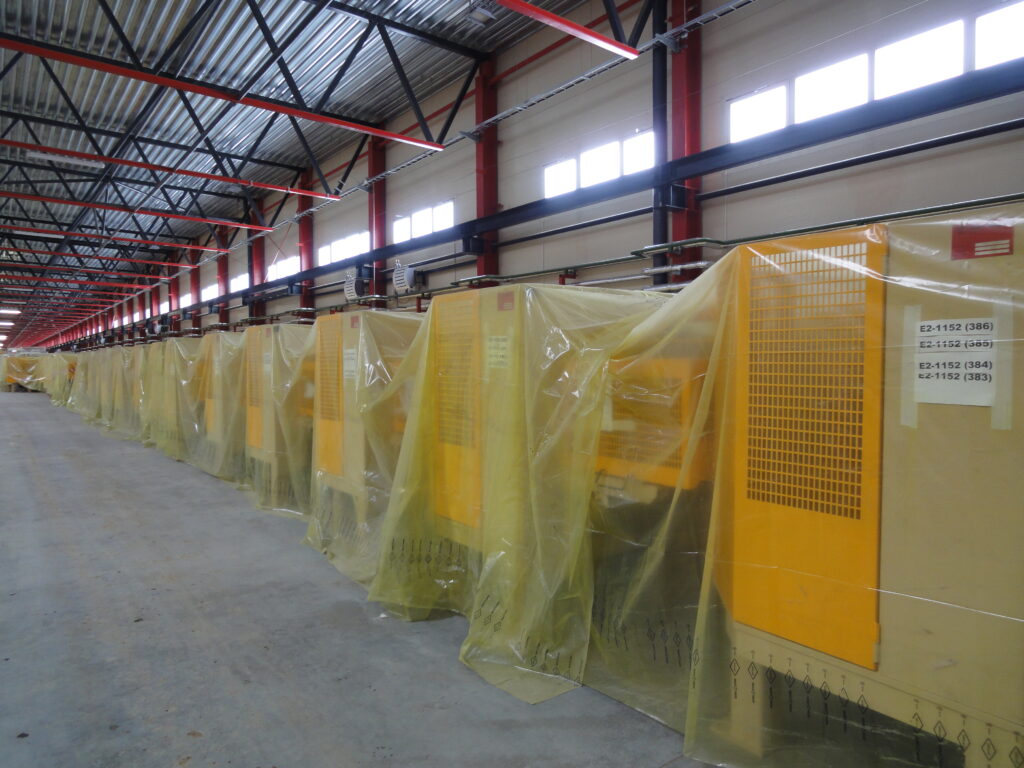

MARIO FRIGERIO SDM12 Motorized Spool Pay-off

Material: high carbon brass coated steel wire
Wire range: 0,70 – 0,90 mm
Tensile strength: max. 1.350 N/mm2

Speed: Max 0,50 m/s
Rotating platform: nominal power 0,50 kW
Spool's Dimensions:
* Flange 1.120 mm
* Barrel 560 mm
* Working width 710 mm
* Max. width 850 mm
*Bore 155 mm
* Weight of the wire 2,0 ton

Description of mechanical part
The housing made is of welded construction and stress relieved. It is designed to contain all the elements of the Pay-off.
The payoff is composed by a rotating motorized platform, synchronized with the wet drawing machine by means of a dancer. The spool is placed in vertical axis position.
