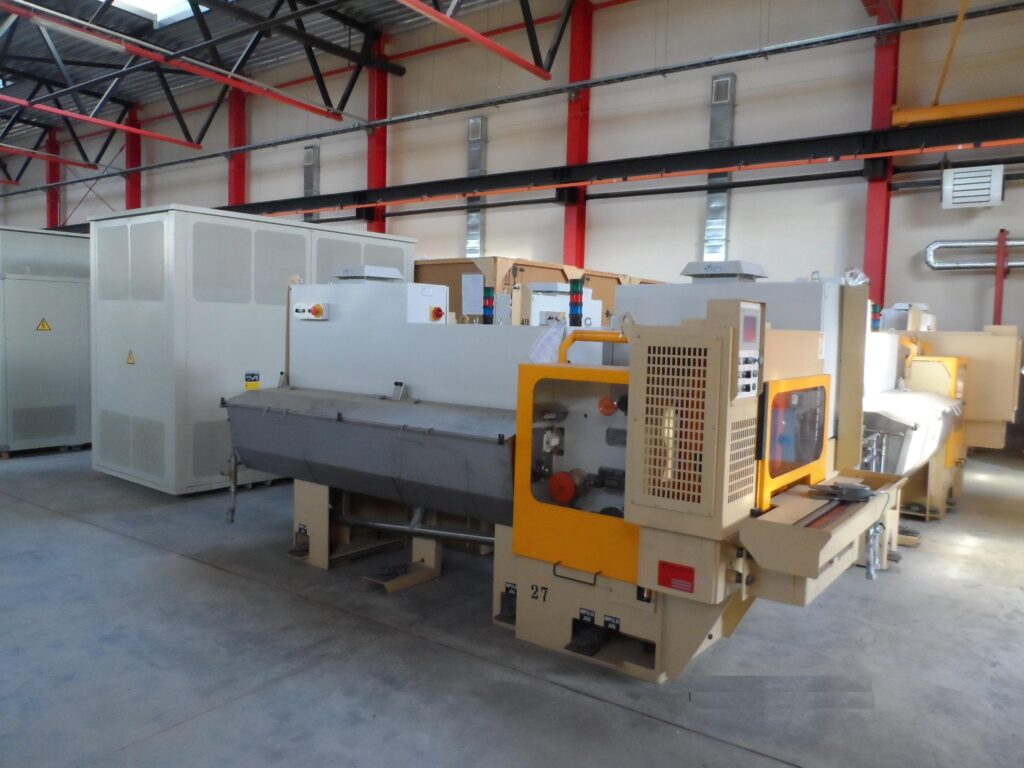

MARIO FRIGERIO LSD25 Wet Drawing Machine

Material : high carbon brass coated steel wire
Drawing range: inlet range 0,70 – 0,90 mm
outlet range 0,10 – 0,14 mm
Tensile strength: inlet max. 1.320 MPa
outlet max. 4.150 MPa

Number of passes: 25
Number of cones: three pairs 3 x 2
Mechanical reduction: decreasing 19 – 6,0 %
Drawing speed: max. 18,0 m/s
Jog speed: max. 0,5 m/s
Die size: cylindrical type
standard size 28 x 15 mm
Drives: AC motors
Nominal power: 15 kW
Services: emulsion 90 % demineralised-water 10 % oil
emulsion flow rate max. 1,50 m3/h
emulsion inlet temperature max 40 ± 5 °C
compressed air pressure range 500 ÷ 700 kPa

Integrated Horizontal Self Traversing Spooler model BT315

Spools: Single type flange 315 mm
Machine speed: max. 18 m/sec
Separate adjustable
ramps following drawing machine ramps
Drive: AC motors
Nominal power 3 kW
Self traversing motor: AC motors
Nominal power 1,1 kW
Services:
* Compressed air Pressure: 500÷700 kPa
* Lifting unit: Spool lifted and lowered by means of the pintles
* Meter counter
