MAPRE 200 meter Horizontal Accumulator, AHM 600-200

0330-00372 Accumulators AHM 600-200

Horizontal accumulator for use in an extruder line

  • Cable diameter: up to 25mm

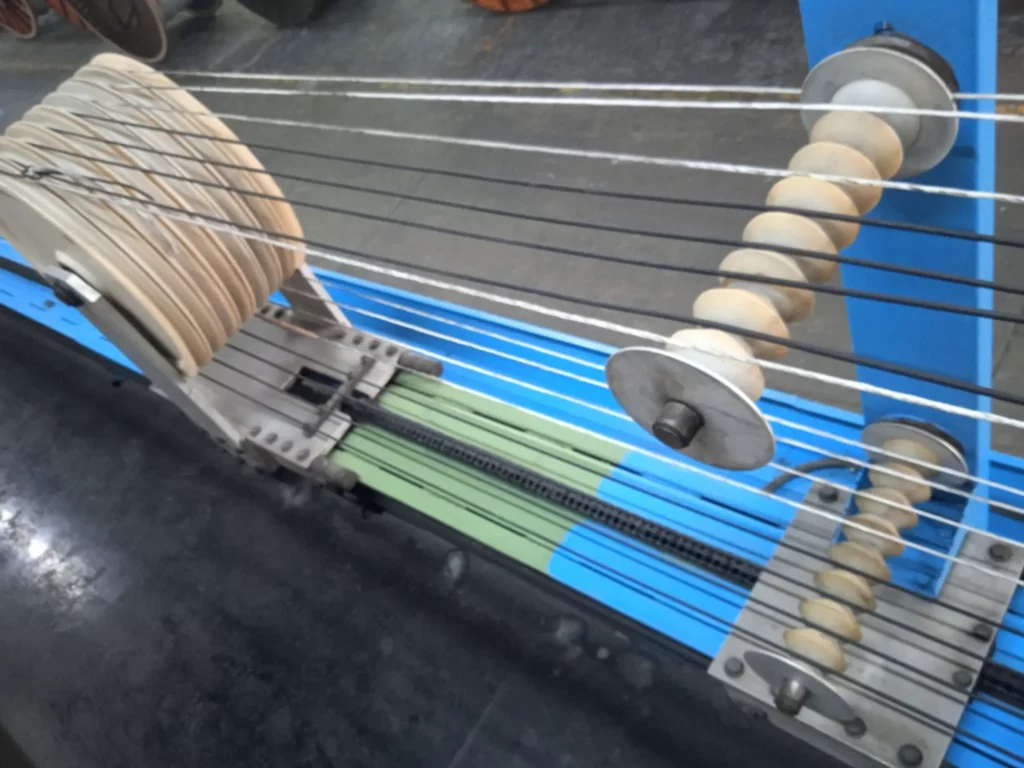

  • Number of pulleys: 8 mobile + 8 fix
  • Pulleys internal diameter: 600mm
  • Pulleys external diameter: 650mm
  • Pulleys width: 30mm
  • Pulling force: 6 to 50daN
  • Total accumulation length: 200m
  • Length: 16,60m
  • Axis height: 3000mm

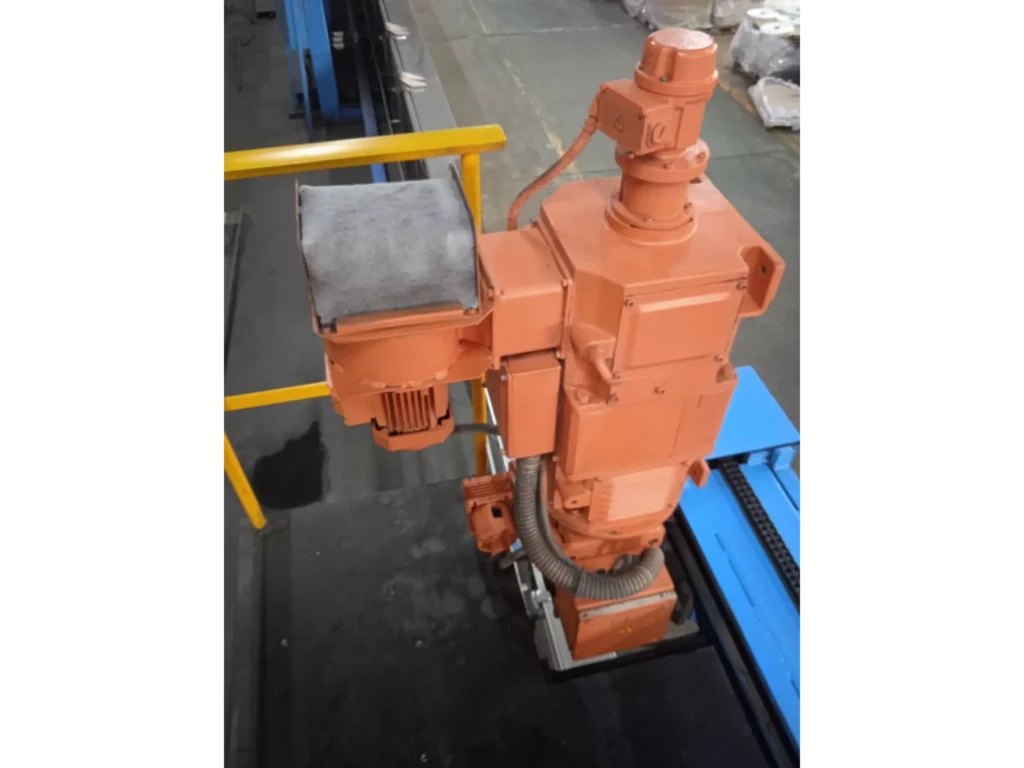

  • Trolley drive: 2,2kW AC
