MAPRE 120mm 25D Insulating Sheating line

Complete sheating line made for processing PVC and PE material.

HFFR material could be processed either with the PVC screw or with a HFFR screw (not available) if higher speed is requested.

Made in 2015, never installed.

Diameter before sheathing: 15-75 mm (with actual extrusion heads)

Max dia. over sheathing: 18-90 mm (with actual extrusion heads)

Sheath thickness : 1.4 to 3.2 mm (with actual extrusion heads)

Scope of supply

• 2 x Portal Motorized Type Pay-Off, DIN 2500, Mobile On Floor (FZY 2500)
• 1 x Heavy Duty Pulling Caterpillar, 2000 daN, Endless Belt Type (QP 2000-1M)
• 1 x 120 mm Extruder, 25D (E1.120-25.XN.CHC)
• 1 x Single Layer Manual Centering Crosshead 130/140 (TEM 130-140 M)
• 1 x Dual Plane Diameter Gauge SIKORA, dia. <= 190 mm (LASER 2200 XY)
• 1 x Gravimetric Dosing System MAGUIRE For 4 Additives (800kg/h) (WSB 940 T)
• 1 x Dehumidifying Dryer For Pellets PIOVAN, Capacity 800 m³/h (DP 624-MT + TN 1000 + F48/2 + C50)
• 1 x Dual Plane Diameter Gauge SIKORA, dia. <= 190 mm (LASER 2200 XY)
• 1 x Embossing Marker MEDEK & SCHORNER (<300 m/min) (KMS 1)

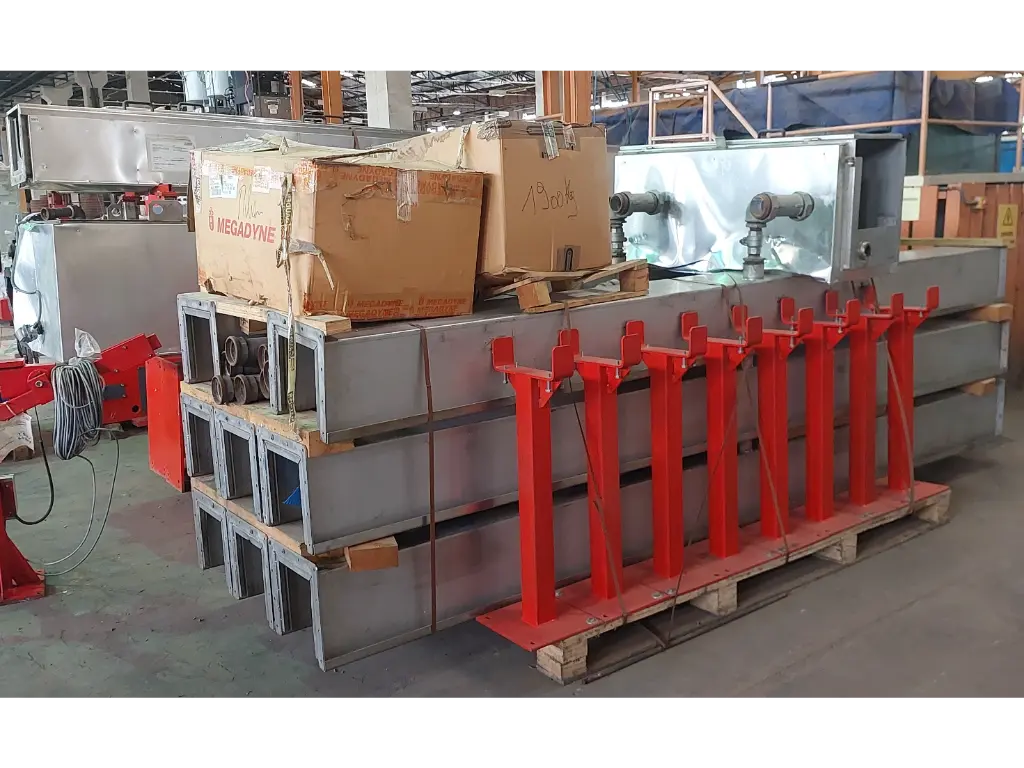

• 1 x 40 m Single Pass Cooling Trough (dia. <= 130 mm) (BRS 130-40 T)
• 1 x Horizontal accumulator (Used equipment
• 1 x Dual Plane Diameter Gauge SIKORA, dia. <= 190 mm (LASER 2200 XY)
• 1 x Mains Frequency Spark Tester SIKORA, 25 kV (dia. 1 to 200 mm) (SPARK 2200 BS)
• 1 x Wheel-Type Meter Counter for Cables up to 125 mm (MML 125-P)
• 1 x Heavy Duty Pulling Caterpillar, 2000 daN, Endless Belt Type (QP 2000-1M)
• 1 x Portal Type Take-Up, DIN 2500, Mobile On Floor (SY 2500)
• Electrical and control panels
