MALI 30+36/560 Planetary Stranding Line

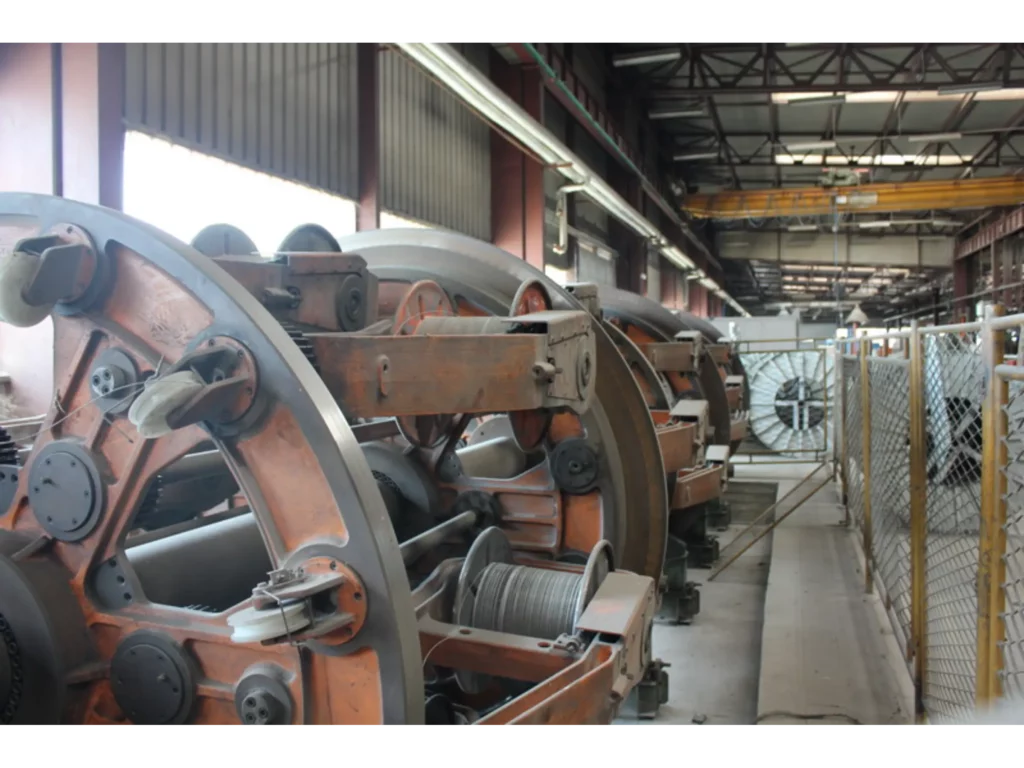

Heavy Duty complete Planetary line made of two cages (30+36/560) driven by line shaft

Previously used for Steel Wire Armouring

Line composition :

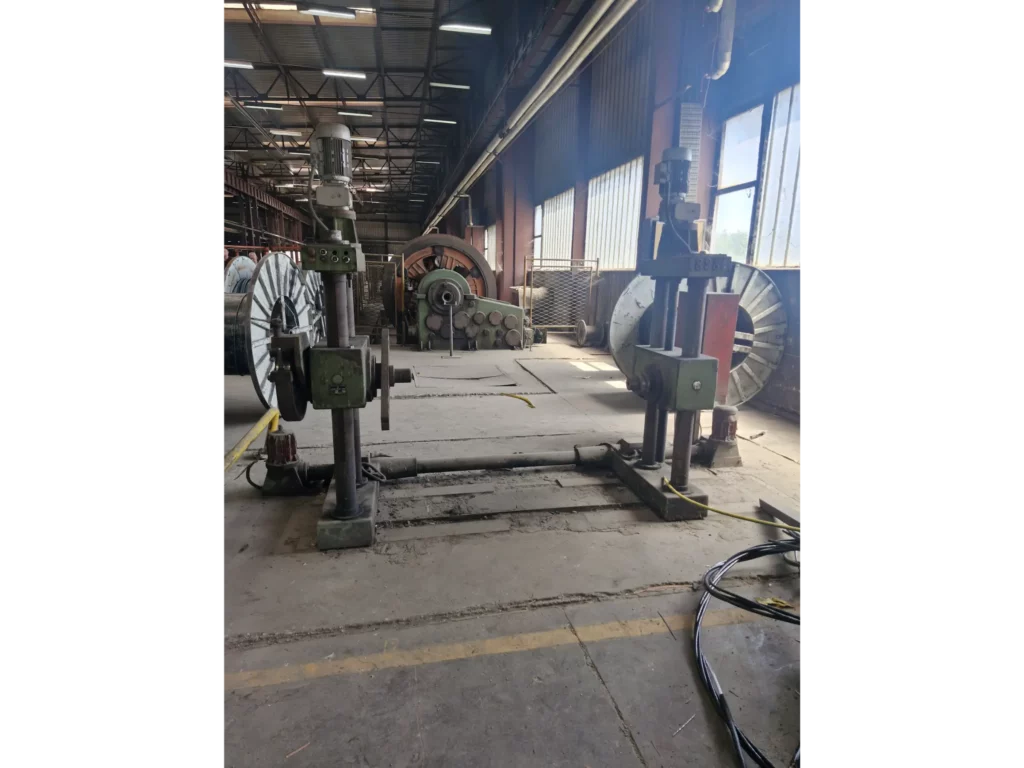

               2240 mm Column Type Braked Pay-off

               Tangential Taping head, 4 Pads (500 mm diameter)

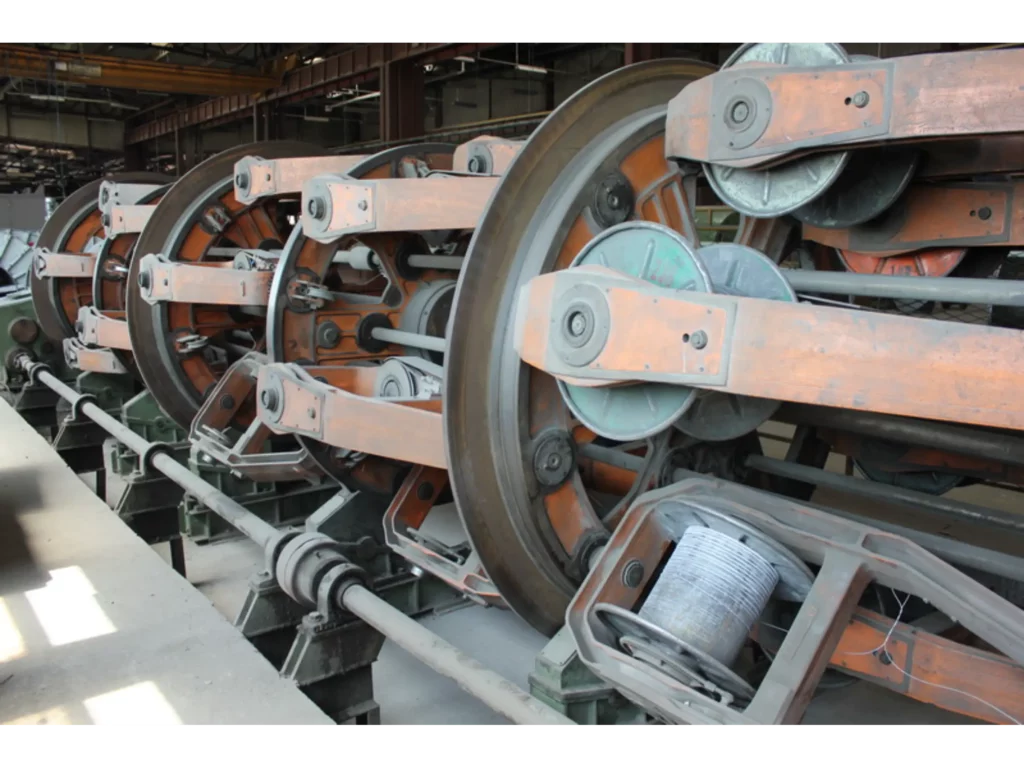

               30 Bobbins 560 mm Planetary Cage

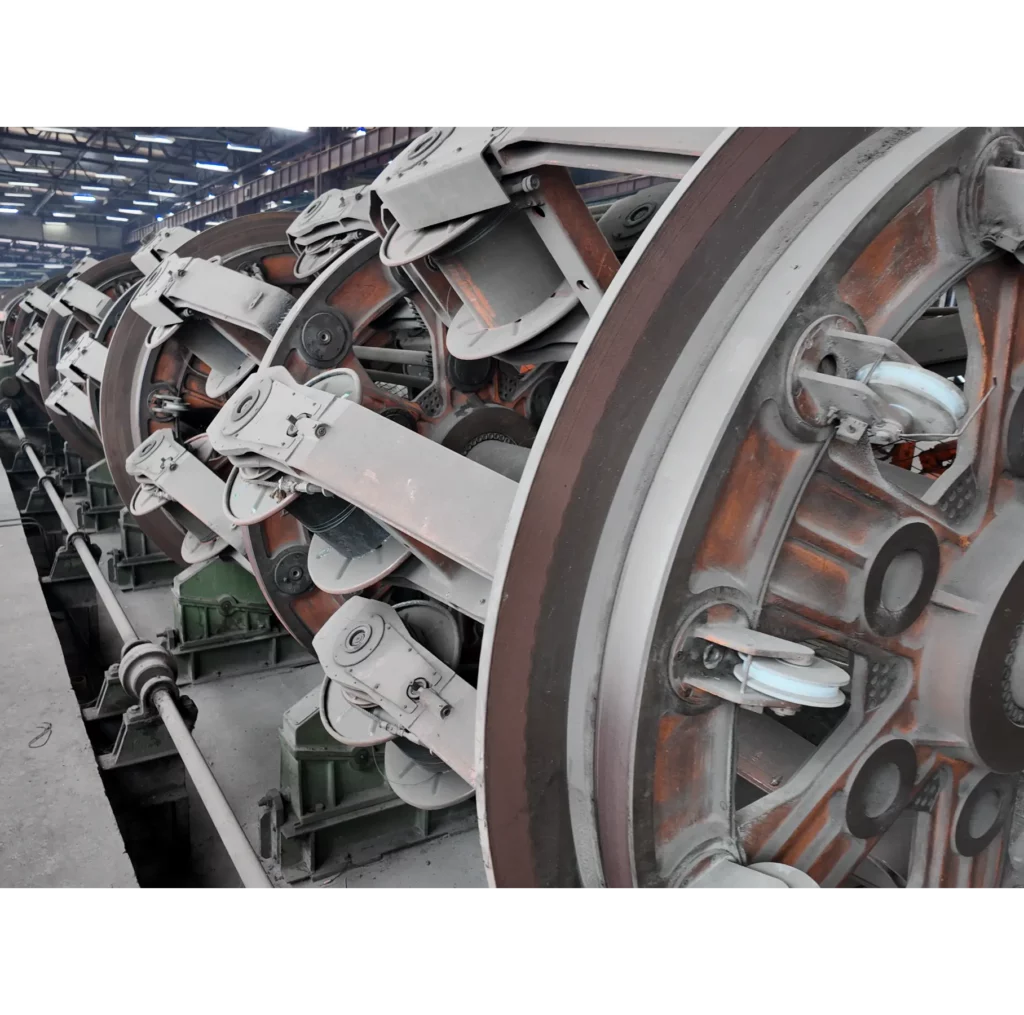

               36 Bobbins 560 mm Planetary Cage

               Steel Taping Head, 2 pads (600mm diameter)

               2500 mm Single Wheel Pulling Capstan

               2600 mm Column Type Take-up

Column type Pay-off

• Column Type, braked
• Bobbin hold between pintles
• Bobbin Flange diameter:                   800 to 2240 mm
• Bobbin Overall Width:                       600 to 1700 mm
• Bobbin weight: up to 12 tons

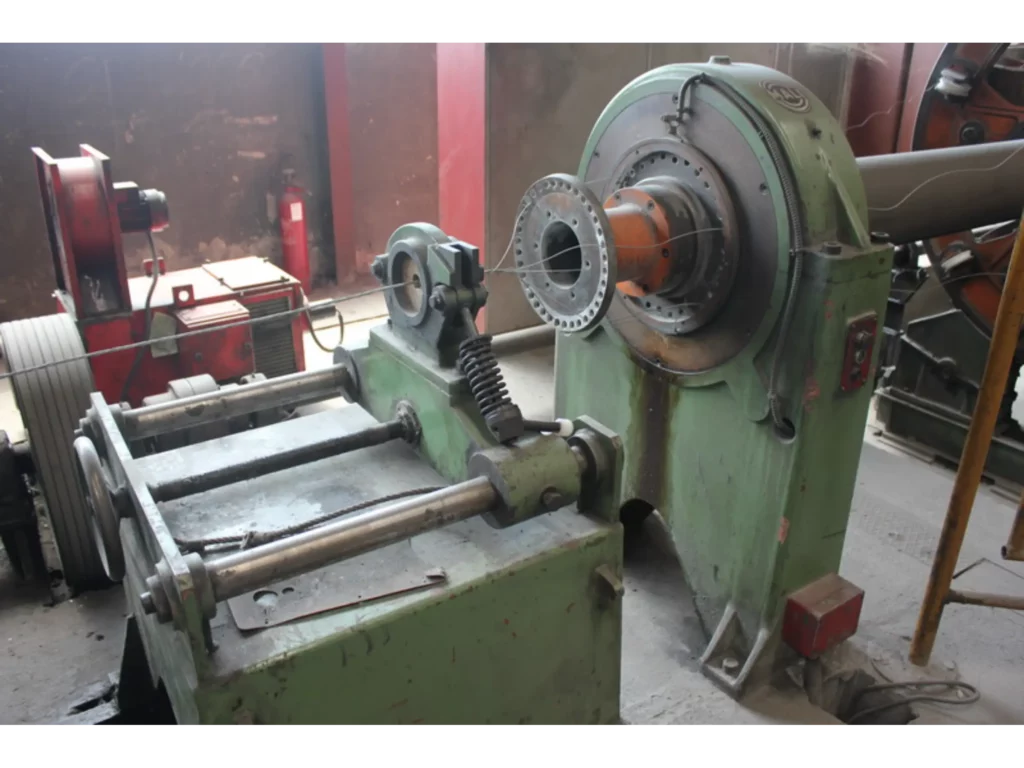

Tangential Taping Head

• Number of pads: 4
• Tape width: 20-60mm
• Pad OD: 500 mm
• Pad ID:  60 mm
• Speed: 700 RPM adjustable by PIV
• Cable passage diameter: 130 mm

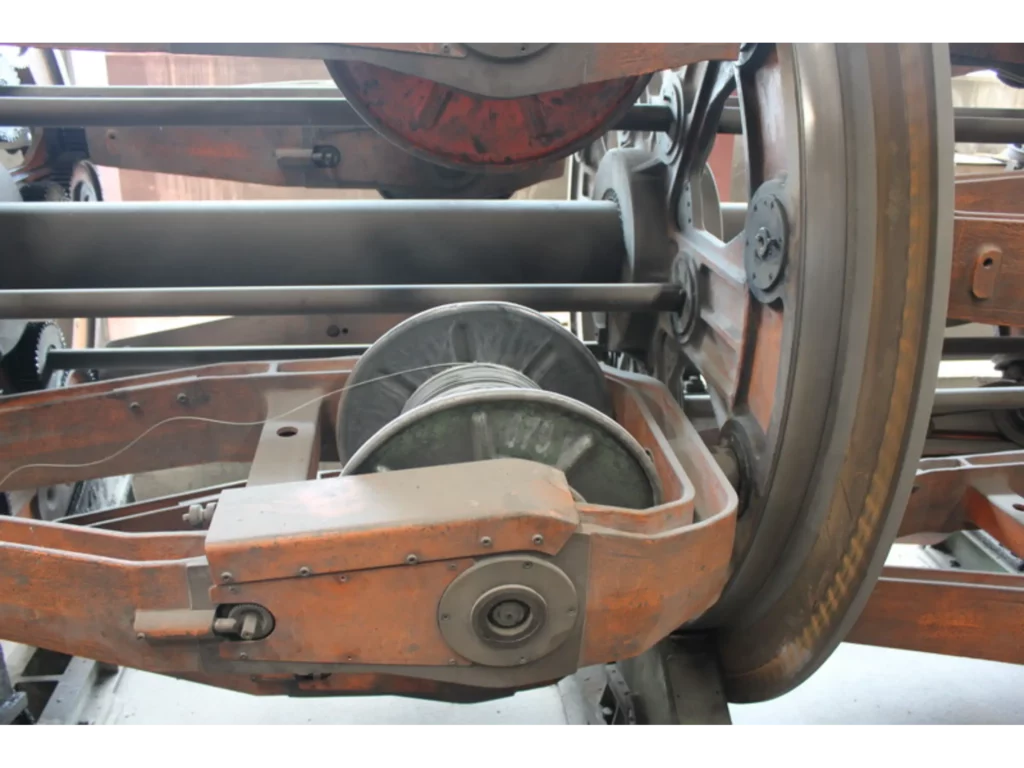

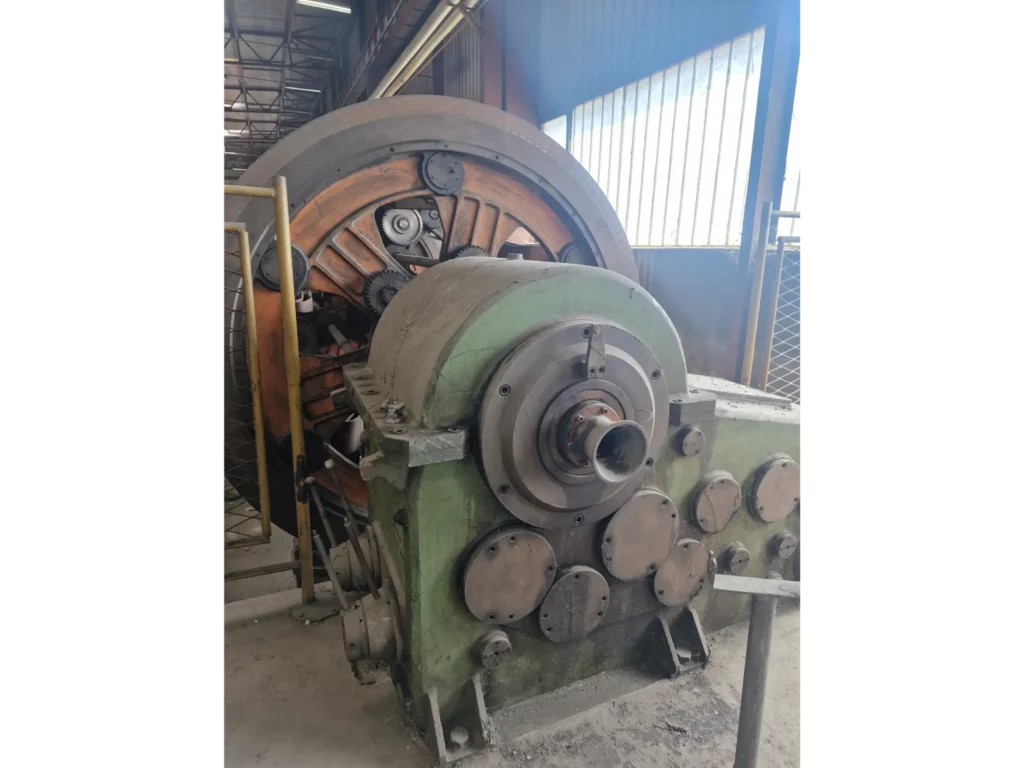

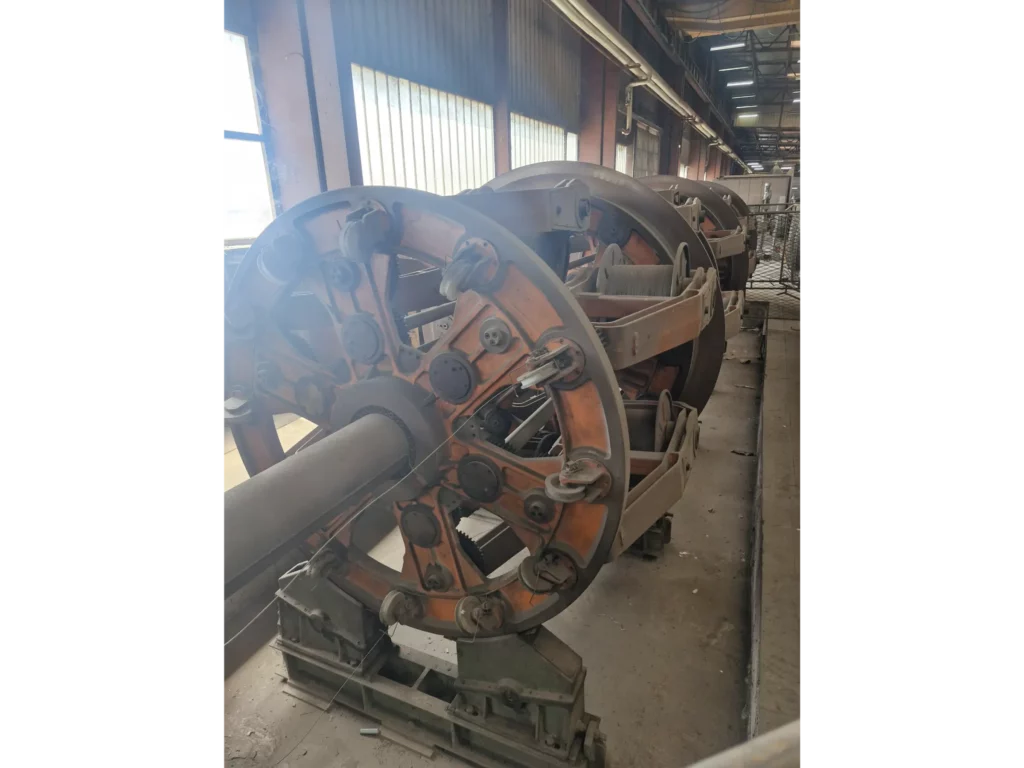

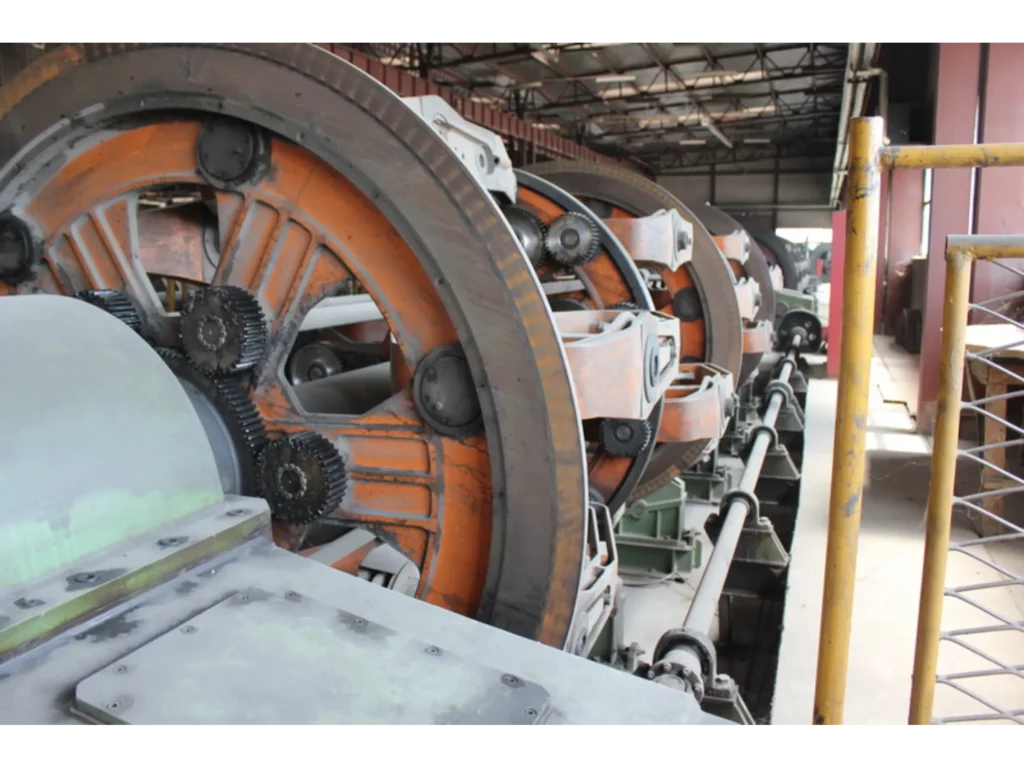

Planetary cages KV 30+36/56

               30 x 560 mm          5 bays of 6 bobbins

               36 x 560 mm          6 Bays of 6 bobbins

• Bobbin dimensions: D560 mm x l425 mm

• Bobbin barrel diameter: 224mm

• Bobbin bore diameter: 56mm

• Bobbin weight: up to 380 kg

• Rotation Speed: 100 RPM adjustable by changing gears

• * Wire Passage diameter: 10 mm

• Cable passage diameter: 100 mm

Steel Tape Wire armouring

• 2 Pads
• Tape width: 20-60mm
• 600 mm diameter each

Single Wheel capstan

• Wheel diameter: 2500mm

• Wheel usefull width: 350mm

• Pulling force: 30kN

• Pulling speed: 6-60m/min (adjustable via 48 speed change gear)

Column type Take up

• Bobbin hold between pintles
• Bobbin Flange diameter:                   1000 to 2500mm
• Bobbin Overall Width:                       750 to 1900 mm
• Bobbin weight: up to 15 tons
