MALI 1+4/2240 Drum Twisting Line, Model UVM

Complete drum twisting line equipped with rotating pay-offs suitable for laying-up power cables, round, sector shaped, straight or prespiralled.

Designed for cables from 25 up to 240mm²

Line composition

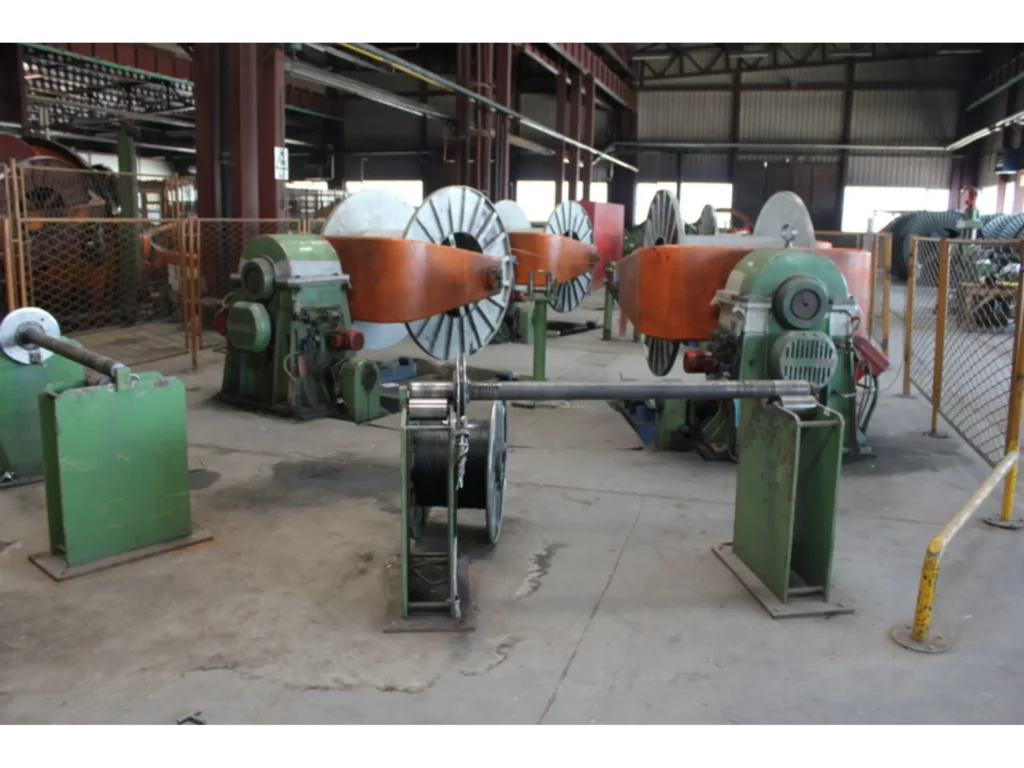

* 2 x 1600 mm Shaft pay off

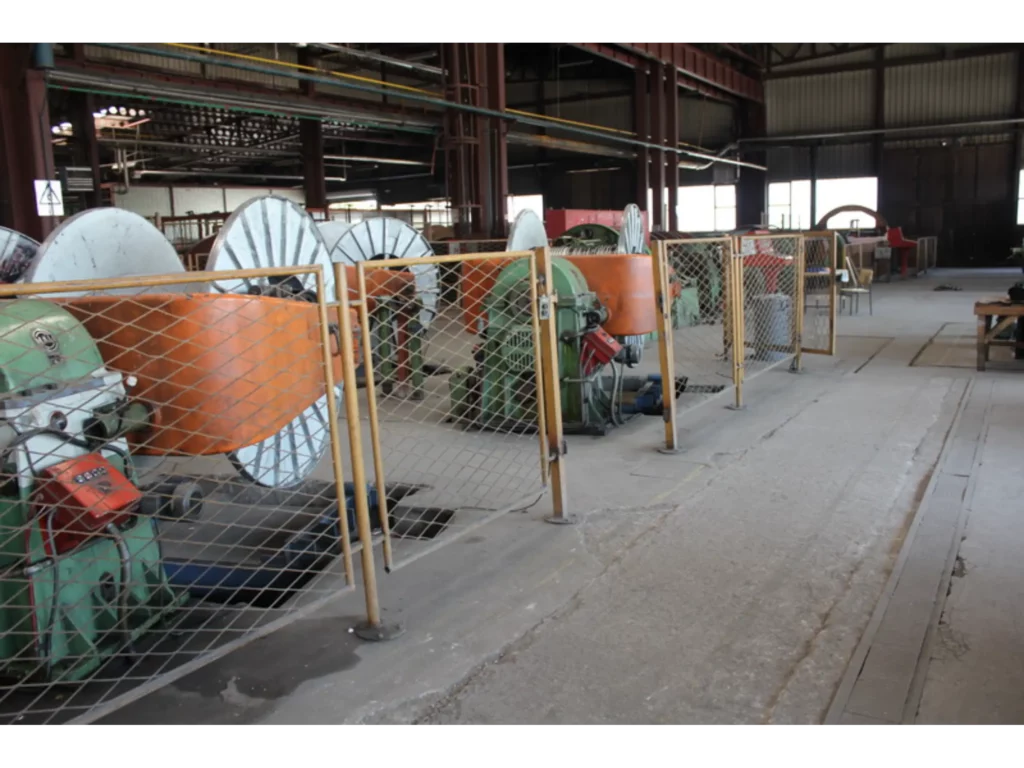

* 4 x 1600 mm Rotating Pay off

* 1 x Lay-plate sector correction device and die holder

* 1 x Longitudinal taping head

* 1 x Concentric taping head

* 1 x Rotating caterpillar

* 1 x 2240 mm Rotating take up

* 1 x Lifting table for take-up bobbin

* 1 x DC Motor, line shafts and differential pulleys for sector correction

Caterpillar is with gear box for lay-length control.

Complete drum twisting line equipped with rotating pay-offs suitable for laying-up power cables, round, sector shaped, straight or prespiralled.

Designed for cables from 25 up to 240mm²

Caterpillar is with gear box for lay-length control.

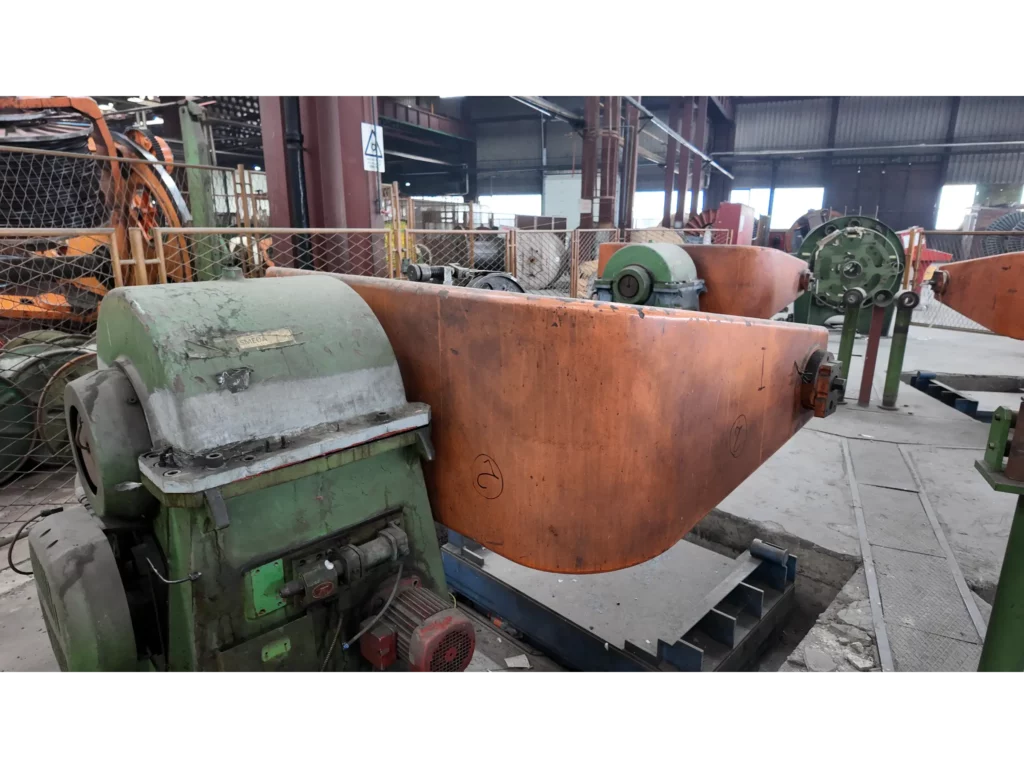

Rotating pay-offs                                         Rotating, 4

Bobbin diameter                                          1600 mm

OAW                                                                1100 mm

Bobbin holding                                             Pintles

Pintles opening                                            Motorized, AC drive

Tension control                                            Cord brake

Cable passage diameter                           60 mm

Die holder          longitudinaly adjustable

Longitudinal taping head

Nbr of pads                                                   4

Pad OD                                                           400 mm

Drive                                                                Line shaft through PIV

Concentric taping head

Nbr of pads       2

Pad OD               600 mm

Drive     Line shaft through PIV

Rotating caterpillar

Gripping length              2200 mm

Rotating take-up            Under rollers

Bobbin diameter            2240 mm

OAW     1600 mm

Pintles opening/closing              Motorized

Traversing          Screw type

Bobbin loading/unloading         With hydraulic platform

Drive     DC 110 kW / 1800 rpm

Line speed         100 m/min

Electrical cabinet          Available

Line direction   L > R
