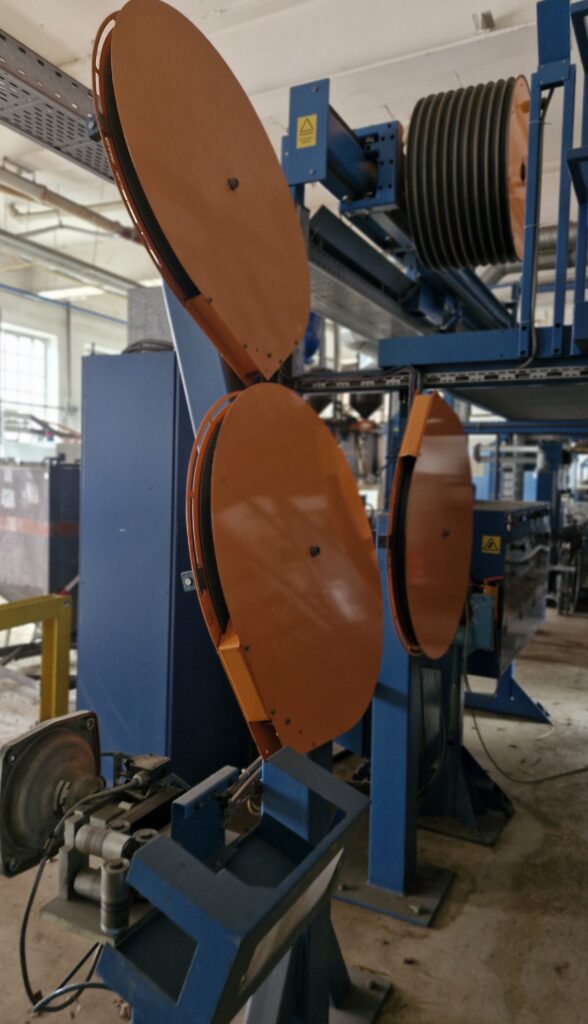

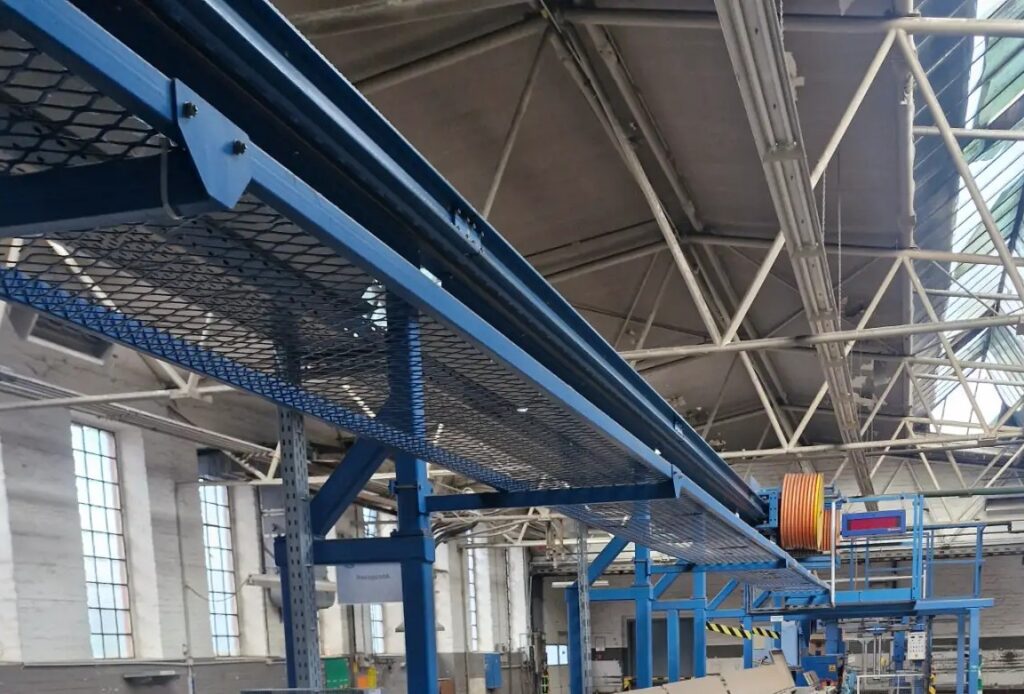

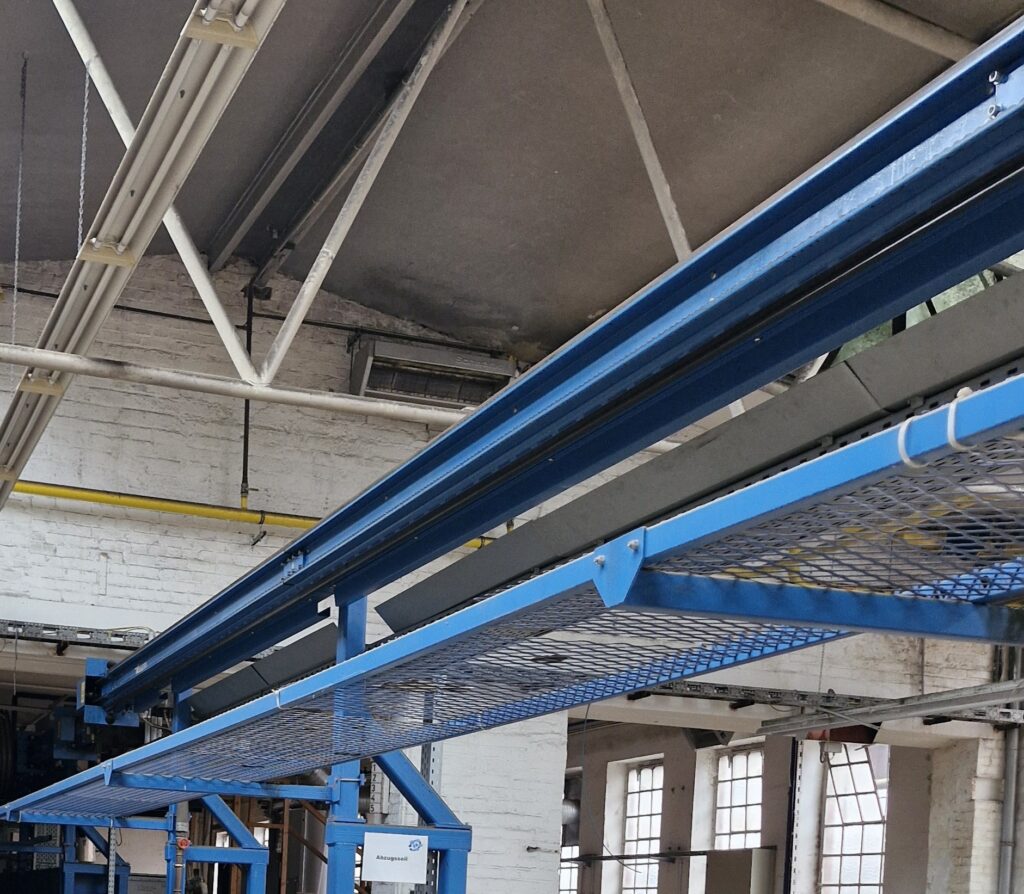

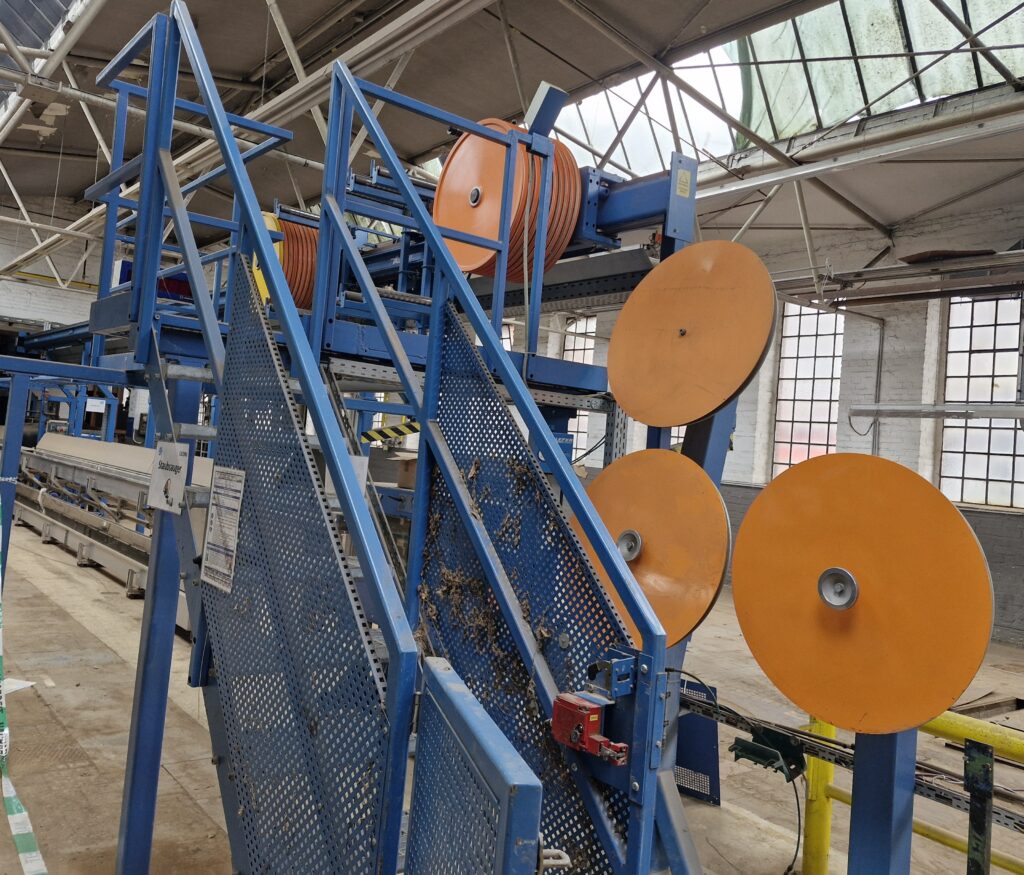

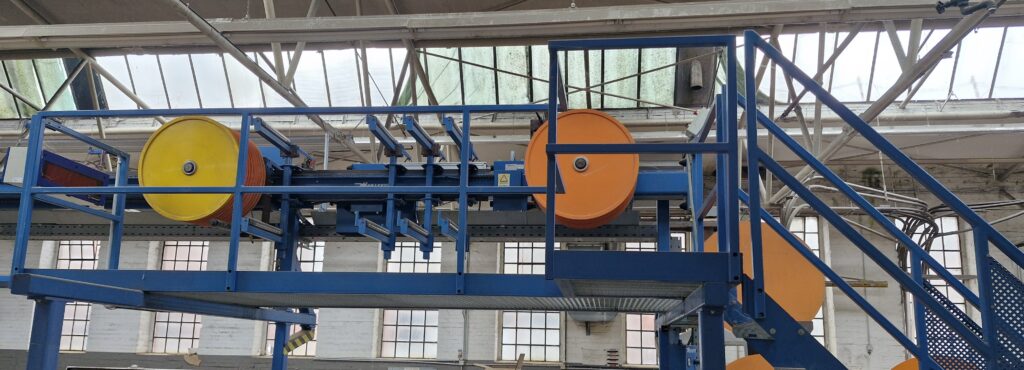

MAILLEFER 300m Horizontal Accumulator, MHE SBS800

Horizontal Accumulators for use in an insulation line

Inlet and outlet units available, each one with the following specifications:

• Wheels Diameter: 800mm
• Number of fixed wheels: 10
• Number of mobile wheels: 10
• Wheels trolley driven by chain
• Height of the wheels center: 3,20m
• Mobile length: 15m
• Cable diameter: up to 30mm
• Cable tension range : 60 to 750N
• Cable tension control: compressed air
• Transfer Speed: up to 400m/min
• Drives: AC motors

Also available: Stairs, Platforms and Structures
