MAILLEFER 100mm + 45 mm HFFR Insulating/Sheating Line

Maillefer EEL line designed for insulating and/or sheating condutors with a section from 4 up to 35mm²

Compatible materials: PVC, PE, XLPE, PUR, PA, HFFR

Line speed: 200m/min

Line composition :

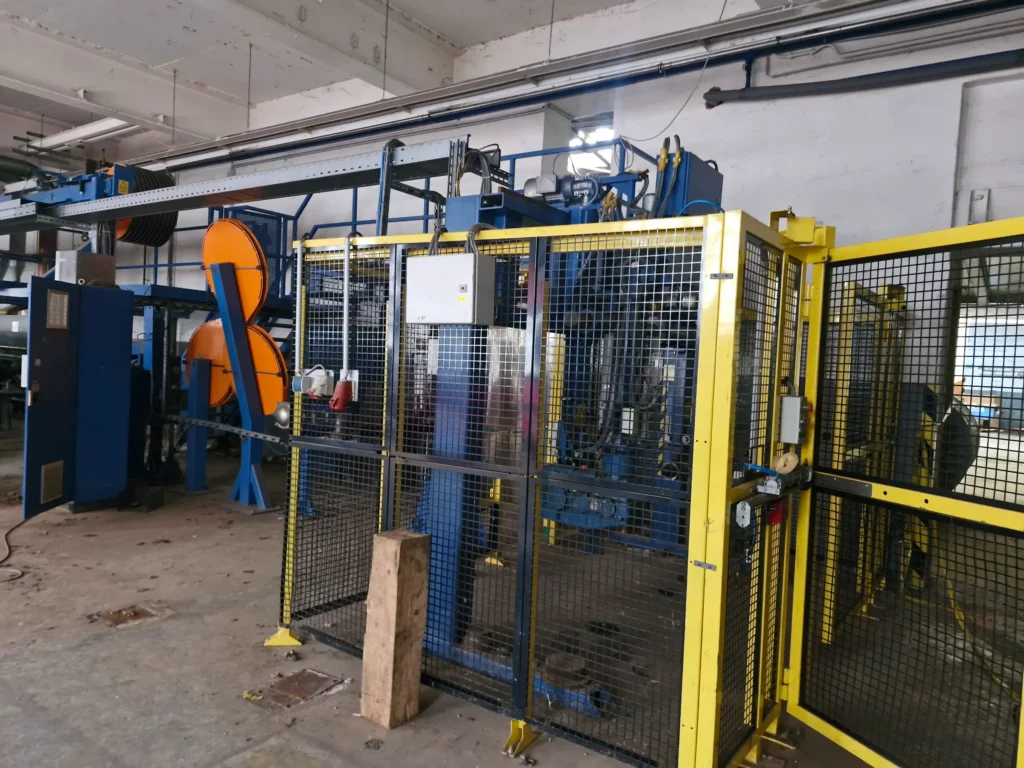

AVR 3 Gantry type Pay Off:

- Bobbin diameter: 600 up to 1600mm

- Bobbin width: 445 up to 1180mm

- Bobbin weight: up to 3000kg

- Independent electrical panel

KS 40 Cable Clamp

MHE SBS800 Horizontal accumulator:

- Number of fixed pulleys: 10

- Number of movable pulleys: 10

- Pulleys diameter: 800mm

- Accumulation length: 300 meter

ZUMBACH ODAC 34 24XY Diameter gauge

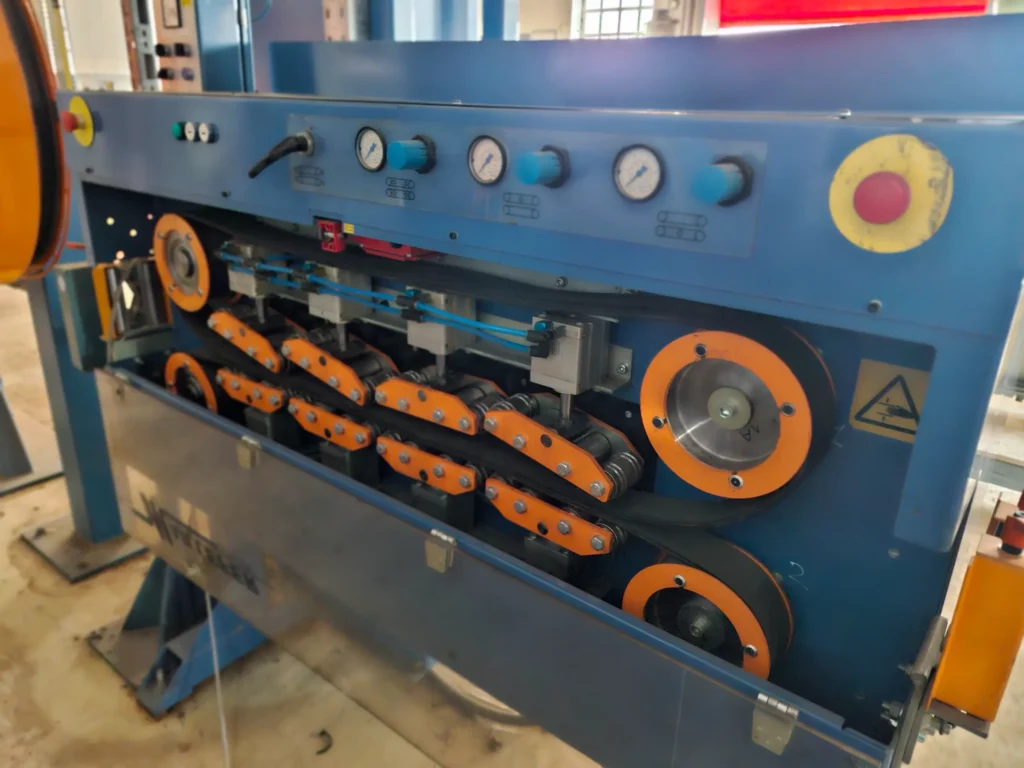

BCA 9 Belt Caterpillar:

- Cable passage: 40mm

- Pressure cylinder: 4 + 4

- Pulling length: 900mm

- Pulling force: 0.5kN @ 300m/min up to 1.5kN @ 150m/min

- Drive: 5,5 kW AC motor

- Independent electrical panel

ZUMBACH ODAC 34 24XY Diameter gauge

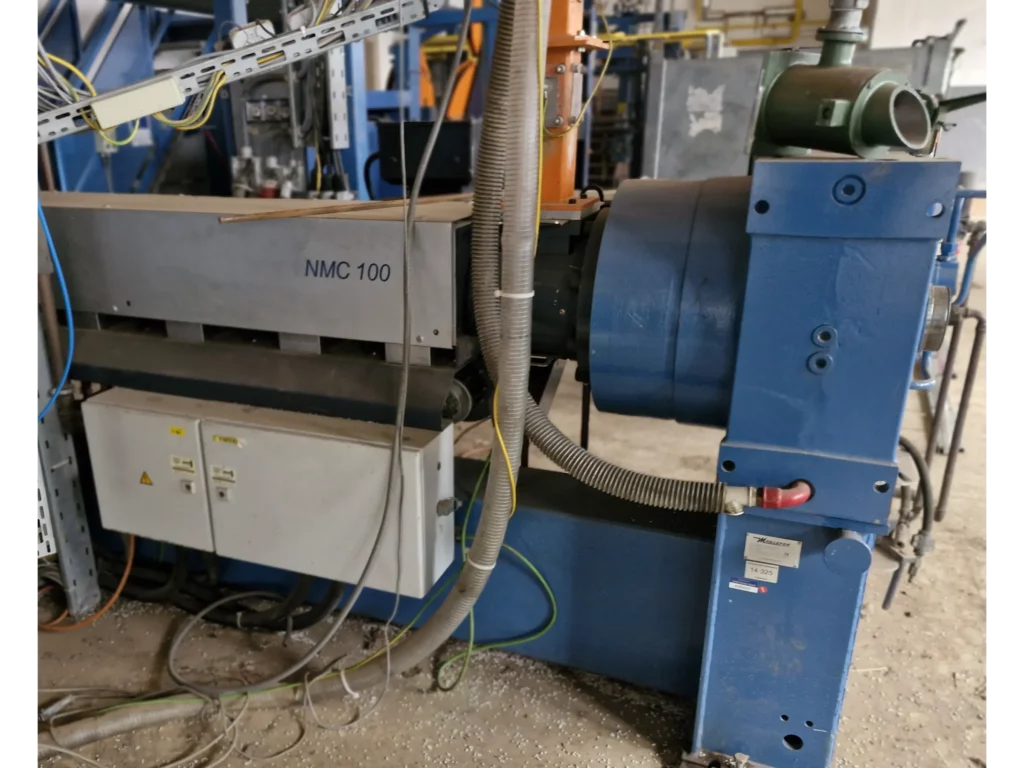

NMC 100-24D Extruder:

- 150kW AC motor

- 4 screws

- 3 x Plasticolor 3200 dosing unit

- 1 x Plasticolor 4200 dosing unit

- LABOTEK Con-Evator PGT9 Loader

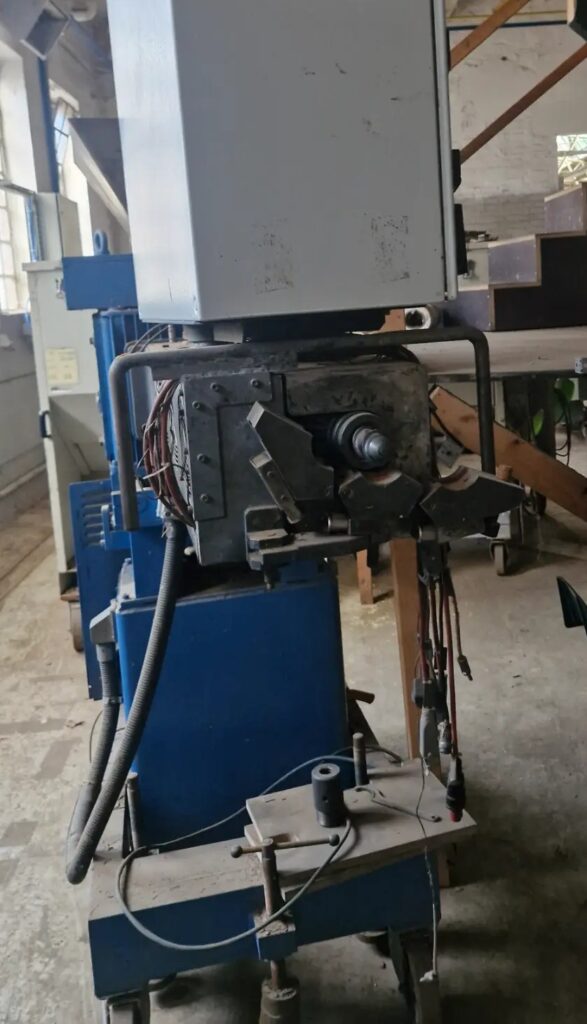

BMA 45 24D auxiliary Extruder (year 1989, to be checked)

- 26kW DC motor

- 1 screw

- On mobile frame

ECH 35/45 Dual Crosshead

ZUMBACH ODAC 34 24XY Diameter gauge

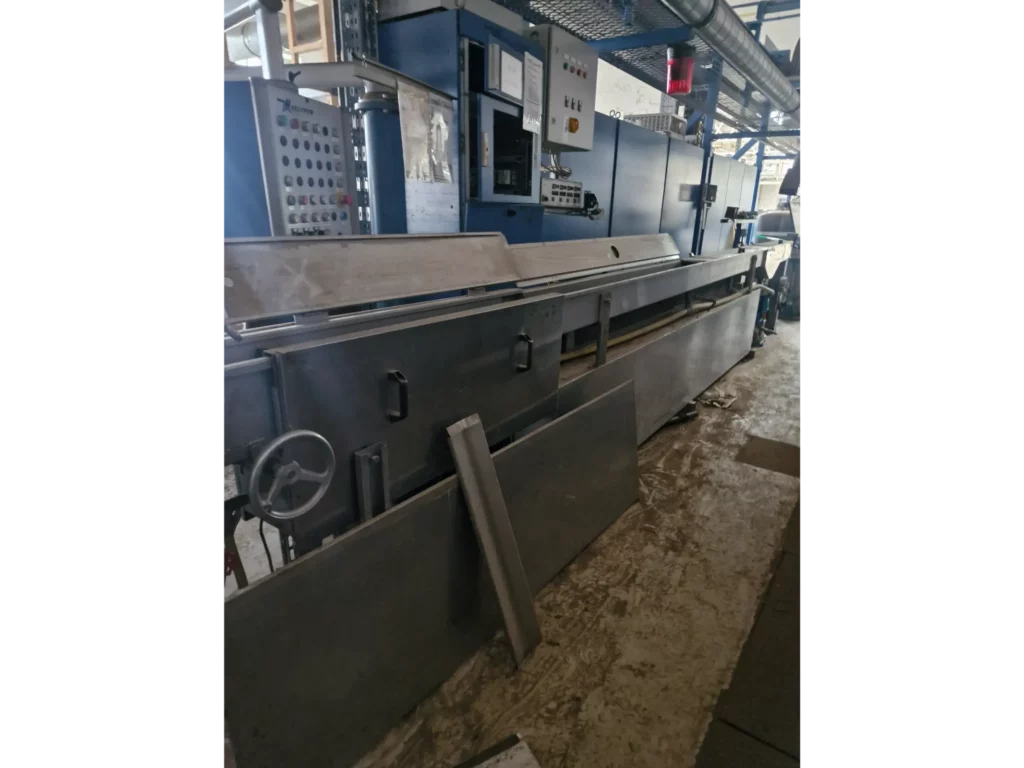

Hot Water Telescopic Cooling Trough: 4 +2 meter

- Width: 150mm

- Height: 170mm

- ECS Air Dryer

ZUMBACH KW32 TRIO Diameter gauge

ECS 50 Multipass cooling Trough

- Number of pulleys: 2

- Length: 16 meter on 2 level

- ECS Air Dryer

MHE SBS800 Horizontal accumulator:

- Number of fixed pulleys: 10

- Number of movable pulleys: 10

- Pulleys diameter: 800mm

- Accumulation length: 300 meter

BCA 9 Belt Caterpillar:

- Cable passage: 40mm

- Pressure cylinder: 4 + 4

- Pulling length: 900mm

- Pulling force: 0.5kN @ 300m/min up to 1.5kN @ 150m/min

- Drive: 5,5 kW AC motor

- Independent electrical panel

ZUMBACH ODAC 34 24XY Diameter gauge

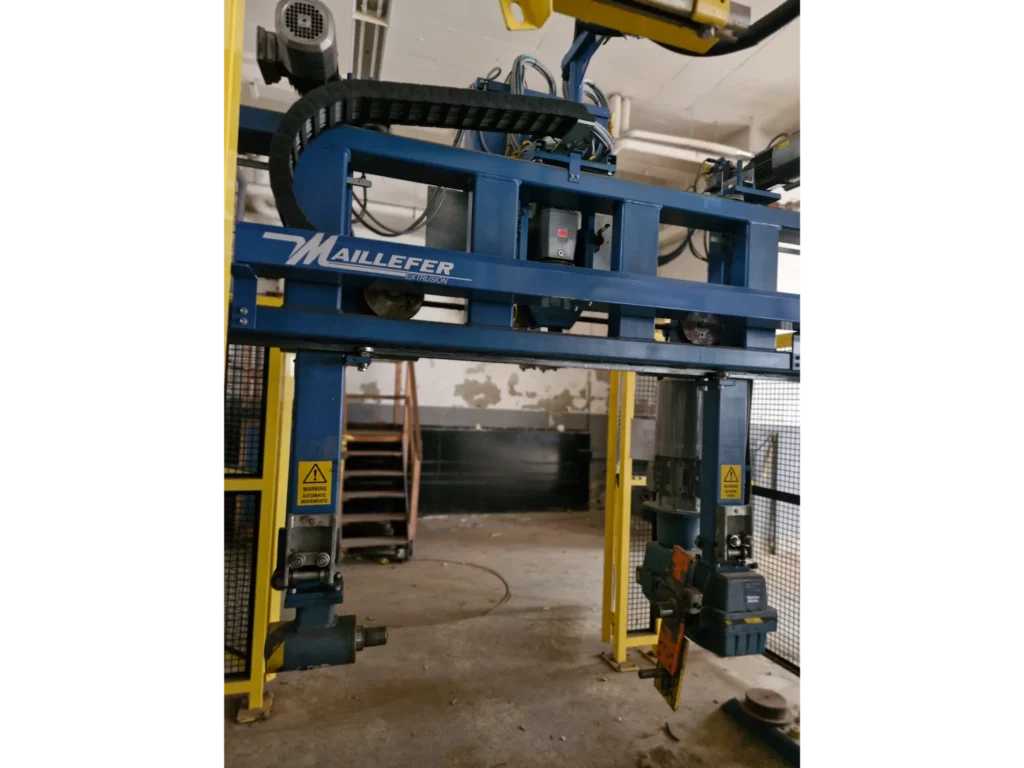

STOLBERGER Gantry type Take up WTA 20/5

- Bobbin diameter: 600 up to 2000mm

- Bobbin width: 420 up to 1500mm

- Bobbin weight: up to 5000kg

- Traversing path: 4 up to 40mm

- Independent electrical panel

Line electrical panel: to rebuild due to missing parts: main power connections, PLC,...
