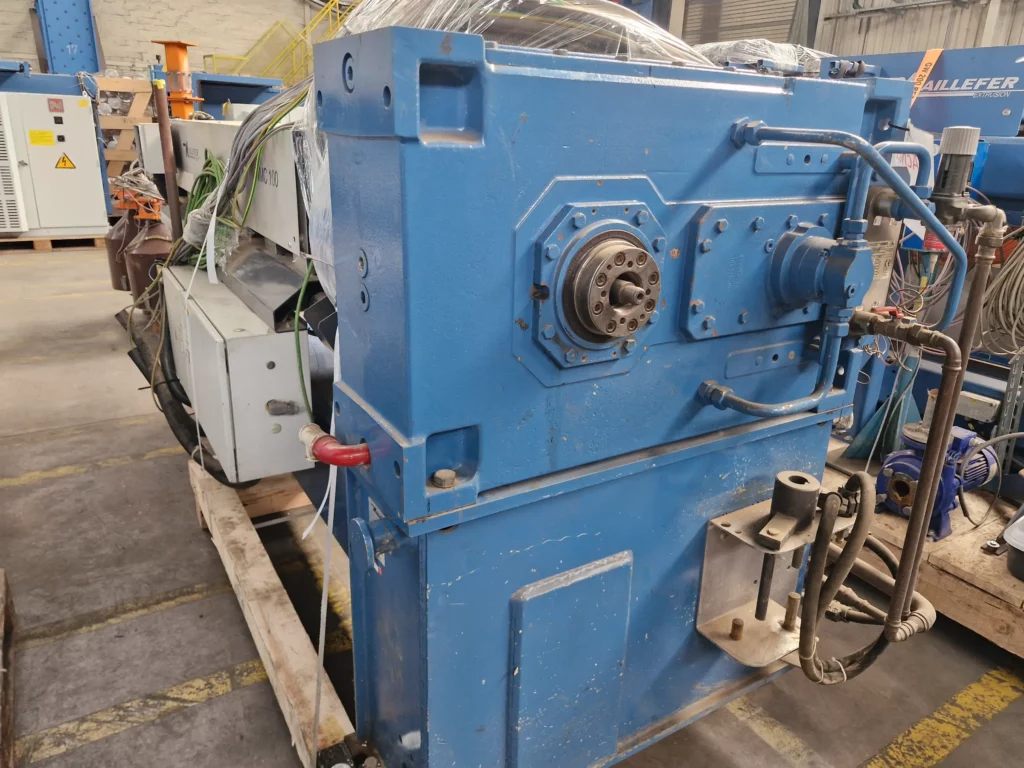

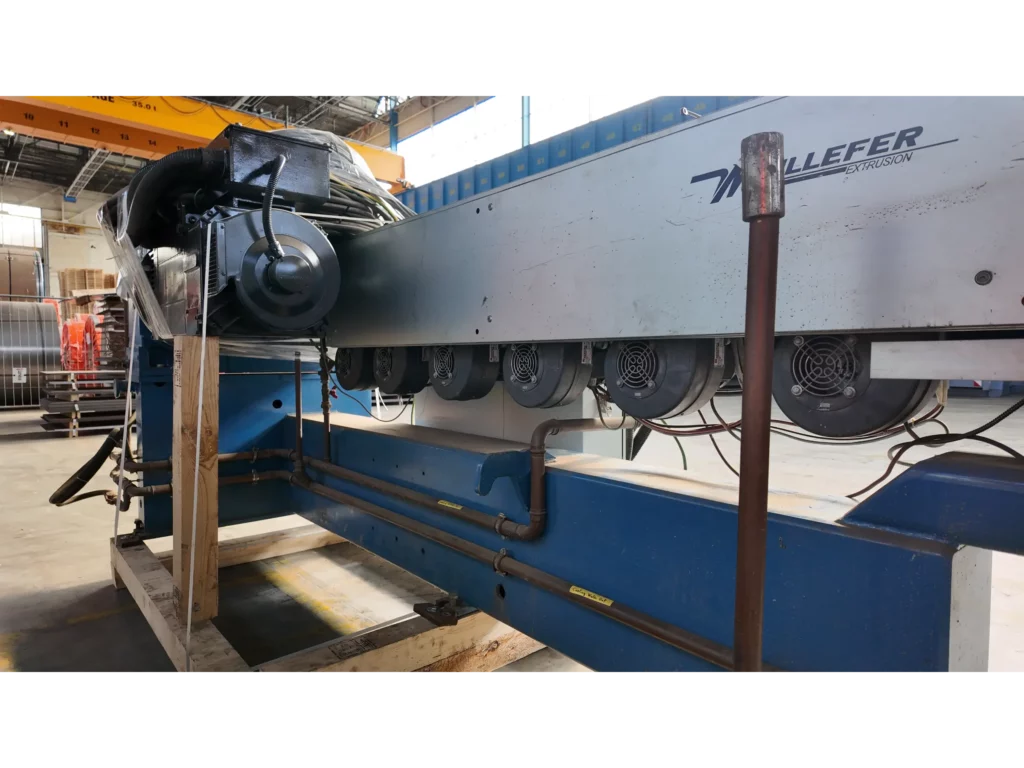

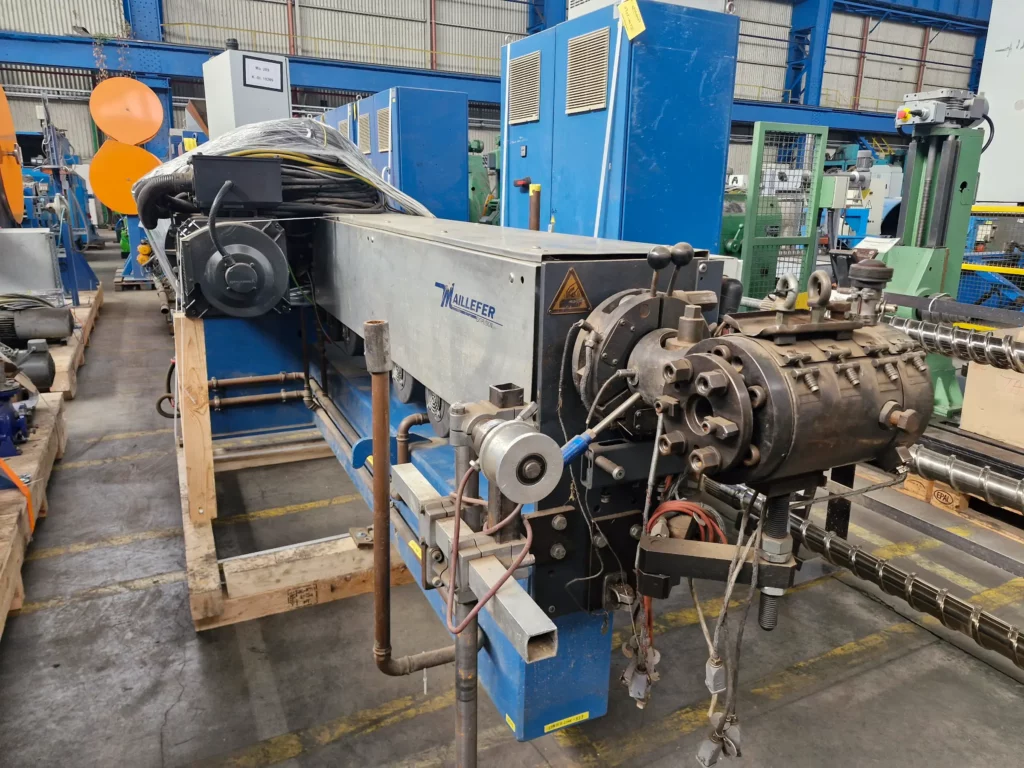

MAILLEFER 100mm 24D HFFR Extruder, Model NMC 100-24D

Maillefer 100mm 24D extruder for insulating and/or sheating conductors with a section from 4 up to 35mm²

Compatible materials: PVC, PE, XLPE, PUR, PA, HFFR

Available with:

• 150kW AC motor
• 4 screws: FRNC, PU, PVC and low compression
• 3 x Plasticolor 3200 dosing unit
• 1 x Plasticolor 4200 dosing unit
• 1 x LABOTEK Con-Evator PGT9 Loader

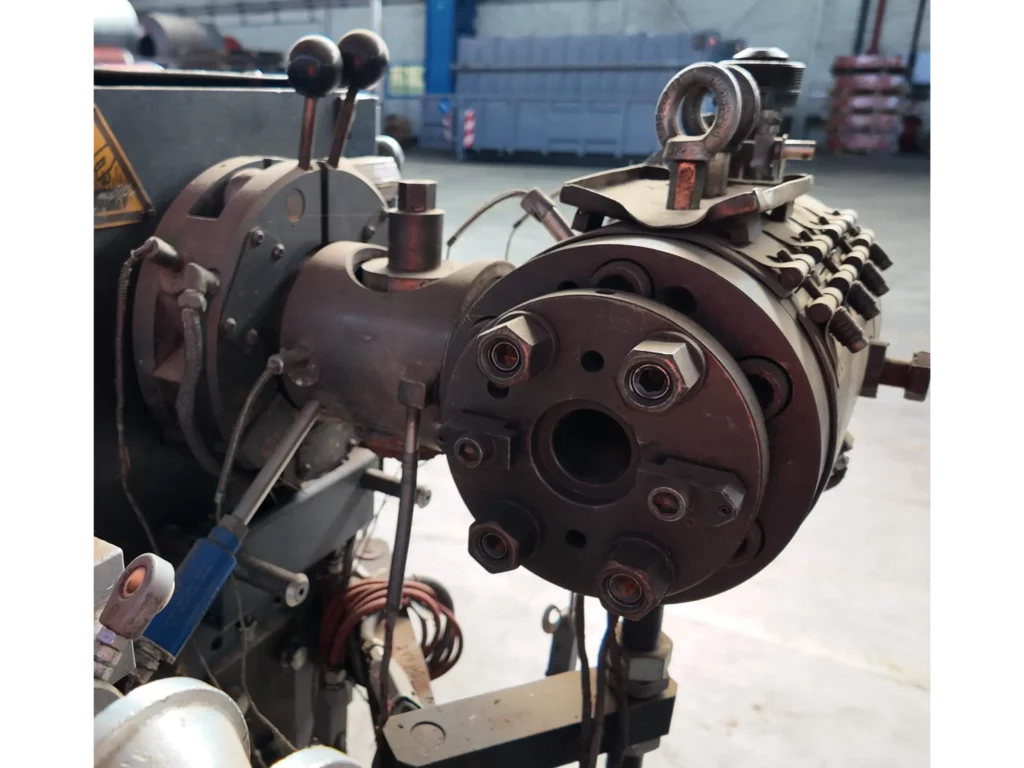

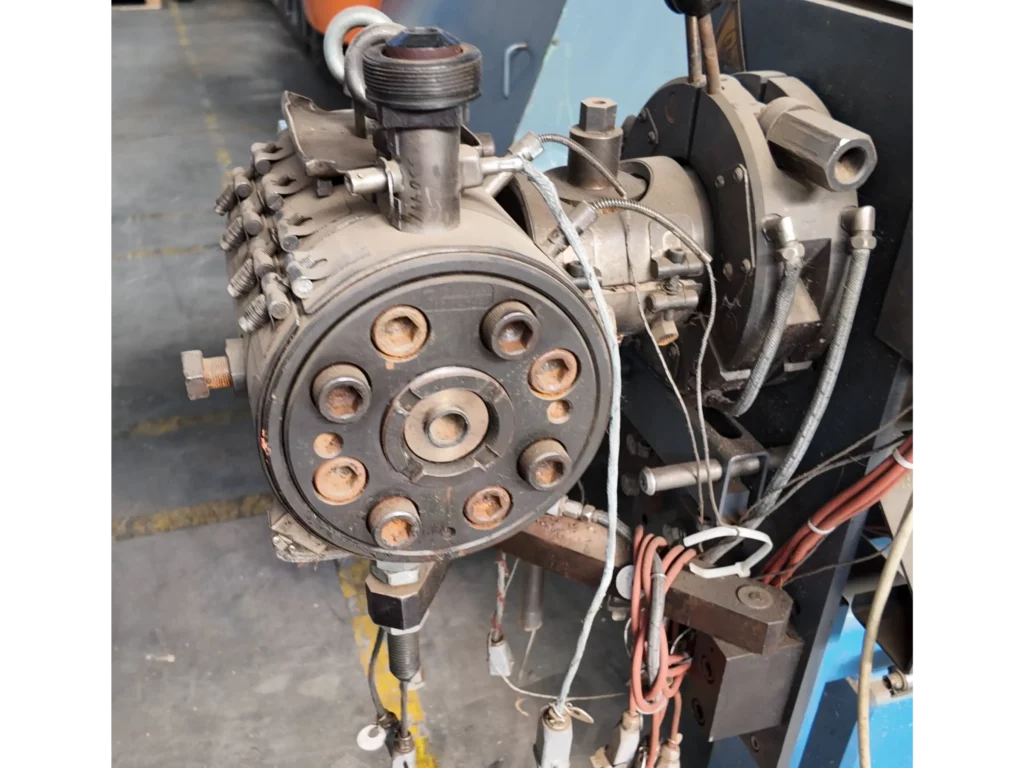

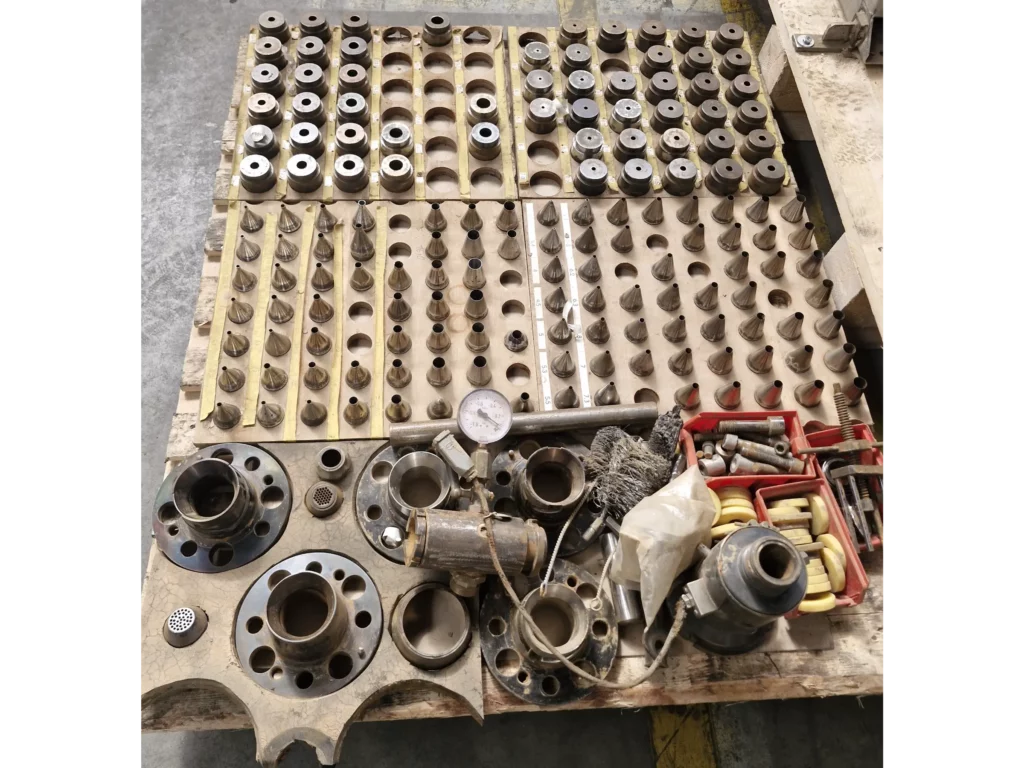

• ECH 35/45 Dual Crosshead with tools
• Electrical panel

This extruder and crosshead were used with a MAILLEFER 45mm 24D auxiliary Extruder (year 1989, to be checked), available separately
