KRUPP 1+3 Tubular Stranding line

0100-00401 Tubular stranding machines

Heavy duty tubular stranding line made by Krupp, refurbished in 2023

Maximum Tube speed: 300rpm

Maximum wire diameter: 4 mm

Unwinding stroke: 0-50 N

Maximum winding speed: 150m/min

Pay off and Tube bobbins:

  • Diameter: 400/500mm
  • Width: up to 270mm
  • Bore diameter: 127mm

Scope of supply:

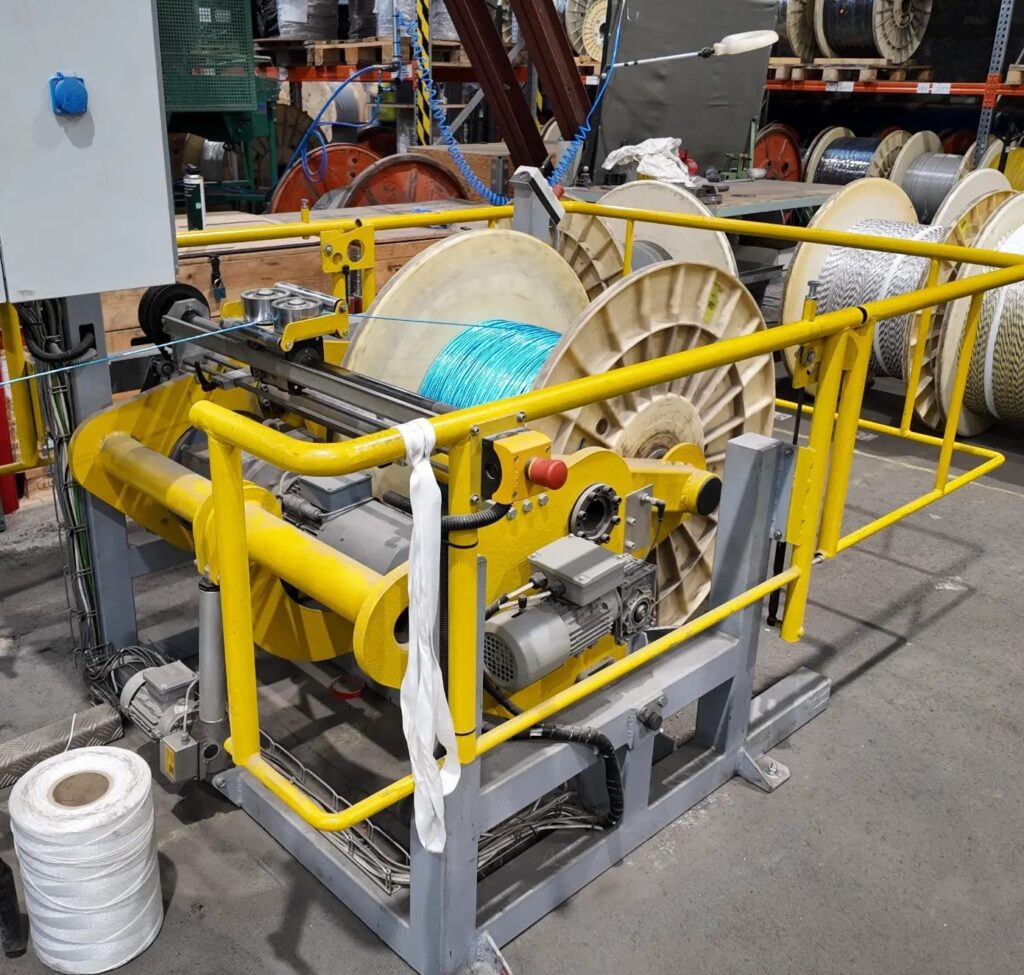

  • Central Pay off 500mm

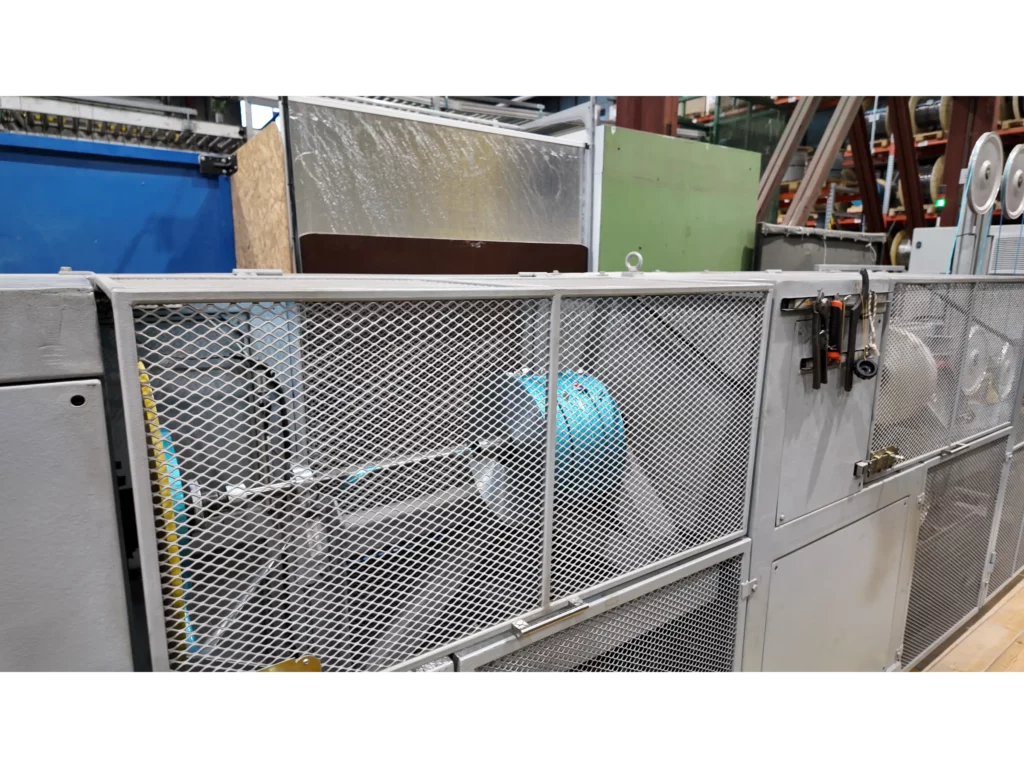

  • 3B/500mm Tubular strander

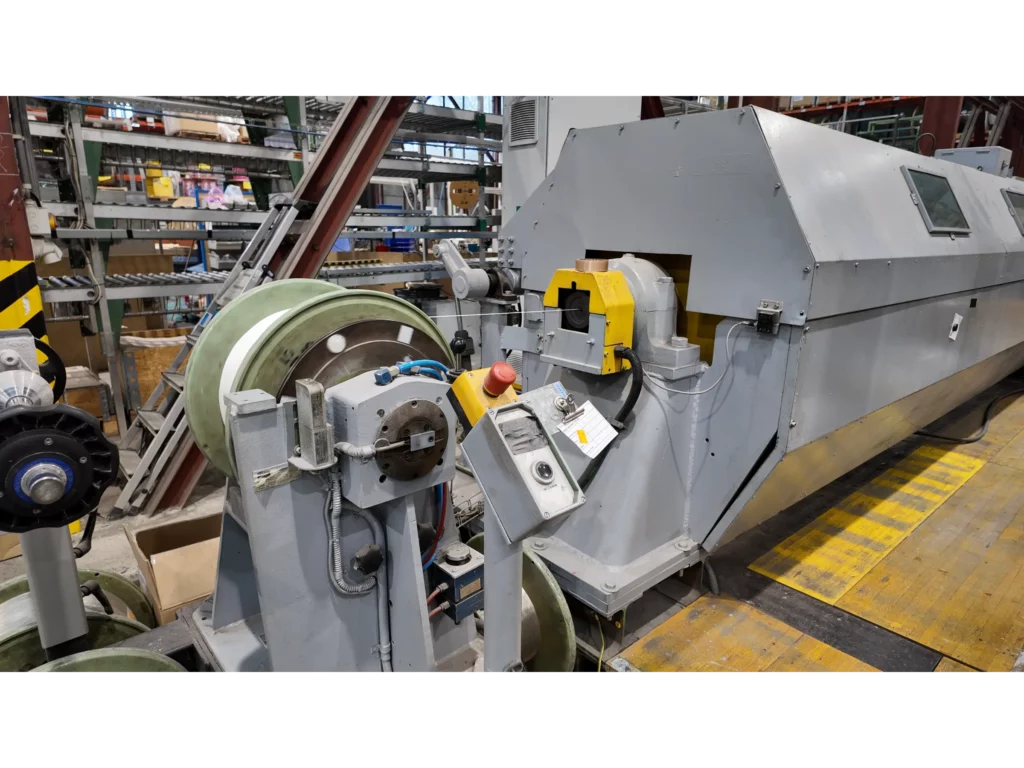

  • 2 x Concentric Taping Head

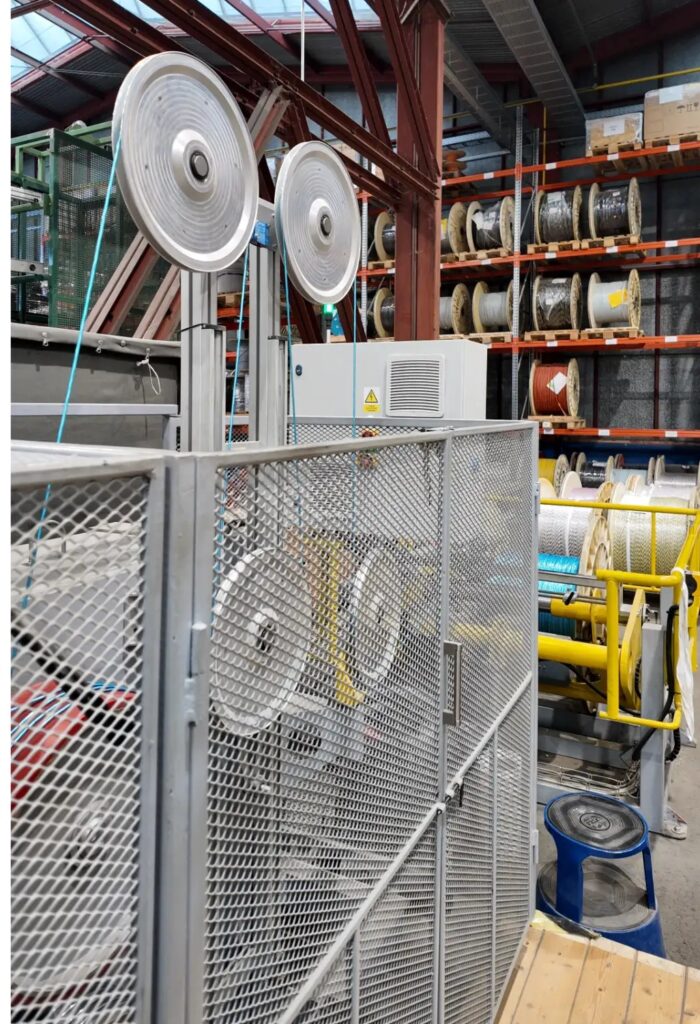

  • Capstan with dancer

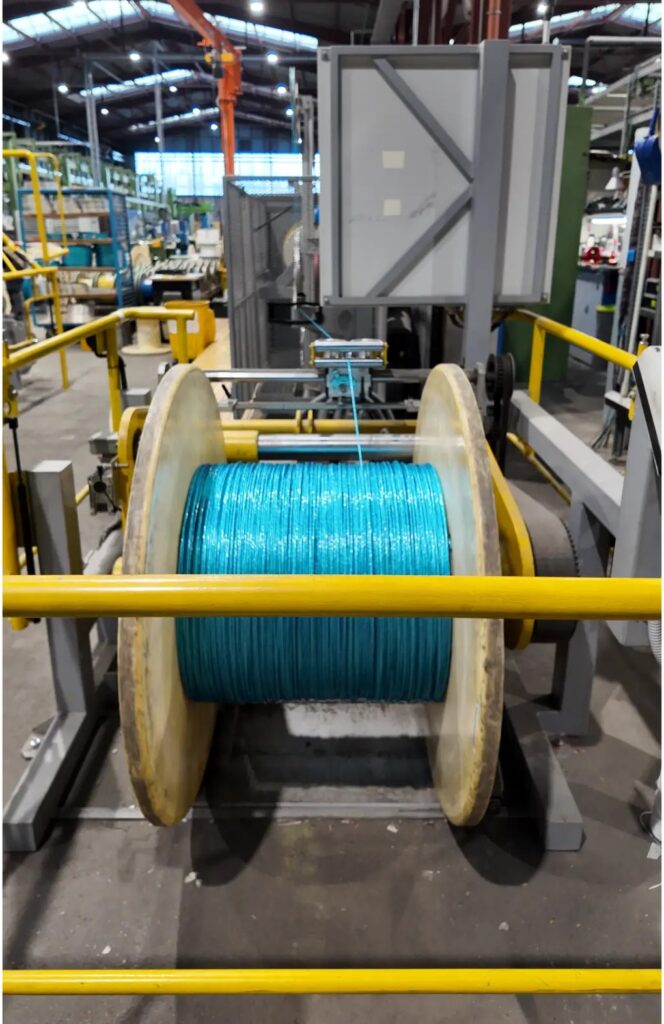

  • 1000mm Take up
  • Electrical panel (S7 1200 PLC and Lenze drives)
