EFAF Automatic coiling line, Mautomatic 260 Evolution

0432-00376 Coiling machines & packing systems
Made in 2006

Automatic coiling designed to wind cable with a cross section between 1,5mm² and 6,00mm²

Coil internal diameter: from120mm up to 200mm

Coil external diameter: up to 260mm

Coil heigth: from 45 up to 100mm

Line Composition:

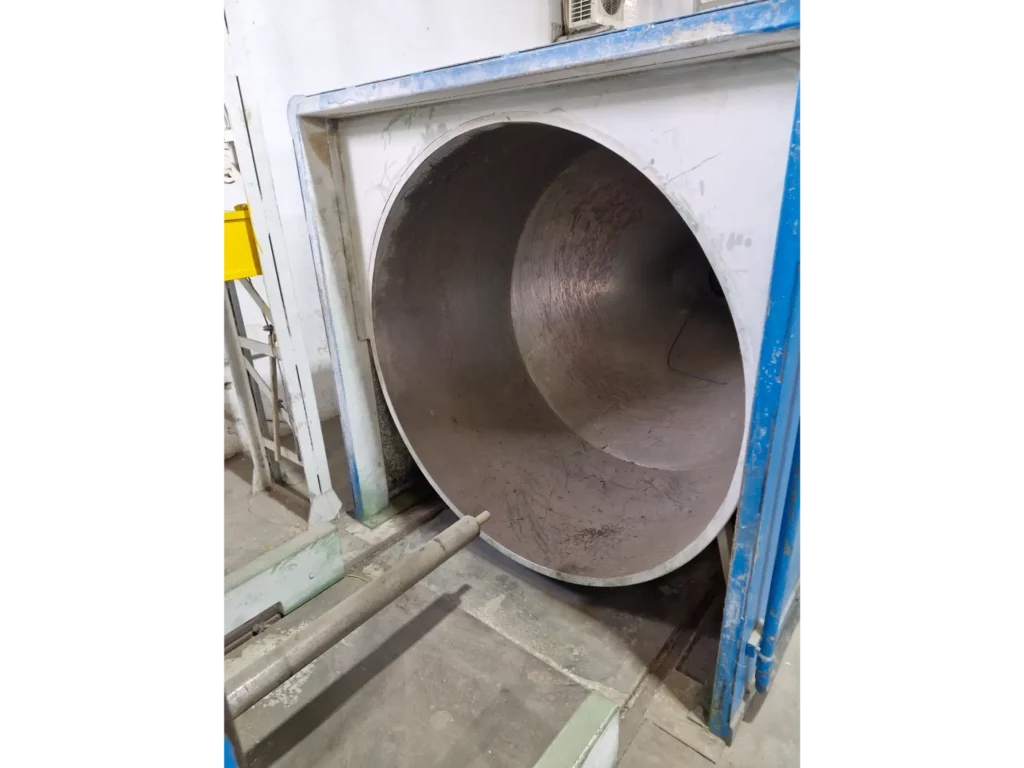

  • 1250mm Single cone pay off, model SDI 1250
  • Pulling capstan
  • ZUMBACH DST10 Spark Tester

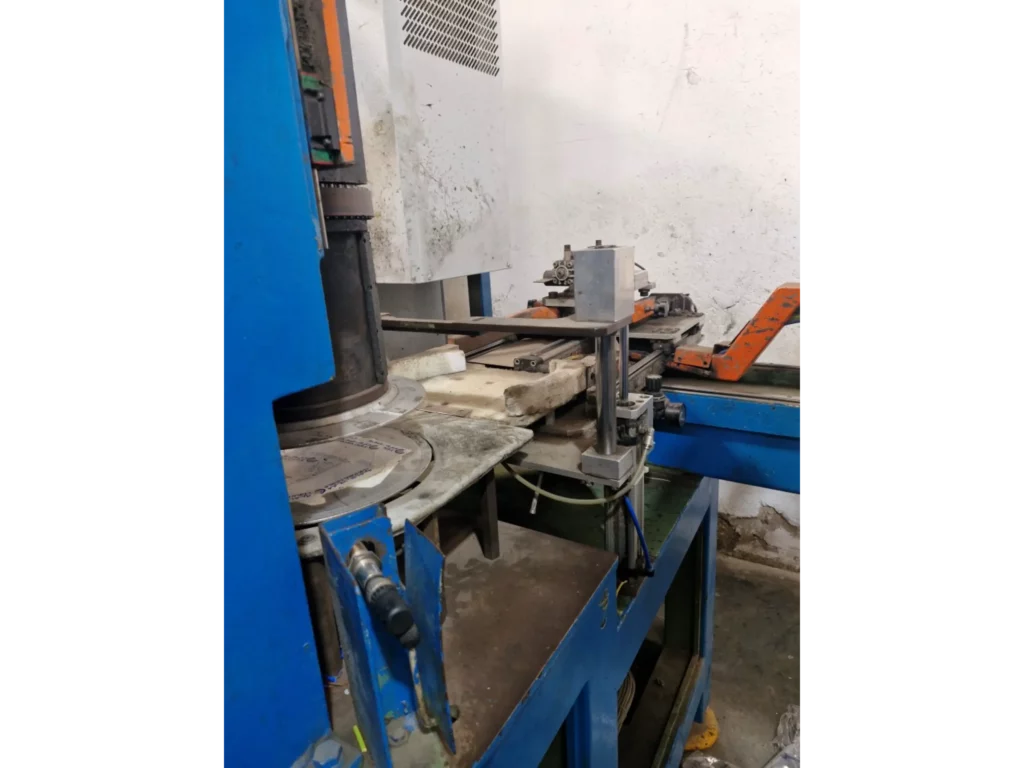

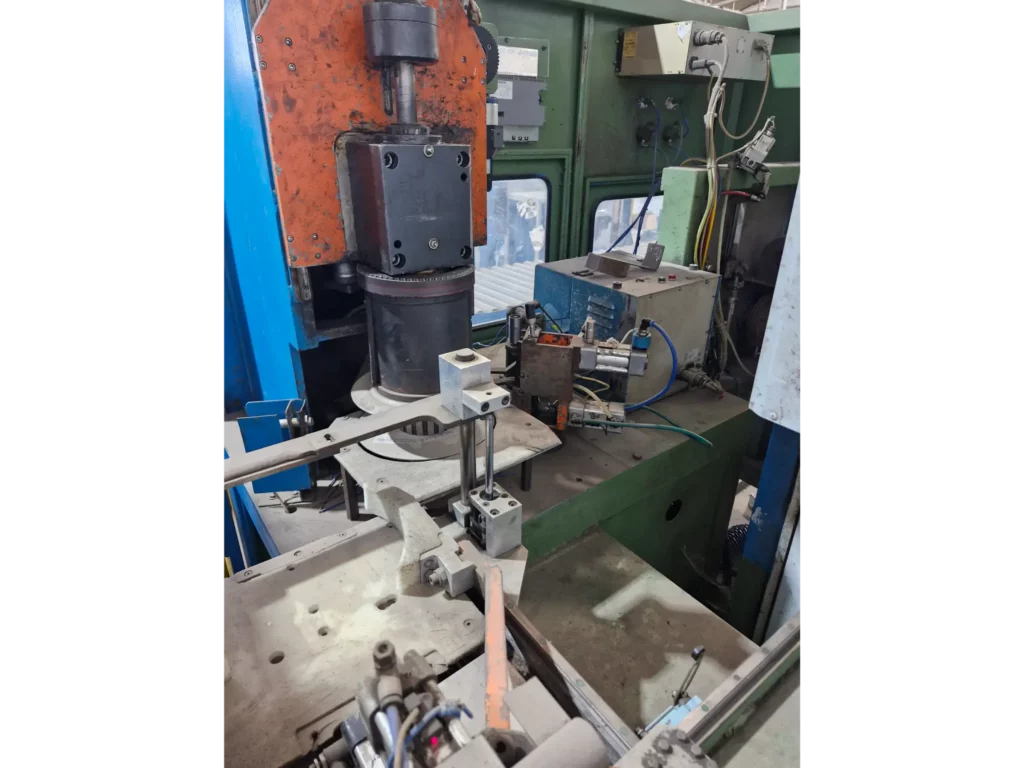

  • Coiling machine (vertical axis), model MAUTOMATIC 260 Evolution

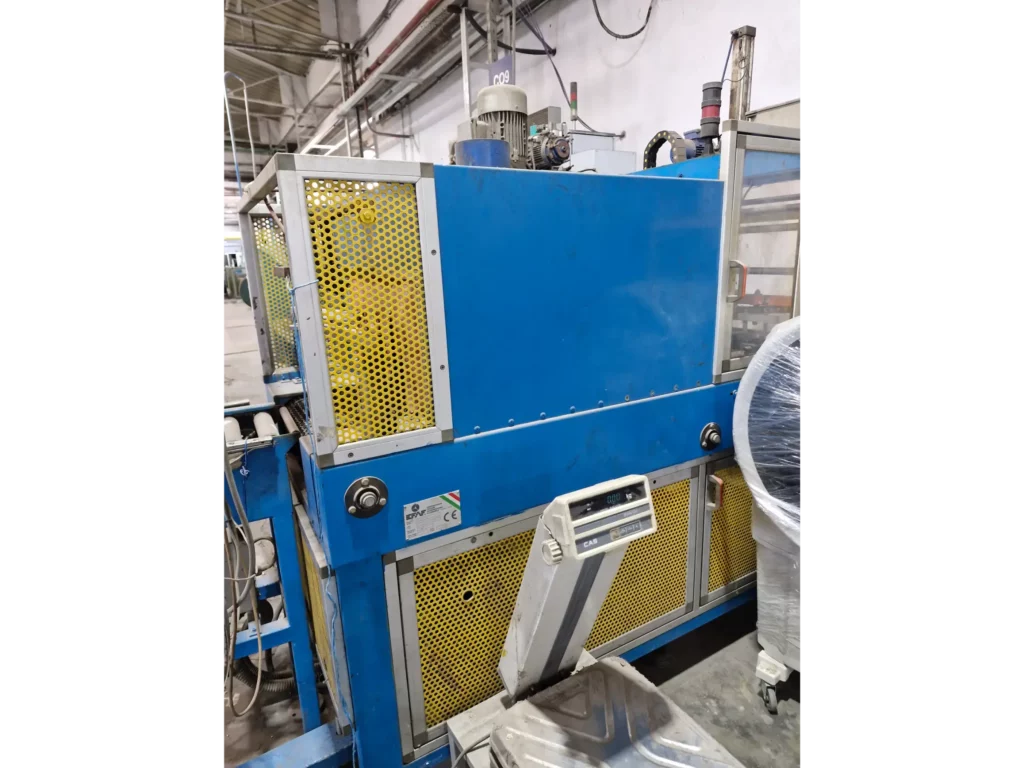

  • Shrinking oven
  • Conveyors

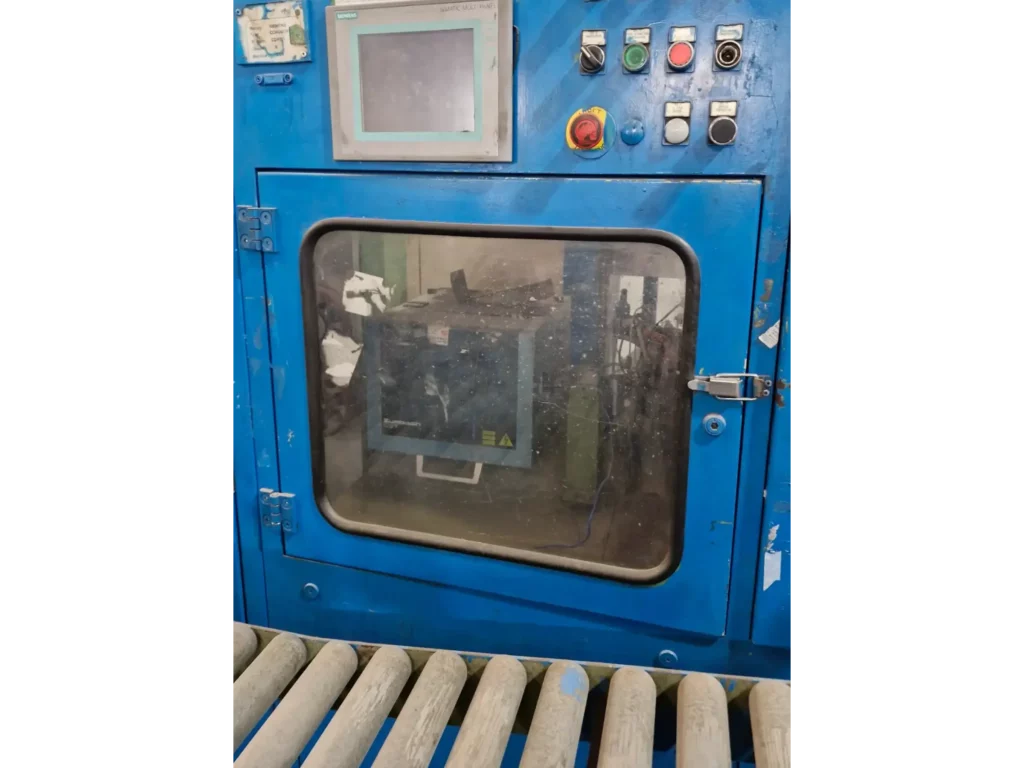

  • Electrical panel (Parker drive, Siemens S7 PLC)
