CORTINOVIS 12+18 630mm Rigid Stranding Line

0140-00386 Rigid stranding machines (cages without backtwist)

Rigid stranding line to produce round or sectoral compacted conductors.

Lay length adjustable through gearbox

Complete stranding line made of:

  • 2000mm Column type Pay off

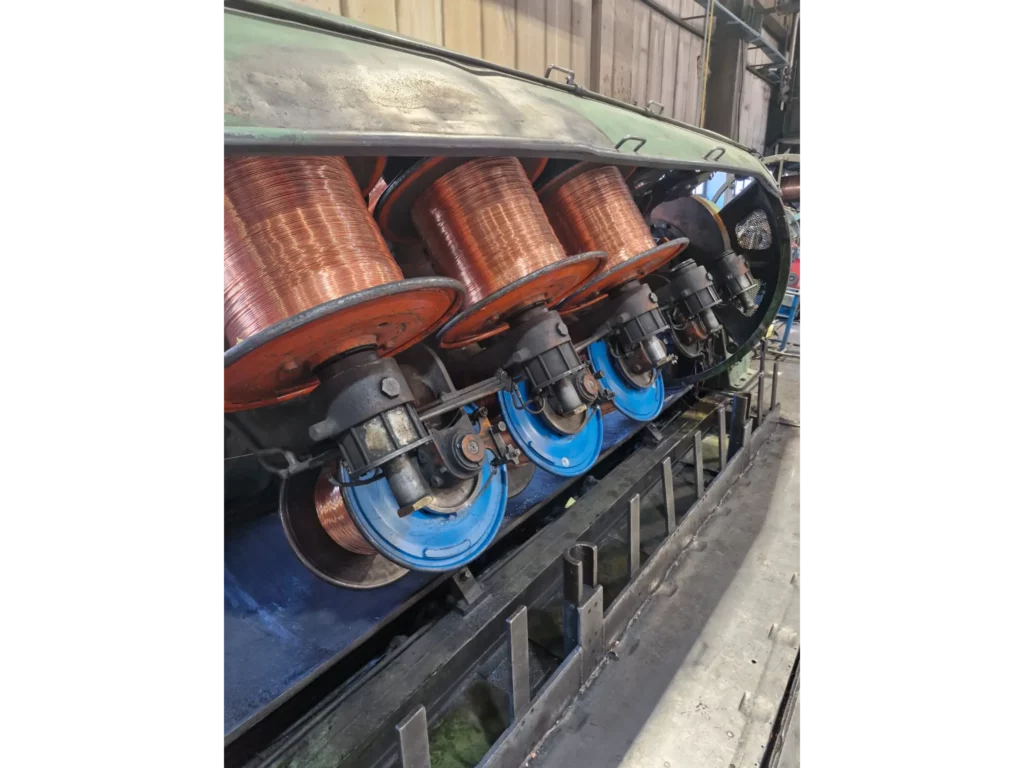

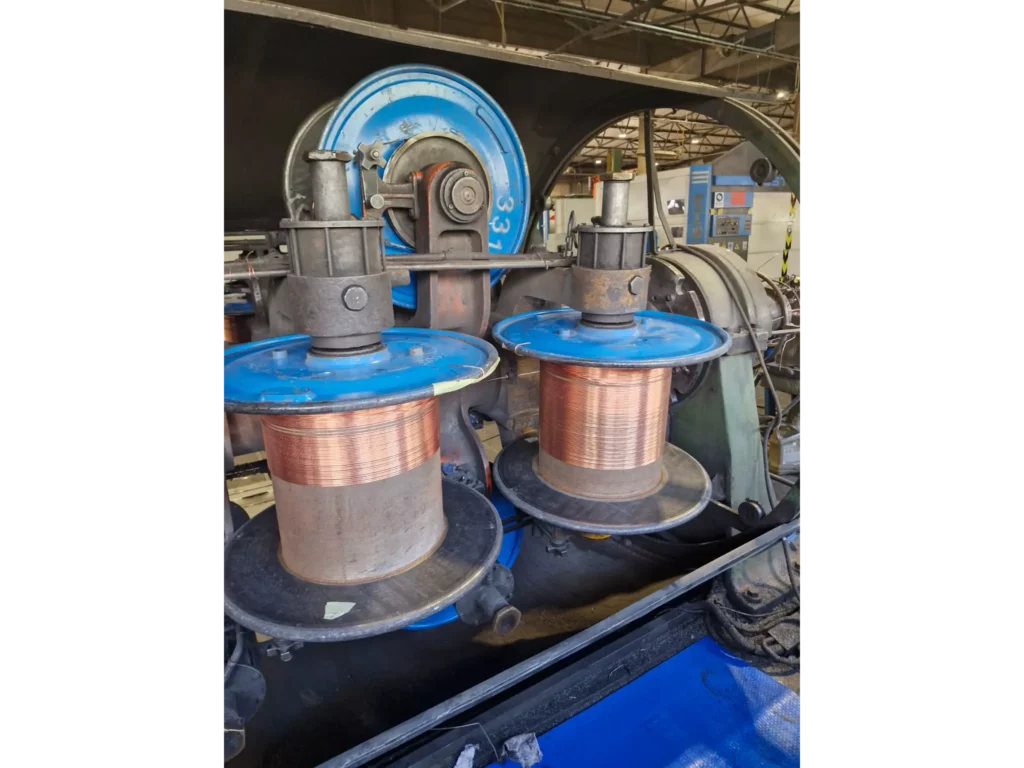

  • 12 Bobbins Rigid Cage with side loading table

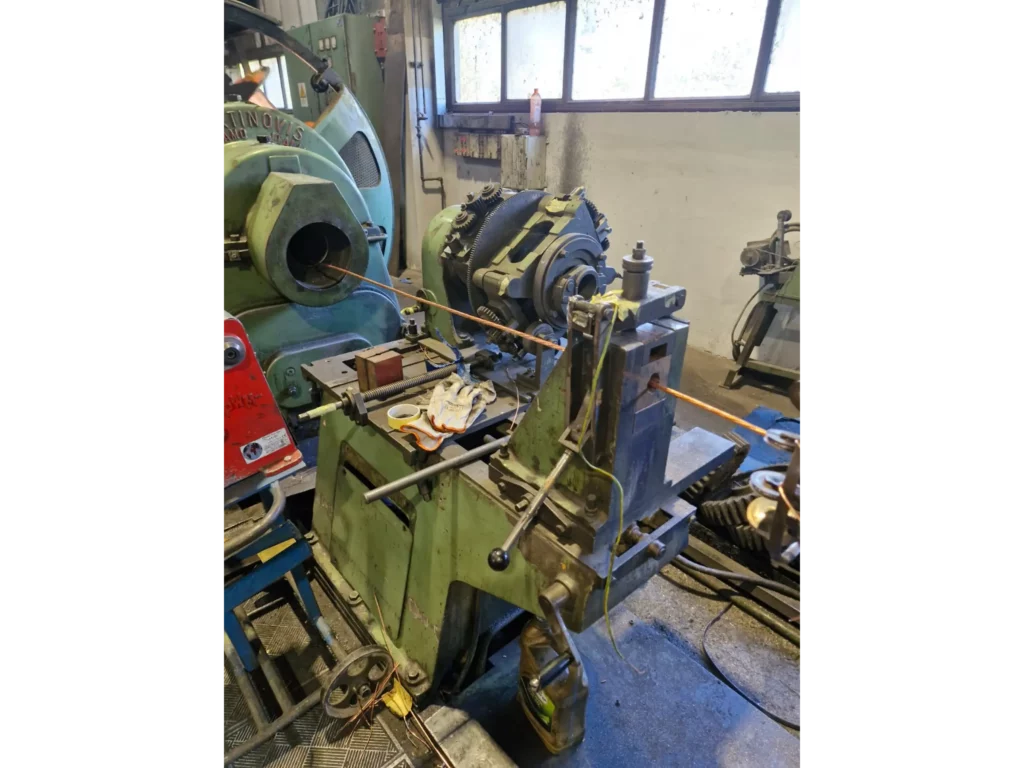

  • Compacting and Sectoring head (3 rollers)
  • 18 Bobbins Rigid Cage with side loading table
  • Taping head
  • 1000mm Dual Wheel Pulling Capstan
  • Length counter

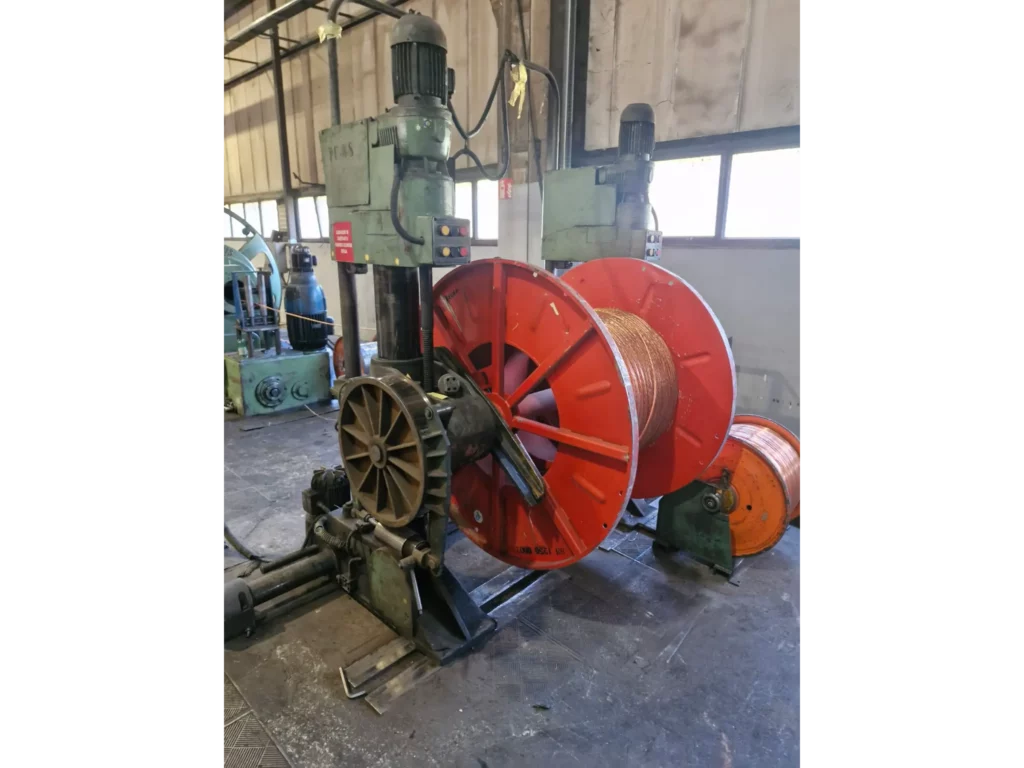

  • 2200mm Column type Take up
