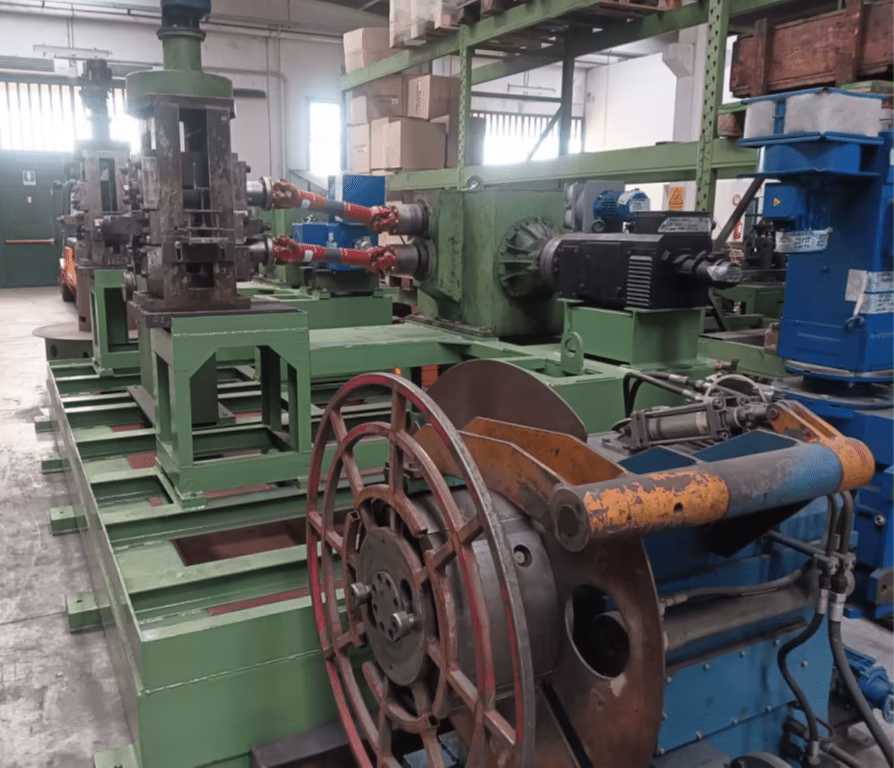

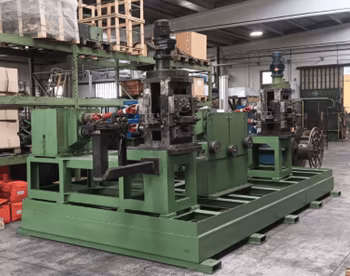

Cold rolling mill line

Designed to produce flat and shaped wires from 8 up to 56 mm², cold rolled
Low, medium high carbon steel, Al and Cu.

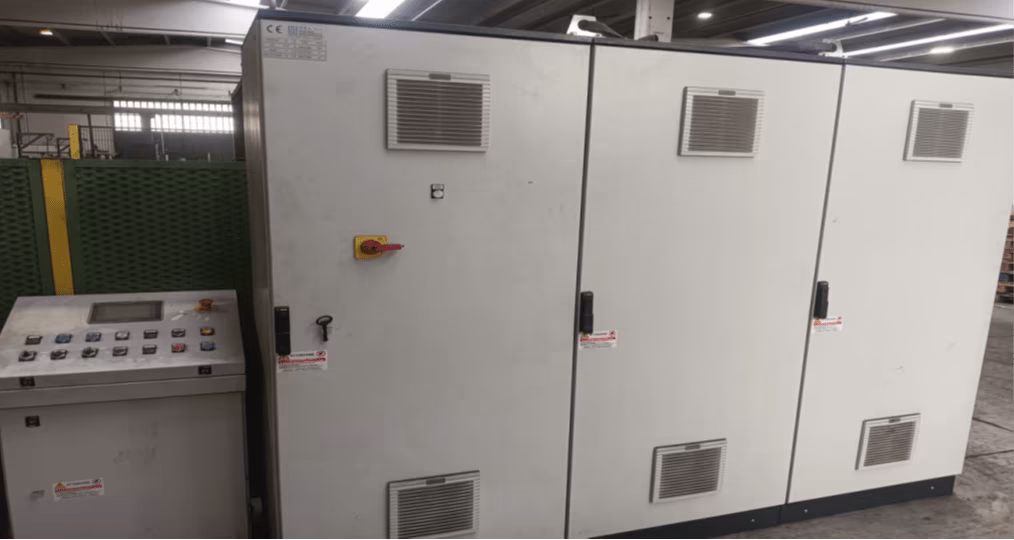

Complete mechanical retrofitting and new electrical panel executed in 2023

Delivery includes:
- Wire rod/drawing wire decoiler
- First stand with wire straightener + 4 rollers (2 driven by DC
electrical motor 39,5 Kw)
- Dancer
- Second stand of 4 rollers (2 driven by DC electrical motor 37,5 Kw)
- Traversing spooler
coils diameter 400 mm
width 250 mm
weight 1200 Kg maximum

Electrical motor 17 Kw + 3 Kw

In the lower part of the line there is a tank for collecting and filtering the refrigerant fluid

Possibility to insert between decoiler and first stand a drawing block for wire rod calibration.

Line speed from 60 up to 150 m/min
