CERRINI 100mm HFFR Extruder line

Complete line in perfect working condition since it has been overhauled in 2021

The main electrical panel has been built new (4.0 technology)

Motors and inverters were changed to AC

Diameter range: from 3 up to 35mm

Crosshead tooling for round and flat cables.

Scope of supply:

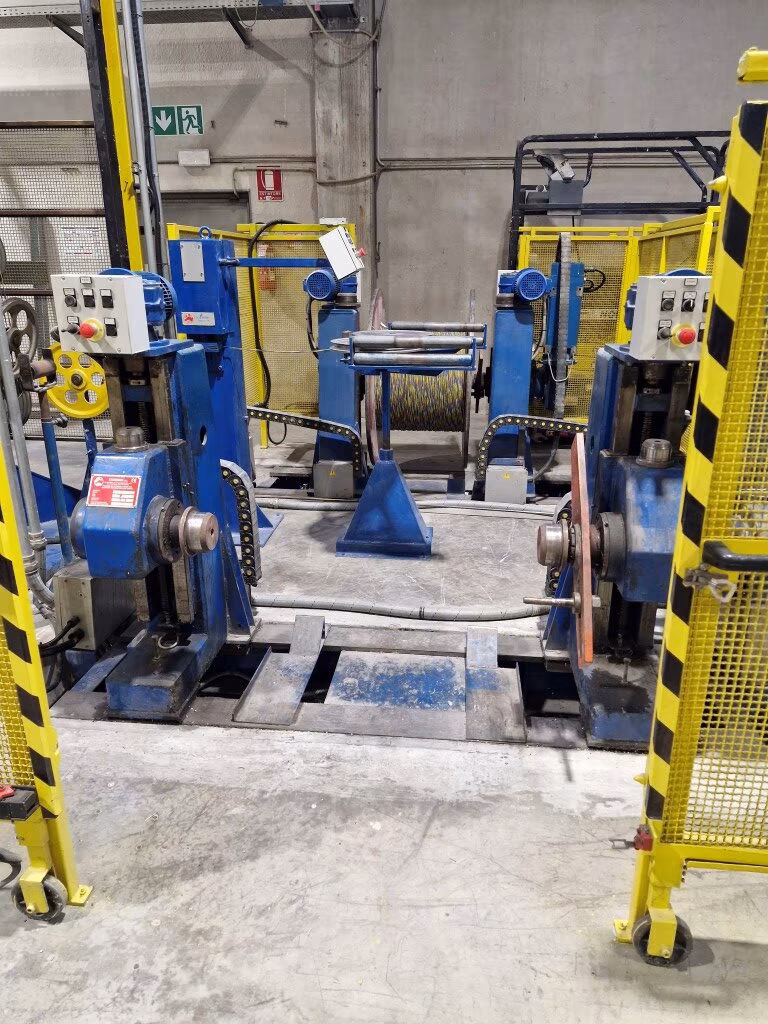

• 2 x Cigiemme Column type Pay off, 800-1600mm

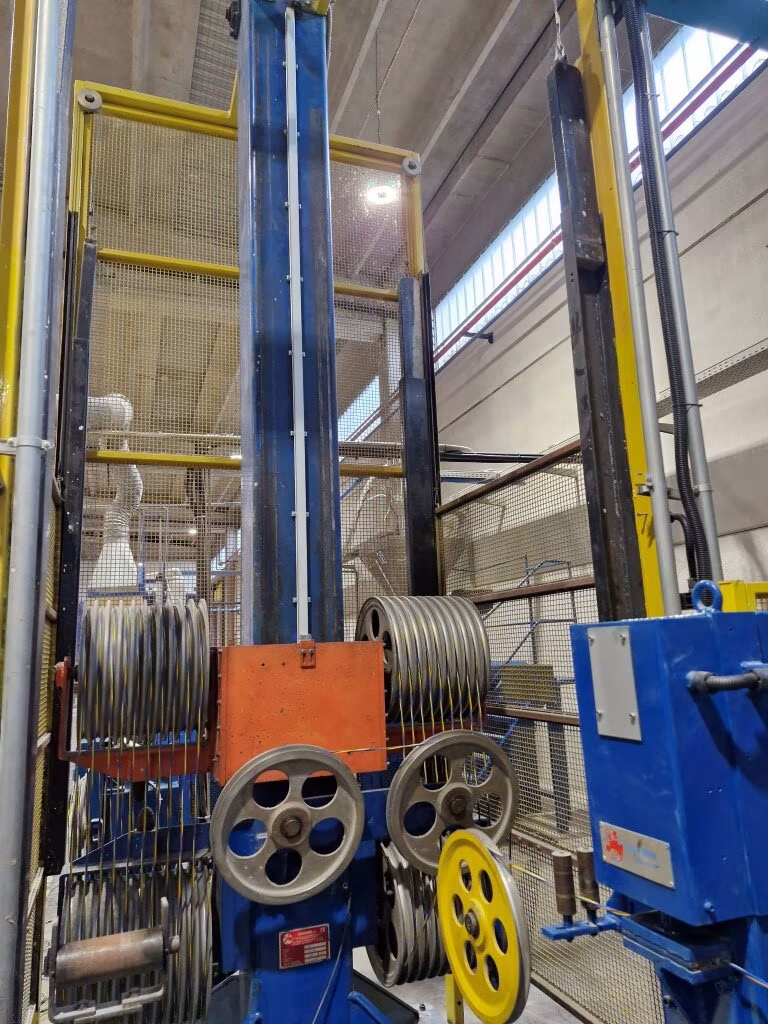

• 1 x Cigiemme vertical accumulator, 400-90
• 1 x Band brake
• 1 x Cerrini TR100 extruder with 3 screws (TPU, PVC and HFFR)
• AC motor 107kW
• 1 x Plasticolor 3200
• 1 x Piovan F48/2 vaccuum unit
• 1 x Microdia crosshead + tools (also for flat cables); ready to
connect an auxiliary extruder
• 1 x Aeroel Xls 35XY Laser Diameter Gauge (year 2021)
• 1 x Telescopic cooling Trough
• 1 x 3+2 Multipass Cooling Trough
• 1 x Air Dryer
• 1 x Aeroel Xls 35XY Laser Diameter Gauge (year 2021)
• 1 x Cerrini Pulling Caterpillar
• 1 x Horizontal accumulator with independent electrical cabinet

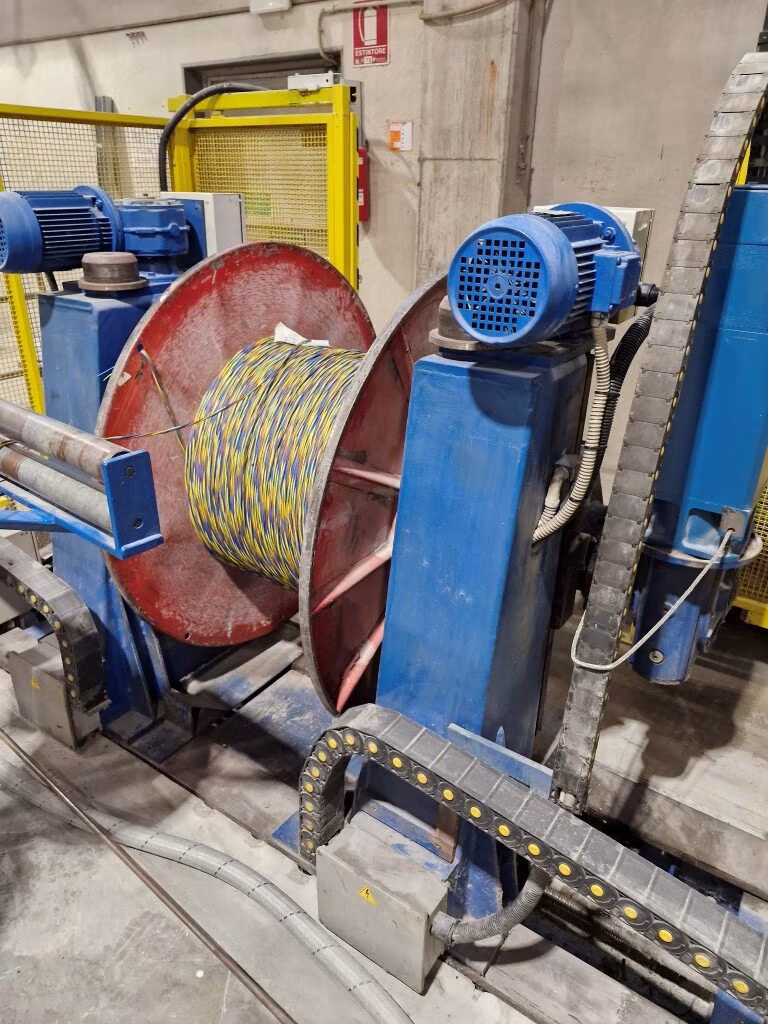

• 2 x Portal type Take up, 800-1600mm, each one with independent electrical cabinet
• 1 x Electrical cabinet for the line (year 2021), 4.0 technology

Floor space : 35 x 8 meter

Still installed, an inspection is possible on request
