BRONDEL 19B 560mm Tubular Stranding line

0100-00343 Tubular stranding machines

Complete tubular stranding line for 19 bobbins made of:

  • 1 x 560mm central pay off

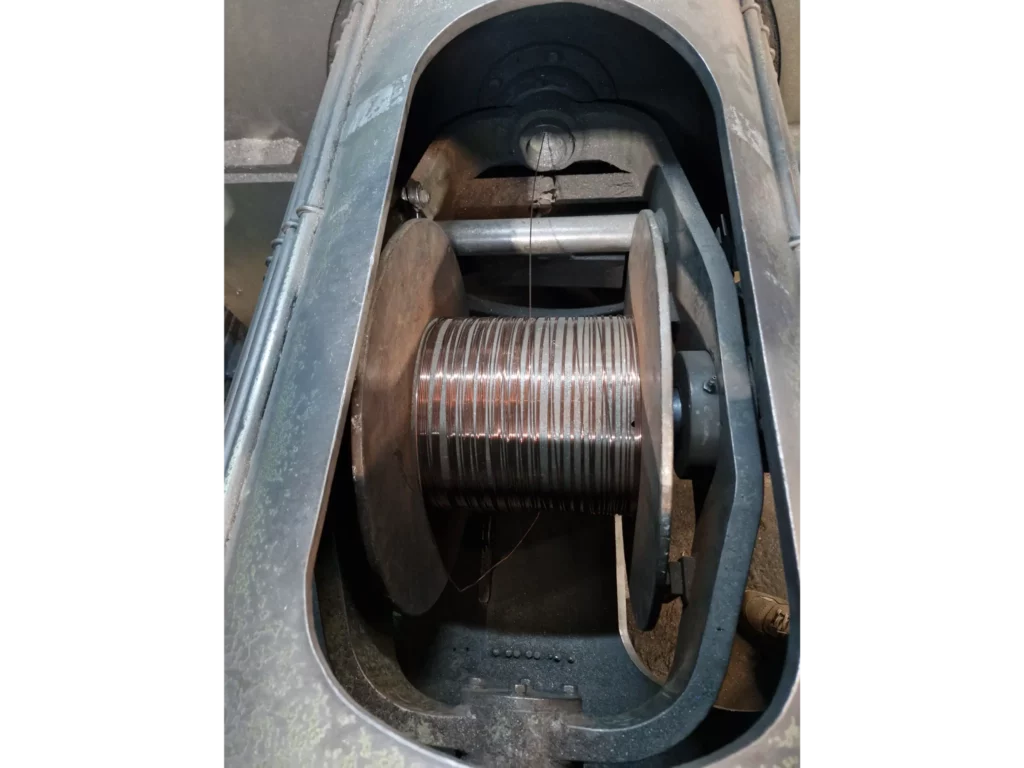

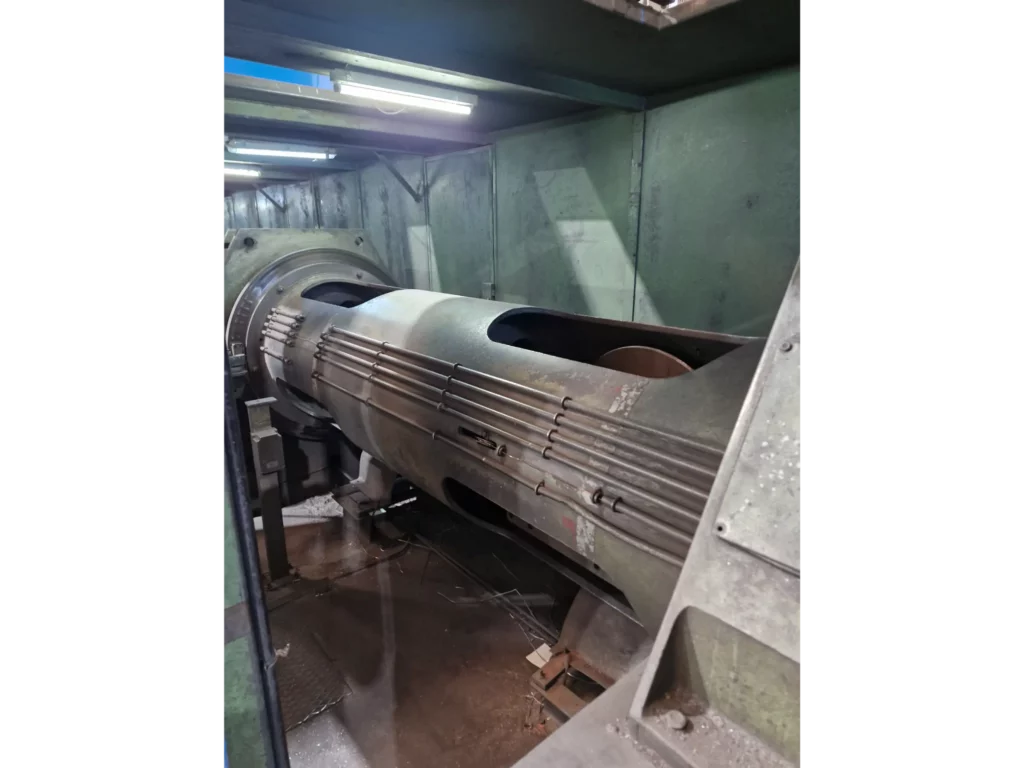

  • 1 x 18 positions tube (9 sections of 2 bobbins each)
  • 1200mm Dual wheel pulling capstan with gearbox
  • 2000mm cantilever take up
  • Soundproof cabinet
  • Main drive : Siemens AC motor 166kW
  • Electrical panel (obsolete, to be made new)

Rotating speed: 800rpm

Line speed: from 44 up to 160m/min

Lay length: adjustable from 55 up to 400mm
