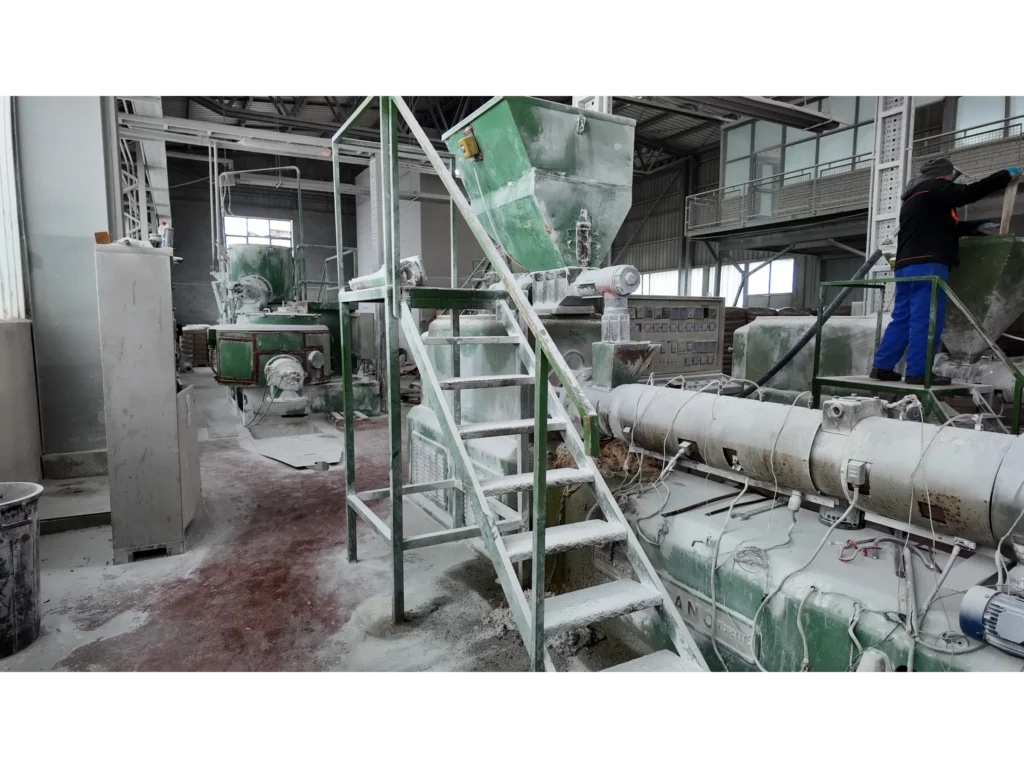

BAUSANO complete PVC compounding unit, 300-400 kg/h

Complete unit designed to produce 300-400 kg/h PVC and based on 140 mm BAUSANO double extruder.

This line is actually producing and will be dismantled in March 2026.

Line is composed of:

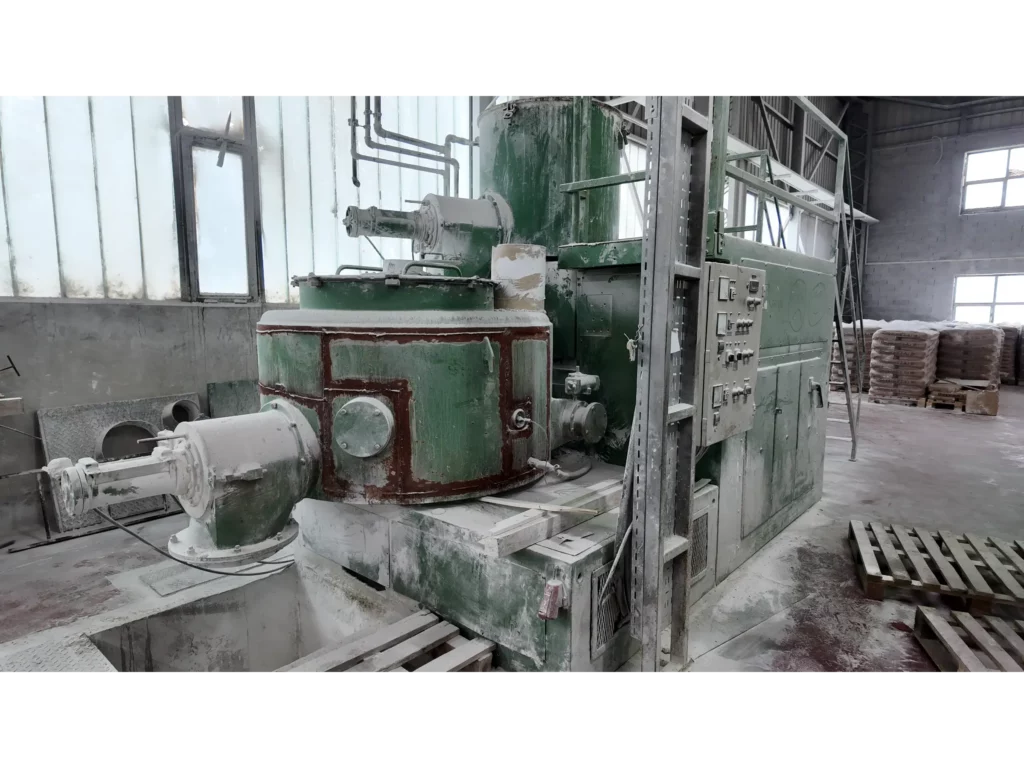

               Diosna kan – 600 Hot-Cold mixer

               140 mm/28 BAUSANO double screw extruder

               Cold granulating unit

Warm mixer

Capacity:                                         150 kg PVC (Hard) – 200 kg PVC (Soft)

Number of blades:                       3

Motor                                                110/160 kW

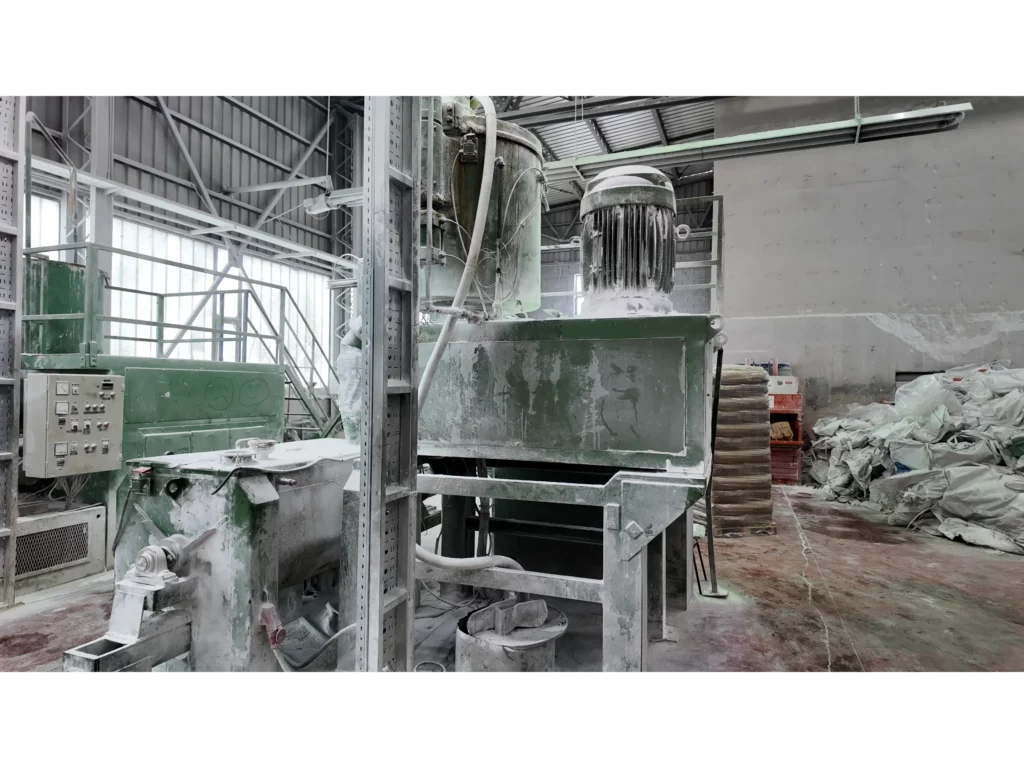

Cold Mixer

Capacity:                                         400 kg PVC

Number of blades:                       1

Motor                                                35 kW

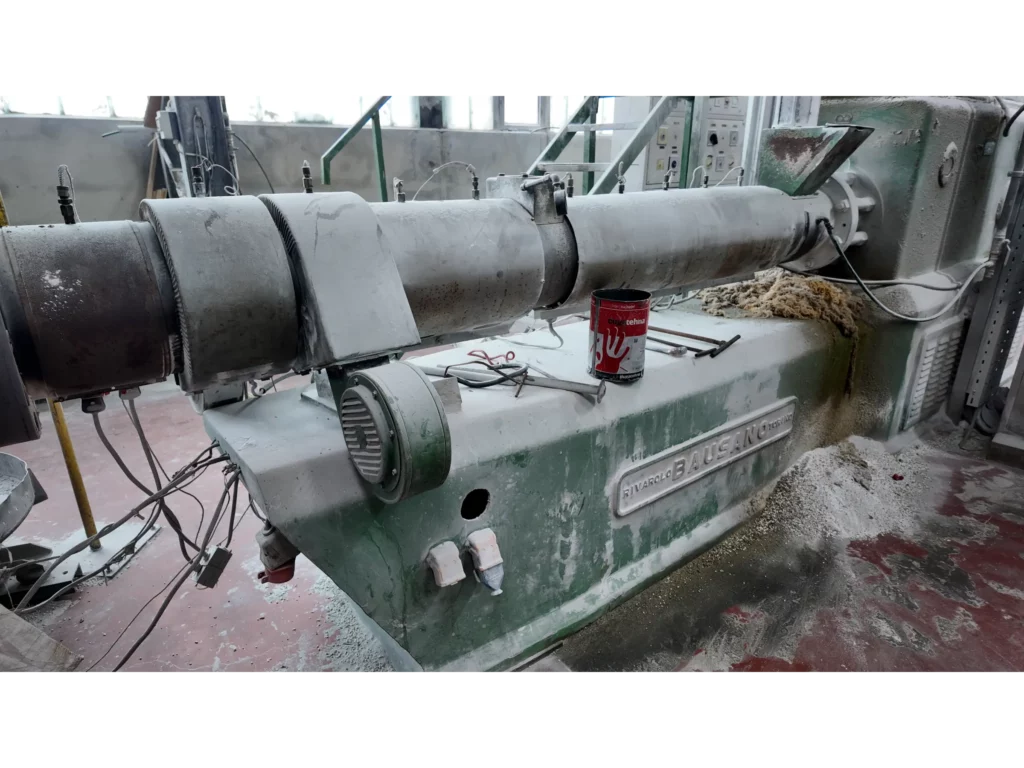

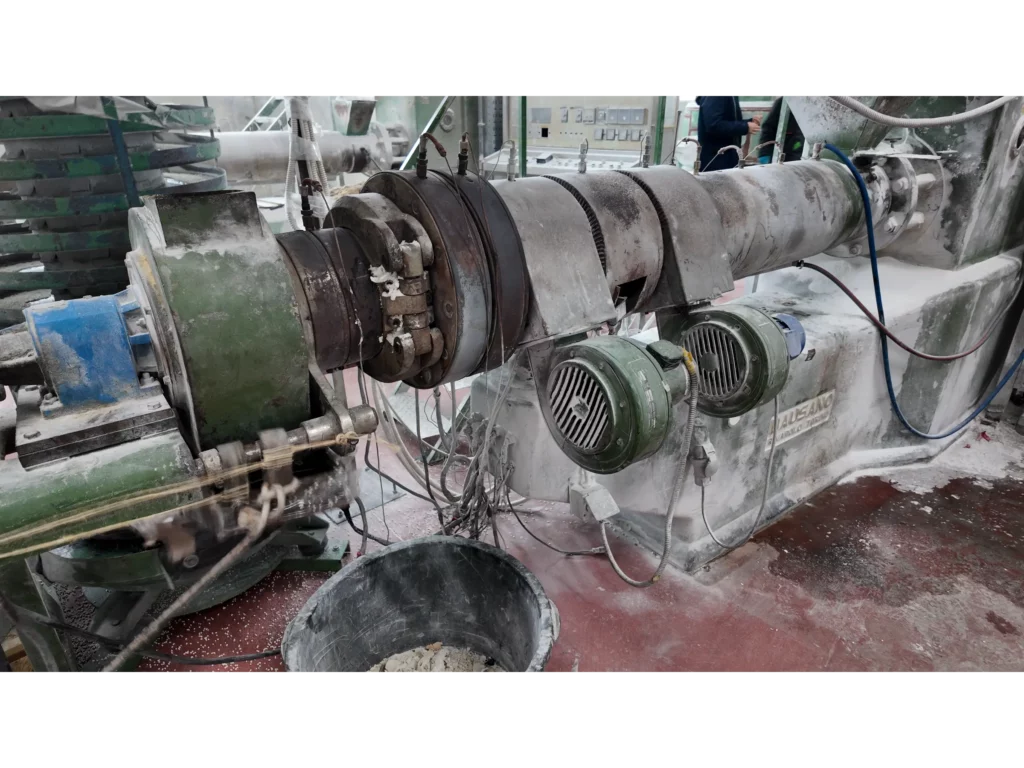

Double Screw extruder

Number of screw:                         2

Screw size:                                     140 mm/28 D

Output:                                            300-400 kg/h

Motor:                                              55 kW

Heating power:                              56 kW

Cooling power:                              2,5 kW for fans

Number of heating zone:           5

Total installed power:                  130 kW
