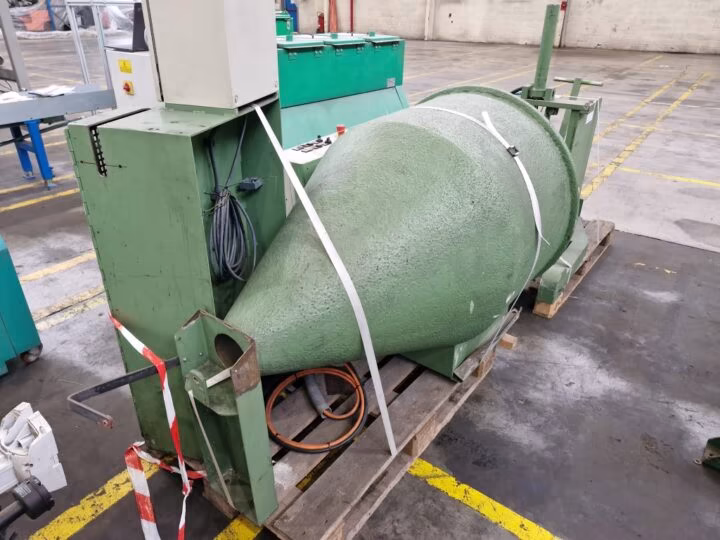

VHF EÜKA 630 Single Cone Pay off with EBU3 Braking System
Gallery:
0423-00213
Single Cone pay off made in 2003
Designed for unwinding copper wires from 0,50 up to 1,13mm diameter
Bobbin data:
* External diameter 630mm
* Barrel diameter 355mm
* Overall width 475mm
* Bore diameter 127mm
* Weight 650kg maximum
Speed : 1500m/min maximum
Trolley:
* Manual hydraulic pump to lift the bobbin
* Motor : AC 0,75kW
Braking Force regulated by a band braked wheel
Model: EÜKA 630
Quantity available: 1
