STOLBERGER 1+6+12+18/560mm RFS line

Option

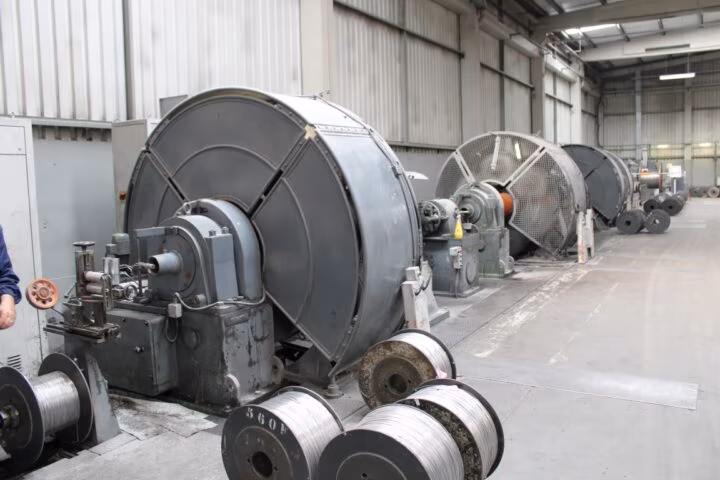

img01 stolberger 1+6+12+18 560mm rfs line

Gallery:

0140-00250

Complete Rigid Stranding line for 37 bobbins 560mm

Used for stranding conductors up to 300mm² in one or 2 passes

180 bobbins available

Bobbins dimensions
– diameter: 560mm
– barrel diameter: 280mm
– external width: 310mm
– internal width: 280mm
– bore diameter: 127mm

Bobbins hold on shaft
Lay lentgh selectable through gears

Scope of supply:
* 560mm central brake pay off
* 6 bobbins cage
* compacting head
* 12 bobbins cage
* compacting head
* 18 bobbins cage
* compacting head
* 1600mm dual wheel capstan with gear box
* 2000mm column type take up
* Electrical panel
* Compacting tools
* Gears for lay length selection
* rewinding line for 560mm bobbins
* 180 bobbins 560mm

Model: KSA 56
Quantity available: 1
