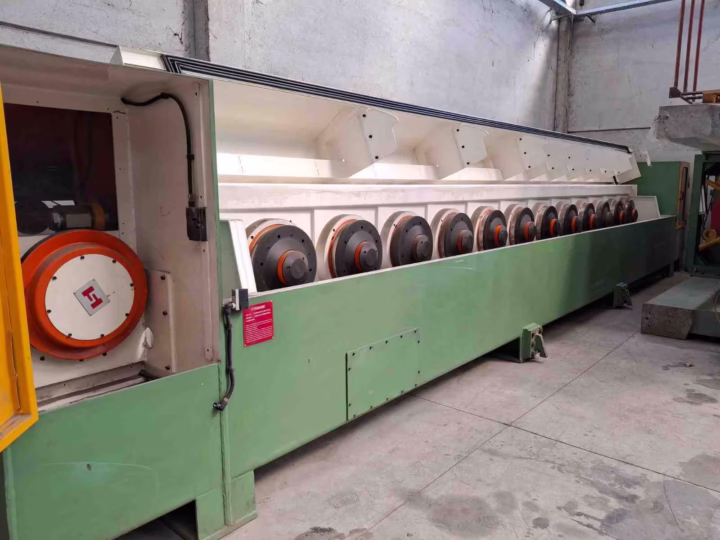

SICTRA 13 Dies Rodbreakdown Bench, 13 motors

Thanks to its configuration with 1 motor for on each capstan, this rodbreakdown machine can be used either for Aluminium or Copper wire.

Outlet diameter: 1,10mm up to 3,50mm
Number of dies: 13 with 13 independent motors

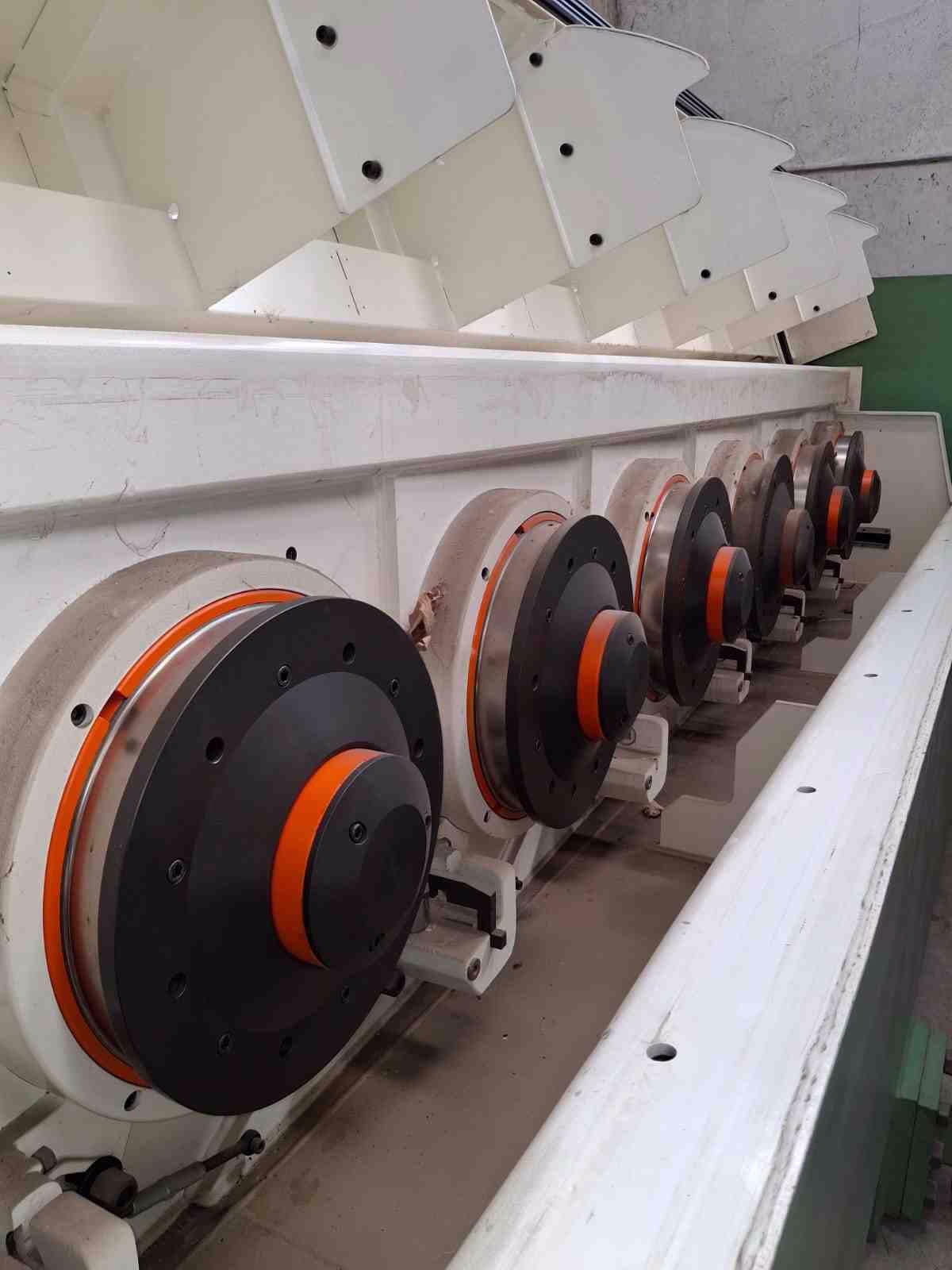

Capstan diameter: 450mm
Maximum speed: 35m/s

Capstan AC motors list:
5 x 37kW
3 x 30kW
1 x 15kW
1 x 17kW
2 x 15kW
1 x 95kW

Machine made and delivered in 1998 but never installed.
The original electrical and operator panels are available. However, the installed drives are obsolete.
