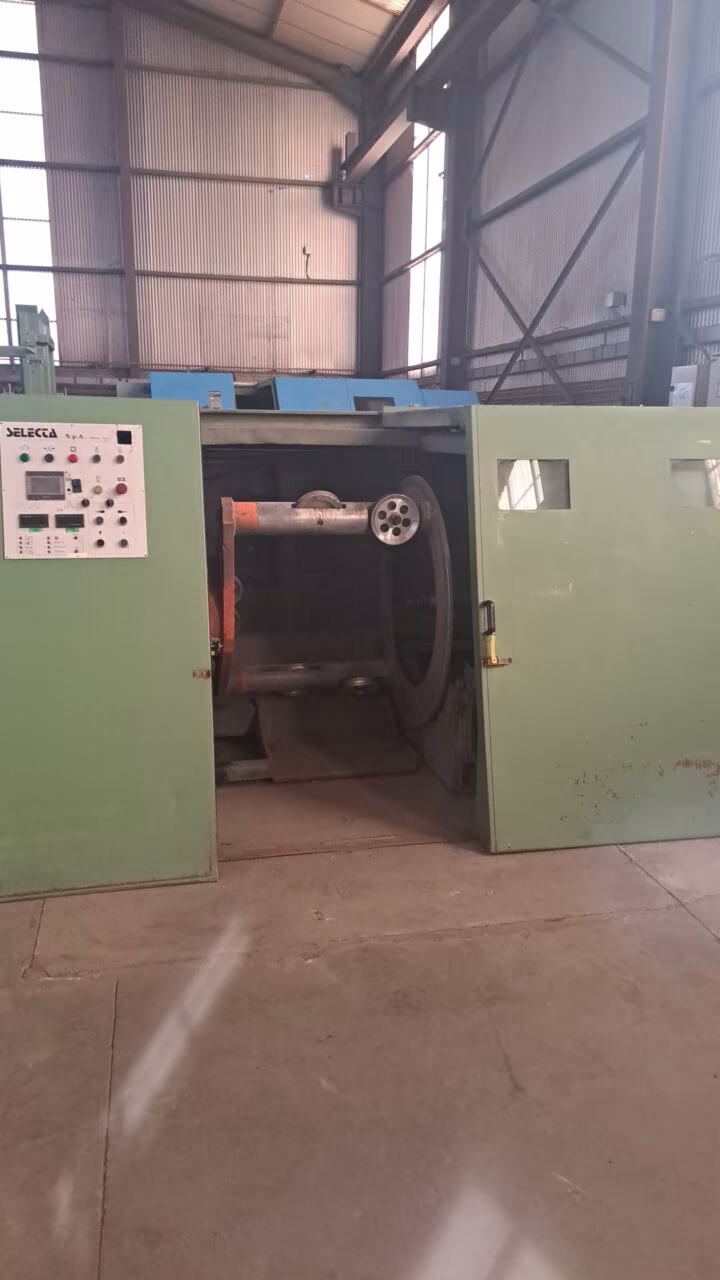

SELECTA 800mm Single Twist Stranding Machine

Single Twist machine used for stranding insulated conductors, with or without tape:
2 x 0,5mm²
5 x 2,5mm²
4 x 4,0mm²

Bobbin diameter: 800mm
Bobbin hold on shaft
Bobbin Motor: 23,6 kW DC
Lifting table motorized

Rotation speed: 700rpm
Linear speed: 150m/min maximum

Lay length electronically adjustable from 25 up to 250mm

Main Motor: 32kW DC

Available with Electrical panel and Soundproof cabinet
