SAMP MS400 13 Dies Rodbreakdown line

Samp MS400 rodbreakdown line for copper wire

Inlet diameter: 8.00mm
Outlet diameter: 1.06mm up to 2.95mm
Wire elongation: 29%
Speed: up to 35m/sec

Delivery includes:
– Coil pay off
– COSEMA emulsion filter and tank

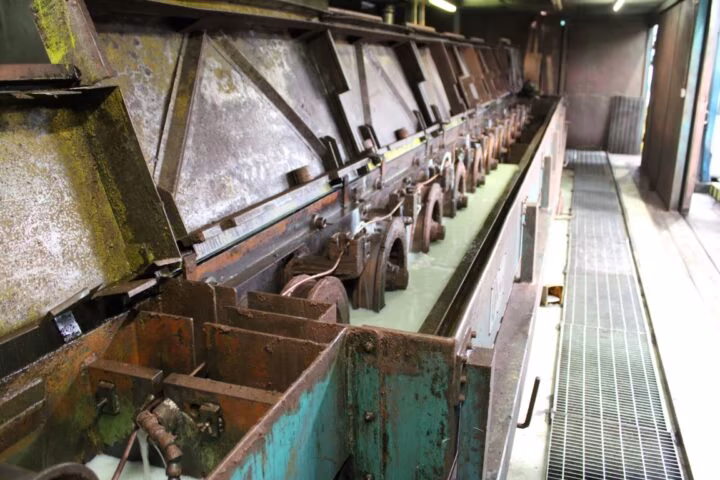

– SAMP MS400 13 dies drawing bench
– NIEHOFF VG85 annealer (240 kVA)
– NIEHOFF 630mm single dynamic spooler
– Pumps, coolers and pipes for emulsion
– Electrical cabinets

Main motor 315kW AC with independent drive

NIEHOFF VG85 annealer description:
* 3-phases resistance heating type
* The wire reaches its annealing temperature in a steam atmosphere
after which it is quenched and cooled.
* Supply voltage: 400V
* Wire range: 1,4 to 3,5 mm
* Production speed: 15 – 20 m/s
