POURTIER 2000mm Single Twist Steel Wire Armouring Line
Gallery:
SWA 2000 mm Single Twist Line made in 2013 for steel armouring
By adding pay off it can also be used for laying up medium size round cables and even straight sector by adding proper lay plate
Cable diameter: 45 mm
Bobbin size: 2000 mm – 8 tons
Steel Wire Size: 0,9 mm – 1,6 mm (450 N/mm2)
Number of Wires: 66 X 1,6 mm – 84 X 0,9 mm
Production speed:
Take-up/Pay-off: 200RPM
Line geared speed: 100 m/min
Delivery includes:
1 x Backtwist type pay off, pintle type, DST2000
1 x Electromechanical lift, EM3-ST2000
84 x Inductive Sensor/Electronics for Wire Break Detection and
braking Plates/Pulleys, IDC-P
1 x Outer Guiding pulleys for 96 wires, REP-DCV96

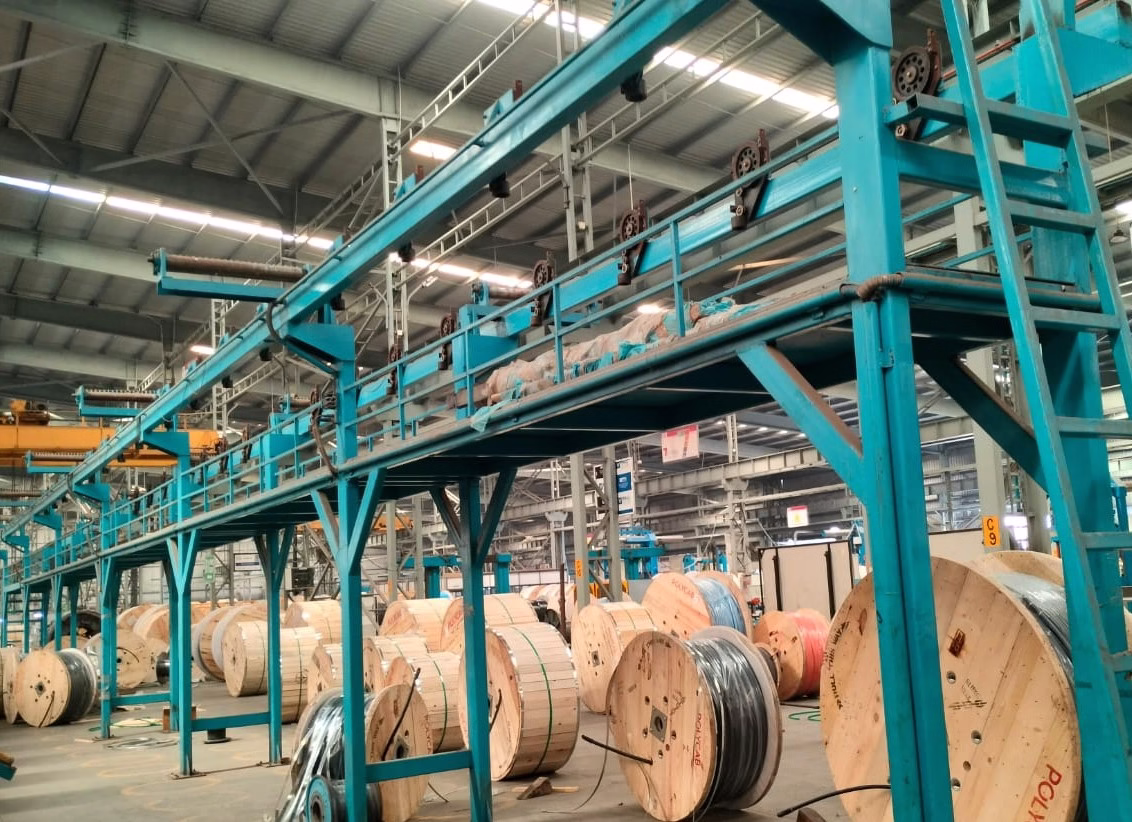

11 x Pay off structure with Platform for 8 GSW in coil form,DVC12-8-P
1 x Armouring Block for 96 wires, SAB96
1 x Powered rotating die for armouring block, SAB96

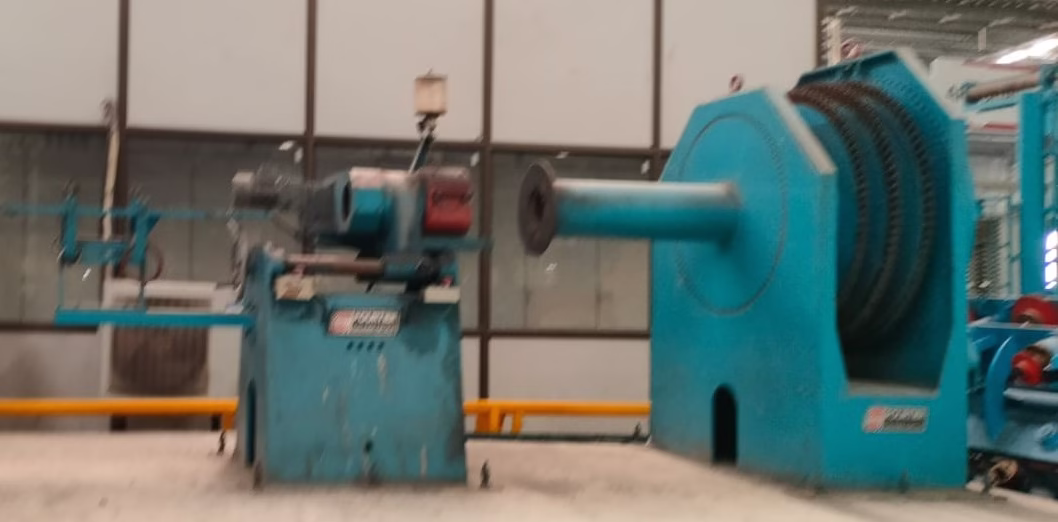

1 x Single Twist Take up, ST2000
1 x Electromechanical lift, EM3-ST2000
1 x Linear speed encoder
1 x Electrical panels (Siemens PLC and Touch Screen)
1 x Motors
