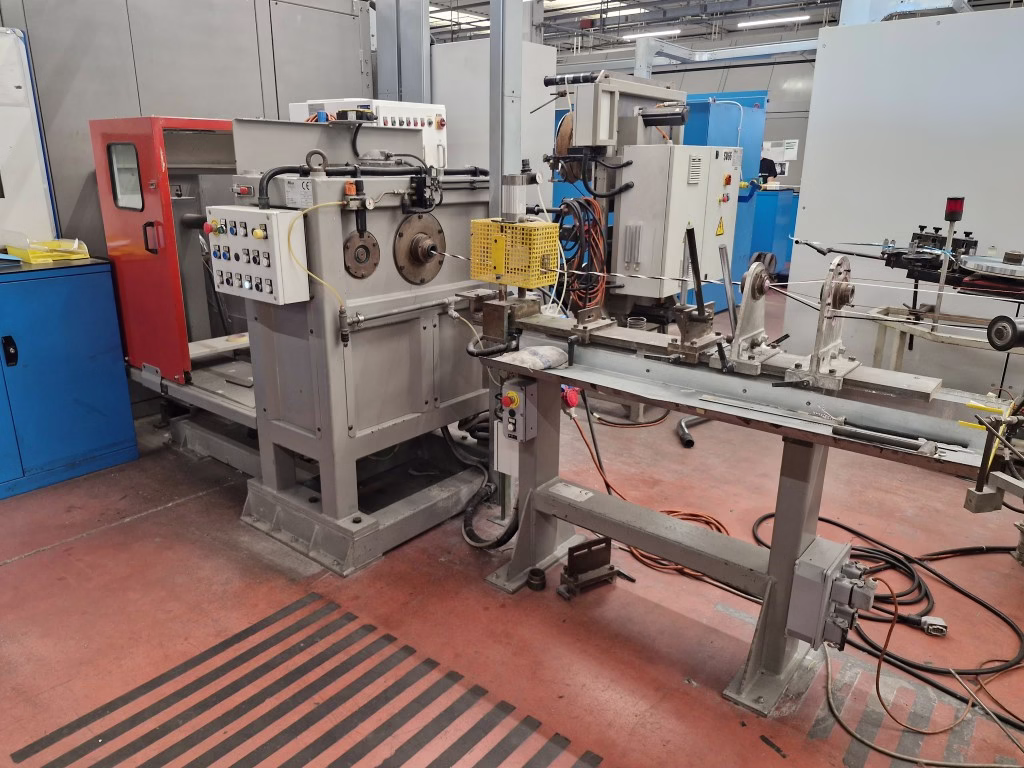

NOVA 1000mm Single Twist Stranding line

Complete Single twist stranding line in perfect working condition

Made by Nova in 2010

Maximum rotating speed : 600rpm
Maximum line speed : 160m/min
Cable passage diameter: 15mm
Lay length range : 0-330mm

Delivery includes:

1 x Backwist pay off, 600/800mm bobbins
8 x Dual braked shaft pay off, 600/800mm bobbins

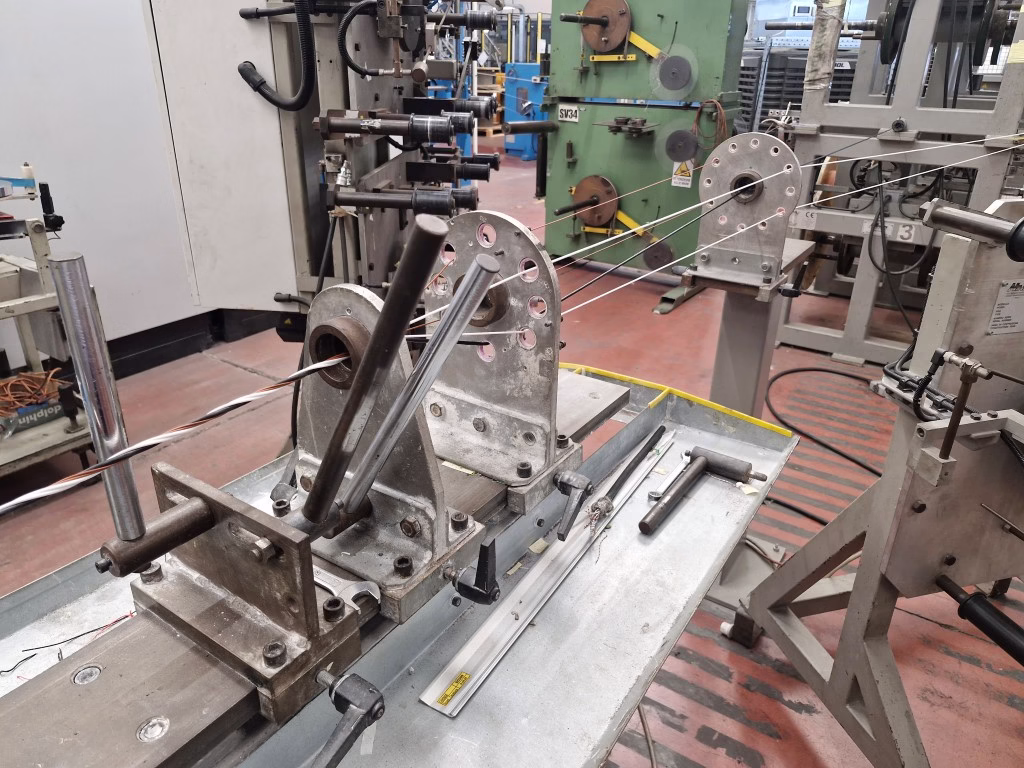

1 x Bench
1 x Concentric taping head

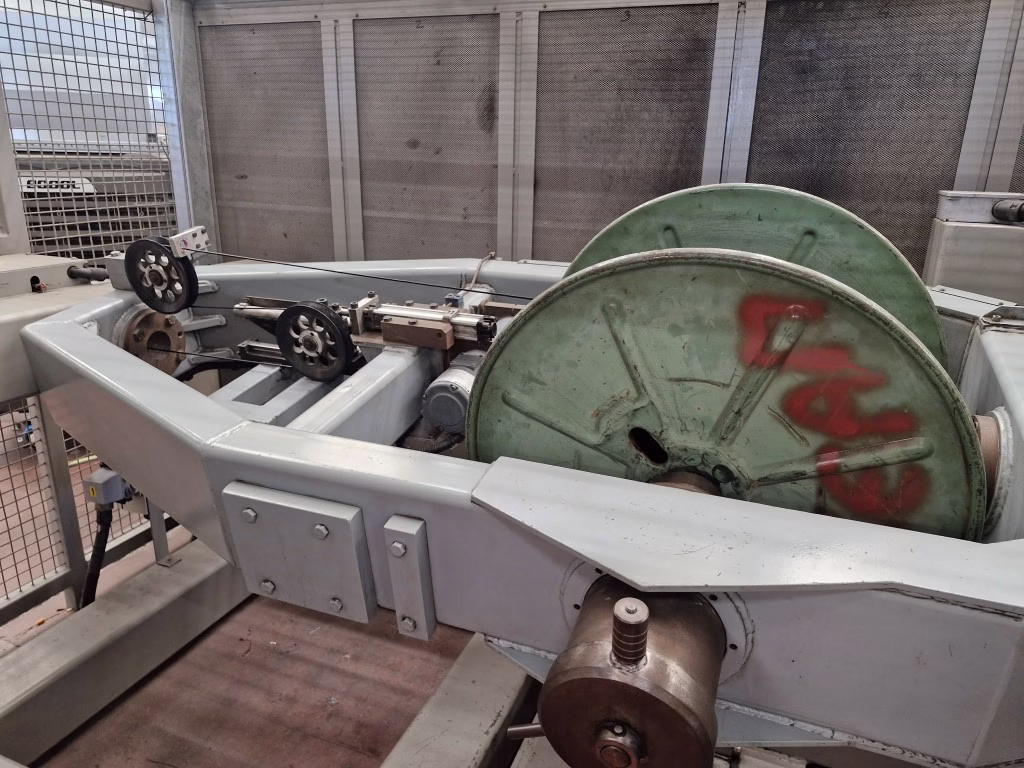

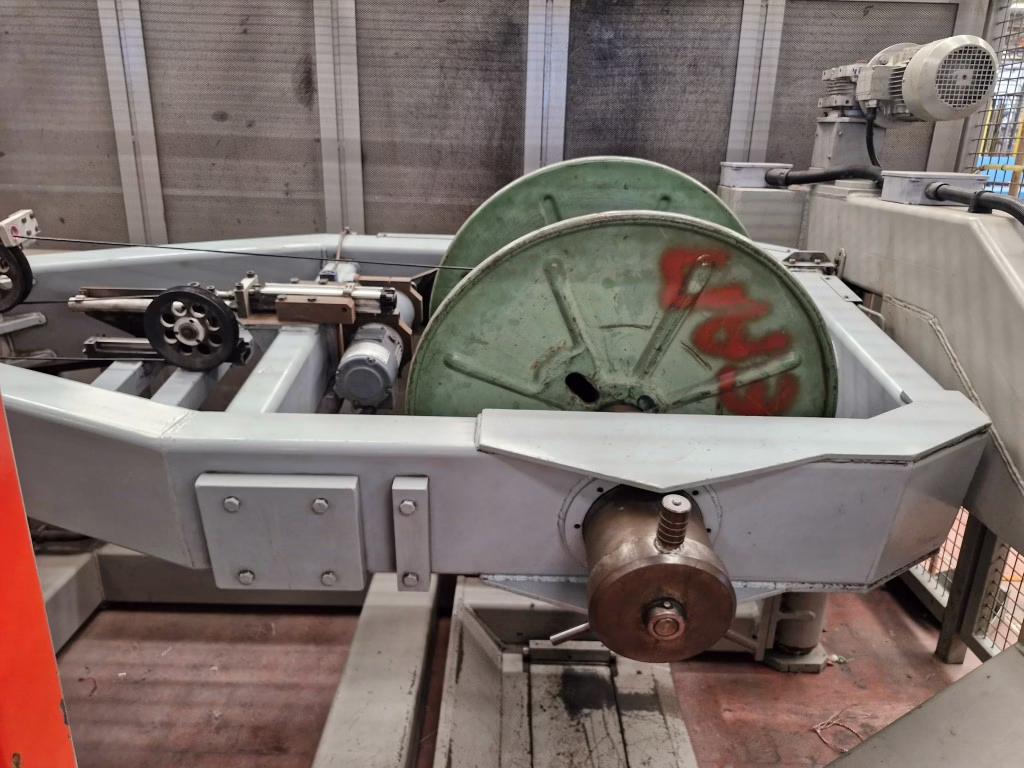

1 x 1000mm Single twist strander
1 x Electrical panel (Siemens S7 PLC and drives)

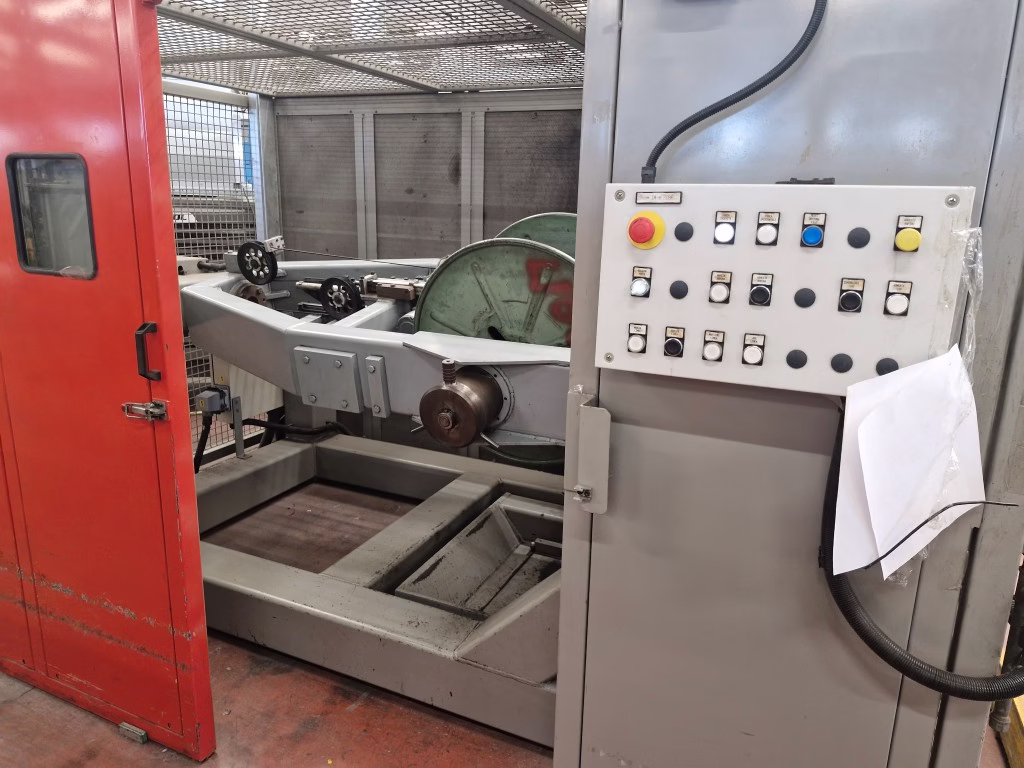

1 x Operator panel
