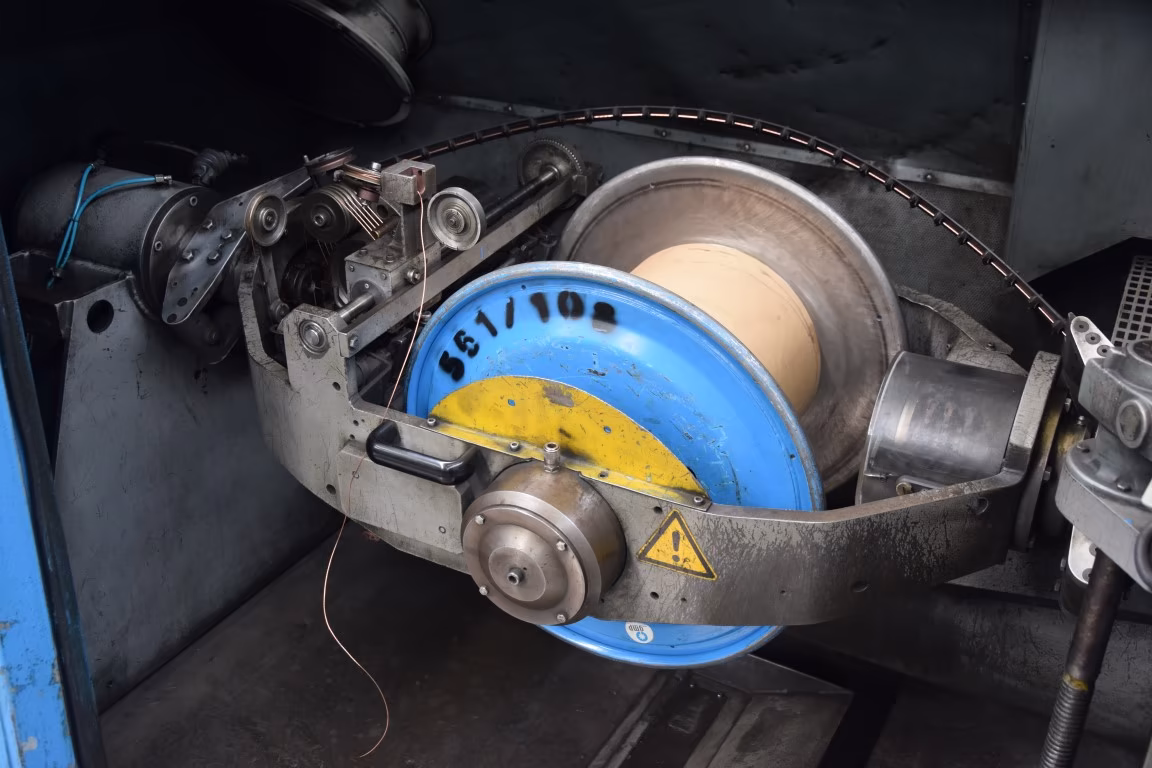

NIEHOFF D561 Double Twist Stranding Machine

Double twisting stranding machine for flexible copper conductors

Strand cross section: 0,055 to 2,50mm²
Single wire diameter: 0,05mm to 0,67mm
Lay length : 2 to 60mm electronically adjustable
Adjustable speed from 500 to 7000RPM

Capstan pulling

Bobbin:
* Diameter max: 560mm
* Flange diameter min: 400mm
* Barrel diameter min: 224mm
* Overall width max: 425mm
* Traversing width max: 380mm
* Grossweight max : 400kg

Hydraulic Lifting table
