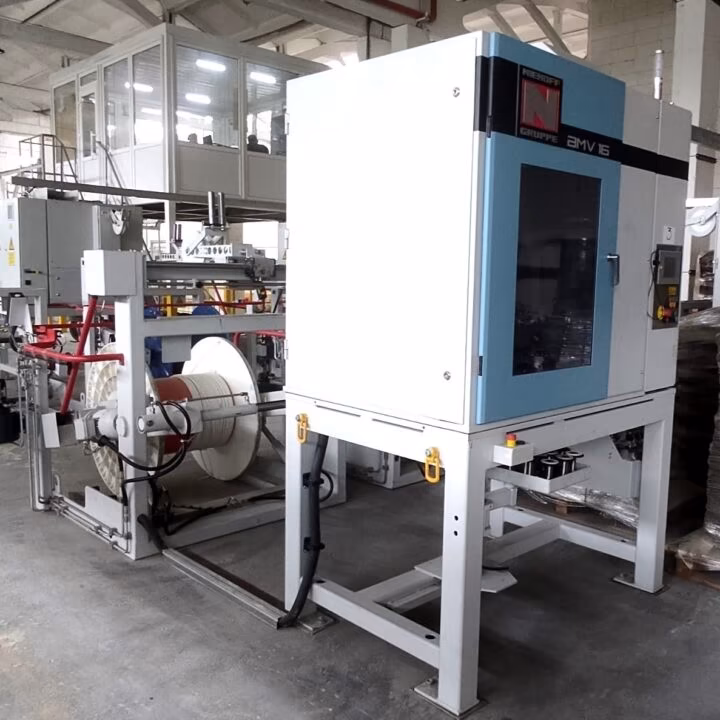

NIEHOFF BMV16 Braiding machine (made in 2021)

7 braiders made in 2021, fully operational and immediately available.

each machine is available with:
* Pay-off device АН 1000.1
* Take-up device WH 1000.1
* Electrical panel
3 units are equipped with a longitudinal tape feeding device

Main technical characteristics

– Braiding direction – vertical
– Braiding type – 2:2
– Diameter of single wire – 0,05… 0,30 mm
– Cross-section of bunch – 0,02…0,30 mm2
– Braiding materials:
* copper (up to 300 N/mm²): with diameter from 0,05 mm (from 4     up to 16 wires) up to diameter 0,30 mm (from 1 up to 5 wires)
* galvanized iron and aluminum wire (up to 400 N/mm²): with
diameter from 0,05 mm (from 3 up to 12 wires) up to diameter of
0,30 mm (from 1 up to 2 wires)
* Stainless steel wire (up to 900 N/mm²): with diameter from 0,10
mm (from 1 up to 7 wires) up to up to diameter 0,20 mm (from 1
up to 5 wires)
– Braiding lay length – 3 … 120 mm smooth control
– Max. line speed – 21 m/min
– Tension on the spool carrier – 0,9 N – 10 N
– Braiding spools:
* Type – S3, plastic
* max. flange diameter 80 mm
* max. overall length 100 mm
* number of spools – 16 (8 from above and 8 below)
* spools rotation number – max. 175 rpm*
– Diameter of haul-off capstan – 650 mm
– Central inlet hole – 50 mm
– Braiding diameter – around 15 mm

Specifications Pay-off  АН 1000.1
– Reel dimensions:
* Flange diameter max. 1000 mm, min. 560 mm
* Overall width max. 750 mm, min. 425 mm
– Weight of reel with cable, max. 1200 kg
– Reel fixation – by pintles
– Lifting and lowering of reel – hydraulic
– Pulling speed – 21 m/min
– Max. tensile force – max. 50 N

Specifications Take-up WH 1000.1
– Spool size:
* Flange diameter max. 1000 mm, min. 560 mm
* Overall length max. 750 mm, min. 425 mm
– Weight of spool, gross max. 1200 kg
– Reel fixation – by pintles
– Lifting and lowering of reel – pneumatic
– Spooling speed – 21 m/min
– Max. tensile force – max. 50 N
