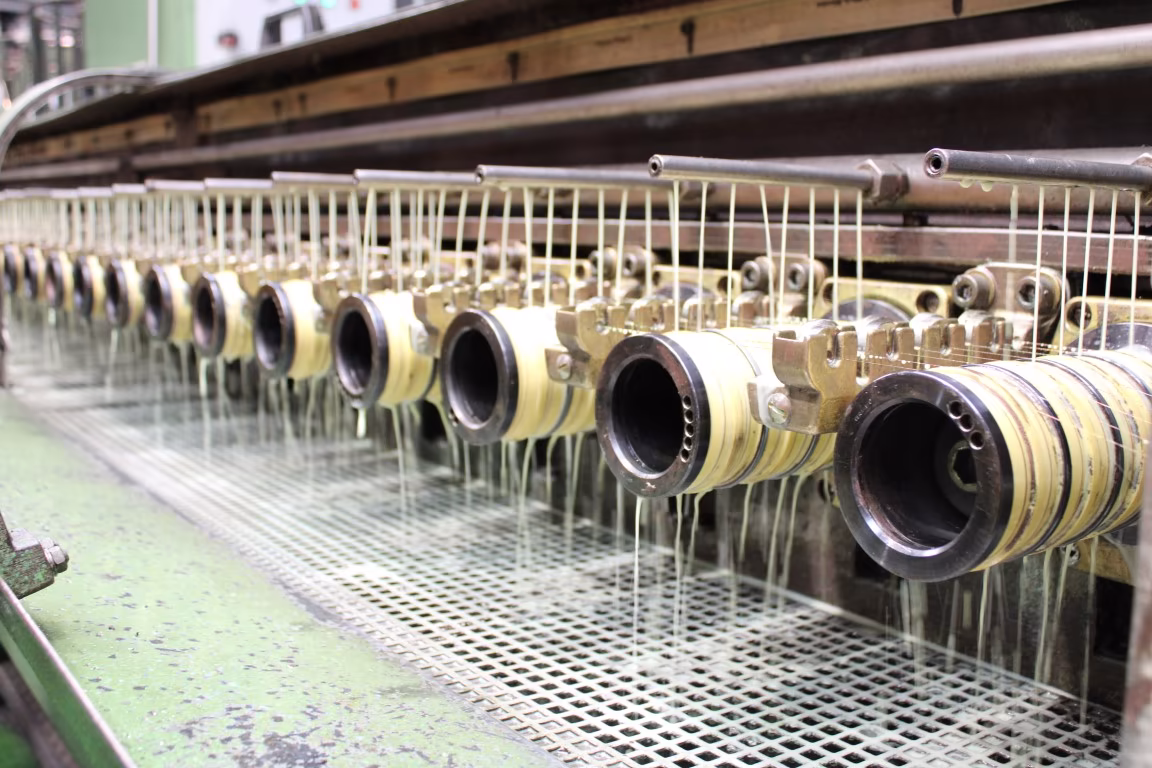

NIEHOFF 8 wires 21 Dies Drawing Line 0.20 to 0.50mm, Model MMH101
Gallery:
0630-00107
8 positions basket pay off
VG30 Annealer: 1700Amp
800mm dynamic spooler made by Tecalsa
MMH101 8 wires drawing bench specifications :
21 Dies
Elongation : 10 x 26% + 11 x 21%
Input diameter: 1,80mm
Output diameter: 0,20 to 0,50mm
Capstans diameter: 80mm
Dies housing : 28mm dia x 12 mm
Line speed: 31,5m/min maximum
Main motor: 117kW
Last capstan motor: 33 kW
Model: MMH101
Quantity available: 1
