NIEHOFF 21 dies MMH101 0,15 to 0,50mm 24 wires drawing line
Gallery:
0630-00191
Complete line for drawing 24 copper wires :
* Pay off structure for 24 wires, Model AUF 800.D.1.24
* 24 wires drawing machine, model MMH101.E3.1.A.24.F21
* Continuous annealer 5000A, model RM 201.1.24.5000
* 3 x Dynamic spooler 630mm, model S631.1.F.E
* Rezy filtration unit for the drawing section
* Rezy filtration unit for the annealer
* Electrical panel with Siemens S7-300 PLC
* Soundproof Cabinet

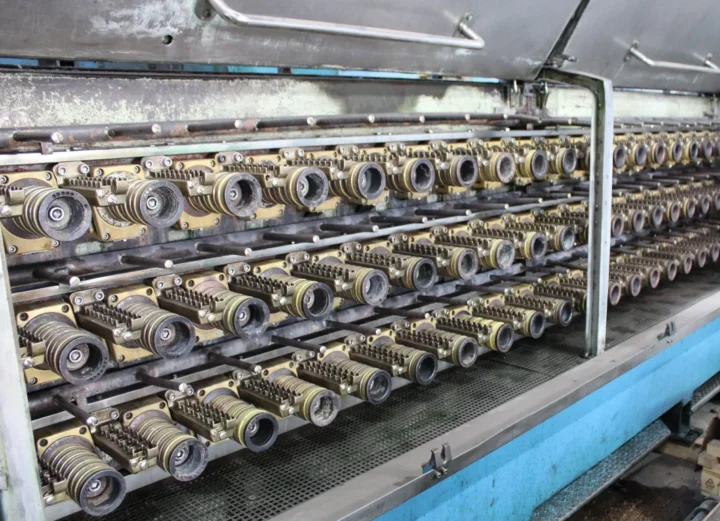

MMH101.E3.1.A.24.F21 Drawing Bench:
* Inlet wire diameter: 1,80mm
* Outlet wire diameter: 0,15 up to 0,50mm
* 21 dies
* Wire elongation: 10 x 26% + 11 x 21%
* Capstan diameter: 80mm
* Main motor: 280kW DC
* Last capstan motor: 60kW DC
* Soundproof cabinet
Model: MMH101
Quantity available: 1
