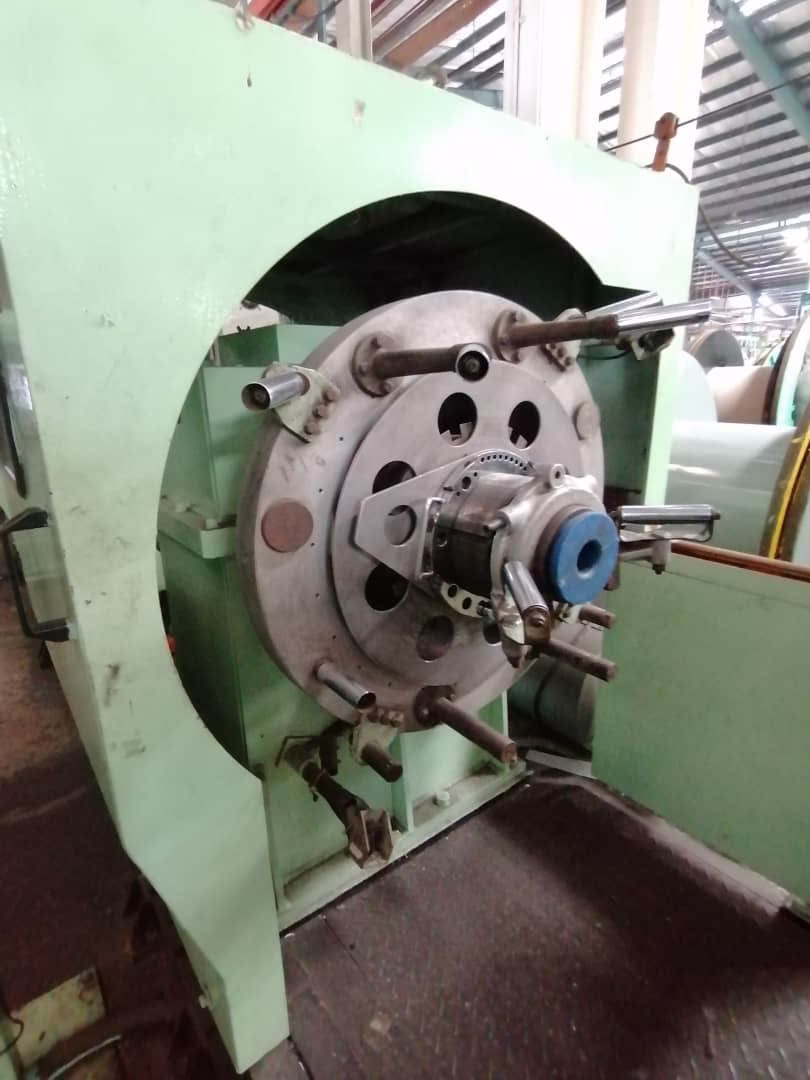

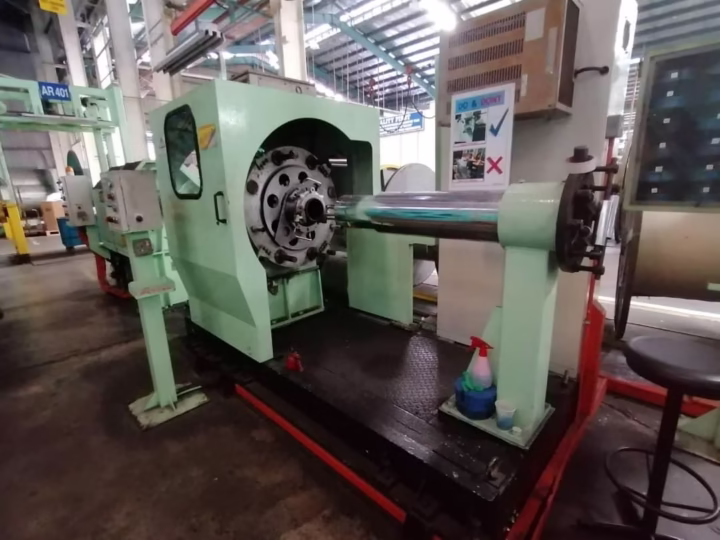

HAMANA 500mm Concentric Taping Head
Gallery:
0171-00280
Concentric Taping Head made in 2007 (2 units available)
Rotating speed 1200rpm
Tape width 10 to 70mm
Tape OD 500mm
Tape ID 202mm
Tape Thickness 0.08 – 0.2mm
Tape material Cu
Tape weight 15 to 60kg
Cable diameter 85mm maximum
Tension 5 to 15kg
Motor capacity 18,5Kw
Type: Concentric taping heads
Model:
Quantity available: 2
