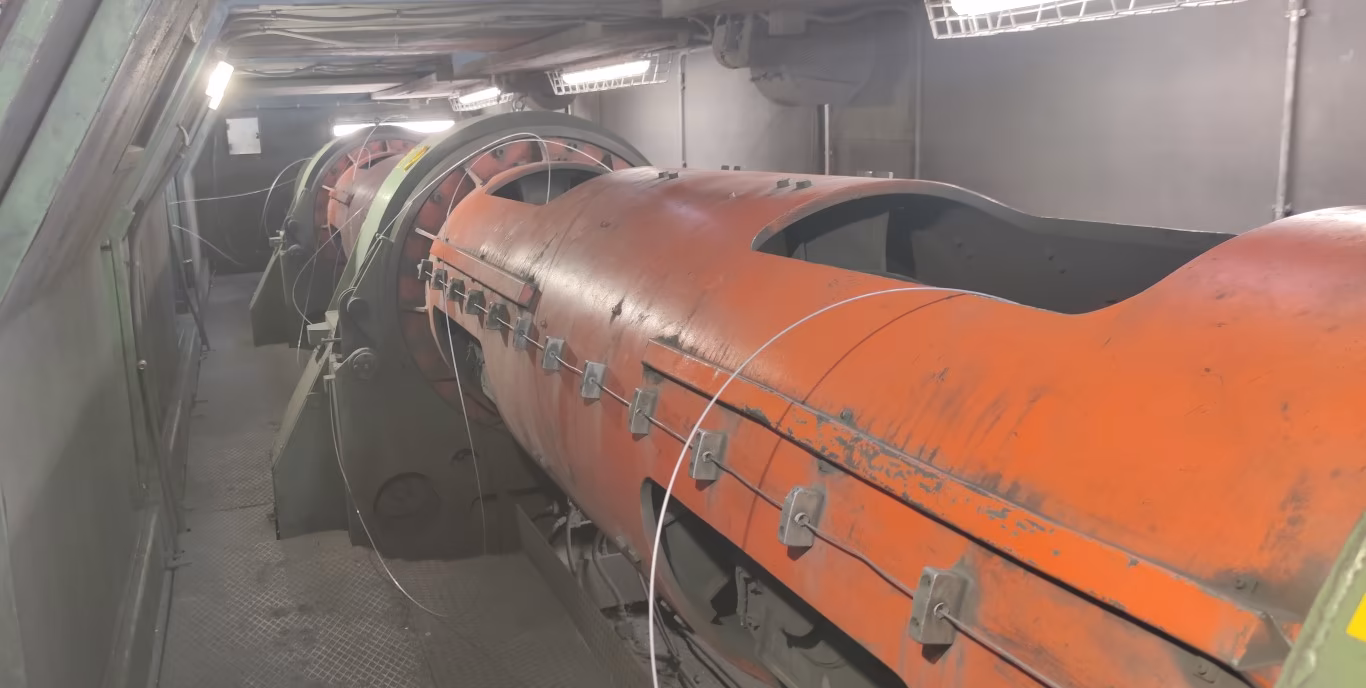

DE ANGELI 1+6/630mm Tubular Stranding Line

Complete tubular line used for stranding copper (1.74-3.50 mm), aluminium alloy (2.00-4.25 mm), galvanized steel wire (1.75-3.50 mm), ACS (1.95-4.10 mm) or CuMg (3x7x0.50 mm)

Lay length adjustable from 38 up to 318 mm.
Tube speed : 850rpm max.

Line composition:

1600mm Portal type pay off
6 positions tube on rollers
1200mm double wheel capstan
1600mm Portal type take up
Electrical panel
DC Motor
Soundproof cabinet
